vtkXMLPStructuredGridWriter Class Reference

#include <vtkXMLPStructuredGridWriter.h>

Inheritance diagram for vtkXMLPStructuredGridWriter:

Inheritance graph

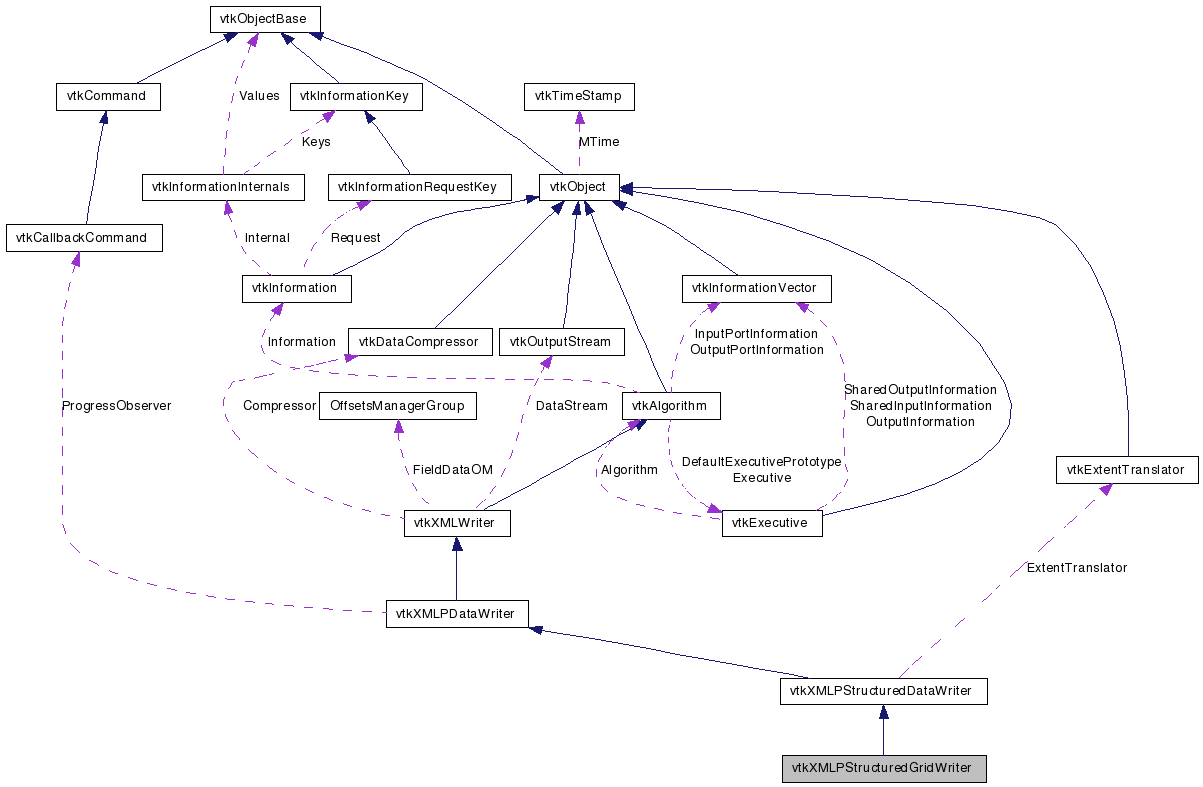

Collaboration diagram for vtkXMLPStructuredGridWriter:

Collaboration graph

List of all members.

Detailed Description

Write PVTK XML StructuredGrid files.

vtkXMLPStructuredGridWriter writes the PVTK XML StructuredGrid file format. One structured grid input can be written into a parallel file format with any number of pieces spread across files. The standard extension for this writer's file format is "pvts". This writer uses vtkXMLStructuredGridWriter to write the individual piece files.

See also:

Definition at line 36 of file vtkXMLPStructuredGridWriter.h.

Public Types

typedef vtkXMLPStructuredDataWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkStructuredGridGetInput ()

Static Public Member Functions

New ()
static int IsTypeOf (const char *type)
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMLPStructuredGridWriter ()
 ~vtkXMLPStructuredGridWriter ()
virtual int FillInputPortInformation (int port, vtkInformation *info)
const char * GetDataSetName ()
const char * GetDefaultFileExtension ()
vtkXMLStructuredDataWriterCreateStructuredPieceWriter ()
void WritePData (vtkIndent indent)

Member Typedef Documentation

Reimplemented from vtkXMLPStructuredDataWriter.

Definition at line 40 of file vtkXMLPStructuredGridWriter.h.

Constructor & Destructor Documentation

vtkXMLPStructuredGridWriter::vtkXMLPStructuredGridWriter (  )  [protected]

vtkXMLPStructuredGridWriter::~vtkXMLPStructuredGridWriter (  )  [protected]

Member Function Documentation

static vtkXMLPStructuredGridWriter* vtkXMLPStructuredGridWriter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkXMLPStructuredGridWriter::GetClassName (  )  [virtual]

Reimplemented from vtkXMLPStructuredDataWriter.

static int vtkXMLPStructuredGridWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataWriter.

virtual int vtkXMLPStructuredGridWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataWriter.

static vtkXMLPStructuredGridWriter* vtkXMLPStructuredGridWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkXMLPStructuredDataWriter.

void vtkXMLPStructuredGridWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPStructuredDataWriter.

vtkStructuredGrid* vtkXMLPStructuredGridWriter::GetInput (  )

Get/Set the writer's input.

Reimplemented from vtkXMLWriter.

virtual int vtkXMLPStructuredGridWriter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

const char* vtkXMLPStructuredGridWriter::GetDataSetName (  )  [protected, virtual]

Implements vtkXMLWriter.

const char* vtkXMLPStructuredGridWriter::GetDefaultFileExtension (  )  [protected, virtual]

Get the default file extension for files written by this writer.

Implements vtkXMLWriter.

vtkXMLStructuredDataWriter* vtkXMLPStructuredGridWriter::CreateStructuredPieceWriter (  )  [protected, virtual]

void vtkXMLPStructuredGridWriter::WritePData ( vtkIndent  indent  )  [protected, virtual]

Reimplemented from vtkXMLPDataWriter.

The documentation for this class was generated from the following file:
