vtkXMLRectilinearGridReader Class Reference

#include <vtkXMLRectilinearGridReader.h>

Inheritance diagram for vtkXMLRectilinearGridReader:

[legend]

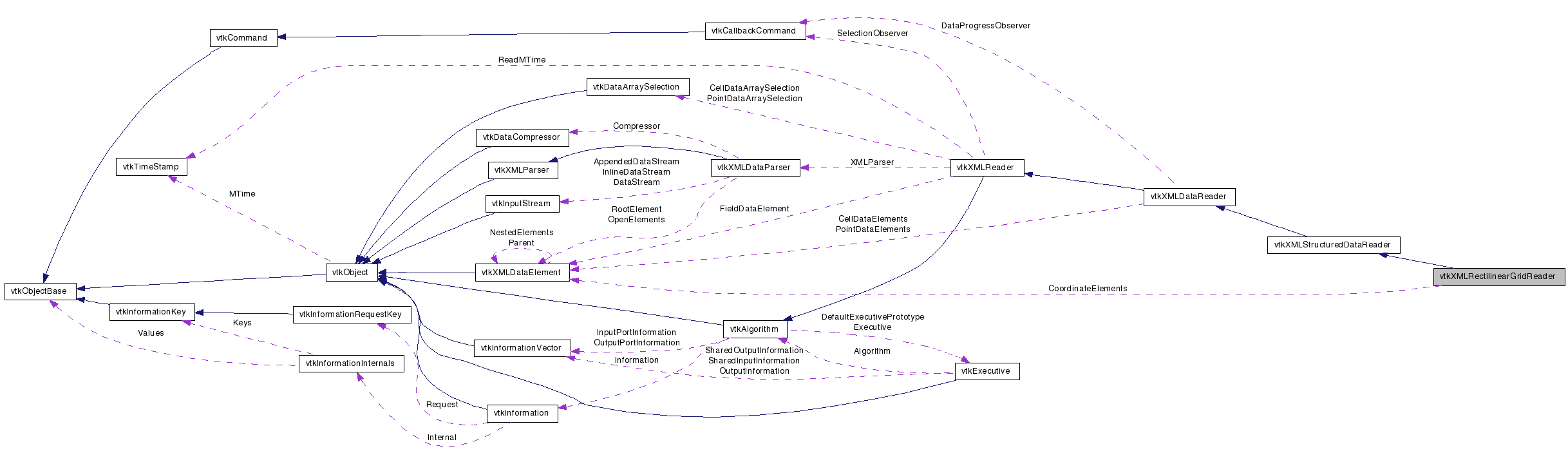

Collaboration diagram for vtkXMLRectilinearGridReader:

[legend]

List of all members.

---

Detailed Description

Read VTK XML RectilinearGrid files.

vtkXMLRectilinearGridReader reads the VTK XML RectilinearGrid file format. One rectilinear grid file can be read to produce one output. Streaming is supported. The standard extension for this reader's file format is "vtr". This reader is also used to read a single piece of the parallel file format.

See also:

vtkXMLPRectilinearGridReader

Tests:

vtkXMLRectilinearGridReader (Tests)

Definition at line 38 of file vtkXMLRectilinearGridReader.h.

Public Types
typedef vtkXMLStructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetOutput (vtkRectilinearGrid *output)
vtkRectilinearGrid *	GetOutput ()
vtkRectilinearGrid *	GetOutput (int idx)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLRectilinearGridReader *	SafeDownCast (vtkObject *o)
static vtkXMLRectilinearGridReader *	New ()
Protected Member Functions
	vtkXMLRectilinearGridReader ()
	~vtkXMLRectilinearGridReader ()
const char *	GetDataSetName ()
void	SetOutputExtent (int *extent)
void	SetupPieces (int numPieces)
void	DestroyPieces ()
void	SetupOutputData ()
int	ReadPiece (vtkXMLDataElement *ePiece)
int	ReadPieceData ()
int	ReadSubCoordinates (int *inBounds, int *outBounds, int *subBounds, vtkXMLDataElement *da, vtkDataArray *array)
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
vtkXMLDataElement **	CoordinateElements

---

Member Typedef Documentation

typedef vtkXMLStructuredDataReader vtkXMLRectilinearGridReader::Superclass

Reimplemented from vtkXMLStructuredDataReader.

Definition at line 41 of file vtkXMLRectilinearGridReader.h.

---

Constructor & Destructor Documentation

vtkXMLRectilinearGridReader::vtkXMLRectilinearGridReader

(

)

[protected]

vtkXMLRectilinearGridReader::~vtkXMLRectilinearGridReader

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkXMLRectilinearGridReader::GetClassName

(

)

[virtual]

Reimplemented from vtkXMLStructuredDataReader.

static int vtkXMLRectilinearGridReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataReader.

virtual int vtkXMLRectilinearGridReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLStructuredDataReader.

static vtkXMLRectilinearGridReader* vtkXMLRectilinearGridReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLRectilinearGridReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLStructuredDataReader.

static vtkXMLRectilinearGridReader* vtkXMLRectilinearGridReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

void vtkXMLRectilinearGridReader::SetOutput

(

vtkRectilinearGrid *

output

)

Get/Set the reader's output.

vtkRectilinearGrid* vtkXMLRectilinearGridReader::GetOutput

(

)

Get/Set the reader's output.

vtkRectilinearGrid* vtkXMLRectilinearGridReader::GetOutput

(

int

idx

)

Get/Set the reader's output.

const char* vtkXMLRectilinearGridReader::GetDataSetName

(

)

[protected, virtual]

Implements vtkXMLReader.

void vtkXMLRectilinearGridReader::SetOutputExtent

(

int *

extent

)

[protected, virtual]

Implements vtkXMLStructuredDataReader.

void vtkXMLRectilinearGridReader::SetupPieces

(

int

numPieces

)

[protected, virtual]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLRectilinearGridReader::DestroyPieces

(

)

[protected, virtual]

Reimplemented from vtkXMLStructuredDataReader.

void vtkXMLRectilinearGridReader::SetupOutputData

(

)

[protected, virtual]

Reimplemented from vtkXMLDataReader.

int vtkXMLRectilinearGridReader::ReadPiece

(

vtkXMLDataElement *

ePiece

)

[protected, virtual]

Reimplemented from vtkXMLStructuredDataReader.

int vtkXMLRectilinearGridReader::ReadPieceData

(

)

[protected, virtual]

Reimplemented from vtkXMLDataReader.

int vtkXMLRectilinearGridReader::ReadSubCoordinates	(	int *	inBounds,
		int *	outBounds,
		int *	subBounds,
		vtkXMLDataElement *	da,
		vtkDataArray *	array
	)			[protected]

virtual int vtkXMLRectilinearGridReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

Member Data Documentation

vtkXMLDataElement** vtkXMLRectilinearGridReader::CoordinateElements [protected]

Definition at line 69 of file vtkXMLRectilinearGridReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLRectilinearGridReader.h
