vtkClipHyperOctree Class Reference

#include <vtkClipHyperOctree.h>

Inheritance diagram for vtkClipHyperOctree:

Inheritance graph
[legend]

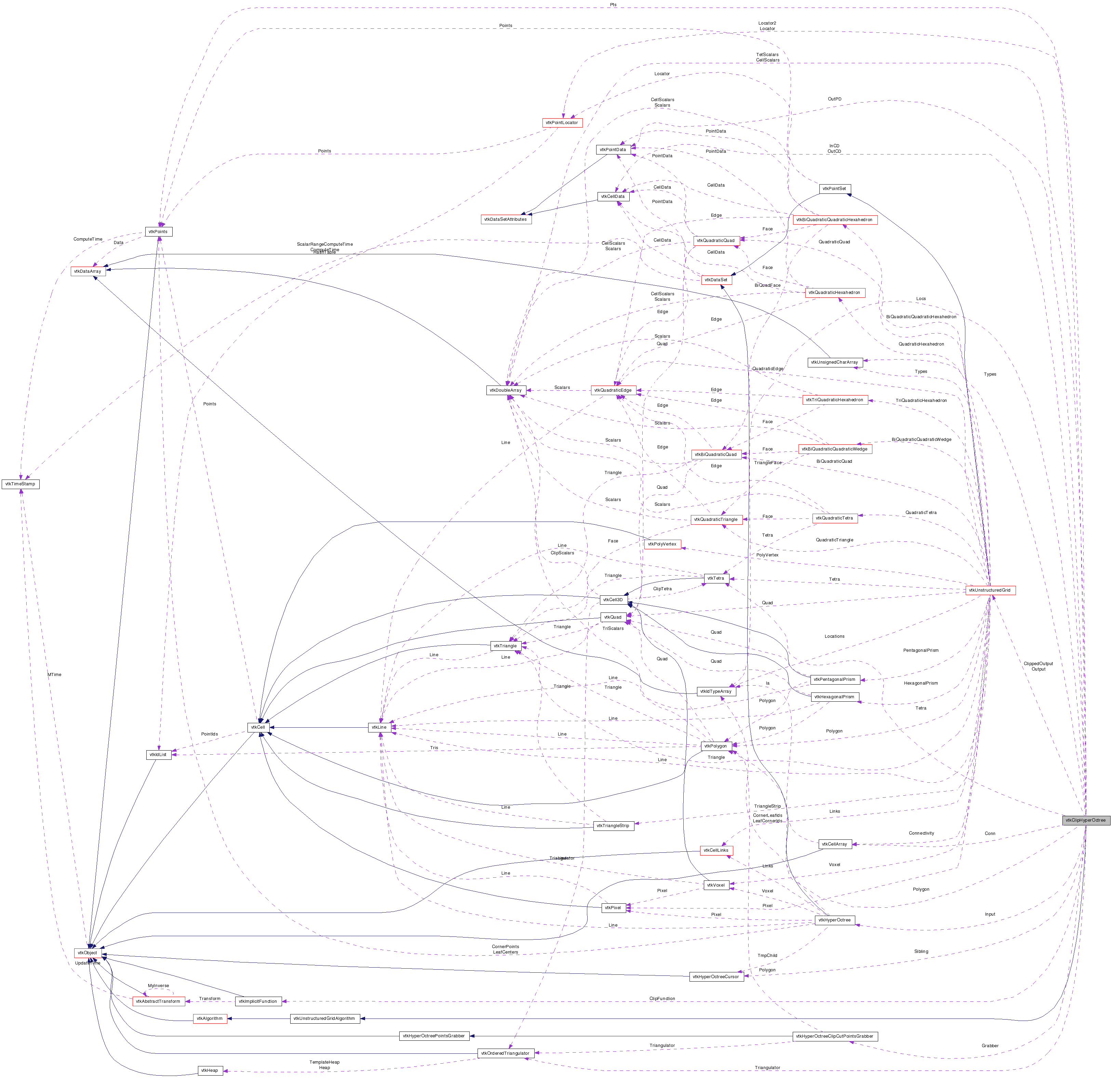

Collaboration diagram for vtkClipHyperOctree:

Collaboration graph
[legend]

List of all members.


Detailed Description

clip an hyperoctree with user-specified implicit function or input scalar data

vtkClipHyperOctree is a filter that clips an hyperoctree using either any subclass of vtkImplicitFunction, or the input scalar data. Clipping means that it actually "cuts" through the leaves (cells) of the hyperoctree, returning everything inside of the specified implicit function (or greater than the scalar value) including "pieces" of a cell. (Compare this with vtkExtractGeometry, which pulls out entire, uncut cells.) The output of this filter is an unstructured grid.

To use this filter, you must decide if you will be clipping with an implicit function, or whether you will be using the input scalar data. If you want to clip with an implicit function, you must: 1) define an implicit function 2) set it with the SetClipFunction method 3) apply the GenerateClipScalarsOn method If a ClipFunction is not specified, or GenerateClipScalars is off (the default), then the input's scalar data will be used to clip the polydata.

You can also specify a scalar value, which is used to decide what is inside and outside of the implicit function. You can also reverse the sense of what inside/outside is by setting the InsideOut instance variable. (The clipping algorithm proceeds by computing an implicit function value or using the input scalar data for each point in the dataset. This is compared to the scalar value to determine inside/outside.)

This filter can be configured to compute a second output. The second output is the part of the cell that is clipped away. Set the GenerateClippedData boolean on if you wish to access this output data.

Warning:
vtkClipHyperOctree will triangulate all types of 3D cells (i.e., create tetrahedra). This is true even if the cell is not actually cut. This is necessary to preserve compatibility across face neighbors. 2D cells will only be triangulated if the cutting function passes through them.
See also:
vtkImplicitFunction vtkCutter vtkClipVolume vtkClipPolyData
Tests:
vtkClipHyperOctree (Tests)

Definition at line 83 of file vtkClipHyperOctree.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkUnstructuredGridGetClippedOutput ()
void CreateDefaultLocator ()
unsigned long GetMTime ()
virtual void SetValue (double)
virtual double GetValue ()
virtual void SetInsideOut (int)
virtual int GetInsideOut ()
virtual void InsideOutOn ()
virtual void InsideOutOff ()
virtual void SetClipFunction (vtkImplicitFunction *)
virtual vtkImplicitFunctionGetClipFunction ()
virtual void SetGenerateClipScalars (int)
virtual int GetGenerateClipScalars ()
virtual void GenerateClipScalarsOn ()
virtual void GenerateClipScalarsOff ()
virtual void SetGenerateClippedOutput (int)
virtual int GetGenerateClippedOutput ()
virtual void GenerateClippedOutputOn ()
virtual void GenerateClippedOutputOff ()
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkClipHyperOctreeSafeDownCast (vtkObject *o)
static vtkClipHyperOctreeNew ()

Protected Member Functions

 vtkClipHyperOctree (vtkImplicitFunction *cf=NULL)
 ~vtkClipHyperOctree ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)
void ClipNode (vtkHyperOctreeCursor *cursor, int level, double bounds[6])

Protected Attributes

vtkImplicitFunctionClipFunction
vtkPointLocatorLocator
vtkPointLocatorLocator2
int InsideOut
double Value
int GenerateClipScalars
int GenerateClippedOutput
vtkHyperOctreeInput
vtkUnstructuredGridOutput
vtkUnstructuredGridClippedOutput
vtkUnsignedCharArrayTypes [2]
vtkIdTypeArrayLocs [2]
vtkCellArrayConn [2]
vtkCellDataInCD
vtkCellDataOutCD [2]
vtkPointDataOutPD [2]
vtkOrderedTriangulatorTriangulator
vtkHyperOctreeCursorSibling
vtkDoubleArrayCellScalars
vtkTetraTetra
vtkDoubleArrayTetScalars
vtkPointsPts
vtkPolygonPolygon
vtkIdType CellTypeCounter [65536]
vtkIdType TotalCounter
vtkIdType TemplateCounter
vtkHyperOctreeClipCutPointsGrabberGrabber

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 86 of file vtkClipHyperOctree.h.


Constructor & Destructor Documentation

vtkClipHyperOctree::vtkClipHyperOctree ( vtkImplicitFunction cf = NULL  )  [protected]

vtkClipHyperOctree::~vtkClipHyperOctree (  )  [protected]


Member Function Documentation

virtual const char* vtkClipHyperOctree::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkClipHyperOctree::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkClipHyperOctree::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkClipHyperOctree* vtkClipHyperOctree::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkClipHyperOctree::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkClipHyperOctree* vtkClipHyperOctree::New (  )  [static]

Construct with user-specified implicit function; InsideOut turned off; value set to 0.0; and generate clip scalars turned off.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkClipHyperOctree::SetValue ( double   )  [virtual]

Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual double vtkClipHyperOctree::GetValue (  )  [virtual]

Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual void vtkClipHyperOctree::SetInsideOut ( int   )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual int vtkClipHyperOctree::GetInsideOut (  )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipHyperOctree::InsideOutOn (  )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipHyperOctree::InsideOutOff (  )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipHyperOctree::SetClipFunction ( vtkImplicitFunction  )  [virtual]

Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the selected input scalar data will be used for clipping.

virtual vtkImplicitFunction* vtkClipHyperOctree::GetClipFunction (  )  [virtual]

Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the selected input scalar data will be used for clipping.

virtual void vtkClipHyperOctree::SetGenerateClipScalars ( int   )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual int vtkClipHyperOctree::GetGenerateClipScalars (  )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipHyperOctree::GenerateClipScalarsOn (  )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipHyperOctree::GenerateClipScalarsOff (  )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipHyperOctree::SetGenerateClippedOutput ( int   )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual int vtkClipHyperOctree::GetGenerateClippedOutput (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkClipHyperOctree::GenerateClippedOutputOn (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkClipHyperOctree::GenerateClippedOutputOff (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

vtkUnstructuredGrid* vtkClipHyperOctree::GetClippedOutput (  )

Return the Clipped output.

void vtkClipHyperOctree::SetLocator ( vtkPointLocator locator  )

Specify a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkClipHyperOctree::GetLocator (  )  [virtual]

Specify a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

void vtkClipHyperOctree::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

unsigned long vtkClipHyperOctree::GetMTime (  )  [virtual]

Return the mtime also considering the locator and clip function.

Reimplemented from vtkObject.

virtual int vtkClipHyperOctree::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkClipHyperOctree::ClipNode ( vtkHyperOctreeCursor cursor,
int  level,
double  bounds[6]
) [protected]

Clip the sub-hierarchy pointed by cursor.

Precondition:
cursor_exists: cursor!=0

positive_level: level>=0

virtual int vtkClipHyperOctree::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkUnstructuredGridAlgorithm.


Member Data Documentation

Definition at line 170 of file vtkClipHyperOctree.h.

Definition at line 172 of file vtkClipHyperOctree.h.

Definition at line 173 of file vtkClipHyperOctree.h.

Definition at line 175 of file vtkClipHyperOctree.h.

double vtkClipHyperOctree::Value [protected]

Definition at line 176 of file vtkClipHyperOctree.h.

Definition at line 177 of file vtkClipHyperOctree.h.

Definition at line 179 of file vtkClipHyperOctree.h.

Definition at line 181 of file vtkClipHyperOctree.h.

Definition at line 182 of file vtkClipHyperOctree.h.

Definition at line 183 of file vtkClipHyperOctree.h.

Definition at line 185 of file vtkClipHyperOctree.h.

Definition at line 186 of file vtkClipHyperOctree.h.

Definition at line 187 of file vtkClipHyperOctree.h.

Definition at line 188 of file vtkClipHyperOctree.h.

Definition at line 189 of file vtkClipHyperOctree.h.

Definition at line 190 of file vtkClipHyperOctree.h.

Definition at line 191 of file vtkClipHyperOctree.h.

Definition at line 193 of file vtkClipHyperOctree.h.

Definition at line 195 of file vtkClipHyperOctree.h.

Definition at line 196 of file vtkClipHyperOctree.h.

Definition at line 197 of file vtkClipHyperOctree.h.

Definition at line 199 of file vtkClipHyperOctree.h.

Definition at line 200 of file vtkClipHyperOctree.h.

Definition at line 202 of file vtkClipHyperOctree.h.

Definition at line 203 of file vtkClipHyperOctree.h.

Definition at line 204 of file vtkClipHyperOctree.h.

Definition at line 207 of file vtkClipHyperOctree.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 18:56:57 2009 for VTK by  doxygen 1.5.6
