vtkGeoLineRepresentation Class Reference

#include <vtkGeoLineRepresentation.h>

Inheritance diagram for vtkGeoLineRepresentation:

[legend]

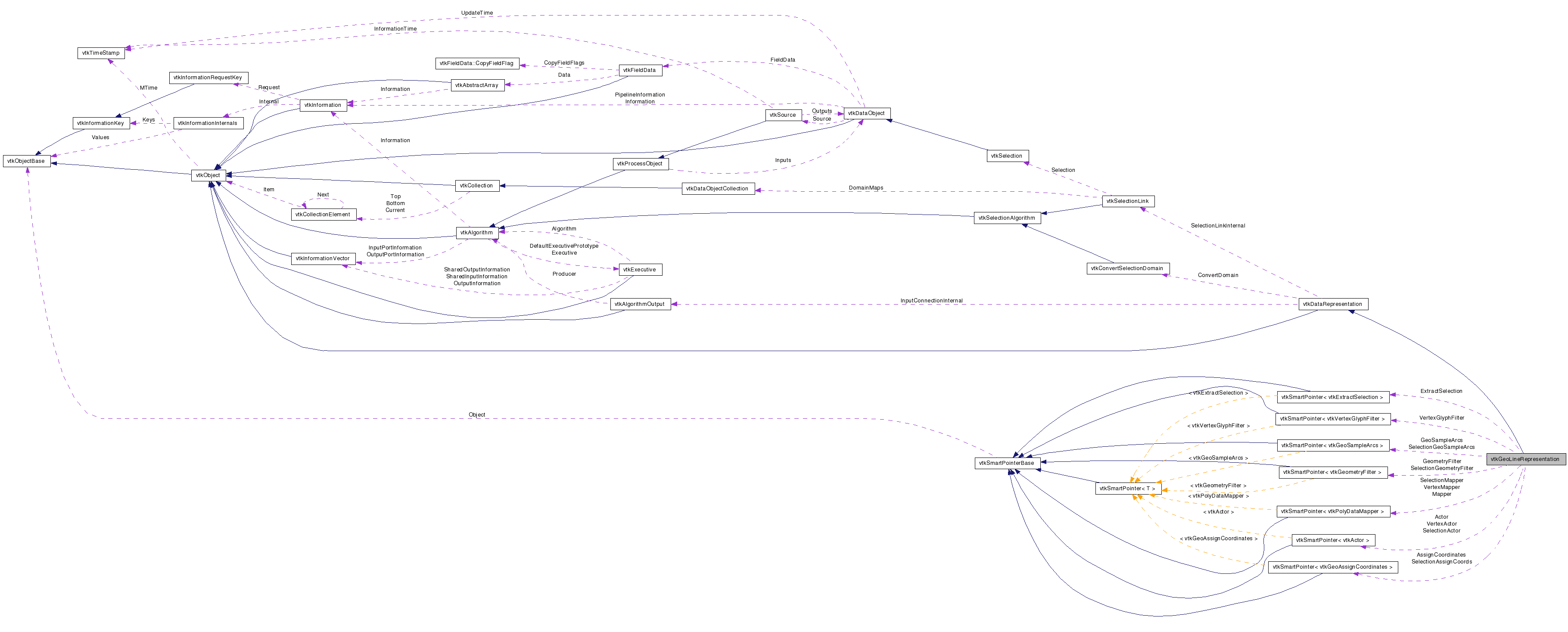

Collaboration diagram for vtkGeoLineRepresentation:

[legend]

List of all members.

Detailed Description

Displays a geometric dataset on a globe.

vtkGeoLineRepresentation is used to show a geometric dataset in a geo view. The representation uses a vtkGeometryFilter to convert the dataset to polygonal data (e.g. volumetric data is converted to its external surface). The representation may then be added to a vtkRenderView (normally vtkGeoView).

Definition at line 50 of file vtkGeoLineRepresentation.h.


Public Types
typedef vtkDataRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInputConnection (vtkAlgorithmOutput *conn)
virtual void	PrepareForRendering ()

virtual void	SetLatitudeArrayName (const char *name)
virtual const char *	GetLatitudeArrayName ()

virtual void	SetLongitudeArrayName (const char *name)
virtual const char *	GetLongitudeArrayName ()

virtual void	SetPointVisibility (bool b)
virtual bool	GetPointVisibility ()
virtual void	PointVisibilityOn ()
virtual void	PointVisibilityOff ()

virtual void	SetCoordinatesInArrays (bool b)
virtual bool	GetCoordinatesInArrays ()
virtual void	CoordinatesInArraysOn ()
virtual void	CoordinatesInArraysOff ()

virtual void	SetTransform (vtkAbstractTransform *transform)
virtual vtkAbstractTransform *	GetTransform ()
Static Public Member Functions
static vtkGeoLineRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoLineRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGeoLineRepresentation ()
	~vtkGeoLineRepresentation ()
virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)
virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)
Protected Attributes
bool	CoordinatesInArrays

vtkSmartPointer < vtkGeometryFilter >	GeometryFilter
vtkSmartPointer < vtkGeoAssignCoordinates >	AssignCoordinates
vtkSmartPointer< vtkGeoSampleArcs >	GeoSampleArcs
vtkSmartPointer < vtkPolyDataMapper >	Mapper
vtkSmartPointer< vtkActor >	Actor
vtkSmartPointer < vtkExtractSelection >	ExtractSelection
vtkSmartPointer < vtkGeometryFilter >	SelectionGeometryFilter
vtkSmartPointer < vtkGeoAssignCoordinates >	SelectionAssignCoords
vtkSmartPointer< vtkGeoSampleArcs >	SelectionGeoSampleArcs
vtkSmartPointer < vtkPolyDataMapper >	SelectionMapper
vtkSmartPointer< vtkActor >	SelectionActor
vtkSmartPointer < vtkVertexGlyphFilter >	VertexGlyphFilter
vtkSmartPointer < vtkPolyDataMapper >	VertexMapper
vtkSmartPointer< vtkActor >	VertexActor

Member Typedef Documentation

typedef vtkDataRepresentation vtkGeoLineRepresentation::Superclass

Reimplemented from vtkDataRepresentation.

Definition at line 54 of file vtkGeoLineRepresentation.h.

Constructor & Destructor Documentation

vtkGeoLineRepresentation::vtkGeoLineRepresentation ( ) [protected]

vtkGeoLineRepresentation::~vtkGeoLineRepresentation ( ) [protected]

Member Function Documentation

static vtkGeoLineRepresentation* vtkGeoLineRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataRepresentation.

virtual const char* vtkGeoLineRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkDataRepresentation.

static int vtkGeoLineRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

virtual int vtkGeoLineRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

static vtkGeoLineRepresentation* vtkGeoLineRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataRepresentation.

void vtkGeoLineRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataRepresentation.

virtual void vtkGeoLineRepresentation::SetInputConnection ( vtkAlgorithmOutput * conn ) [virtual]

Sets the input pipeline connection to this representation.

Reimplemented from vtkDataRepresentation.

virtual void vtkGeoLineRepresentation::SetLatitudeArrayName ( const char * name ) [virtual]

The point array holding the latitude.

virtual const char* vtkGeoLineRepresentation::GetLatitudeArrayName ( ) [virtual]

The point array holding the latitude.

virtual void vtkGeoLineRepresentation::SetLongitudeArrayName ( const char * name ) [virtual]

The point array holding the longitude.

virtual const char* vtkGeoLineRepresentation::GetLongitudeArrayName ( ) [virtual]

The point array holding the longitude.

virtual void vtkGeoLineRepresentation::SetPointVisibility ( bool b ) [virtual]

Whether to show points along the lines. This includes interpolated vertices.

virtual bool vtkGeoLineRepresentation::GetPointVisibility ( ) [virtual]

Whether to show points along the lines. This includes interpolated vertices.

virtual void vtkGeoLineRepresentation::PointVisibilityOn ( ) [virtual]

Whether to show points along the lines. This includes interpolated vertices.

virtual void vtkGeoLineRepresentation::PointVisibilityOff ( ) [virtual]

Whether to show points along the lines. This includes interpolated vertices.

virtual void vtkGeoLineRepresentation::PrepareForRendering ( ) [virtual]

Called by the view when the renderer is about to render.

virtual void vtkGeoLineRepresentation::SetCoordinatesInArrays ( bool b ) [virtual]

If on, uses LatitudeArrayName and LongitudeArrayName to move values in data arrays into the points of the data set. Turn off if the lattitude and longitude are already in the points.x

virtual bool vtkGeoLineRepresentation::GetCoordinatesInArrays ( ) [virtual]

If on, uses LatitudeArrayName and LongitudeArrayName to move values in data arrays into the points of the data set. Turn off if the lattitude and longitude are already in the points.x

virtual void vtkGeoLineRepresentation::CoordinatesInArraysOn ( ) [virtual]

If on, uses LatitudeArrayName and LongitudeArrayName to move values in data arrays into the points of the data set. Turn off if the lattitude and longitude are already in the points.x

virtual void vtkGeoLineRepresentation::CoordinatesInArraysOff ( ) [virtual]

If on, uses LatitudeArrayName and LongitudeArrayName to move values in data arrays into the points of the data set. Turn off if the lattitude and longitude are already in the points.x

virtual void vtkGeoLineRepresentation::SetTransform ( vtkAbstractTransform * transform ) [virtual]

The transform to use for transforming lat/long points into world coordinates. If null, use spherical world model (default).

virtual vtkAbstractTransform* vtkGeoLineRepresentation::GetTransform ( ) [virtual]

The transform to use for transforming lat/long points into world coordinates. If null, use spherical world model (default).

virtual bool vtkGeoLineRepresentation::AddToView ( vtkView * view ) [protected, virtual]

Adds the representation to the view. This is called from vtkView::AddRepresentation().

virtual bool vtkGeoLineRepresentation::RemoveFromView ( vtkView * view ) [protected, virtual]

Removes the representation to the view. This is called from vtkView::RemoveRepresentation().

virtual vtkSelection* vtkGeoLineRepresentation::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			`[protected, virtual]`

Convert the selection to a type appropriate for sharing with other representations through vtkSelectionLink. If the selection cannot be applied to this representation, returns NULL.

Reimplemented from vtkDataRepresentation.
