vtkRearrangeFields Class Reference

#include <vtkRearrangeFields.h>

Inheritance diagram for vtkRearrangeFields:

[legend]

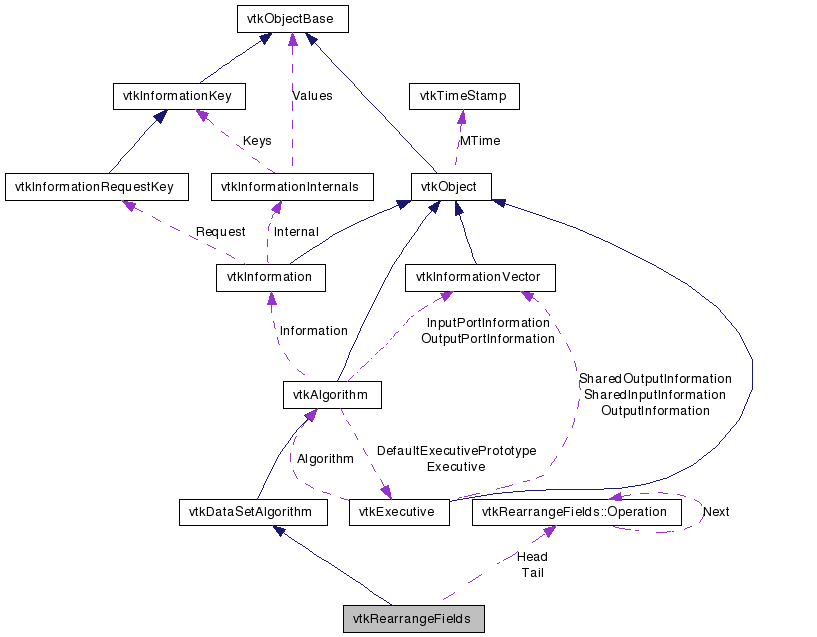

Collaboration diagram for vtkRearrangeFields:

[legend]

List of all members.

Detailed Description

Move/copy fields between field data, point data and cell data.

vtkRearrangeFields is used to copy/move fields (vtkDataArrays) between data object's field data, point data and cell data. To specify which fields are copied/moved, the user adds operations. There are two types of operations: 1. the type which copies/moves an attribute's data (i.e. the field will be copied but will not be an attribute in the target), 2. the type which copies/moves fields by name. For example:

 rf->AddOperation(vtkRearrangeFields::COPY, "foo",
                  vtkRearrangeFields::DATA_OBJECT,
                  vtkRearrangeFields::POINT_DATA);

adds an operation which copies a field (data array) called foo from the data object's field data to point data. From Tcl, the same operation can be added as follows:

 rf AddOperation COPY foo DATA_OBJECT POINT_DATA

The same can be done using Python and Java bindings by passing strings as arguments.

 Operation types: COPY, MOVE
 AttributeTypes: SCALARS, VECTORS, NORMALS, TCOORDS, TENSORS
 Field data locations: DATA_OBJECT, POINT_DATA, CELL_DATA

Warning:: When using Tcl, Java, Python or Visual Basic bindings, the array name can not be one of the AttributeTypes when calling AddOperation() which takes strings as arguments. The Tcl (Java etc.) command will always assume the string corresponds to an attribute type when the argument is one of the AttributeTypes. In this situation, use the AddOperation() which takes enums.

See also:: vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkAssignAttribute vtkSplitField vtkMergeFields

Tests:: vtkRearrangeFields (Tests)

Definition at line 69 of file vtkRearrangeFields.h.


Public Types
enum	OperationType { COPY = 0, MOVE = 1 }
enum	FieldLocation { DATA_OBJECT = 0, POINT_DATA = 1, CELL_DATA = 2 }
enum	FieldType { NAME, ATTRIBUTE }
typedef vtkDataSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

int	AddOperation (int operationType, int attributeType, int fromFieldLoc, int toFieldLoc)
int	AddOperation (int operationType, const char *name, int fromFieldLoc, int toFieldLoc)
int	AddOperation (const char operationType, const char attributeType, const char fromFieldLoc, const char toFieldLoc)

int	RemoveOperation (int operationId)
int	RemoveOperation (int operationType, int attributeType, int fromFieldLoc, int toFieldLoc)
int	RemoveOperation (int operationType, const char *name, int fromFieldLoc, int toFieldLoc)
int	RemoveOperation (const char operationType, const char attributeType, const char fromFieldLoc, const char toFieldLoc)

void	RemoveAllOperations ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkRearrangeFields *	SafeDownCast (vtkObject *o)
static vtkRearrangeFields *	New ()
Protected Member Functions
	vtkRearrangeFields ()
virtual	~vtkRearrangeFields ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Operation *	GetNextOperation (Operation *op)
Operation *	GetFirst ()
void	AddOperation (Operation *op)
void	DeleteOperation (Operation op, Operation before)
Operation *	FindOperation (int id, Operation *&before)
Operation *	FindOperation (const char name, Operation &before)
Operation *	FindOperation (int operationType, const char name, int fromFieldLoc, int toFieldLoc, Operation &before)
Operation *	FindOperation (int operationType, int attributeType, int fromFieldLoc, int toFieldLoc, Operation *&before)
int	CompareOperationsByType (const Operation op1, const Operation op2)
int	CompareOperationsByName (const Operation op1, const Operation op2)
void	DeleteAllOperations ()
void	ApplyOperation (Operation op, vtkDataSet input, vtkDataSet *output)
vtkFieldData *	GetFieldDataFromLocation (vtkDataSet *ds, int fieldLoc)
void	PrintAllOperations (ostream &os, vtkIndent indent)
void	PrintOperation (Operation *op, ostream &os, vtkIndent indent)
Protected Attributes
Operation *	Head
Operation *	Tail
int	LastId
Static Protected Attributes
static char	OperationTypeNames [2][5]
static char	FieldLocationNames [3][12]
static char	AttributeNames [vtkDataSetAttributes::NUM_ATTRIBUTES][10]
Classes
struct	Operation

Member Typedef Documentation

typedef vtkDataSetAlgorithm vtkRearrangeFields::Superclass

Reimplemented from vtkDataSetAlgorithm.

Definition at line 72 of file vtkRearrangeFields.h.

Member Enumeration Documentation

enum vtkRearrangeFields::OperationType

Enumerator:

COPY
MOVE

Definition at line 79 of file vtkRearrangeFields.h.

enum vtkRearrangeFields::FieldLocation

Enumerator:

DATA_OBJECT
POINT_DATA
CELL_DATA

Definition at line 84 of file vtkRearrangeFields.h.

enum vtkRearrangeFields::FieldType

Enumerator:

NAME
ATTRIBUTE

Definition at line 143 of file vtkRearrangeFields.h.

Constructor & Destructor Documentation

vtkRearrangeFields::vtkRearrangeFields ( ) [protected]

virtual vtkRearrangeFields::~vtkRearrangeFields ( ) [protected, virtual]

Member Function Documentation

virtual const char* vtkRearrangeFields::GetClassName ( ) [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkRearrangeFields::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkRearrangeFields::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkRearrangeFields* vtkRearrangeFields::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkRearrangeFields::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

static vtkRearrangeFields* vtkRearrangeFields::New ( ) [static]

Create a new vtkRearrangeFields with an empty operation list.

Reimplemented from vtkDataSetAlgorithm.

int vtkRearrangeFields::AddOperation	(	int	operationType,
		int	attributeType,
		int	fromFieldLoc,
		int	toFieldLoc
	)

Add an operation which copies an attribute's field (data array) from one field data to another. Returns an operation id which can later be used to remove the operation.

int vtkRearrangeFields::AddOperation	(	int	operationType,
		const char *	name,
		int	fromFieldLoc,
		int	toFieldLoc
	)

Add an operation which copies an attribute's field (data array) from one field data to another. Returns an operation id which can later be used to remove the operation.

int vtkRearrangeFields::AddOperation	(	const char *	operationType,
		const char *	attributeType,
		const char *	fromFieldLoc,
		const char *	toFieldLoc
	)

Add an operation which copies an attribute's field (data array) from one field data to another. Returns an operation id which can later be used to remove the operation.

int vtkRearrangeFields::RemoveOperation ( int operationId )

Remove an operation with the given id.

int vtkRearrangeFields::RemoveOperation	(	int	operationType,
		int	attributeType,
		int	fromFieldLoc,
		int	toFieldLoc
	)

Remove an operation with the given id.

int vtkRearrangeFields::RemoveOperation	(	int	operationType,
		const char *	name,
		int	fromFieldLoc,
		int	toFieldLoc
	)

Remove an operation with the given id.

int vtkRearrangeFields::RemoveOperation	(	const char *	operationType,
		const char *	attributeType,
		const char *	fromFieldLoc,
		const char *	toFieldLoc
	)

Remove an operation with the given id.

void vtkRearrangeFields::RemoveAllOperations ( ) [inline]

Remove all operations.

Definition at line 134 of file vtkRearrangeFields.h.

int vtkRearrangeFields::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected, virtual]`

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

Operation* vtkRearrangeFields::GetNextOperation ( Operation * op ) [inline, protected]

Definition at line 180 of file vtkRearrangeFields.h.

Operation* vtkRearrangeFields::GetFirst ( ) [inline, protected]

Definition at line 182 of file vtkRearrangeFields.h.

void vtkRearrangeFields::AddOperation ( Operation * op ) [protected]

void vtkRearrangeFields::DeleteOperation	(	Operation *	op,
		Operation *	before
	)			`[protected]`

Operation* vtkRearrangeFields::FindOperation	(	int	id,
		Operation *&	before
	)			`[protected]`

Operation* vtkRearrangeFields::FindOperation	(	const char *	name,
		Operation *&	before
	)			`[protected]`

Operation* vtkRearrangeFields::FindOperation	(	int	operationType,
		const char *	name,
		int	fromFieldLoc,
		int	toFieldLoc,
		Operation *&	before
	)			`[protected]`

Operation* vtkRearrangeFields::FindOperation	(	int	operationType,
		int	attributeType,
		int	fromFieldLoc,
		int	toFieldLoc,
		Operation *&	before
	)			`[protected]`

int vtkRearrangeFields::CompareOperationsByType	(	const Operation *	op1,
		const Operation *	op2
	)			`[protected]`

int vtkRearrangeFields::CompareOperationsByName	(	const Operation *	op1,
		const Operation *	op2
	)			`[protected]`

void vtkRearrangeFields::DeleteAllOperations ( ) [protected]

void vtkRearrangeFields::ApplyOperation	(	Operation *	op,
		vtkDataSet *	input,
		vtkDataSet *	output
	)			`[protected]`

vtkFieldData* vtkRearrangeFields::GetFieldDataFromLocation	(	vtkDataSet *	ds,
		int	fieldLoc
	)			`[protected]`

void vtkRearrangeFields::PrintAllOperations	(	ostream &	os,
		vtkIndent	indent
	)			`[protected]`

void vtkRearrangeFields::PrintOperation	(	Operation *	op,
		ostream &	os,
		vtkIndent	indent
	)			`[protected]`

Member Data Documentation

Operation* vtkRearrangeFields::Head [protected]

Definition at line 173 of file vtkRearrangeFields.h.

Operation* vtkRearrangeFields::Tail [protected]

Definition at line 174 of file vtkRearrangeFields.h.

int vtkRearrangeFields::LastId [protected]

Definition at line 177 of file vtkRearrangeFields.h.

char vtkRearrangeFields::OperationTypeNames[2][5] [static, protected]

Definition at line 206 of file vtkRearrangeFields.h.

char vtkRearrangeFields::FieldLocationNames[3][12] [static, protected]

Definition at line 207 of file vtkRearrangeFields.h.

char vtkRearrangeFields::AttributeNames[vtkDataSetAttributes::NUM_ATTRIBUTES][10] [static, protected]

Definition at line 208 of file vtkRearrangeFields.h.

The documentation for this class was generated from the following file:

dox/Graphics/vtkRearrangeFields.h
