vtkSplitField Class Reference

#include <vtkSplitField.h>

Inheritance diagram for vtkSplitField:

Inheritance graph
[legend]

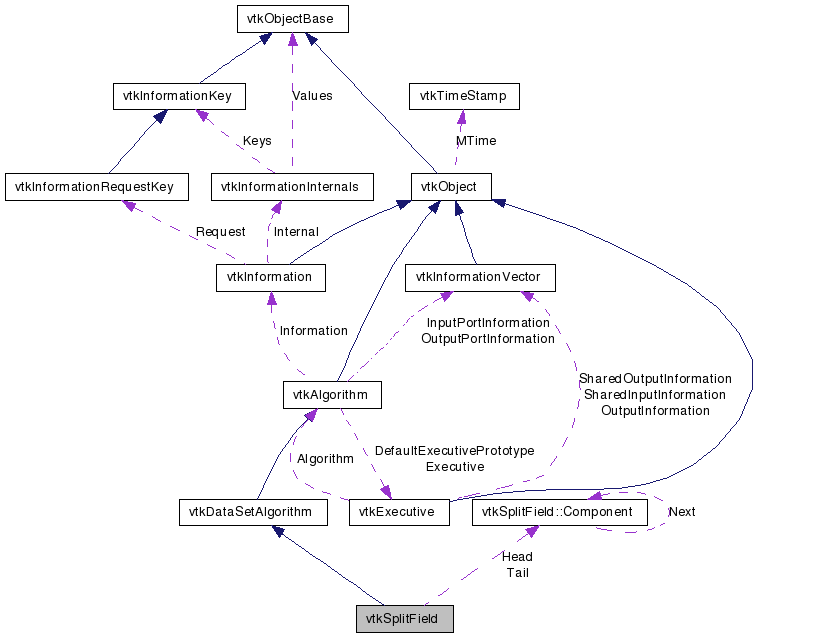

Collaboration diagram for vtkSplitField:

Collaboration graph
[legend]

List of all members.


Detailed Description

Split a field into single component fields.

vtkSplitField is used to split a multi-component field (vtkDataArray) into multiple single component fields. The new fields are put in the same field data as the original field. The output arrays are of the same type as the input array. Example:

 sf->SetInputField("gradient", vtkSplitField::POINT_DATA);
 sf->Split(0, "firstcomponent");

tells vtkSplitField to extract the first component of the field called gradient and create an array called firstcomponent (the new field will be in the output's point data). The same can be done from Tcl:
 sf SetInputField gradient POINT_DATA
 sf Split 0 firstcomponent

 AttributeTypes: SCALARS, VECTORS, NORMALS, TCOORDS, TENSORS
 Field locations: DATA_OBJECT, POINT_DATA, CELL_DATA

Note that, by default, the original array is also passed through.

Warning:
When using Tcl, Java, Python or Visual Basic bindings, the array name can not be one of the AttributeTypes when calling Split() which takes strings as arguments. The Tcl (Java etc.) command will always assume the string corresponds to an attribute type when the argument is one of the AttributeTypes. In this situation, use the Split() which takes enums.
See also:
vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkRearrangeFields vtkAssignAttribute vtkMergeFields
Tests:
vtkSplitField (Tests)

Definition at line 65 of file vtkSplitField.h.


Public Types

enum  FieldLocations { DATA_OBJECT = 0, POINT_DATA = 1, CELL_DATA = 2 }
typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetInputField (int attributeType, int fieldLoc)
void SetInputField (const char *name, int fieldLoc)
void SetInputField (const char *name, const char *fieldLoc)
void Split (int component, const char *arrayName)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkSplitFieldSafeDownCast (vtkObject *o)
static vtkSplitFieldNew ()

Protected Types

enum  FieldTypes { NAME, ATTRIBUTE }

Protected Member Functions

 vtkSplitField ()
virtual ~vtkSplitField ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
vtkDataArraySplitArray (vtkDataArray *da, int component)
ComponentGetNextComponent (Component *op)
ComponentGetFirst ()
void AddComponent (Component *op)
ComponentFindComponent (int index)
void DeleteAllComponents ()
void PrintComponent (Component *op, ostream &os, vtkIndent indent)
void PrintAllComponents (ostream &os, vtkIndent indent)

Protected Attributes

char * FieldName
int FieldType
int AttributeType
int FieldLocation
ComponentHead
ComponentTail

Static Protected Attributes

static char FieldLocationNames [3][12]
static char AttributeNames [vtkDataSetAttributes::NUM_ATTRIBUTES][10]

Classes

struct  Component

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Definition at line 68 of file vtkSplitField.h.


Member Enumeration Documentation

Enumerator:
DATA_OBJECT
POINT_DATA
CELL_DATA

Definition at line 90 of file vtkSplitField.h.

enum vtkSplitField::FieldTypes [protected]

Enumerator:
NAME
ATTRIBUTE

Definition at line 122 of file vtkSplitField.h.


Constructor & Destructor Documentation

vtkSplitField::vtkSplitField (  )  [protected]

virtual vtkSplitField::~vtkSplitField (  )  [protected, virtual]


Member Function Documentation

virtual const char* vtkSplitField::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkSplitField::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkSplitField::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkSplitField* vtkSplitField::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkSplitField::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

static vtkSplitField* vtkSplitField::New (  )  [static]

Create a new vtkSplitField.

Reimplemented from vtkDataSetAlgorithm.

void vtkSplitField::SetInputField ( int  attributeType,
int  fieldLoc
)

Use the given attribute in the field data given by fieldLoc as input.

void vtkSplitField::SetInputField ( const char *  name,
int  fieldLoc
)

Use the array with given name in the field data given by fieldLoc as input.

void vtkSplitField::SetInputField ( const char *  name,
const char *  fieldLoc
)

Helper method used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkSplitField::Split ( int  component,
const char *  arrayName
)

Create a new array with the given component.

int vtkSplitField::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

vtkDataArray* vtkSplitField::SplitArray ( vtkDataArray da,
int  component
) [protected]

Component* vtkSplitField::GetNextComponent ( Component op  )  [inline, protected]

Definition at line 150 of file vtkSplitField.h.

Component* vtkSplitField::GetFirst (  )  [inline, protected]

Definition at line 152 of file vtkSplitField.h.

void vtkSplitField::AddComponent ( Component op  )  [protected]

Component* vtkSplitField::FindComponent ( int  index  )  [protected]

void vtkSplitField::DeleteAllComponents (  )  [protected]

void vtkSplitField::PrintComponent ( Component op,
ostream &  os,
vtkIndent  indent
) [protected]

void vtkSplitField::PrintAllComponents ( ostream &  os,
vtkIndent  indent
) [protected]


Member Data Documentation

char* vtkSplitField::FieldName [protected]

Definition at line 134 of file vtkSplitField.h.

int vtkSplitField::FieldType [protected]

Definition at line 135 of file vtkSplitField.h.

Definition at line 136 of file vtkSplitField.h.

Definition at line 137 of file vtkSplitField.h.

char vtkSplitField::FieldLocationNames[3][12] [static, protected]

Definition at line 139 of file vtkSplitField.h.

char vtkSplitField::AttributeNames[vtkDataSetAttributes::NUM_ATTRIBUTES][10] [static, protected]

Definition at line 140 of file vtkSplitField.h.

Definition at line 146 of file vtkSplitField.h.

Definition at line 147 of file vtkSplitField.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:36:00 2009 for VTK by  doxygen 1.5.6
