vtkTemporalPathLineFilter Class Reference

#include <vtkTemporalPathLineFilter.h>

Inheritance diagram for vtkTemporalPathLineFilter:

[legend]

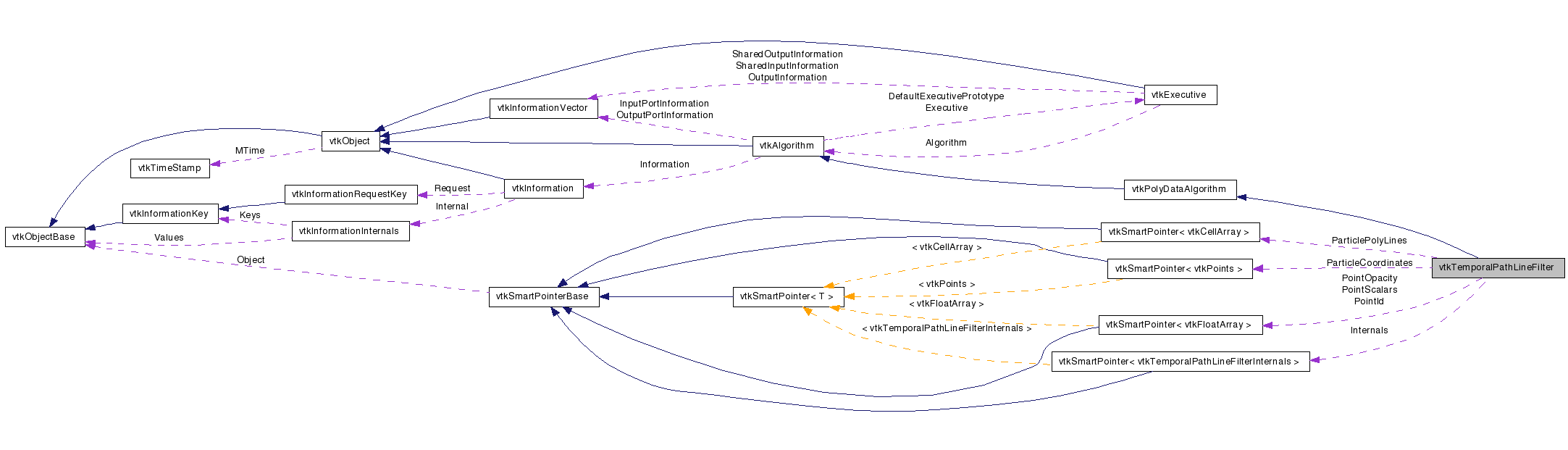

Collaboration diagram for vtkTemporalPathLineFilter:

[legend]

List of all members.

Detailed Description

Generate a Polydata Pointset from any Dataset.

vtkTemporalPathLineFilter takes any dataset as input, it extracts the point locations of all cells over time to build up a polyline trail. The point number (index) is used as the 'key' if the points are randomly changing their respective order in the points list, then you should specify a scalar that represents the unique ID. This is intended to handle the output of a filter such as the TemporalStreamTracer.

See also:: vtkTemporalStreamTracer

Thanks:: John Bidiscombe of CSCS - Swiss National Supercomputing Centre for creating and contributing this class.

Definition at line 53 of file vtkTemporalPathLineFilter.h.


typedef vtkPolyDataAlgorithm	Superclass
static vtkTemporalPathLineFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkTemporalPathLineFilter *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
void	Flush ()
void	SetSelectionConnection (vtkAlgorithmOutput *algOutput)
void	SetSelection (vtkDataSet *input)

virtual void	SetMaskPoints (int)
virtual int	GetMaskPoints ()

virtual void	SetMaxTrackLength (unsigned int)
virtual unsigned int	GetMaxTrackLength ()

virtual void	SetUsePointIndexForIds (int)
virtual int	GetUsePointIndexForIds ()
virtual void	UsePointIndexForIdsOn ()
virtual void	UsePointIndexForIdsOff ()

virtual void	SetIdChannelArray (const char *)
virtual char *	GetIdChannelArray ()

virtual void	SetScalarArray (const char *)
virtual char *	GetScalarArray ()

virtual void	SetMaxStepDistance (double, double, double)
virtual void	SetMaxStepDistance (double[3])
virtual double *	GetMaxStepDistance ()
virtual void	GetMaxStepDistance (double &, double &, double &)
virtual void	GetMaxStepDistance (double[3])

virtual void	SetKeepDeadTrails (int)
virtual int	GetKeepDeadTrails ()
Protected Member Functions
	vtkTemporalPathLineFilter ()
	~vtkTemporalPathLineFilter ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
TrailPointer	GetTrail (vtkIdType i)
void	IncrementTrail (TrailPointer trail, vtkDataSet input, vtkDataArray inscalars, vtkIdType i)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
int	NumberOfTimeSteps
int	MaskPoints
unsigned int	MaxTrackLength
unsigned int	LastTrackLength
int	UsePointIndexForIds
int	FirstTime
char *	IdChannelArray
char *	ScalarArray
double	MaxStepDistance [3]
double	LatestTime
int	KeepDeadTrails
int	UsingSelection
vtkSmartPointer< vtkPoints >	ParticleCoordinates
vtkSmartPointer< vtkCellArray >	ParticlePolyLines
vtkSmartPointer< vtkFloatArray >	PointOpacity
vtkSmartPointer< vtkFloatArray >	PointId
vtkSmartPointer< vtkFloatArray >	PointScalars
vtkSmartPointer < vtkTemporalPathLineFilterInternals >	Internals
vtkstd::set< vtkIdType >	SelectionIds

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkTemporalPathLineFilter::Superclass

Standard Type-Macro

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 58 of file vtkTemporalPathLineFilter.h.

Constructor & Destructor Documentation

vtkTemporalPathLineFilter::vtkTemporalPathLineFilter ( ) [protected]

vtkTemporalPathLineFilter::~vtkTemporalPathLineFilter ( ) [protected]

Member Function Documentation

static vtkTemporalPathLineFilter* vtkTemporalPathLineFilter::New ( ) [static]

Standard Type-Macro

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkTemporalPathLineFilter::GetClassName ( ) [virtual]

Standard Type-Macro

Reimplemented from vtkPolyDataAlgorithm.

static int vtkTemporalPathLineFilter::IsTypeOf ( const char * type ) [static]

Standard Type-Macro

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkTemporalPathLineFilter::IsA ( const char * type ) [virtual]

Standard Type-Macro

Reimplemented from vtkPolyDataAlgorithm.

static vtkTemporalPathLineFilter* vtkTemporalPathLineFilter::SafeDownCast ( vtkObject * o ) [static]

Standard Type-Macro

Reimplemented from vtkPolyDataAlgorithm.

void vtkTemporalPathLineFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard Type-Macro

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkTemporalPathLineFilter::SetMaskPoints ( int ) [virtual]

Set the number of particles to track as a ratio of the input example: setting MaskPoints to 10 will track every 10th point

virtual int vtkTemporalPathLineFilter::GetMaskPoints ( ) [virtual]

Set the number of particles to track as a ratio of the input example: setting MaskPoints to 10 will track every 10th point

virtual void vtkTemporalPathLineFilter::SetMaxTrackLength ( unsigned int ) [virtual]

If the Particles being traced animate for a long time, the trails or traces will become long and stringy. Setting the MaxTraceTimeLength will limit how much of the trace is displayed. Tracks longer then the Max will disappear and the trace will apppear like a snake of fixed length which progresses as the particle moves

virtual unsigned int vtkTemporalPathLineFilter::GetMaxTrackLength ( ) [virtual]

If the Particles being traced animate for a long time, the trails or traces will become long and stringy. Setting the MaxTraceTimeLength will limit how much of the trace is displayed. Tracks longer then the Max will disappear and the trace will apppear like a snake of fixed length which progresses as the particle moves

virtual void vtkTemporalPathLineFilter::SetUsePointIndexForIds ( int ) [virtual]

True by default. We use the index of the point as the ID. As the particle moves, the coords for each ID are updated to create a path. If the IDs are supplied as a separate scalar array then disable this option and set the array using IdChannelArray

virtual int vtkTemporalPathLineFilter::GetUsePointIndexForIds ( ) [virtual]

True by default. We use the index of the point as the ID. As the particle moves, the coords for each ID are updated to create a path. If the IDs are supplied as a separate scalar array then disable this option and set the array using IdChannelArray

virtual void vtkTemporalPathLineFilter::UsePointIndexForIdsOn ( ) [virtual]

True by default. We use the index of the point as the ID. As the particle moves, the coords for each ID are updated to create a path. If the IDs are supplied as a separate scalar array then disable this option and set the array using IdChannelArray

virtual void vtkTemporalPathLineFilter::UsePointIndexForIdsOff ( ) [virtual]

True by default. We use the index of the point as the ID. As the particle moves, the coords for each ID are updated to create a path. If the IDs are supplied as a separate scalar array then disable this option and set the array using IdChannelArray

virtual void vtkTemporalPathLineFilter::SetIdChannelArray ( const char * ) [virtual]

Specify the name of a scalar array which will be used to fetch the index of each point. This is necessary only if the particles change position (Id order) on each time step. The Id can be used to identify particles at each step and hence track them properly

virtual char* vtkTemporalPathLineFilter::GetIdChannelArray ( ) [virtual]

Specify the name of a scalar array which will be used to fetch the index of each point. This is necessary only if the particles change position (Id order) on each time step. The Id can be used to identify particles at each step and hence track them properly

virtual void vtkTemporalPathLineFilter::SetScalarArray ( const char * ) [virtual]

The particle trace can be coloured using either the time/Id or the scalar value of the particle when it passed through the point of the track. If colouring using a scalar, set the scalar array name to use.

virtual char* vtkTemporalPathLineFilter::GetScalarArray ( ) [virtual]

The particle trace can be coloured using either the time/Id or the scalar value of the particle when it passed through the point of the track. If colouring using a scalar, set the scalar array name to use.

virtual void vtkTemporalPathLineFilter::SetMaxStepDistance	(	double	,
		double	,
		double
	)			`[virtual]`

If a particle disappears from one end of asimulation and reappears on the other side, the track left will be unrepresentative. Set a MaxStepDistance{x,y,z} which acts as a threshold above which if a step occurs larger than the value (for the dimension), the track will be dropped and restarted after the step. (ie the part before the wrap around will be dropped and the newer part kept).

virtual void vtkTemporalPathLineFilter::SetMaxStepDistance ( double [3] ) [virtual]

If a particle disappears from one end of asimulation and reappears on the other side, the track left will be unrepresentative. Set a MaxStepDistance{x,y,z} which acts as a threshold above which if a step occurs larger than the value (for the dimension), the track will be dropped and restarted after the step. (ie the part before the wrap around will be dropped and the newer part kept).

virtual double* vtkTemporalPathLineFilter::GetMaxStepDistance ( ) [virtual]

If a particle disappears from one end of asimulation and reappears on the other side, the track left will be unrepresentative. Set a MaxStepDistance{x,y,z} which acts as a threshold above which if a step occurs larger than the value (for the dimension), the track will be dropped and restarted after the step. (ie the part before the wrap around will be dropped and the newer part kept).

virtual void vtkTemporalPathLineFilter::GetMaxStepDistance	(	double &	,
		double &	,
		double &
	)			`[virtual]`

If a particle disappears from one end of asimulation and reappears on the other side, the track left will be unrepresentative. Set a MaxStepDistance{x,y,z} which acts as a threshold above which if a step occurs larger than the value (for the dimension), the track will be dropped and restarted after the step. (ie the part before the wrap around will be dropped and the newer part kept).

virtual void vtkTemporalPathLineFilter::GetMaxStepDistance ( double [3] ) [virtual]

If a particle disappears from one end of asimulation and reappears on the other side, the track left will be unrepresentative. Set a MaxStepDistance{x,y,z} which acts as a threshold above which if a step occurs larger than the value (for the dimension), the track will be dropped and restarted after the step. (ie the part before the wrap around will be dropped and the newer part kept).

virtual void vtkTemporalPathLineFilter::SetKeepDeadTrails ( int ) [virtual]

When a particle 'disappears', the trail belonging to it is removed from the list. When this flag is enabled, dead trails will persist until the next time the list is cleared. Use carefully as it may cause excessive memory consumption if left on by mistake.

virtual int vtkTemporalPathLineFilter::GetKeepDeadTrails ( ) [virtual]

When a particle 'disappears', the trail belonging to it is removed from the list. When this flag is enabled, dead trails will persist until the next time the list is cleared. Use carefully as it may cause excessive memory consumption if left on by mistake.

void vtkTemporalPathLineFilter::Flush ( )

Flush will wipe any existing data so that traces can be restarted from whatever time step is next supplied.

void vtkTemporalPathLineFilter::SetSelectionConnection ( vtkAlgorithmOutput * algOutput )

Set a second input which is a selection. Particles with the same Id in the selection as the primary input will be chosen for pathlines Note that you must have the same IdChannelArray in the selection as the input

void vtkTemporalPathLineFilter::SetSelection ( vtkDataSet * input )

Set a second input which is a selection. Particles with the same Id in the selection as the primary input will be chosen for pathlines Note that you must have the same IdChannelArray in the selection as the input

virtual int vtkTemporalPathLineFilter::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkTemporalPathLineFilter::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected, virtual]`

The necessary parts of the standard pipeline update mechanism

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkTemporalPathLineFilter::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
