vtkUncertaintyTubeFilter Class Reference

#include <vtkUncertaintyTubeFilter.h>

Inheritance diagram for vtkUncertaintyTubeFilter:

[legend]

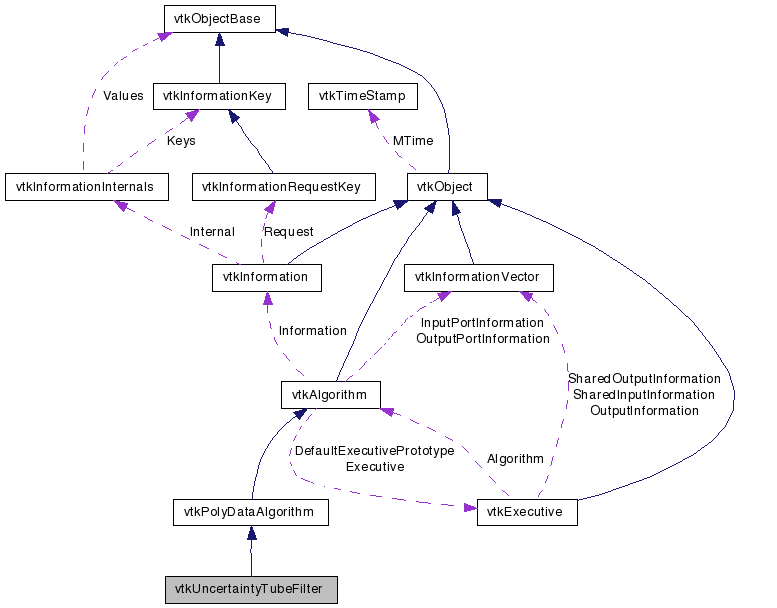

Collaboration diagram for vtkUncertaintyTubeFilter:

[legend]

List of all members.

Detailed Description

generate uncertainty tubes along a polyline

vtkUncertaintyTubeFilter is a filter that generates ellipsoidal (in cross section) tubes that follows a polyline. The input is a vtkPolyData with polylines that have associated vector point data. The vector data represents the uncertainty of the polyline in the x-y-z directions.

Warning:: The vector uncertainty values define an axis-aligned ellipsoid at each polyline point. The uncertainty tubes can be envisioned as the interpolation of these ellipsoids between the points defining the polyline (or rather, the interpolation of the cross section of the ellipsoids alog the polyline).

See also:: vtkTensorGlyph vtkStreamer

Tests:: vtkUncertaintyTubeFilter (Tests)

Definition at line 44 of file vtkUncertaintyTubeFilter.h.


typedef vtkPolyDataAlgorithm	Superclass
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
static int	IsTypeOf (const char *type)
static vtkUncertaintyTubeFilter *	SafeDownCast (vtkObject *o)
Public Member Functions

virtual void	SetNumberOfSides (int)
virtual int	GetNumberOfSides ()
Static Public Member Functions
static vtkUncertaintyTubeFilter *	New ()
Protected Member Functions
	vtkUncertaintyTubeFilter ()
	~vtkUncertaintyTubeFilter ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
int	BuildTubes (vtkPointData pd, vtkPointData outPD, vtkCellData cd, vtkCellData outCD, vtkPolyData *output)
Protected Attributes
vtkTubeArray *	Tubes
int	NumberOfTubes
int	NumberOfSides

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkUncertaintyTubeFilter::Superclass

Standard methods for printing and obtaining type information for instances of this class.

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 50 of file vtkUncertaintyTubeFilter.h.

Constructor & Destructor Documentation

vtkUncertaintyTubeFilter::vtkUncertaintyTubeFilter ( ) [protected]

vtkUncertaintyTubeFilter::~vtkUncertaintyTubeFilter ( ) [protected]

Member Function Documentation

virtual const char* vtkUncertaintyTubeFilter::GetClassName ( ) [virtual]

Standard methods for printing and obtaining type information for instances of this class.

Reimplemented from vtkPolyDataAlgorithm.

static int vtkUncertaintyTubeFilter::IsTypeOf ( const char * type ) [static]

Standard methods for printing and obtaining type information for instances of this class.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkUncertaintyTubeFilter::IsA ( const char * type ) [virtual]

Standard methods for printing and obtaining type information for instances of this class.

Reimplemented from vtkPolyDataAlgorithm.

static vtkUncertaintyTubeFilter* vtkUncertaintyTubeFilter::SafeDownCast ( vtkObject * o ) [static]

Standard methods for printing and obtaining type information for instances of this class.

Reimplemented from vtkPolyDataAlgorithm.

void vtkUncertaintyTubeFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard methods for printing and obtaining type information for instances of this class.

Reimplemented from vtkPolyDataAlgorithm.

static vtkUncertaintyTubeFilter* vtkUncertaintyTubeFilter::New ( ) [static]

Object factory method to instantiate this class.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkUncertaintyTubeFilter::SetNumberOfSides ( int ) [virtual]

Set / get the number of sides for the tube. At a minimum, the number of sides is 3.

virtual int vtkUncertaintyTubeFilter::GetNumberOfSides ( ) [virtual]

Set / get the number of sides for the tube. At a minimum, the number of sides is 3.

virtual int vtkUncertaintyTubeFilter::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkUncertaintyTubeFilter::BuildTubes	(	vtkPointData *	pd,
		vtkPointData *	outPD,
		vtkCellData *	cd,
		vtkCellData *	outCD,
		vtkPolyData *	output
	)			`[protected]`
