vtkXMLPRectilinearGridReader Class Reference

#include <vtkXMLPRectilinearGridReader.h>

Inheritance diagram for vtkXMLPRectilinearGridReader:

Inheritance graph

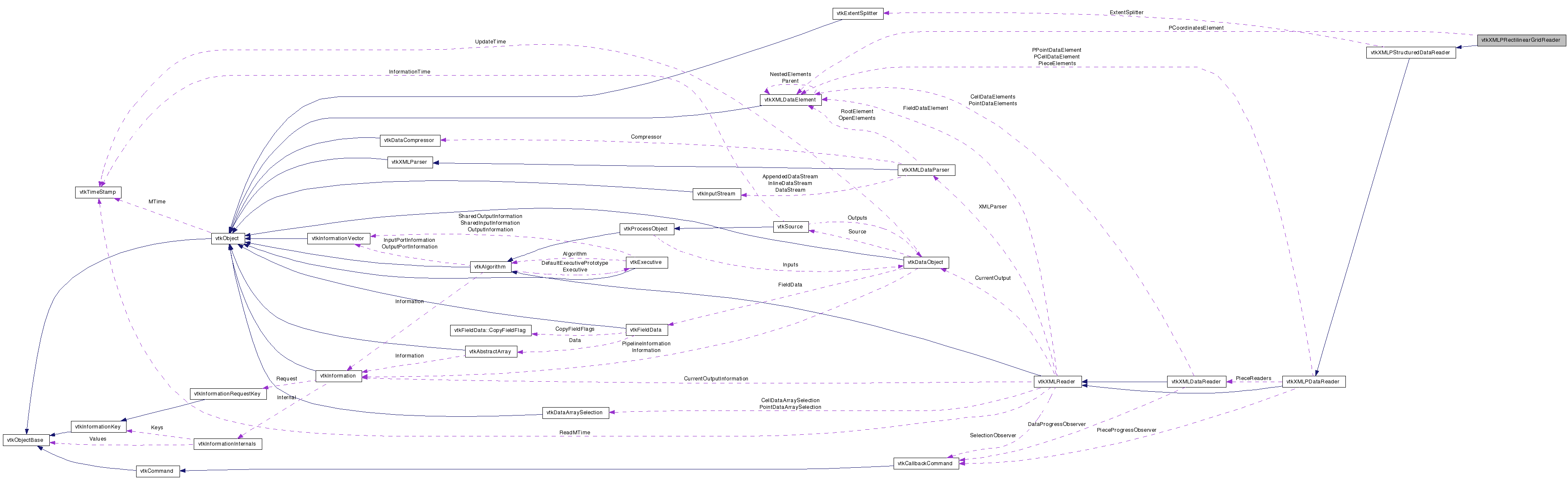

Collaboration diagram for vtkXMLPRectilinearGridReader:

Collaboration graph

List of all members.

Detailed Description

Read PVTK XML RectilinearGrid files.

vtkXMLPRectilinearGridReader reads the PVTK XML RectilinearGrid file format. This reads the parallel format's summary file and then uses vtkXMLRectilinearGridReader to read data from the individual RectilinearGrid piece files. Streaming is supported. The standard extension for this reader's file format is "pvtr".

See also:

Definition at line 35 of file vtkXMLPRectilinearGridReader.h.

Public Types

typedef vtkXMLPStructuredDataReader Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkRectilinearGridGetOutput ()
vtkRectilinearGridGetOutput (int idx)

Static Public Member Functions

static int IsTypeOf (const char *type)
SafeDownCast (vtkObject *o)
New ()

Protected Member Functions

 vtkXMLPRectilinearGridReader ()
 ~vtkXMLPRectilinearGridReader ()
vtkRectilinearGridGetPieceInput (int index)
void SetupEmptyOutput ()
const char * GetDataSetName ()
void SetOutputExtent (int *extent)
void GetPieceInputExtent (int index, int *extent)
int ReadPrimaryElement (vtkXMLDataElement *ePrimary)
void SetupOutputData ()
int ReadPieceData ()
vtkXMLDataReaderCreatePieceReader ()
void CopySubCoordinates (int *inBounds, int *outBounds, int *subBounds, vtkDataArray *inArray, vtkDataArray *outArray)
virtual int FillOutputPortInformation (int, vtkInformation *)

Protected Attributes


Member Typedef Documentation

Reimplemented from vtkXMLPStructuredDataReader.

Definition at line 38 of file vtkXMLPRectilinearGridReader.h.

Constructor & Destructor Documentation

vtkXMLPRectilinearGridReader::vtkXMLPRectilinearGridReader (  )  [protected]

vtkXMLPRectilinearGridReader::~vtkXMLPRectilinearGridReader (  )  [protected]

Member Function Documentation

virtual const char* vtkXMLPRectilinearGridReader::GetClassName (  )  [virtual]

Reimplemented from vtkXMLPStructuredDataReader.

static int vtkXMLPRectilinearGridReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

virtual int vtkXMLPRectilinearGridReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPRectilinearGridReader* vtkXMLPRectilinearGridReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPRectilinearGridReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPRectilinearGridReader* vtkXMLPRectilinearGridReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkRectilinearGrid* vtkXMLPRectilinearGridReader::GetOutput (  )

Get the reader's output.

vtkRectilinearGrid* vtkXMLPRectilinearGridReader::GetOutput ( int  idx  )

Get the reader's output.

vtkRectilinearGrid* vtkXMLPRectilinearGridReader::GetPieceInput ( int  index  )  [protected]

void vtkXMLPRectilinearGridReader::SetupEmptyOutput (  )  [protected, virtual]

Implements vtkXMLReader.

const char* vtkXMLPRectilinearGridReader::GetDataSetName (  )  [protected, virtual]

Implements vtkXMLReader.

void vtkXMLPRectilinearGridReader::SetOutputExtent ( int *  extent  )  [protected, virtual]

void vtkXMLPRectilinearGridReader::GetPieceInputExtent ( int  index,
int *  extent
) [protected, virtual]

int vtkXMLPRectilinearGridReader::ReadPrimaryElement ( vtkXMLDataElement ePrimary  )  [protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPRectilinearGridReader::SetupOutputData (  )  [protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

int vtkXMLPRectilinearGridReader::ReadPieceData (  )  [protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

vtkXMLDataReader* vtkXMLPRectilinearGridReader::CreatePieceReader (  )  [protected, virtual]

Implements vtkXMLPDataReader.

void vtkXMLPRectilinearGridReader::CopySubCoordinates ( int *  inBounds,
int *  outBounds,
int *  subBounds,
vtkDataArray inArray,
vtkDataArray outArray
) [protected]

virtual int vtkXMLPRectilinearGridReader::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

Member Data Documentation

Definition at line 67 of file vtkXMLPRectilinearGridReader.h.

The documentation for this class was generated from the following file:
