vtkXMLPStructuredDataReader Class Reference

#include <vtkXMLPStructuredDataReader.h>

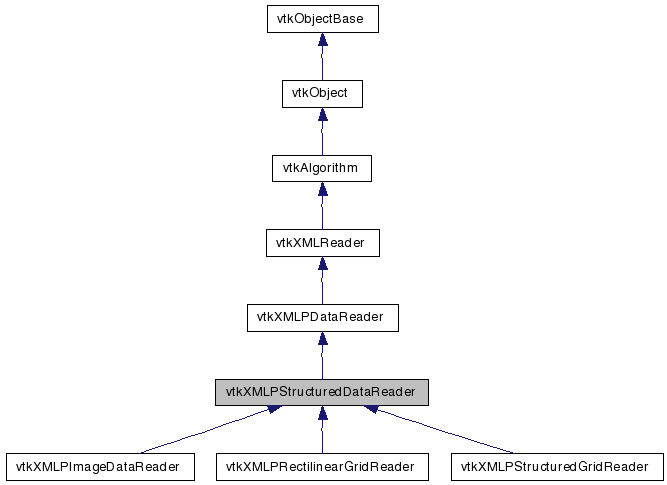

Inheritance diagram for vtkXMLPStructuredDataReader:

Inheritance graph
[legend]

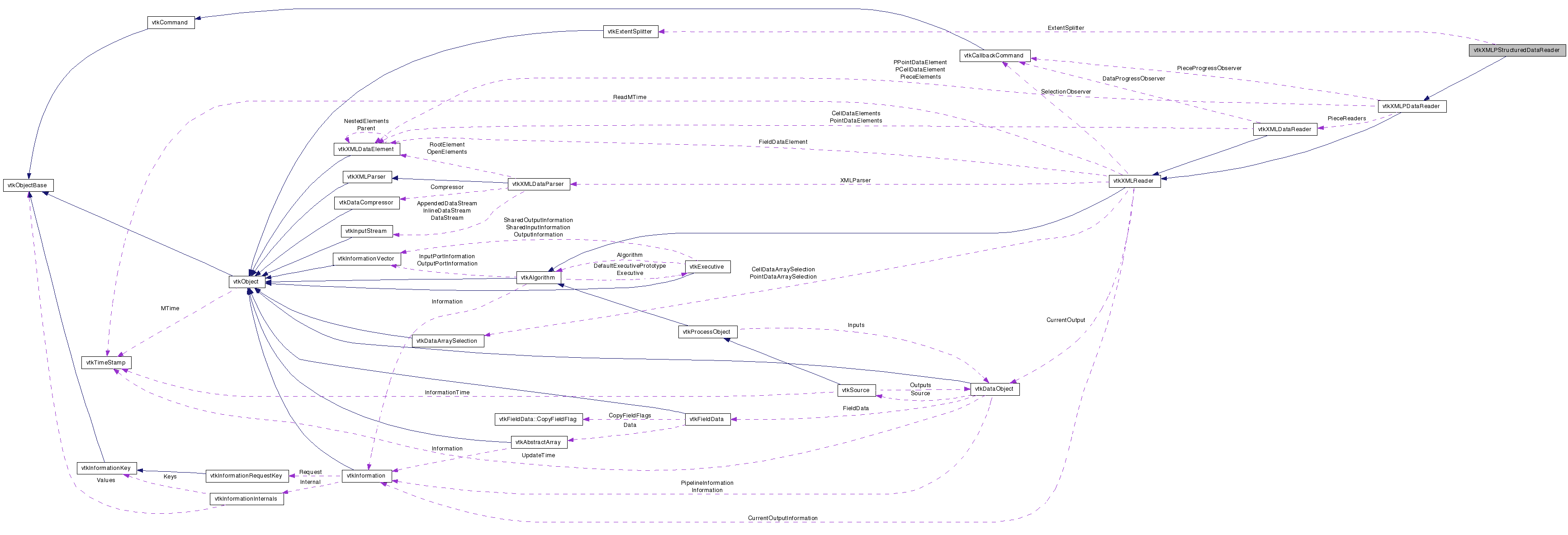

Collaboration diagram for vtkXMLPStructuredDataReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

Superclass for parallel structured data XML readers.

vtkXMLPStructuredDataReader provides functionality common to all parallel structured data format readers.

See also:
vtkXMLPImageDataReader vtkXMLPStructuredGridReader vtkXMLPRectilinearGridReader

Definition at line 36 of file vtkXMLPStructuredDataReader.h.


Public Types

typedef vtkXMLPDataReader Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkExtentTranslatorGetExtentTranslator ()
virtual void CopyOutputInformation (vtkInformation *outInfo, int port)

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkXMLPStructuredDataReader
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMLPStructuredDataReader ()
 ~vtkXMLPStructuredDataReader ()
vtkIdType GetNumberOfPoints ()
vtkIdType GetNumberOfCells ()
void CopyArrayForPoints (vtkDataArray *inArray, vtkDataArray *outArray)
void CopyArrayForCells (vtkDataArray *inArray, vtkDataArray *outArray)
virtual void SetOutputExtent (int *extent)=0
virtual void GetPieceInputExtent (int index, int *extent)=0
void ReadXMLData ()
int ReadPrimaryElement (vtkXMLDataElement *ePrimary)
void SetupOutputData ()
void SetupPieces (int numPieces)
void DestroyPieces ()
int ReadPiece (vtkXMLDataElement *ePiece)
int ReadPieceData ()
void CopySubExtent (int *inExtent, int *inDimensions, vtkIdType *inIncrements, int *outExtent, int *outDimensions, vtkIdType *outIncrements, int *subExtent, int *subDimensions, vtkDataArray *inArray, vtkDataArray *outArray)
int ComputePieceSubExtents ()
virtual int RequestInformation (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

vtkExtentSplitterExtentSplitter
int UpdateExtent [6]
int PointDimensions [3]
vtkIdType PointIncrements [3]
int CellDimensions [3]
vtkIdType CellIncrements [3]
int SubExtent [6]
int SubPointDimensions [3]
int SubCellDimensions [3]
int SubPieceExtent [6]
int SubPiecePointDimensions [3]
vtkIdType SubPiecePointIncrements [3]
int SubPieceCellDimensions [3]
vtkIdType SubPieceCellIncrements [3]
int * PieceExtents

Member Typedef Documentation


Constructor & Destructor Documentation

vtkXMLPStructuredDataReader::vtkXMLPStructuredDataReader (  )  [protected]

vtkXMLPStructuredDataReader::~vtkXMLPStructuredDataReader (  )  [protected]


Member Function Documentation

virtual const char* vtkXMLPStructuredDataReader::GetClassName (  )  [virtual]

static int vtkXMLPStructuredDataReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPDataReader.

Reimplemented in vtkXMLPImageDataReader, vtkXMLPRectilinearGridReader, and vtkXMLPStructuredGridReader.

virtual int vtkXMLPStructuredDataReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPDataReader.

Reimplemented in vtkXMLPImageDataReader, vtkXMLPRectilinearGridReader, and vtkXMLPStructuredGridReader.

static vtkXMLPStructuredDataReader* vtkXMLPStructuredDataReader::SafeDownCast ( vtkObject o  )  [static]

void vtkXMLPStructuredDataReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPDataReader.

Reimplemented in vtkXMLPImageDataReader, vtkXMLPRectilinearGridReader, and vtkXMLPStructuredGridReader.

virtual vtkExtentTranslator* vtkXMLPStructuredDataReader::GetExtentTranslator (  )  [virtual]

Get an extent translator that will create pieces matching the input file's piece breakdown. This can be used further down the pipeline to prevent reading from outside this process's piece. The translator is only valid after an UpdateInformation has been called.

virtual void vtkXMLPStructuredDataReader::CopyOutputInformation ( vtkInformation outInfo,
int  port
) [virtual]

Reimplemented from vtkXMLPDataReader.

Reimplemented in vtkXMLPImageDataReader.

vtkIdType vtkXMLPStructuredDataReader::GetNumberOfPoints (  )  [protected, virtual]

Implements vtkXMLPDataReader.

vtkIdType vtkXMLPStructuredDataReader::GetNumberOfCells (  )  [protected, virtual]

Implements vtkXMLPDataReader.

void vtkXMLPStructuredDataReader::CopyArrayForPoints ( vtkDataArray inArray,
vtkDataArray outArray
) [protected, virtual]

Implements vtkXMLPDataReader.

void vtkXMLPStructuredDataReader::CopyArrayForCells ( vtkDataArray inArray,
vtkDataArray outArray
) [protected, virtual]

Implements vtkXMLPDataReader.

virtual void vtkXMLPStructuredDataReader::SetOutputExtent ( int *  extent  )  [protected, pure virtual]

virtual void vtkXMLPStructuredDataReader::GetPieceInputExtent ( int  index,
int *  extent
) [protected, pure virtual]

void vtkXMLPStructuredDataReader::ReadXMLData (  )  [protected, virtual]

Reimplemented from vtkXMLReader.

int vtkXMLPStructuredDataReader::ReadPrimaryElement ( vtkXMLDataElement ePrimary  )  [protected, virtual]

void vtkXMLPStructuredDataReader::SetupOutputData (  )  [protected, virtual]

void vtkXMLPStructuredDataReader::SetupPieces ( int  numPieces  )  [protected, virtual]

Reimplemented from vtkXMLPDataReader.

void vtkXMLPStructuredDataReader::DestroyPieces (  )  [protected, virtual]

Reimplemented from vtkXMLPDataReader.

int vtkXMLPStructuredDataReader::ReadPiece ( vtkXMLDataElement ePiece  )  [protected, virtual]

Reimplemented from vtkXMLPDataReader.

int vtkXMLPStructuredDataReader::ReadPieceData (  )  [protected, virtual]

void vtkXMLPStructuredDataReader::CopySubExtent ( int *  inExtent,
int *  inDimensions,
vtkIdType inIncrements,
int *  outExtent,
int *  outDimensions,
vtkIdType outIncrements,
int *  subExtent,
int *  subDimensions,
vtkDataArray inArray,
vtkDataArray outArray
) [protected]

int vtkXMLPStructuredDataReader::ComputePieceSubExtents (  )  [protected]

virtual int vtkXMLPStructuredDataReader::RequestInformation ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

Reimplemented from vtkXMLReader.


Member Data Documentation

Definition at line 80 of file vtkXMLPStructuredDataReader.h.

Definition at line 83 of file vtkXMLPStructuredDataReader.h.

Definition at line 84 of file vtkXMLPStructuredDataReader.h.

Definition at line 85 of file vtkXMLPStructuredDataReader.h.

Definition at line 86 of file vtkXMLPStructuredDataReader.h.

Definition at line 87 of file vtkXMLPStructuredDataReader.h.

Definition at line 90 of file vtkXMLPStructuredDataReader.h.

Definition at line 91 of file vtkXMLPStructuredDataReader.h.

Definition at line 92 of file vtkXMLPStructuredDataReader.h.

Definition at line 93 of file vtkXMLPStructuredDataReader.h.

Definition at line 94 of file vtkXMLPStructuredDataReader.h.

Definition at line 95 of file vtkXMLPStructuredDataReader.h.

Definition at line 96 of file vtkXMLPStructuredDataReader.h.

Definition at line 97 of file vtkXMLPStructuredDataReader.h.

Definition at line 100 of file vtkXMLPStructuredDataReader.h.


The documentation for this class was generated from the following file:
