vtkBridgeCellIterator Class Reference

#include <vtkBridgeCellIterator.h>

Inheritance diagram for vtkBridgeCellIterator:

Inheritance graph
[legend]

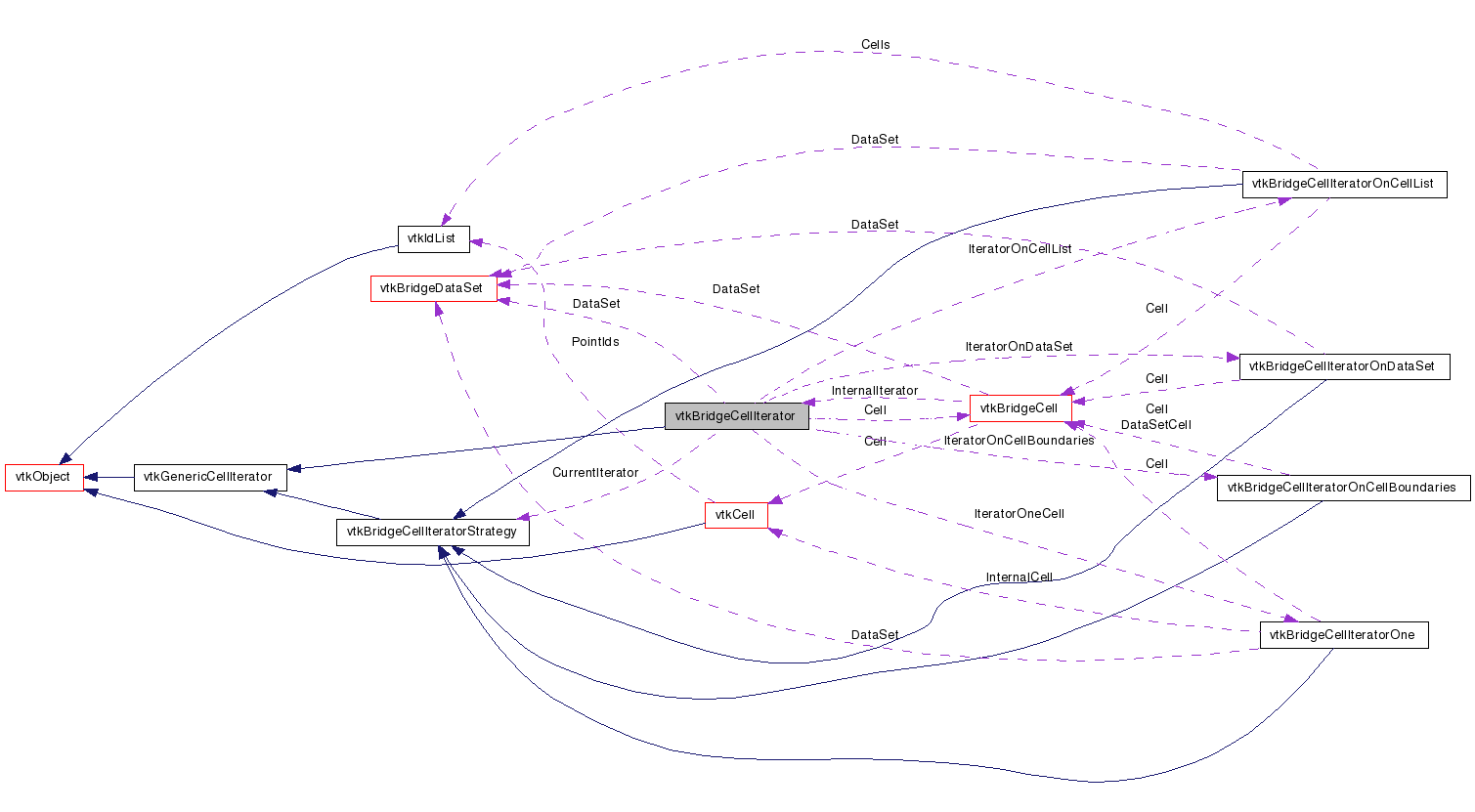

Collaboration diagram for vtkBridgeCellIterator:

Collaboration graph
[legend]

List of all members.


Detailed Description

Implementation of vtkGenericCellIterator. It is just an example that show how to implement the Generic API. It is also used for testing and evaluating the Generic framework.

See also:
vtkGenericCellIterator, vtkBridgeDataSet
Tests:
vtkBridgeCellIterator (Tests)

Definition at line 45 of file vtkBridgeCellIterator.h.


Public Types

typedef vtkGenericCellIterator Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Begin ()
int IsAtEnd ()
vtkGenericAdaptorCellNewCell ()
void GetCell (vtkGenericAdaptorCell *c)
vtkGenericAdaptorCellGetCell ()
void Next ()
void InitWithOneCell (vtkBridgeCell *c)
void InitWithDataSet (vtkBridgeDataSet *ds, int dim)
void InitWithDataSetBoundaries (vtkBridgeDataSet *ds, int dim, int exterior_only)
void InitWithOneCell (vtkBridgeDataSet *ds, vtkIdType cellid)
void InitWithCellBoundaries (vtkBridgeCell *cell, int dim)
void InitWithCells (vtkIdList *cells, vtkBridgeDataSet *ds)
void InitWithPoints (vtkPoints *coords, vtkIdList *pts, int dim, vtkIdType cellid)

Static Public Member Functions

static vtkBridgeCellIteratorNew ()
static int IsTypeOf (const char *type)
static vtkBridgeCellIteratorSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkBridgeCellIterator ()
virtual ~vtkBridgeCellIterator ()

Protected Attributes

vtkBridgeCellIteratorStrategyCurrentIterator
vtkBridgeCellIteratorOnDataSetIteratorOnDataSet
vtkBridgeCellIteratorOneIteratorOneCell
vtkBridgeCellIteratorOnCellBoundariesIteratorOnCellBoundaries
vtkBridgeCellIteratorOnCellListIteratorOnCellList
vtkBridgeDataSetDataSet
vtkIdType Id
int OneCell
vtkIdType Size
vtkBridgeCellCell

Member Typedef Documentation

Standard VTK construction and type macros.

Reimplemented from vtkGenericCellIterator.

Definition at line 49 of file vtkBridgeCellIterator.h.


Constructor & Destructor Documentation

vtkBridgeCellIterator::vtkBridgeCellIterator (  )  [protected]

virtual vtkBridgeCellIterator::~vtkBridgeCellIterator (  )  [protected, virtual]


Member Function Documentation

static vtkBridgeCellIterator* vtkBridgeCellIterator::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBridgeCellIterator::GetClassName (  )  [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericCellIterator.

static int vtkBridgeCellIterator::IsTypeOf ( const char *  type  )  [static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericCellIterator.

virtual int vtkBridgeCellIterator::IsA ( const char *  type  )  [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericCellIterator.

static vtkBridgeCellIterator* vtkBridgeCellIterator::SafeDownCast ( vtkObject o  )  [static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericCellIterator.

void vtkBridgeCellIterator::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericCellIterator.

void vtkBridgeCellIterator::Begin (  )  [virtual]

Move iterator to first position if any (loop initialization).

Implements vtkGenericCellIterator.

int vtkBridgeCellIterator::IsAtEnd (  )  [virtual]

Is there no cell at iterator position? (exit condition).

Implements vtkGenericCellIterator.

vtkGenericAdaptorCell* vtkBridgeCellIterator::NewCell (  )  [virtual]

Create an empty cell.

Postcondition:
result_exists: result!=0

Implements vtkGenericCellIterator.

void vtkBridgeCellIterator::GetCell ( vtkGenericAdaptorCell c  )  [virtual]

Cell at current position

Precondition:
not_at_end: !IsAtEnd()

c_exists: c!=0 THREAD SAFE

Implements vtkGenericCellIterator.

vtkGenericAdaptorCell* vtkBridgeCellIterator::GetCell (  )  [virtual]

Cell at current position. NOT THREAD SAFE

Precondition:
not_at_end: !IsAtEnd()
Postcondition:
result_exits: result!=0

Implements vtkGenericCellIterator.

void vtkBridgeCellIterator::Next (  )  [virtual]

Move iterator to next position. (loop progression).

Precondition:
not_at_end: !IsAtEnd()

Implements vtkGenericCellIterator.

void vtkBridgeCellIterator::InitWithDataSet ( vtkBridgeDataSet ds,
int  dim
)

Used internally by vtkBridgeDataSet. Iterate over cells of `ds' of some dimension `dim'.

Precondition:
ds_exists: ds!=0

valid_dim_range: (dim>=-1) && (dim<=3)

void vtkBridgeCellIterator::InitWithDataSetBoundaries ( vtkBridgeDataSet ds,
int  dim,
int  exterior_only
)

Used internally by vtkBridgeDataSet. Iterate over boundary cells of `ds' of some dimension `dim'.

Precondition:
ds_exists: ds!=0

valid_dim_range: (dim>=-1) && (dim<=3)

void vtkBridgeCellIterator::InitWithOneCell ( vtkBridgeDataSet ds,
vtkIdType  cellid
)

Used internally by vtkBridgeDataSet. Iterate on one cell `id' of `ds'.

Precondition:
ds_exists: ds!=0

valid_id: (id>=0)&&(id<=ds->GetNumberOfCells())

void vtkBridgeCellIterator::InitWithOneCell ( vtkBridgeCell c  )

Used internally by vtkBridgeCell. Iterate on one cell `c'.

Precondition:
c_exists: c!=0

void vtkBridgeCellIterator::InitWithCellBoundaries ( vtkBridgeCell cell,
int  dim
)

Used internally by vtkBridgeCell. Iterate on boundary cells of a cell.

Precondition:
cell_exists: cell!=0

valid_dim_range: (dim==-1) || ((dim>=0)&&(dim<cell->GetDimension()))

void vtkBridgeCellIterator::InitWithCells ( vtkIdList cells,
vtkBridgeDataSet ds
)

Used internally by vtkBridgeCell. Iterate on neighbors defined by `cells' over the dataset `ds'.

Precondition:
cells_exist: cells!=0

ds_exists: ds!=0

void vtkBridgeCellIterator::InitWithPoints ( vtkPoints coords,
vtkIdList pts,
int  dim,
vtkIdType  cellid
)

Used internally by vtkBridgeCell. Iterate on a boundary cell (defined by its points `pts' with coordinates `coords', dimension `dim' and unique id `cellid') of a cell.

Precondition:
coords_exist: coords!=0

pts_exist: pts!=0

valid_dim: dim>=0 && dim<=2

valid_points: pts->GetNumberOfIds()>dim


Member Data Documentation

Definition at line 134 of file vtkBridgeCellIterator.h.

Definition at line 135 of file vtkBridgeCellIterator.h.

Definition at line 136 of file vtkBridgeCellIterator.h.

Definition at line 137 of file vtkBridgeCellIterator.h.

Definition at line 138 of file vtkBridgeCellIterator.h.

Definition at line 140 of file vtkBridgeCellIterator.h.

Definition at line 141 of file vtkBridgeCellIterator.h.

Definition at line 142 of file vtkBridgeCellIterator.h.

Definition at line 143 of file vtkBridgeCellIterator.h.

Definition at line 144 of file vtkBridgeCellIterator.h.


The documentation for this class was generated from the following file:
