vtkBridgeCellIteratorOnCellBoundaries Class Reference

#include <vtkBridgeCellIteratorOnCellBoundaries.h>

Inheritance diagram for vtkBridgeCellIteratorOnCellBoundaries:

[legend]

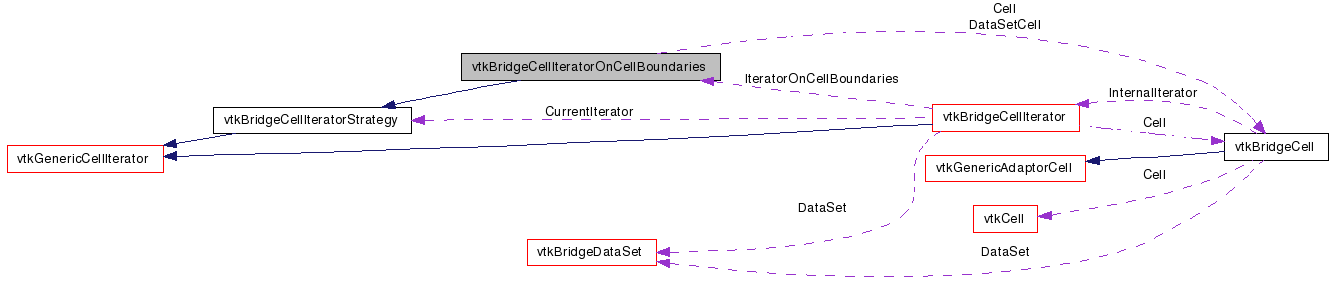

Collaboration diagram for vtkBridgeCellIteratorOnCellBoundaries:

[legend]

List of all members.

---

Detailed Description

Iterate over boundary cells of a cell.

See also:

vtkBridgeCellIterator, vtkBridgeDataSet, vtkBridgeCellIteratorStrategy

Tests:

vtkBridgeCellIteratorOnCellBoundaries (Tests)

Definition at line 36 of file vtkBridgeCellIteratorOnCellBoundaries.h.

Public Types
typedef vtkBridgeCellIteratorStrategy	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Begin ()
int	IsAtEnd ()
void	GetCell (vtkGenericAdaptorCell *c)
vtkGenericAdaptorCell *	GetCell ()
void	Next ()
void	InitWithCellBoundaries (vtkBridgeCell *cell, int dim)
Static Public Member Functions
static vtkBridgeCellIteratorOnCellBoundaries *	New ()
static int	IsTypeOf (const char *type)
static vtkBridgeCellIteratorOnCellBoundaries *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBridgeCellIteratorOnCellBoundaries ()
virtual	~vtkBridgeCellIteratorOnCellBoundaries ()
Protected Attributes
int	Dim
vtkBridgeCell *	DataSetCell
vtkIdType	Id
vtkBridgeCell *	Cell
vtkIdType	NumberOfFaces
vtkIdType	NumberOfEdges
vtkIdType	NumberOfVertices

---

Member Typedef Documentation

typedef vtkBridgeCellIteratorStrategy vtkBridgeCellIteratorOnCellBoundaries::Superclass

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

Definition at line 41 of file vtkBridgeCellIteratorOnCellBoundaries.h.

---

Constructor & Destructor Documentation

vtkBridgeCellIteratorOnCellBoundaries::vtkBridgeCellIteratorOnCellBoundaries

(

)

[protected]

virtual vtkBridgeCellIteratorOnCellBoundaries::~vtkBridgeCellIteratorOnCellBoundaries

(

)

[protected, virtual]

---

Member Function Documentation

static vtkBridgeCellIteratorOnCellBoundaries* vtkBridgeCellIteratorOnCellBoundaries::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkBridgeCellIteratorOnCellBoundaries::GetClassName

(

)

[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

static int vtkBridgeCellIteratorOnCellBoundaries::IsTypeOf

(

const char *

type

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

virtual int vtkBridgeCellIteratorOnCellBoundaries::IsA

(

const char *

type

)

[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

static vtkBridgeCellIteratorOnCellBoundaries* vtkBridgeCellIteratorOnCellBoundaries::SafeDownCast

(

vtkObject *

o

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

void vtkBridgeCellIteratorOnCellBoundaries::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkBridgeCellIteratorStrategy.

void vtkBridgeCellIteratorOnCellBoundaries::Begin

(

)

[virtual]

Move iterator to first position if any (loop initialization).

Implements vtkGenericCellIterator.

int vtkBridgeCellIteratorOnCellBoundaries::IsAtEnd

(

)

[virtual]

Is there no cell at iterator position? (exit condition).

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOnCellBoundaries::GetCell

(

vtkGenericAdaptorCell *

c

)

[virtual]

Cell at current position

Precondition:

not_at_end: !IsAtEnd()

c_exists: c!=0 THREAD SAFE

Implements vtkGenericCellIterator.

vtkGenericAdaptorCell* vtkBridgeCellIteratorOnCellBoundaries::GetCell

(

)

[virtual]

Cell at current position. NOT THREAD SAFE

Precondition:

not_at_end: !IsAtEnd()

Postcondition:

result_exits: result!=0

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOnCellBoundaries::Next

(

)

[virtual]

Move iterator to next position. (loop progression).

Precondition:

not_at_end: !IsAtEnd()

Implements vtkGenericCellIterator.

void vtkBridgeCellIteratorOnCellBoundaries::InitWithCellBoundaries	(	vtkBridgeCell *	cell,
		int	dim
	)

Used internally by vtkBridgeCell. Iterate on boundary cells of a cell.

Precondition:

cell_exists: cell!=0

valid_dim_range: (dim==-1) || ((dim>=0)&&(dim<cell->GetDimension()))

---

Member Data Documentation

int vtkBridgeCellIteratorOnCellBoundaries::Dim [protected]

Definition at line 74 of file vtkBridgeCellIteratorOnCellBoundaries.h.

vtkBridgeCell* vtkBridgeCellIteratorOnCellBoundaries::DataSetCell [protected]

Definition at line 76 of file vtkBridgeCellIteratorOnCellBoundaries.h.

vtkIdType vtkBridgeCellIteratorOnCellBoundaries::Id [protected]

Definition at line 77 of file vtkBridgeCellIteratorOnCellBoundaries.h.

vtkBridgeCell* vtkBridgeCellIteratorOnCellBoundaries::Cell [protected]

Definition at line 78 of file vtkBridgeCellIteratorOnCellBoundaries.h.

vtkIdType vtkBridgeCellIteratorOnCellBoundaries::NumberOfFaces [protected]

Definition at line 79 of file vtkBridgeCellIteratorOnCellBoundaries.h.

vtkIdType vtkBridgeCellIteratorOnCellBoundaries::NumberOfEdges [protected]

Definition at line 80 of file vtkBridgeCellIteratorOnCellBoundaries.h.

vtkIdType vtkBridgeCellIteratorOnCellBoundaries::NumberOfVertices [protected]

Definition at line 81 of file vtkBridgeCellIteratorOnCellBoundaries.h.

---

The documentation for this class was generated from the following file:

• dox/GenericFiltering/Testing/Cxx/vtkBridgeCellIteratorOnCellBoundaries.h
