vtkExtractCTHPart Class Reference

#include <vtkExtractCTHPart.h>

Inheritance diagram for vtkExtractCTHPart:

[legend]

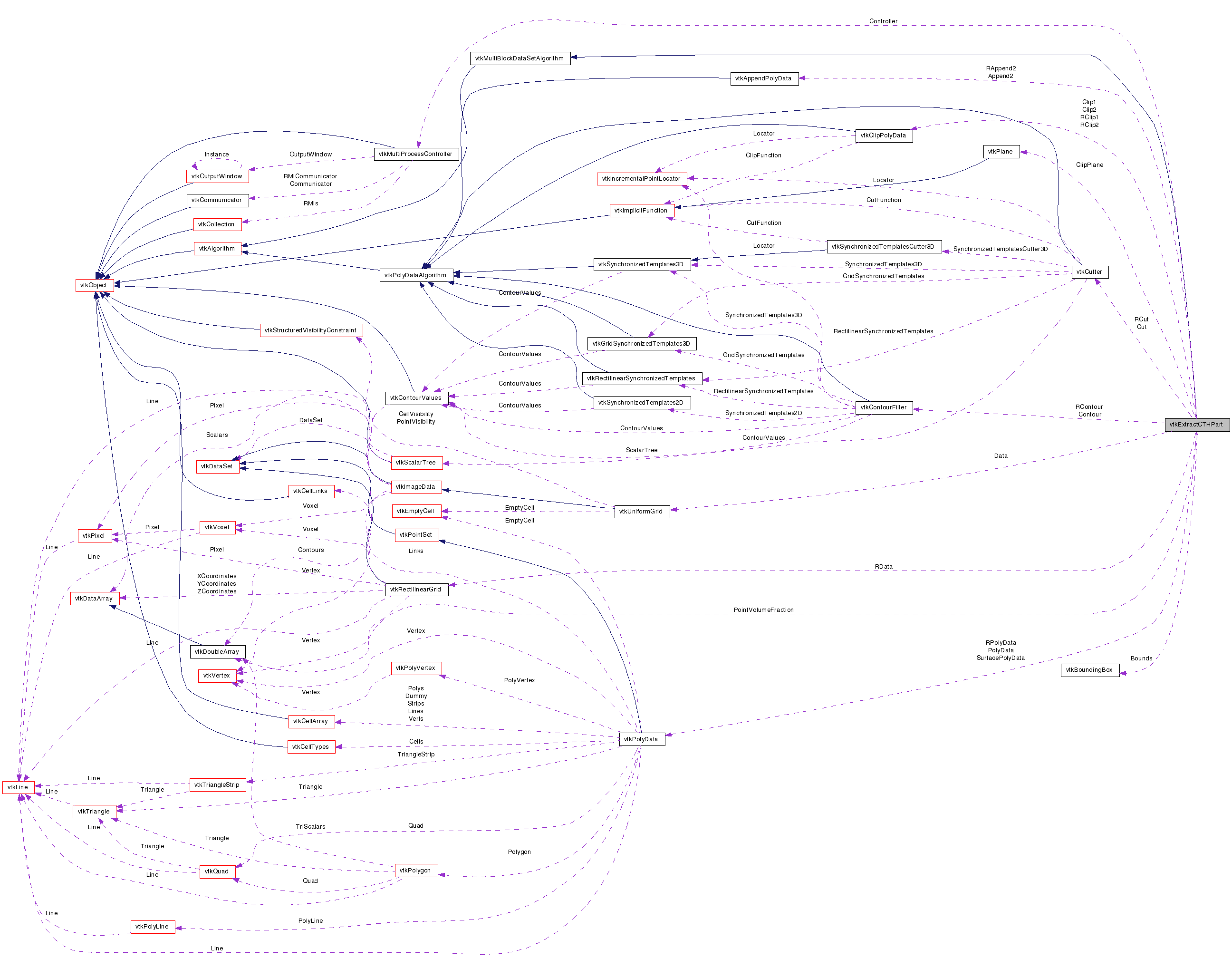

Collaboration diagram for vtkExtractCTHPart:

[legend]

List of all members.

Detailed Description

Generates surface of an CTH volume fraction.

vtkExtractCTHPart is a filter that is specialized for creating visualization of a CTH simulation. First it converts the cell data to point data. It contours the selected volume fraction at a value of 0.5. The user has the option of clipping the part with a plane. Clipped surfaces of the part are generated.

Tests:: vtkExtractCTHPart (Tests)

Definition at line 55 of file vtkExtractCTHPart.h.


Public Types
typedef vtkMultiBlockDataSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long	GetMTime ()
void	SetController (vtkMultiProcessController *controller)

void	RemoveDoubleVolumeArrayNames ()
void	RemoveFloatVolumeArrayNames ()
void	RemoveUnsignedCharVolumeArrayNames ()
int	GetNumberOfVolumeArrayNames ()
const char *	GetVolumeArrayName (int idx)
void	RemoveAllVolumeArrayNames ()

void	AddDoubleVolumeArrayName (char *arrayName)
void	AddFloatVolumeArrayName (char *arrayName)
void	AddUnsignedCharVolumeArrayName (char *arrayName)
void	AddVolumeArrayName (char *arrayName)

void	SetClipPlane (vtkPlane *clipPlane)
virtual vtkPlane *	GetClipPlane ()

virtual vtkMultiProcessController *	GetController ()

virtual void	SetVolumeFractionSurfaceValue (double)
virtual double	GetVolumeFractionSurfaceValue ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkExtractCTHPart *	SafeDownCast (vtkObject *o)
static vtkInformationDoubleVectorKey *	BOUNDS ()
static vtkExtractCTHPart *	New ()
Protected Member Functions
	vtkExtractCTHPart ()
	~vtkExtractCTHPart ()
virtual int	RequestInformation (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
void	ExecutePart (const char arrayName, vtkCompositeDataSet input, vtkAppendPolyData appendSurface, vtkAppendPolyData append, float minProgress, float maxProgress)
void	ExecutePartOnUniformGrid (const char arrayName, vtkUniformGrid input, vtkAppendPolyData appendSurface, vtkAppendPolyData append, float minProgress, float maxProgress)
void	ExecutePartOnRectilinearGrid (const char arrayName, vtkRectilinearGrid input, vtkAppendPolyData appendSurface, vtkAppendPolyData append, float minProgress, float maxProgress)
void	ExecuteCellDataToPointData (vtkDataArray cellVolumeFraction, vtkDoubleArray pointVolumeFraction, int *dims, float minProgress, float maxProgress, int reportProgress)
virtual int	FillInputPortInformation (int port, vtkInformation *info)
void	CreateInternalPipeline ()
void	DeleteInternalPipeline ()
void	ExecuteFaceQuads (vtkDataSet input, vtkPolyData output, int maxFlag, int originExtents[3], int ext[6], int aAxis, int bAxis, int cAxis)
void	EvaluateVolumeFractionType (vtkRectilinearGrid rg, vtkCompositeDataSet input)

void	ComputeBounds (vtkCompositeDataSet *input, int processNumber, int numProcessors)

int	ExtractUniformGridSurface (vtkUniformGrid input, vtkPolyData output)
int	ExtractRectilinearGridSurface (vtkRectilinearGrid input, vtkPolyData output)

int	IsGhostFace (int axis0, int maxFlag, int dims[3], vtkUnsignedCharArray *ghostArray)
Protected Attributes
vtkPlane *	ClipPlane
vtkExtractCTHPartInternal *	Internals
vtkDoubleArray *	PointVolumeFraction
vtkUniformGrid *	Data
vtkContourFilter *	Contour
vtkAppendPolyData *	Append2
vtkClipPolyData *	Clip1
vtkCutter *	Cut
vtkClipPolyData *	Clip2
vtkPolyData *	PolyData
vtkPolyData *	RPolyData
vtkPolyData *	SurfacePolyData
vtkRectilinearGrid *	RData
vtkContourFilter *	RContour
vtkAppendPolyData *	RAppend2
vtkClipPolyData *	RClip1
vtkCutter *	RCut
vtkClipPolyData *	RClip2
int	VolumeFractionType
double	VolumeFractionSurfaceValue
double	VolumeFractionSurfaceValueInternal
int	OverwriteVolumeFractionSurfaceValue
vtkBoundingBox *	Bounds
vtkMultiProcessController *	Controller

Member Typedef Documentation

typedef vtkMultiBlockDataSetAlgorithm vtkExtractCTHPart::Superclass

Reimplemented from vtkMultiBlockDataSetAlgorithm.

Definition at line 58 of file vtkExtractCTHPart.h.

Constructor & Destructor Documentation

vtkExtractCTHPart::vtkExtractCTHPart ( ) [protected]

vtkExtractCTHPart::~vtkExtractCTHPart ( ) [protected]

Member Function Documentation

virtual const char* vtkExtractCTHPart::GetClassName ( ) [virtual]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static int vtkExtractCTHPart::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

virtual int vtkExtractCTHPart::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static vtkExtractCTHPart* vtkExtractCTHPart::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkExtractCTHPart::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static vtkInformationDoubleVectorKey* vtkExtractCTHPart::BOUNDS ( ) [static]

key to record the bounds of the hierarchical dataset.

static vtkExtractCTHPart* vtkExtractCTHPart::New ( ) [static]

Construct object with initial range (0,1) and single contour value of 0.0.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkExtractCTHPart::RemoveDoubleVolumeArrayNames ( )
