vtkUniformGrid Class Reference

#include <vtkUniformGrid.h>

Inheritance diagram for vtkUniformGrid:

Inheritance graph
[legend]

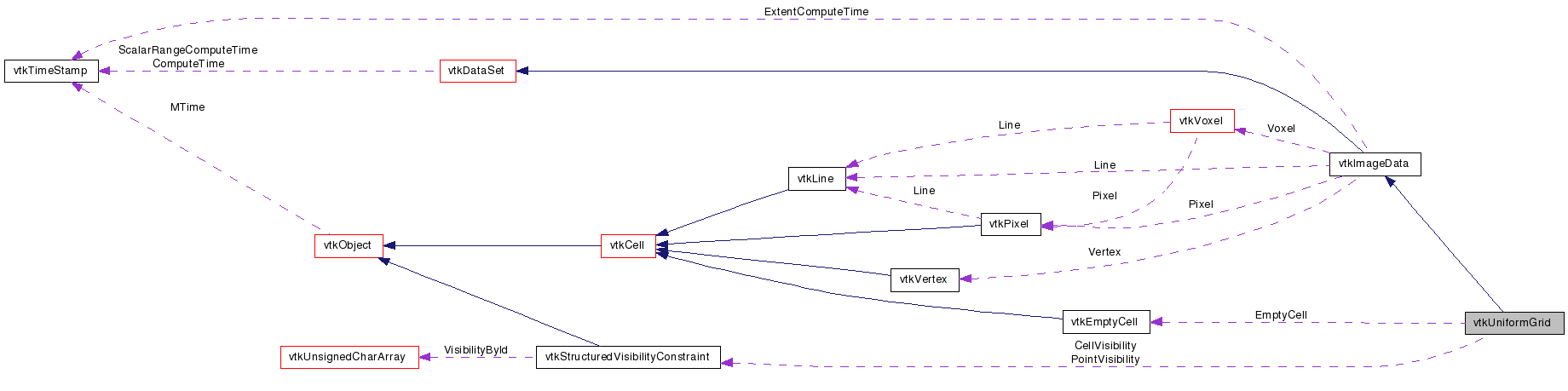

Collaboration diagram for vtkUniformGrid:

Collaboration graph
[legend]

List of all members.

Detailed Description

image data with blanking

vtkUniformGrid is a subclass of vtkImageData. In addition to all the image data functionality, it supports blanking.

Definition at line 32 of file vtkUniformGrid.h.

typedef vtkImageData Superclass
static vtkUniformGrid * New ()
static int IsTypeOf (const char *type)
static vtkUniformGrid * SafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

virtual void CopyStructure (vtkDataSet *ds)
virtual int GetDataObjectType ()
virtual vtkUnsignedCharArray * GetPointVisibilityArray ()
virtual void SetPointVisibilityArray (vtkUnsignedCharArray *pointVisibility)
virtual vtkUnsignedCharArray * GetCellVisibilityArray ()
virtual void SetCellVisibilityArray (vtkUnsignedCharArray *pointVisibility)
virtual unsigned char IsPointVisible (vtkIdType ptId)
virtual unsigned char IsCellVisible (vtkIdType cellId)
virtual unsigned char GetPointBlanking ()
virtual unsigned char GetCellBlanking ()
virtual vtkImageData * NewImageDataCopy ()
virtual vtkCell * GetCell (vtkIdType cellId)
virtual void GetCell (vtkIdType cellId, vtkGenericCell *cell)
virtual vtkIdType FindCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
virtual vtkIdType FindCell (double x[3], vtkCell *cell, vtkGenericCell *gencell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
virtual vtkCell * FindAndGetCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
virtual int GetCellType (vtkIdType cellId)
virtual void GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
virtual void GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
virtual void Initialize ()
virtual int GetMaxCellSize ()
int Initialize (const vtkAMRBox *def)
int Initialize (const vtkAMRBox *def, int nGhosts)
int Initialize (const vtkAMRBox *def, const int nGhosts[3])
int Initialize (const vtkAMRBox *def, int nGhostsI, int nGhostsJ, int nGhostsK)
virtual void ShallowCopy (vtkDataObject *src)
virtual void DeepCopy (vtkDataObject *src)
virtual void BlankPoint (vtkIdType ptId)
virtual void UnBlankPoint (vtkIdType ptId)
virtual void BlankCell (vtkIdType ptId)
virtual void UnBlankCell (vtkIdType ptId)

Static Public Member Functions

static vtkUniformGrid * GetData (vtkInformation *info)
static vtkUniformGrid * GetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkUniformGrid ()
 ~vtkUniformGrid ()
virtual void ComputeScalarRange ()
void SetPointVisibility (vtkStructuredVisibilityConstraint *pointVisibility)
virtual
vtkStructuredVisibilityConstraint * 		GetPointVisibility ()
void SetCellVisibility (vtkStructuredVisibilityConstraint *cellVisibility)
virtual
vtkStructuredVisibilityConstraint * 		GetCellVisibility ()

Protected Attributes

vtkStructuredVisibilityConstraint * PointVisibility
vtkStructuredVisibilityConstraint * CellVisibility
vtkEmptyCell * EmptyCell

Member Typedef Documentation

typedef vtkImageData vtkUniformGrid::Superclass

Construct an empty uniform grid.

Reimplemented from vtkImageData.

Definition at line 38 of file vtkUniformGrid.h.

Constructor & Destructor Documentation

vtkUniformGrid::vtkUniformGrid (  )  [protected]

vtkUniformGrid::~vtkUniformGrid (  )  [protected]

Member Function Documentation

static vtkUniformGrid* vtkUniformGrid::New (  )  [static]

Construct an empty uniform grid.

Reimplemented from vtkImageData.

virtual const char* vtkUniformGrid::GetClassName (  )  [virtual]

Construct an empty uniform grid.

Reimplemented from vtkImageData.

static int vtkUniformGrid::IsTypeOf ( const char *  type  )  [static]

Construct an empty uniform grid.

Reimplemented from vtkImageData.

virtual int vtkUniformGrid::IsA ( const char *  type  )  [virtual]

Construct an empty uniform grid.

Reimplemented from vtkImageData.

static vtkUniformGrid* vtkUniformGrid::SafeDownCast ( vtkObject *  o  )  [static]

Construct an empty uniform grid.

Reimplemented from vtkImageData.

void vtkUniformGrid::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Construct an empty uniform grid.

Reimplemented from vtkImageData.

virtual void vtkUniformGrid::CopyStructure ( vtkDataSet *  ds  )  [virtual]

Copy the geometric and topological structure of an input image data object.

Reimplemented from vtkImageData.

virtual int vtkUniformGrid::GetDataObjectType (  )  [inline, virtual]

Return what type of dataset this is.

Reimplemented from vtkImageData.

Definition at line 47 of file vtkUniformGrid.h.

virtual vtkCell* vtkUniformGrid::GetCell ( vtkIdType  cellId  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

virtual void vtkUniformGrid::GetCell ( vtkIdType  cellId,
vtkGenericCell *  cell
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

virtual vtkIdType vtkUniformGrid::FindCell ( double  x[3],
vtkCell *  cell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

virtual vtkIdType vtkUniformGrid::FindCell ( double  x[3],
vtkCell *  cell,
vtkGenericCell *  gencell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

virtual vtkCell* vtkUniformGrid::FindAndGetCell ( double  x[3],
vtkCell *  cell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

virtual int vtkUniformGrid::GetCellType ( vtkIdType  cellId  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

virtual void vtkUniformGrid::GetCellPoints ( vtkIdType  cellId,
vtkIdList *  ptIds
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

Definition at line 65 of file vtkUniformGrid.h.

virtual void vtkUniformGrid::GetPointCells ( vtkIdType  ptId,
vtkIdList *  cellIds
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

Definition at line 68 of file vtkUniformGrid.h.

virtual void vtkUniformGrid::Initialize (  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

virtual int vtkUniformGrid::GetMaxCellSize (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkImageData.

Definition at line 71 of file vtkUniformGrid.h.

int vtkUniformGrid::Initialize ( const vtkAMRBox *  def  )

Initialize with no ghost cell arrays, from the definition in the given box. The box is expetced to be 3D, if you have 2D data the set the third dimensions 0. eg. (X,X,0)(X,X,0) Returns 0 if the initialization failed.

int vtkUniformGrid::Initialize ( const vtkAMRBox *  def,
int  nGhosts
)

Initialize with no ghost cell arrays, from the definition in the given box. The box is expetced to be 3D, if you have 2D data the set the third dimensions 0. eg. (X,X,0)(X,X,0) Returns 0 if the initialization failed.

int vtkUniformGrid::Initialize ( const vtkAMRBox *  def,
const int  nGhosts[3]
)

Initialize with no ghost cell arrays, from the definition in the given box. The box is expetced to be 3D, if you have 2D data the set the third dimensions 0. eg. (X,X,0)(X,X,0) Returns 0 if the initialization failed.

int vtkUniformGrid::Initialize ( const vtkAMRBox *  def,
int  nGhostsI,
int  nGhostsJ,
int  nGhostsK
)

Initialize with no ghost cell arrays, from the definition in the given box. The box is expetced to be 3D, if you have 2D data the set the third dimensions 0. eg. (X,X,0)(X,X,0) Returns 0 if the initialization failed.

virtual void vtkUniformGrid::ShallowCopy ( vtkDataObject *  src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkImageData.

virtual void vtkUniformGrid::DeepCopy ( vtkDataObject *  src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkImageData.

virtual void vtkUniformGrid::BlankPoint ( vtkIdType  ptId  )  [virtual]

Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them. These methods should be called only after the dimensions of the grid are set.

virtual void vtkUniformGrid::UnBlankPoint ( vtkIdType  ptId  )  [virtual]

Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them. These methods should be called only after the dimensions of the grid are set.

virtual void vtkUniformGrid::BlankCell ( vtkIdType  ptId  )  [virtual]

Methods for supporting blanking of cells. Blanking turns on or off cells in the structured grid. These methods should be called only after the dimensions of the grid are set.

virtual void vtkUniformGrid::UnBlankCell ( vtkIdType  ptId  )  [virtual]

Methods for supporting blanking of cells. Blanking turns on or off cells in the structured grid. These methods should be called only after the dimensions of the grid are set.

virtual vtkUnsignedCharArray* vtkUniformGrid::GetPointVisibilityArray (  )  [virtual]

Get the array that defines the blanking (visibility) of each point.

virtual void vtkUniformGrid::SetPointVisibilityArray ( vtkUnsignedCharArray *  pointVisibility  )  [virtual]

Set an array that defines the (blanking) visibility of the points in the grid. Make sure that length of the visibility array matches the number of points in the grid.

virtual vtkUnsignedCharArray* vtkUniformGrid::GetCellVisibilityArray (  )  [virtual]

Get the array that defines the blanking (visibility) of each cell.

virtual void vtkUniformGrid::SetCellVisibilityArray ( vtkUnsignedCharArray *  pointVisibility  )  [virtual]

Set an array that defines the (blanking) visibility of the cells in the grid. Make sure that length of the visibility array matches the number of points in the grid.

virtual unsigned char vtkUniformGrid::IsPointVisible ( vtkIdType  ptId  )  [virtual]

Return non-zero value if specified point is visible. These methods should be called only after the dimensions of the grid are set.

virtual unsigned char vtkUniformGrid::IsCellVisible ( vtkIdType  cellId  )  [virtual]

Return non-zero value if specified cell is visible. These methods should be called only after the dimensions of the grid are set.

virtual unsigned char vtkUniformGrid::GetPointBlanking (  )  [virtual]

Returns 1 if there is any visibility constraint on the points, 0 otherwise.

virtual unsigned char vtkUniformGrid::GetCellBlanking (  )  [virtual]

Returns 1 if there is any visibility constraint on the cells, 0 otherwise.

virtual vtkImageData* vtkUniformGrid::NewImageDataCopy (  )  [virtual]

static vtkUniformGrid* vtkUniformGrid::GetData ( vtkInformation *  info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkImageData.

static vtkUniformGrid* vtkUniformGrid::GetData ( vtkInformationVector *  v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkImageData.

virtual void vtkUniformGrid::ComputeScalarRange (  )  [protected, virtual]

Override this method because of blanking.

Reimplemented from vtkDataSet.

void vtkUniformGrid::SetPointVisibility ( vtkStructuredVisibilityConstraint *  pointVisibility  )  [protected]

virtual vtkStructuredVisibilityConstraint* vtkUniformGrid::GetPointVisibility (  )  [protected, virtual]

void vtkUniformGrid::SetCellVisibility ( vtkStructuredVisibilityConstraint *  cellVisibility  )  [protected]

virtual vtkStructuredVisibilityConstraint* vtkUniformGrid::GetCellVisibility (  )  [protected, virtual]

Member Data Documentation

vtkStructuredVisibilityConstraint* vtkUniformGrid::PointVisibility [protected]

Definition at line 178 of file vtkUniformGrid.h.

vtkStructuredVisibilityConstraint* vtkUniformGrid::CellVisibility [protected]

Definition at line 181 of file vtkUniformGrid.h.

vtkEmptyCell* vtkUniformGrid::EmptyCell [protected]

Definition at line 186 of file vtkUniformGrid.h.

The documentation for this class was generated from the following file:
