vtkMarchingCubes Class Reference

#include <vtkMarchingCubes.h>

Inheritance diagram for vtkMarchingCubes:

Inheritance graph
[legend]

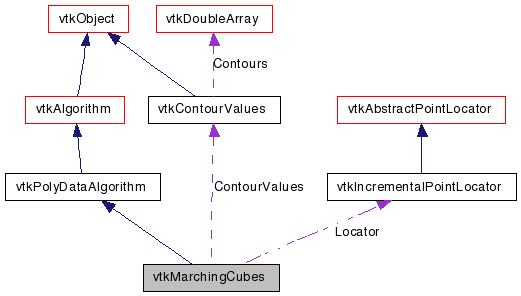

Collaboration diagram for vtkMarchingCubes:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate isosurface(s) from volume

vtkMarchingCubes is a filter that takes as input a volume (e.g., 3D structured point set) and generates on output one or more isosurfaces. One or more contour values must be specified to generate the isosurfaces. Alternatively, you can specify a min/max scalar range and the number of contours to generate a series of evenly spaced contour values.

Warning:
This filter is specialized to volumes. If you are interested in contouring other types of data, use the general vtkContourFilter. If you want to contour an image (i.e., a volume slice), use vtkMarchingSquares.
See also:
vtkContourFilter vtkSliceCubes vtkMarchingSquares vtkDividingCubes
Examples:
vtkMarchingCubes (Examples)
Tests:
vtkMarchingCubes (Tests)

Definition at line 47 of file vtkMarchingCubes.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetValue (int i, double value)
void GetValues (double *contourValues)
void SetNumberOfContours (int number)
unsigned long int GetMTime ()
void CreateDefaultLocator ()
double GetValue (int i)
double * GetValues ()
int GetNumberOfContours ()
void GenerateValues (int numContours, double range[2])
void GenerateValues (int numContours, double rangeStart, double rangeEnd)
virtual void SetComputeNormals (int)
virtual int GetComputeNormals ()
virtual void ComputeNormalsOn ()
virtual void ComputeNormalsOff ()
virtual void SetComputeGradients (int)
virtual int GetComputeGradients ()
virtual void ComputeGradientsOn ()
virtual void ComputeGradientsOff ()
virtual void SetComputeScalars (int)
virtual int GetComputeScalars ()
virtual void ComputeScalarsOn ()
virtual void ComputeScalarsOff ()
void SetLocator (vtkIncrementalPointLocator *locator)
virtual
vtkIncrementalPointLocator
GetLocator ()

Static Public Member Functions

static vtkMarchingCubesNew ()
static int IsTypeOf (const char *type)
static vtkMarchingCubesSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkMarchingCubes ()
 ~vtkMarchingCubes ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

vtkContourValuesContourValues
int ComputeNormals
int ComputeGradients
int ComputeScalars
vtkIncrementalPointLocatorLocator

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDiscreteMarchingCubes.

Definition at line 51 of file vtkMarchingCubes.h.


Constructor & Destructor Documentation

vtkMarchingCubes::vtkMarchingCubes (  )  [protected]

vtkMarchingCubes::~vtkMarchingCubes (  )  [protected]


Member Function Documentation

static vtkMarchingCubes* vtkMarchingCubes::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDiscreteMarchingCubes.

virtual const char* vtkMarchingCubes::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDiscreteMarchingCubes.

static int vtkMarchingCubes::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDiscreteMarchingCubes.

virtual int vtkMarchingCubes::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDiscreteMarchingCubes.

static vtkMarchingCubes* vtkMarchingCubes::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDiscreteMarchingCubes.

void vtkMarchingCubes::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

void vtkMarchingCubes::SetValue ( int  i,
double  value
) [inline]

Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours.

Definition at line 126 of file vtkMarchingCubes.h.

double vtkMarchingCubes::GetValue ( int  i  )  [inline]

Get the ith contour value.

Definition at line 131 of file vtkMarchingCubes.h.

double * vtkMarchingCubes::GetValues (  )  [inline]

Get a pointer to an array of contour values. There will be GetNumberOfContours() values in the list.

Definition at line 138 of file vtkMarchingCubes.h.

void vtkMarchingCubes::GetValues ( double *  contourValues  )  [inline]

Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list.

Definition at line 145 of file vtkMarchingCubes.h.

void vtkMarchingCubes::SetNumberOfContours ( int  number  )  [inline]

Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed.

Definition at line 151 of file vtkMarchingCubes.h.

int vtkMarchingCubes::GetNumberOfContours (  )  [inline]

Get the number of contours in the list of contour values.

Definition at line 156 of file vtkMarchingCubes.h.

void vtkMarchingCubes::GenerateValues ( int  numContours,
double  range[2]
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 163 of file vtkMarchingCubes.h.

void vtkMarchingCubes::GenerateValues ( int  numContours,
double  rangeStart,
double  rangeEnd
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 170 of file vtkMarchingCubes.h.

unsigned long int vtkMarchingCubes::GetMTime (  )  [virtual]

Return this object's modified time.

Reimplemented from vtkObject.

virtual void vtkMarchingCubes::SetComputeNormals ( int   )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkMarchingCubes::GetComputeNormals (  )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkMarchingCubes::ComputeNormalsOn (  )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkMarchingCubes::ComputeNormalsOff (  )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkMarchingCubes::SetComputeGradients ( int   )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkMarchingCubes::GetComputeGradients (  )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkMarchingCubes::ComputeGradientsOn (  )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkMarchingCubes::ComputeGradientsOff (  )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkMarchingCubes::SetComputeScalars ( int   )  [virtual]

Set/Get the computation of scalars.

virtual int vtkMarchingCubes::GetComputeScalars (  )  [virtual]

Set/Get the computation of scalars.

virtual void vtkMarchingCubes::ComputeScalarsOn (  )  [virtual]

Set/Get the computation of scalars.

virtual void vtkMarchingCubes::ComputeScalarsOff (  )  [virtual]

Set/Get the computation of scalars.

void vtkMarchingCubes::SetLocator ( vtkIncrementalPointLocator locator  )

Overide the default locator. Useful for changing the number of bins for performance or specifying a more aggressive locator.

virtual vtkIncrementalPointLocator* vtkMarchingCubes::GetLocator (  )  [virtual]

Overide the default locator. Useful for changing the number of bins for performance or specifying a more aggressive locator.

void vtkMarchingCubes::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

virtual int vtkMarchingCubes::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkDiscreteMarchingCubes.

virtual int vtkMarchingCubes::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 114 of file vtkMarchingCubes.h.

Definition at line 115 of file vtkMarchingCubes.h.

Definition at line 116 of file vtkMarchingCubes.h.

Definition at line 117 of file vtkMarchingCubes.h.

Definition at line 118 of file vtkMarchingCubes.h.


The documentation for this class was generated from the following file:
