vtkMarchingSquares Class Reference

#include <vtkMarchingSquares.h>

Inheritance diagram for vtkMarchingSquares:

Inheritance graph
[legend]

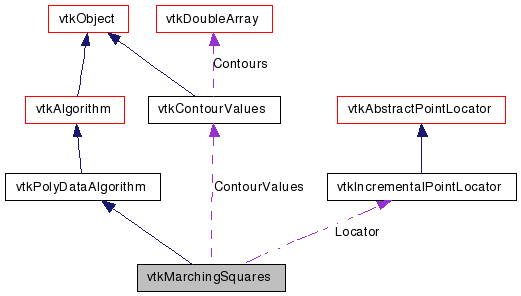

Collaboration diagram for vtkMarchingSquares:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate isoline(s) from structured points set

vtkMarchingSquares is a filter that takes as input a structured points set and generates on output one or more isolines. One or more contour values must be specified to generate the isolines. Alternatively, you can specify a min/max scalar range and the number of contours to generate a series of evenly spaced contour values.

To generate contour lines the input data must be of topological dimension 2 (i.e., an image). If not, you can use the ImageRange ivar to select an image plane from an input volume. This avoids having to extract a plane first (using vtkExtractSubVolume). The filter deals with this by first trying to use the input data directly, and if not a 2D image, then uses the ImageRange ivar to reduce it to an image.

Warning:
This filter is specialized to images. If you are interested in contouring other types of data, use the general vtkContourFilter.
See also:
vtkContourFilter vtkMarchingCubes vtkSliceCubes vtkDividingCubes
Tests:
vtkMarchingSquares (Tests)

Definition at line 51 of file vtkMarchingSquares.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long int GetMTime ()
void SetLocator (vtkIncrementalPointLocator *locator)
virtual
vtkIncrementalPointLocator
GetLocator ()
void CreateDefaultLocator ()
virtual void SetImageRange (int data[])
virtual int * GetImageRange ()
virtual void GetImageRange (int data[6])
void SetImageRange (int imin, int imax, int jmin, int jmax, int kmin, int kmax)
void SetValue (int i, double value)
double GetValue (int i)
double * GetValues ()
void GetValues (double *contourValues)
void SetNumberOfContours (int number)
int GetNumberOfContours ()
void GenerateValues (int numContours, double range[2])
void GenerateValues (int numContours, double rangeStart, double rangeEnd)

Static Public Member Functions

static vtkMarchingSquaresNew ()
static int IsTypeOf (const char *type)
static vtkMarchingSquaresSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkMarchingSquares ()
 ~vtkMarchingSquares ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

vtkContourValuesContourValues
int ImageRange [6]
vtkIncrementalPointLocatorLocator

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 55 of file vtkMarchingSquares.h.


Constructor & Destructor Documentation

vtkMarchingSquares::vtkMarchingSquares (  )  [protected]

vtkMarchingSquares::~vtkMarchingSquares (  )  [protected]


Member Function Documentation

static vtkMarchingSquares* vtkMarchingSquares::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkMarchingSquares::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkMarchingSquares::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkMarchingSquares::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkMarchingSquares* vtkMarchingSquares::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkMarchingSquares::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkMarchingSquares::SetImageRange ( int  data[]  )  [virtual]

Set/Get the i-j-k index range which define a plane on which to generate contour lines. Using this ivar it is possible to input a 3D volume directly and then generate contour lines on one of the i-j-k planes, or a portion of a plane.

virtual int* vtkMarchingSquares::GetImageRange (  )  [virtual]

Set/Get the i-j-k index range which define a plane on which to generate contour lines. Using this ivar it is possible to input a 3D volume directly and then generate contour lines on one of the i-j-k planes, or a portion of a plane.

virtual void vtkMarchingSquares::GetImageRange ( int  data[6]  )  [virtual]

Set/Get the i-j-k index range which define a plane on which to generate contour lines. Using this ivar it is possible to input a 3D volume directly and then generate contour lines on one of the i-j-k planes, or a portion of a plane.

void vtkMarchingSquares::SetImageRange ( int  imin,
int  imax,
int  jmin,
int  jmax,
int  kmin,
int  kmax
)

Set/Get the i-j-k index range which define a plane on which to generate contour lines. Using this ivar it is possible to input a 3D volume directly and then generate contour lines on one of the i-j-k planes, or a portion of a plane.

void vtkMarchingSquares::SetValue ( int  i,
double  value
) [inline]

Methods to set contour values

Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours.

Definition at line 109 of file vtkMarchingSquares.h.

double vtkMarchingSquares::GetValue ( int  i  )  [inline]

Get the ith contour value.

Definition at line 114 of file vtkMarchingSquares.h.

double * vtkMarchingSquares::GetValues (  )  [inline]

Get a pointer to an array of contour values. There will be GetNumberOfContours() values in the list.

Definition at line 121 of file vtkMarchingSquares.h.

void vtkMarchingSquares::GetValues ( double *  contourValues  )  [inline]

Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list.

Definition at line 128 of file vtkMarchingSquares.h.

void vtkMarchingSquares::SetNumberOfContours ( int  number  )  [inline]

Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed.

Definition at line 134 of file vtkMarchingSquares.h.

int vtkMarchingSquares::GetNumberOfContours (  )  [inline]

Get the number of contours in the list of contour values.

Definition at line 139 of file vtkMarchingSquares.h.

void vtkMarchingSquares::GenerateValues ( int  numContours,
double  range[2]
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 146 of file vtkMarchingSquares.h.

void vtkMarchingSquares::GenerateValues ( int  numContours,
double  rangeStart,
double  rangeEnd
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 153 of file vtkMarchingSquares.h.

unsigned long int vtkMarchingSquares::GetMTime (  )  [virtual]

Because we delegate to vtkContourValues

Reimplemented from vtkObject.

void vtkMarchingSquares::SetLocator ( vtkIncrementalPointLocator locator  )

virtual vtkIncrementalPointLocator* vtkMarchingSquares::GetLocator (  )  [virtual]

void vtkMarchingSquares::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

virtual int vtkMarchingSquares::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkMarchingSquares::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 98 of file vtkMarchingSquares.h.

int vtkMarchingSquares::ImageRange[6] [protected]

Definition at line 99 of file vtkMarchingSquares.h.

Definition at line 100 of file vtkMarchingSquares.h.
