vtkPMultiCorrelativeStatistics Class Reference

#include <vtkPMultiCorrelativeStatistics.h>

Inheritance diagram for vtkPMultiCorrelativeStatistics:

[legend]

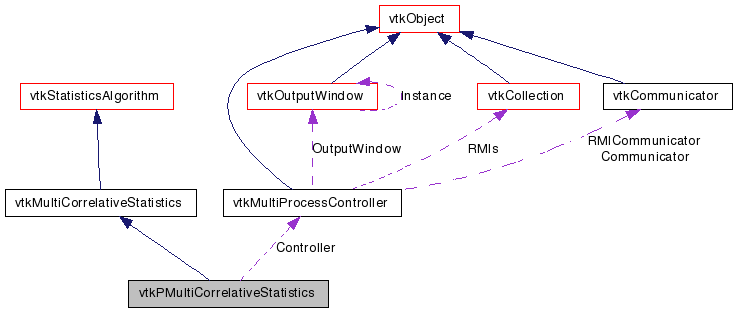

Collaboration diagram for vtkPMultiCorrelativeStatistics:

[legend]

List of all members.

---

Detailed Description

A class for parallel bivariate correlative statistics.

vtkPMultiCorrelativeStatistics is vtkMultiCorrelativeStatistics subclass for parallel datasets. It learns and derives the global statistical model on each node, but assesses each individual data points on the node that owns it.

Thanks:

Thanks to Philippe Pebay and David Thompson from Sandia National Laboratories for implementing this class.

Tests:

vtkPMultiCorrelativeStatistics (Tests)

Definition at line 36 of file vtkPMultiCorrelativeStatistics.h.

Public Types
typedef vtkMultiCorrelativeStatistics	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()
Static Public Member Functions
static vtkPMultiCorrelativeStatistics *	New ()
static int	IsTypeOf (const char *type)
static vtkPMultiCorrelativeStatistics *	SafeDownCast (vtkObject *o)
static void	GatherStatistics (vtkMultiProcessController *curController, vtkTable *sparseCov)
Protected Member Functions
	vtkPMultiCorrelativeStatistics ()
	~vtkPMultiCorrelativeStatistics ()
virtual void	Learn (vtkTable *inData, vtkTable *inParameters, vtkDataObject *outMeta)
Protected Attributes
vtkMultiProcessController *	Controller

---

Member Typedef Documentation

typedef vtkMultiCorrelativeStatistics vtkPMultiCorrelativeStatistics::Superclass

Reimplemented from vtkMultiCorrelativeStatistics.

Definition at line 40 of file vtkPMultiCorrelativeStatistics.h.

---

Constructor & Destructor Documentation

vtkPMultiCorrelativeStatistics::vtkPMultiCorrelativeStatistics

(

)

[protected]

vtkPMultiCorrelativeStatistics::~vtkPMultiCorrelativeStatistics

(

)

[protected]

---

Member Function Documentation

static vtkPMultiCorrelativeStatistics* vtkPMultiCorrelativeStatistics::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkMultiCorrelativeStatistics.

virtual const char* vtkPMultiCorrelativeStatistics::GetClassName

(

)

[virtual]

Reimplemented from vtkMultiCorrelativeStatistics.

static int vtkPMultiCorrelativeStatistics::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMultiCorrelativeStatistics.

virtual int vtkPMultiCorrelativeStatistics::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMultiCorrelativeStatistics.

static vtkPMultiCorrelativeStatistics* vtkPMultiCorrelativeStatistics::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkMultiCorrelativeStatistics.

void vtkPMultiCorrelativeStatistics::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMultiCorrelativeStatistics.

virtual void vtkPMultiCorrelativeStatistics::SetController

(

vtkMultiProcessController *

)

[virtual]

Get/Set the multiprocess controller. If no controller is set, single process is assumed.

virtual vtkMultiProcessController* vtkPMultiCorrelativeStatistics::GetController

(

)

[virtual]

Get/Set the multiprocess controller. If no controller is set, single process is assumed.

static void vtkPMultiCorrelativeStatistics::GatherStatistics	(	vtkMultiProcessController *	curController,
		vtkTable *	sparseCov
	)			[static]

Performs Reduction

virtual void vtkPMultiCorrelativeStatistics::Learn	(	vtkTable *	inData,
		vtkTable *	inParameters,
		vtkDataObject *	outMeta
	)			[protected, virtual]

Execute the calculations required by the Learn option.

Reimplemented from vtkMultiCorrelativeStatistics.

---

Member Data Documentation

vtkMultiProcessController* vtkPMultiCorrelativeStatistics::Controller [protected]

Definition at line 60 of file vtkPMultiCorrelativeStatistics.h.

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkPMultiCorrelativeStatistics.h
