vtkRenderedSurfaceRepresentation Class Reference

#include <vtkRenderedSurfaceRepresentation.h>

Inheritance diagram for vtkRenderedSurfaceRepresentation:

[legend]

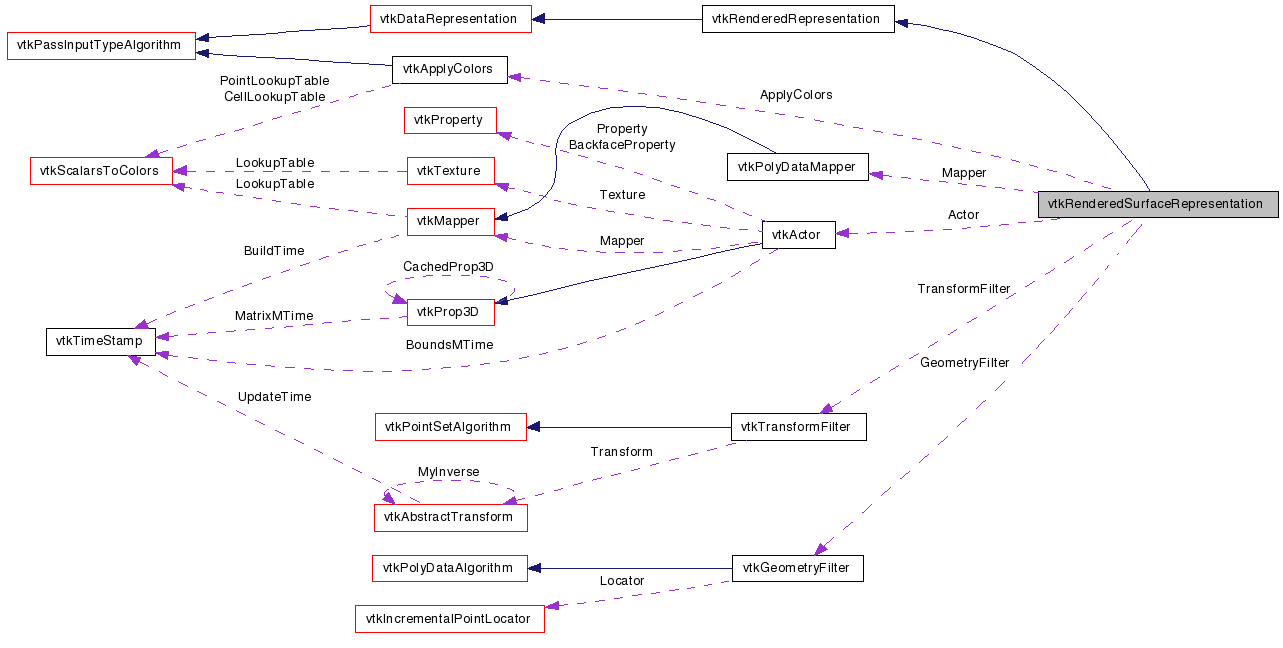

Collaboration diagram for vtkRenderedSurfaceRepresentation:

[legend]

List of all members.

Detailed Description

Displays a geometric dataset as a surface.

vtkRenderedSurfaceRepresentation is used to show a geometric dataset in a view. The representation uses a vtkGeometryFilter to convert the dataset to polygonal data (e.g. volumetric data is converted to its external surface). The representation may then be added to vtkRenderView.

Tests:: vtkRenderedSurfaceRepresentation (Tests)

Definition at line 50 of file vtkRenderedSurfaceRepresentation.h.


Public Types
typedef vtkRenderedRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ApplyViewTheme (vtkViewTheme *theme)

virtual void	SetCellColorArrayName (const char *arrayName)
virtual const char *	GetCellColorArrayName ()
Static Public Member Functions
static vtkRenderedSurfaceRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkRenderedSurfaceRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRenderedSurfaceRepresentation ()
	~vtkRenderedSurfaceRepresentation ()
virtual void	PrepareForRendering (vtkRenderView *view)
virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)
virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)
virtual char *	GetCellColorArrayNameInternal ()
virtual void	SetCellColorArrayNameInternal (const char *)

virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
char *	CellColorArrayNameInternal

vtkTransformFilter *	TransformFilter
vtkApplyColors *	ApplyColors
vtkGeometryFilter *	GeometryFilter
vtkPolyDataMapper *	Mapper
vtkActor *	Actor

Member Typedef Documentation

typedef vtkRenderedRepresentation vtkRenderedSurfaceRepresentation::Superclass

Reimplemented from vtkRenderedRepresentation.

Definition at line 54 of file vtkRenderedSurfaceRepresentation.h.

Constructor & Destructor Documentation

vtkRenderedSurfaceRepresentation::vtkRenderedSurfaceRepresentation ( ) [protected]

vtkRenderedSurfaceRepresentation::~vtkRenderedSurfaceRepresentation ( ) [protected]

Member Function Documentation

static vtkRenderedSurfaceRepresentation* vtkRenderedSurfaceRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRenderedRepresentation.

virtual const char* vtkRenderedSurfaceRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkRenderedRepresentation.

static int vtkRenderedSurfaceRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

virtual int vtkRenderedSurfaceRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

static vtkRenderedSurfaceRepresentation* vtkRenderedSurfaceRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkRenderedRepresentation.

void vtkRenderedSurfaceRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderedRepresentation.

virtual void vtkRenderedSurfaceRepresentation::SetCellColorArrayName ( const char * arrayName ) [virtual]

Sets the color array name

virtual const char* vtkRenderedSurfaceRepresentation::GetCellColorArrayName ( ) [inline, virtual]

Sets the color array name

Definition at line 60 of file vtkRenderedSurfaceRepresentation.h.

virtual void vtkRenderedSurfaceRepresentation::ApplyViewTheme ( vtkViewTheme * theme ) [virtual]

Apply a theme to this representation.

virtual int vtkRenderedSurfaceRepresentation::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

Sets the input pipeline connection to this representation.

Reimplemented from vtkDataRepresentation.

virtual void vtkRenderedSurfaceRepresentation::PrepareForRendering ( vtkRenderView * view ) [protected, virtual]

Performs per-render operations.

Reimplemented from vtkRenderedRepresentation.

virtual bool vtkRenderedSurfaceRepresentation::AddToView ( vtkView * view ) [protected, virtual]

Adds the representation to the view. This is called from vtkView::AddRepresentation().

virtual bool vtkRenderedSurfaceRepresentation::RemoveFromView ( vtkView * view ) [protected, virtual]

Removes the representation to the view. This is called from vtkView::RemoveRepresentation().

virtual vtkSelection* vtkRenderedSurfaceRepresentation::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			`[protected, virtual]`

Convert the selection to a type appropriate for sharing with other representations through vtkAnnotationLink. If the selection cannot be applied to this representation, returns NULL.

Reimplemented from vtkDataRepresentation.

virtual char* vtkRenderedSurfaceRepresentation::GetCellColorArrayNameInternal ( ) [protected, virtual]
