vtkGenericClip Class Reference

#include <vtkGenericClip.h>

Inheritance diagram for vtkGenericClip:

Inheritance graph
[legend]

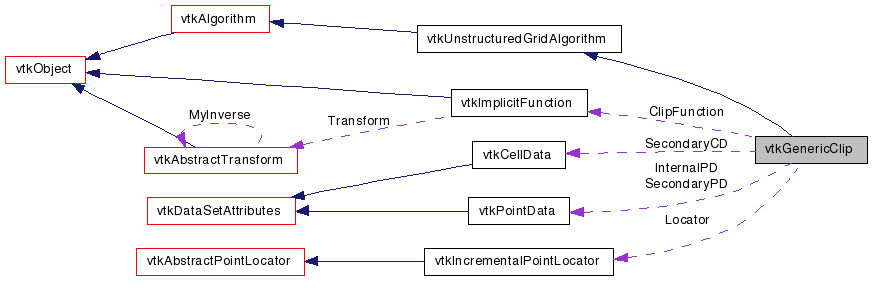

Collaboration diagram for vtkGenericClip:

Collaboration graph
[legend]

List of all members.


Detailed Description

clip any dataset with an implicit function or scalar data

vtkGenericClip is a filter that any type of dataset using either any subclass of vtkImplicitFunction, or the input scalar data. Clipping means that it actually "cuts" through the cells of the dataset, returning everything inside of the specified implicit function (or greater than the scalar value) including "pieces" of a cell. (Compare this with vtkExtractGeometry, which pulls out entire, uncut cells.) The output of this filter is an unstructured grid.

To use this filter, you must decide if you will be clipping with an implicit function, or whether you will be using the input scalar data. If you want to clip with an implicit function, you must: 1) define an implicit function 2) set it with the SetClipFunction method 3) apply the GenerateClipScalarsOn method If a ClipFunction is not specified, or GenerateClipScalars is off (the default), then the input's scalar data will be used to clip the polydata.

You can also specify a scalar value, which is used to decide what is inside and outside of the implicit function. You can also reverse the sense of what inside/outside is by setting the InsideOut instance variable. (The clipping algorithm proceeds by computing an implicit function value or using the input scalar data for each point in the dataset. This is compared to the scalar value to determine inside/outside.)

This filter can be configured to compute a second output. The second output is the part of the cell that is clipped away. Set the GenerateClippedData boolean on if you wish to access this output data.

This filter has been implemented to operate on generic datasets, rather than the typical vtkDataSet (and subclasses). vtkGenericDataSet is a more complex cousin of vtkDataSet, typically consisting of nonlinear, higher-order cells. To process this type of data, generic cells are automatically tessellated into linear cells prior to isocontouring.

See also:
vtkClipDataSet vtkClipPolyData vtkClipVolume vtkImplicitFunction vtkGenericDataSet
Tests:
vtkGenericClip (Tests)

Definition at line 74 of file vtkGenericClip.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void CreateDefaultLocator ()
unsigned long GetMTime ()
virtual void SetValue (double)
virtual double GetValue ()
virtual void SetInsideOut (int)
virtual int GetInsideOut ()
virtual void InsideOutOn ()
virtual void InsideOutOff ()
virtual void SetClipFunction (vtkImplicitFunction *)
virtual vtkImplicitFunctionGetClipFunction ()
virtual void SetGenerateClipScalars (int)
virtual int GetGenerateClipScalars ()
virtual void GenerateClipScalarsOn ()
virtual void GenerateClipScalarsOff ()
virtual void SetGenerateClippedOutput (int)
virtual int GetGenerateClippedOutput ()
virtual void GenerateClippedOutputOn ()
virtual void GenerateClippedOutputOff ()
virtual void SetMergeTolerance (double)
virtual double GetMergeTolerance ()
vtkUnstructuredGridGetClippedOutput ()
virtual int GetNumberOfOutputs ()
void SetLocator (vtkIncrementalPointLocator *locator)
virtual
vtkIncrementalPointLocator
GetLocator ()
virtual char * GetInputScalarsSelection ()
void SelectInputScalars (const char *fieldName)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkGenericClipSafeDownCast (vtkObject *o)
static vtkGenericClipNew ()

Protected Member Functions

 vtkGenericClip (vtkImplicitFunction *cf=NULL)
 ~vtkGenericClip ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int FillInputPortInformation (int, vtkInformation *)
virtual void SetInputScalarsSelection (const char *)

Protected Attributes

vtkImplicitFunctionClipFunction
vtkIncrementalPointLocatorLocator
int InsideOut
double Value
int GenerateClipScalars
int GenerateClippedOutput
double MergeTolerance
char * InputScalarsSelection
vtkPointDataInternalPD
vtkPointDataSecondaryPD
vtkCellDataSecondaryCD

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 77 of file vtkGenericClip.h.


Constructor & Destructor Documentation

vtkGenericClip::vtkGenericClip ( vtkImplicitFunction cf = NULL  )  [protected]

vtkGenericClip::~vtkGenericClip (  )  [protected]


Member Function Documentation

virtual const char* vtkGenericClip::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkGenericClip::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkGenericClip::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkGenericClip* vtkGenericClip::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkGenericClip::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkGenericClip* vtkGenericClip::New (  )  [static]

Construct with user-specified implicit function; InsideOut turned off; value set to 0.0; and generate clip scalars turned off.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkGenericClip::SetValue ( double   )  [virtual]

Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual double vtkGenericClip::GetValue (  )  [virtual]

Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual void vtkGenericClip::SetInsideOut ( int   )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual int vtkGenericClip::GetInsideOut (  )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkGenericClip::InsideOutOn (  )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkGenericClip::InsideOutOff (  )  [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkGenericClip::SetClipFunction ( vtkImplicitFunction  )  [virtual]

Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the selected input scalar data will be used for clipping.

virtual vtkImplicitFunction* vtkGenericClip::GetClipFunction (  )  [virtual]

Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the selected input scalar data will be used for clipping.

virtual void vtkGenericClip::SetGenerateClipScalars ( int   )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual int vtkGenericClip::GetGenerateClipScalars (  )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkGenericClip::GenerateClipScalarsOn (  )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkGenericClip::GenerateClipScalarsOff (  )  [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkGenericClip::SetGenerateClippedOutput ( int   )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual int vtkGenericClip::GetGenerateClippedOutput (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkGenericClip::GenerateClippedOutputOn (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkGenericClip::GenerateClippedOutputOff (  )  [virtual]

Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkGenericClip::SetMergeTolerance ( double   )  [virtual]

Set the tolerance for merging clip intersection points that are near the vertices of cells. This tolerance is used to prevent the generation of degenerate primitives. Note that only 3D cells actually use this instance variable.

virtual double vtkGenericClip::GetMergeTolerance (  )  [virtual]

Set the tolerance for merging clip intersection points that are near the vertices of cells. This tolerance is used to prevent the generation of degenerate primitives. Note that only 3D cells actually use this instance variable.

vtkUnstructuredGrid* vtkGenericClip::GetClippedOutput (  )

Return the Clipped output.

virtual int vtkGenericClip::GetNumberOfOutputs (  )  [virtual]

Return the Clipped output.

void vtkGenericClip::SetLocator ( vtkIncrementalPointLocator locator  )

Specify a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

virtual vtkIncrementalPointLocator* vtkGenericClip::GetLocator (  )  [virtual]

Specify a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

void vtkGenericClip::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

unsigned long vtkGenericClip::GetMTime (  )  [virtual]

Return the mtime also considering the locator and clip function.

Reimplemented from vtkObject.

virtual char* vtkGenericClip::GetInputScalarsSelection (  )  [virtual]

If you want to clip by an arbitrary array, then set its name here. By default this in NULL and the filter will use the active scalar array.

void vtkGenericClip::SelectInputScalars ( const char *  fieldName  )  [inline]

If you want to clip by an arbitrary array, then set its name here. By default this in NULL and the filter will use the active scalar array.

Definition at line 162 of file vtkGenericClip.h.

int vtkGenericClip::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

int vtkGenericClip::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkGenericClip::SetInputScalarsSelection ( const char *   )  [protected, virtual]


Member Data Documentation

Definition at line 173 of file vtkGenericClip.h.

Definition at line 175 of file vtkGenericClip.h.

int vtkGenericClip::InsideOut [protected]

Definition at line 176 of file vtkGenericClip.h.

double vtkGenericClip::Value [protected]

Definition at line 177 of file vtkGenericClip.h.

Definition at line 178 of file vtkGenericClip.h.

Definition at line 180 of file vtkGenericClip.h.

double vtkGenericClip::MergeTolerance [protected]

Definition at line 181 of file vtkGenericClip.h.

Definition at line 183 of file vtkGenericClip.h.

Definition at line 184 of file vtkGenericClip.h.

Definition at line 188 of file vtkGenericClip.h.

Definition at line 189 of file vtkGenericClip.h.


The documentation for this class was generated from the following file:
