vtkParallelCoordinatesRepresentation Class Reference

#include <vtkParallelCoordinatesRepresentation.h>

Inheritance diagram for vtkParallelCoordinatesRepresentation:

[legend]

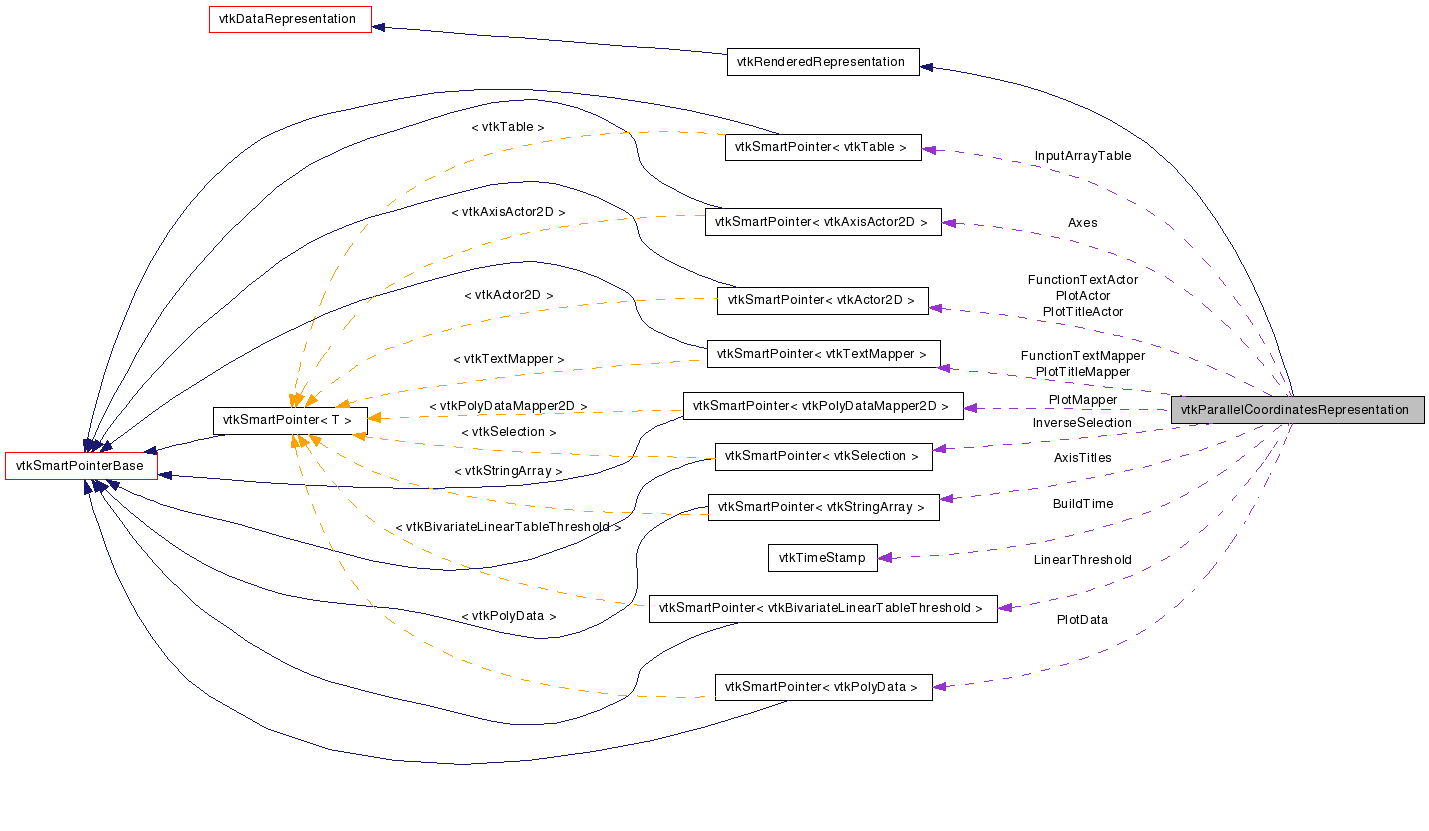

Collaboration diagram for vtkParallelCoordinatesRepresentation:

[legend]

List of all members.

---

Detailed Description

Data representation that takes generic multivariate data and produces a parallel coordinates plot.

A parallel coordinates plot represents each variable in a multivariate data set as a separate axis. Individual samples of that data set are represented as a polyline that pass through each variable axis at positions that correspond to data values. vtkParallelCoordinatesRepresentation generates this plot when added to a vtkParallelCoordinatesView, which handles interaction and highlighting. Sample polylines can alternatively be represented as s-curves by enabling the UseCurves flag.

There are three selection modes: lasso, angle, and function. Lasso selection picks sample lines that pass through a polyline. Angle selection picks sample lines that have similar slope to a line segment. Function selection picks sample lines that are near a linear function defined on two variables. This function specified by passing two (x,y) variable value pairs.

All primitives are plotted in normalized view coordinates [0,1].

See also:

vtkParallelCoordinatesView vtkParallelCoordinatesHistogramRepresentation vtkSCurveSpline

Thanks:

Developed by David Feng at Sandia National Laboratories

Definition at line 83 of file vtkParallelCoordinatesRepresentation.h.

Public Types
enum	InputPorts { INPUT_DATA = 0, INPUT_TITLES, NUM_INPUT_PORTS }
typedef vtkRenderedRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ApplyViewTheme (vtkViewTheme *theme)
virtual const char *	GetHoverText (vtkView *view, int x, int y)
void	SetPlotTitle (const char *)
void	ResetAxes ()
int	SetPositionAndSize (double *position, double *size)
int	GetPositionAndSize (double *position, double *size)
void	SetAxisTitles (vtkStringArray *)
void	SetAxisTitles (vtkAlgorithmOutput *)
virtual int	GetNumberOfAxes ()
virtual int	GetNumberOfSamples ()
void	SetNumberOfAxisLabels (int num)
virtual int	GetNumberOfAxisLabels ()
virtual int	SwapAxisPositions (int position1, int position2)
int	SetXCoordinateOfPosition (int position, double xcoord)
double	GetXCoordinateOfPosition (int axis)
void	GetXCoordinatesOfPositions (double *coords)
int	GetPositionNearXCoordinate (double xcoord)
virtual void	SetUseCurves (int)
virtual int	GetUseCurves ()
virtual void	UseCurvesOn ()
virtual void	UseCurvesOff ()
virtual void	SetCurveResolution (int)
virtual int	GetCurveResolution ()
virtual double	GetLineOpacity ()
virtual double	GetFontSize ()
virtual double *	GetLineColor ()
virtual void	GetLineColor (double &, double &, double &)
virtual void	GetLineColor (double[3])
virtual double *	GetAxisColor ()
virtual void	GetAxisColor (double &, double &, double &)
virtual void	GetAxisColor (double[3])
virtual double *	GetAxisLabelColor ()
virtual void	GetAxisLabelColor (double &, double &, double &)
virtual void	GetAxisLabelColor (double[3])
virtual void	SetLineOpacity (double)
virtual void	SetFontSize (double)
virtual void	SetLineColor (double, double, double)
virtual void	SetLineColor (double[3])
virtual void	SetAxisColor (double, double, double)
virtual void	SetAxisColor (double[3])
virtual void	SetAxisLabelColor (double, double, double)
virtual void	SetAxisLabelColor (double[3])
virtual void	SetAngleBrushThreshold (double)
virtual double	GetAngleBrushThreshold ()
virtual void	SetFunctionBrushThreshold (double)
virtual double	GetFunctionBrushThreshold ()
int	GetRangeAtPosition (int position, double range[2])
virtual int	SetRangeAtPosition (int position, double range[2])
virtual void	LassoSelect (int brushClass, int brushOperator, vtkPoints *brushPoints)
virtual void	AngleSelect (int brushClass, int brushOperator, double *p1, double *p2)
virtual void	FunctionSelect (int brushClass, int brushOperator, double *p1, double *p2, double *q1, double *q2)
virtual void	RangeSelect (int brushClass, int brushOperator, double *p1, double *p2)
Static Public Member Functions
static vtkParallelCoordinatesRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkParallelCoordinatesRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkParallelCoordinatesRepresentation ()
virtual	~vtkParallelCoordinatesRepresentation ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	UpdateHoverHighlight (vtkView *view, int x, int y)
int	PlaceAxes ()
virtual int	PlaceSelection (vtkPolyData *polyData, vtkTable *data, vtkSelectionNode *selectionNode)
virtual int	ComputeDataProperties ()
virtual int	UpdatePlotProperties (vtkStringArray *inputTitles)
virtual int	ReallocateInternals ()
void	BuildDefaultSCurve (vtkDoubleArray *array, int numValues)
virtual void	LassoSelectInternal (vtkPoints *brushPoints, vtkIdTypeArray *outIds)
virtual void	UpdateSelectionActors ()
vtkPolyDataMapper2D *	GetSelectionMapper (int idx)
int	GetNumberOfSelections ()
virtual char *	GetInternalHoverText ()
virtual void	SetInternalHoverText (const char *)
virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)
virtual void	PrepareForRendering (vtkRenderView *view)
virtual int	AllocatePolyData (vtkPolyData *polyData, int numLines, int numPointsPerLine, int numStrips, int numPointsPerStrip, int numQuads, int numPoints, int numCellScalars, int numPointScalars)
virtual int	PlaceLines (vtkPolyData *polyData, vtkTable *data, vtkIdTypeArray *idsToPlot)
virtual int	PlaceCurves (vtkPolyData *polyData, vtkTable *data, vtkIdTypeArray *idsToPlot)
int	ComputePointPosition (double *p)
int	ComputeLinePosition (double *p1, double *p2)
virtual void	SelectRows (vtkIdType brushClass, vtkIdType brushOperator, vtkIdTypeArray *rowIds)
virtual vtkSelection *	ConvertSelection (vtkView *view, vtkSelection *selection)
virtual void	BuildInverseSelection ()
virtual vtkPolyDataMapper2D *	InitializePlotMapper (vtkPolyData *input, vtkActor2D *actor, bool forceStandard=false)
Protected Attributes
vtkSmartPointer< vtkPolyData >	PlotData
vtkSmartPointer < vtkPolyDataMapper2D >	PlotMapper
vtkSmartPointer< vtkActor2D >	PlotActor
vtkSmartPointer< vtkTextMapper >	PlotTitleMapper
vtkSmartPointer< vtkActor2D >	PlotTitleActor
vtkSmartPointer< vtkTextMapper >	FunctionTextMapper
vtkSmartPointer< vtkActor2D >	FunctionTextActor
vtkSmartPointer< vtkSelection >	InverseSelection
vtkSmartPointer < vtkBivariateLinearTableThreshold >	LinearThreshold
Internals *	I
int	NumberOfAxes
int	NumberOfAxisLabels
int	NumberOfSamples
double	YMin
double	YMax
int	CurveResolution
int	UseCurves
double	AngleBrushThreshold
double	FunctionBrushThreshold
double	SwapThreshold
double *	Xs
double *	Mins
double *	Maxs
double *	MinOffsets
double *	MaxOffsets
vtkSmartPointer< vtkAxisActor2D > *	Axes
vtkSmartPointer< vtkTable >	InputArrayTable
vtkSmartPointer< vtkStringArray >	AxisTitles
vtkTimeStamp	BuildTime
double	LineOpacity
double	FontSize
double	LineColor [3]
double	AxisColor [3]
double	AxisLabelColor [3]
char *	InternalHoverText

---

Member Typedef Documentation

typedef vtkRenderedRepresentation vtkParallelCoordinatesRepresentation::Superclass

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

Definition at line 87 of file vtkParallelCoordinatesRepresentation.h.

---

Member Enumeration Documentation

enum vtkParallelCoordinatesRepresentation::InputPorts

Enumerator:

INPUT_DATA
INPUT_TITLES
NUM_INPUT_PORTS

Definition at line 199 of file vtkParallelCoordinatesRepresentation.h.

---

Constructor & Destructor Documentation

vtkParallelCoordinatesRepresentation::vtkParallelCoordinatesRepresentation

(

)

[protected]

virtual vtkParallelCoordinatesRepresentation::~vtkParallelCoordinatesRepresentation

(

)

[protected, virtual]

---

Member Function Documentation

static vtkParallelCoordinatesRepresentation* vtkParallelCoordinatesRepresentation::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual const char* vtkParallelCoordinatesRepresentation::GetClassName

(

)

[virtual]

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

static int vtkParallelCoordinatesRepresentation::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

static vtkParallelCoordinatesRepresentation* vtkParallelCoordinatesRepresentation::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

void vtkParallelCoordinatesRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual void vtkParallelCoordinatesRepresentation::ApplyViewTheme

(

vtkViewTheme *

theme

)

[virtual]

Apply the theme to this view. CellColor is used for line coloring and titles. EdgeLabelColor is used for axis color. CellOpacity is used for line opacity.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual const char* vtkParallelCoordinatesRepresentation::GetHoverText	(	vtkView *	view,
		int	x,
		int	y
	)			[virtual]

Returns the hover text at an x,y location.

int vtkParallelCoordinatesRepresentation::SetPositionAndSize	(	double *	position,
		double *	size
	)

Change the position of the plot

int vtkParallelCoordinatesRepresentation::GetPositionAndSize	(	double *	position,
		double *	size
	)

Change the position of the plot

void vtkParallelCoordinatesRepresentation::SetAxisTitles

(

vtkStringArray *

)

Set/Get the axis titles

void vtkParallelCoordinatesRepresentation::SetAxisTitles

(

vtkAlgorithmOutput *

)

Set/Get the axis titles

void vtkParallelCoordinatesRepresentation::SetPlotTitle

(

const char *

)

Set the title for the entire plot

virtual int vtkParallelCoordinatesRepresentation::GetNumberOfAxes

(

)

[virtual]

Get the number of axes in the plot

virtual int vtkParallelCoordinatesRepresentation::GetNumberOfSamples

(

)

[virtual]

Get the number of samples in the plot

void vtkParallelCoordinatesRepresentation::SetNumberOfAxisLabels

(

int

num

)

Set/Get the number of labels to display on each axis

virtual int vtkParallelCoordinatesRepresentation::GetNumberOfAxisLabels

(

)

[virtual]

Set/Get the number of labels to display on each axis

virtual int vtkParallelCoordinatesRepresentation::SwapAxisPositions	(	int	position1,
		int	position2
	)			[virtual]

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

int vtkParallelCoordinatesRepresentation::SetXCoordinateOfPosition	(	int	position,
		double	xcoord
	)

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

double vtkParallelCoordinatesRepresentation::GetXCoordinateOfPosition

(

int

axis

)

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

void vtkParallelCoordinatesRepresentation::GetXCoordinatesOfPositions

(

double *

coords

)

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

int vtkParallelCoordinatesRepresentation::GetPositionNearXCoordinate

(

double

xcoord

)

Move an axis to a particular screen position. Using these methods requires an Update() before they will work properly.

virtual void vtkParallelCoordinatesRepresentation::SetUseCurves

(

int

)

[virtual]

Whether or not to display using curves

virtual int vtkParallelCoordinatesRepresentation::GetUseCurves

(

)

[virtual]

Whether or not to display using curves

virtual void vtkParallelCoordinatesRepresentation::UseCurvesOn

(

)

[virtual]

Whether or not to display using curves

virtual void vtkParallelCoordinatesRepresentation::UseCurvesOff

(

)

[virtual]

Whether or not to display using curves

virtual void vtkParallelCoordinatesRepresentation::SetCurveResolution

(

int

)

[virtual]

Resolution of the curves displayed, enabled by setting UseCurves

virtual int vtkParallelCoordinatesRepresentation::GetCurveResolution

(

)

[virtual]

Resolution of the curves displayed, enabled by setting UseCurves

virtual double vtkParallelCoordinatesRepresentation::GetLineOpacity

(

)

[virtual]

Access plot properties

virtual double vtkParallelCoordinatesRepresentation::GetFontSize

(

)

[virtual]

Access plot properties

virtual double* vtkParallelCoordinatesRepresentation::GetLineColor

(

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetLineColor	(	double &	,
		double &	,
		double &
	)			[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetLineColor

(

double

[3]

)

[virtual]

Access plot properties

virtual double* vtkParallelCoordinatesRepresentation::GetAxisColor

(

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisColor	(	double &	,
		double &	,
		double &
	)			[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisColor

(

double

[3]

)

[virtual]

Access plot properties

virtual double* vtkParallelCoordinatesRepresentation::GetAxisLabelColor

(

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisLabelColor	(	double &	,
		double &	,
		double &
	)			[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::GetAxisLabelColor

(

double

[3]

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetLineOpacity

(

double

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetFontSize

(

double

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetLineColor	(	double	,
		double	,
		double
	)			[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetLineColor

(

double

[3]

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisColor	(	double	,
		double	,
		double
	)			[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisColor

(

double

[3]

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisLabelColor	(	double	,
		double	,
		double
	)			[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAxisLabelColor

(

double

[3]

)

[virtual]

Access plot properties

virtual void vtkParallelCoordinatesRepresentation::SetAngleBrushThreshold

(

double

)

[virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

virtual double vtkParallelCoordinatesRepresentation::GetAngleBrushThreshold

(

)

[virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

virtual void vtkParallelCoordinatesRepresentation::SetFunctionBrushThreshold

(

double

)

[virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

virtual double vtkParallelCoordinatesRepresentation::GetFunctionBrushThreshold

(

)

[virtual]

Maximum angle difference (in degrees) of selection using angle/function brushes

int vtkParallelCoordinatesRepresentation::GetRangeAtPosition	(	int	position,
		double	range[2]
	)

Set/get the value range of the axis at a particular screen position

virtual int vtkParallelCoordinatesRepresentation::SetRangeAtPosition	(	int	position,
		double	range[2]
	)			[virtual]

Set/get the value range of the axis at a particular screen position

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

void vtkParallelCoordinatesRepresentation::ResetAxes

(

)

Reset the axes to their default positions and orders

virtual void vtkParallelCoordinatesRepresentation::LassoSelect	(	int	brushClass,
		int	brushOperator,
		vtkPoints *	brushPoints
	)			[virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual void vtkParallelCoordinatesRepresentation::AngleSelect	(	int	brushClass,
		int	brushOperator,
		double *	p1,
		double *	p2
	)			[virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual void vtkParallelCoordinatesRepresentation::FunctionSelect	(	int	brushClass,
		int	brushOperator,
		double *	p1,
		double *	p2,
		double *	q1,
		double *	q2
	)			[virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual void vtkParallelCoordinatesRepresentation::RangeSelect	(	int	brushClass,
		int	brushOperator,
		double *	p1,
		double *	p2
	)			[virtual]

Do a selection of the lines. See the main description for how to use these functions. RangeSelect is currently stubbed out.

virtual int vtkParallelCoordinatesRepresentation::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPassInputTypeAlgorithm.

virtual int vtkParallelCoordinatesRepresentation::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Subclasses should override this to connect inputs to the internal pipeline as necessary. Since most representations are "meta-filters" (i.e. filters containing other filters), you should create shallow copies of your input before connecting to the internal pipeline. The convenience method GetInternalOutputPort will create a cached shallow copy of a specified input for you. The related helper functions GetInternalAnnotationOutputPort, GetInternalSelectionOutputPort should be used to obtain a selection or annotation port whose selections are localized for a particular input data object.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual bool vtkParallelCoordinatesRepresentation::AddToView

(

vtkView *

view

)

[protected, virtual]

Add/remove the props and actors to/from a view

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual bool vtkParallelCoordinatesRepresentation::RemoveFromView

(

vtkView *

view

)

[protected, virtual]

Add/remove the props and actors to/from a view

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual void vtkParallelCoordinatesRepresentation::PrepareForRendering

(

vtkRenderView *

view

)

[protected, virtual]

Add/remove the props and actors to/from a view

Reimplemented from vtkRenderedRepresentation.

void vtkParallelCoordinatesRepresentation::UpdateHoverHighlight	(	vtkView *	view,
		int	x,
		int	y
	)			[protected]

This function is not actually used, but as left as a stub in case it becomes useful at some point.

virtual int vtkParallelCoordinatesRepresentation::AllocatePolyData	(	vtkPolyData *	polyData,
		int	numLines,
		int	numPointsPerLine,
		int	numStrips,
		int	numPointsPerStrip,
		int	numQuads,
		int	numPoints,
		int	numCellScalars,
		int	numPointScalars
	)			[protected, virtual]

Allocate the cells/points/scalars for a vtkPolyData

int vtkParallelCoordinatesRepresentation::PlaceAxes

(

)

[protected]

Put the axis actors in their correct positions.

virtual int vtkParallelCoordinatesRepresentation::PlaceLines	(	vtkPolyData *	polyData,
		vtkTable *	data,
		vtkIdTypeArray *	idsToPlot
	)			[protected, virtual]

Place line primitives into a vtkPolyData from the input data. idsToPlot is a list of which rows/samples should be plotted. If NULL, all rows/samples are plotted.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::PlaceCurves	(	vtkPolyData *	polyData,
		vtkTable *	data,
		vtkIdTypeArray *	idsToPlot
	)			[protected, virtual]

Place line primitives into a vtkPolyData from the input data. idsToPlot is a list of which rows/samples should be plotted. If NULL, all rows/samples are plotted.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::PlaceSelection	(	vtkPolyData *	polyData,
		vtkTable *	data,
		vtkSelectionNode *	selectionNode
	)			[protected, virtual]

Takes the selection list (assumed to be a vtkIdTypeArray) from a vtkSelectionNode and plots lines/curves into polyData for just those row/sample ids.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::ComputeDataProperties

(

)

[protected, virtual]

Compute the number of axes and their individual ranges

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::UpdatePlotProperties

(

vtkStringArray *

inputTitles

)

[protected, virtual]

Set plot actor properties (line thickness, opacity, etc)

Reimplemented in vtkParallelCoordinatesHistogramRepresentation.

virtual int vtkParallelCoordinatesRepresentation::ReallocateInternals

(

)

[protected, virtual]

Delete and reallocate the internals, resetting to default values

int vtkParallelCoordinatesRepresentation::ComputePointPosition

(

double *

p

)

[protected]

Compute which screen position a point belongs to (returns the left position)

int vtkParallelCoordinatesRepresentation::ComputeLinePosition	(	double *	p1,
		double *	p2
	)			[protected]

Compute which screen position a point belongs to (returns the left position)

virtual void vtkParallelCoordinatesRepresentation::SelectRows	(	vtkIdType	brushClass,
		vtkIdType	brushOperator,
		vtkIdTypeArray *	rowIds
	)			[protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

virtual vtkSelection* vtkParallelCoordinatesRepresentation::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			[protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

Reimplemented from vtkDataRepresentation.

virtual void vtkParallelCoordinatesRepresentation::BuildInverseSelection

(

)

[protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

virtual vtkPolyDataMapper2D* vtkParallelCoordinatesRepresentation::InitializePlotMapper	(	vtkPolyData *	input,
		vtkActor2D *	actor,
		bool	forceStandard = false
	)			[protected, virtual]

Select a set of points using the prescribed operator (add, subtract, etc.) and class

void vtkParallelCoordinatesRepresentation::BuildDefaultSCurve	(	vtkDoubleArray *	array,
		int	numValues
	)			[protected]

Build an s-curve passing through (0,0) and (1,1) with a specified number of values. This is used as a lookup table when plotting curved primitives.

virtual void vtkParallelCoordinatesRepresentation::LassoSelectInternal	(	vtkPoints *	brushPoints,
		vtkIdTypeArray *	outIds
	)			[protected, virtual]

same as public version, but assumes that the brushpoints coming in are all within two neighboring axes.

virtual void vtkParallelCoordinatesRepresentation::UpdateSelectionActors

(

)

[protected, virtual]

todo

vtkPolyDataMapper2D* vtkParallelCoordinatesRepresentation::GetSelectionMapper

(

int

idx

)

[protected]

int vtkParallelCoordinatesRepresentation::GetNumberOfSelections

(

)

[protected]

virtual char* vtkParallelCoordinatesRepresentation::GetInternalHoverText

(

)

[protected, virtual]

virtual void vtkParallelCoordinatesRepresentation::SetInternalHoverText

(

const char *

)

[protected, virtual]

---

Member Data Documentation

vtkSmartPointer<vtkPolyData> vtkParallelCoordinatesRepresentation::PlotData [protected]

Definition at line 300 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkPolyDataMapper2D> vtkParallelCoordinatesRepresentation::PlotMapper [protected]

Definition at line 301 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkActor2D> vtkParallelCoordinatesRepresentation::PlotActor [protected]

Definition at line 302 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkTextMapper> vtkParallelCoordinatesRepresentation::PlotTitleMapper [protected]

Definition at line 303 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkActor2D> vtkParallelCoordinatesRepresentation::PlotTitleActor [protected]

Definition at line 304 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkTextMapper> vtkParallelCoordinatesRepresentation::FunctionTextMapper [protected]

Definition at line 305 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkActor2D> vtkParallelCoordinatesRepresentation::FunctionTextActor [protected]

Definition at line 306 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkSelection> vtkParallelCoordinatesRepresentation::InverseSelection [protected]

Definition at line 308 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkBivariateLinearTableThreshold> vtkParallelCoordinatesRepresentation::LinearThreshold [protected]

Definition at line 309 of file vtkParallelCoordinatesRepresentation.h.

Internals* vtkParallelCoordinatesRepresentation::I [protected]

Definition at line 311 of file vtkParallelCoordinatesRepresentation.h.

int vtkParallelCoordinatesRepresentation::NumberOfAxes [protected]

Definition at line 315 of file vtkParallelCoordinatesRepresentation.h.

int vtkParallelCoordinatesRepresentation::NumberOfAxisLabels [protected]

Definition at line 316 of file vtkParallelCoordinatesRepresentation.h.

int vtkParallelCoordinatesRepresentation::NumberOfSamples [protected]

Definition at line 317 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::YMin [protected]

Definition at line 318 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::YMax [protected]

Definition at line 319 of file vtkParallelCoordinatesRepresentation.h.

int vtkParallelCoordinatesRepresentation::CurveResolution [protected]

Definition at line 321 of file vtkParallelCoordinatesRepresentation.h.

int vtkParallelCoordinatesRepresentation::UseCurves [protected]

Definition at line 322 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::AngleBrushThreshold [protected]

Definition at line 323 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::FunctionBrushThreshold [protected]

Definition at line 324 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::SwapThreshold [protected]

Definition at line 325 of file vtkParallelCoordinatesRepresentation.h.

double* vtkParallelCoordinatesRepresentation::Xs [protected]

Definition at line 328 of file vtkParallelCoordinatesRepresentation.h.

double* vtkParallelCoordinatesRepresentation::Mins [protected]

Definition at line 329 of file vtkParallelCoordinatesRepresentation.h.

double* vtkParallelCoordinatesRepresentation::Maxs [protected]

Definition at line 330 of file vtkParallelCoordinatesRepresentation.h.

double* vtkParallelCoordinatesRepresentation::MinOffsets [protected]

Definition at line 331 of file vtkParallelCoordinatesRepresentation.h.

double* vtkParallelCoordinatesRepresentation::MaxOffsets [protected]

Definition at line 332 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkAxisActor2D>* vtkParallelCoordinatesRepresentation::Axes [protected]

Definition at line 335 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkTable> vtkParallelCoordinatesRepresentation::InputArrayTable [protected]

Definition at line 336 of file vtkParallelCoordinatesRepresentation.h.

vtkSmartPointer<vtkStringArray> vtkParallelCoordinatesRepresentation::AxisTitles [protected]

Definition at line 337 of file vtkParallelCoordinatesRepresentation.h.

vtkTimeStamp vtkParallelCoordinatesRepresentation::BuildTime [protected]

Definition at line 340 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::LineOpacity [protected]

Definition at line 342 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::FontSize [protected]

Definition at line 343 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::LineColor[3] [protected]

Definition at line 344 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::AxisColor[3] [protected]

Definition at line 345 of file vtkParallelCoordinatesRepresentation.h.

double vtkParallelCoordinatesRepresentation::AxisLabelColor[3] [protected]

Definition at line 346 of file vtkParallelCoordinatesRepresentation.h.

char* vtkParallelCoordinatesRepresentation::InternalHoverText [protected]

Definition at line 349 of file vtkParallelCoordinatesRepresentation.h.

---

The documentation for this class was generated from the following file:

• dox/Views/vtkParallelCoordinatesRepresentation.h
