vtkRenderedRepresentation Class Reference

#include <vtkRenderedRepresentation.h>

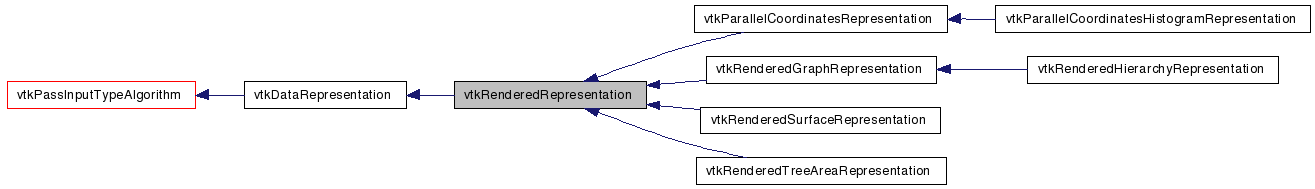

Inheritance diagram for vtkRenderedRepresentation:

[legend]

Collaboration diagram for vtkRenderedRepresentation:

[legend]

List of all members.

Detailed Description

Definition at line 40 of file vtkRenderedRepresentation.h.


Public Types
typedef vtkDataRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetLabelRenderMode (int)
virtual int	GetLabelRenderMode ()
Static Public Member Functions
static vtkRenderedRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkRenderedRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRenderedRepresentation ()
	~vtkRenderedRepresentation ()
vtkUnicodeString	GetHoverText (vtkView view, vtkProp prop, vtkIdType cell)
virtual void	PrepareForRendering (vtkRenderView *view)

void	AddPropOnNextRender (vtkProp *p)
void	RemovePropOnNextRender (vtkProp *p)

virtual vtkUnicodeString	GetHoverTextInternal (vtkSelection *)
Protected Attributes
Internals *	Implementation
int	LabelRenderMode
Friends
class	vtkRenderView

Member Typedef Documentation

typedef vtkDataRepresentation vtkRenderedRepresentation::Superclass

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation, vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedHierarchyRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.

Definition at line 44 of file vtkRenderedRepresentation.h.

Constructor & Destructor Documentation

vtkRenderedRepresentation::vtkRenderedRepresentation ( ) [protected]

vtkRenderedRepresentation::~vtkRenderedRepresentation ( ) [protected]

Member Function Documentation

static vtkRenderedRepresentation* vtkRenderedRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation, vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedHierarchyRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.

virtual const char* vtkRenderedRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation, vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedHierarchyRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.

static int vtkRenderedRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation, vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedHierarchyRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.

virtual int vtkRenderedRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation, vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedHierarchyRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.

static vtkRenderedRepresentation* vtkRenderedRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation, vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedHierarchyRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.

void vtkRenderedRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkParallelCoordinatesHistogramRepresentation, vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedHierarchyRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.

virtual void vtkRenderedRepresentation::SetLabelRenderMode ( int ) [virtual]

Set the label render mode. vtkRenderView::QT - Use Qt-based labeler with fitted labeling and unicode support. Requires VTK_USE_QT to be on. vtkRenderView::FREETYPE - Use standard freetype text rendering.

Reimplemented in vtkRenderedTreeAreaRepresentation.

virtual int vtkRenderedRepresentation::GetLabelRenderMode ( ) [virtual]

Set the label render mode. vtkRenderView::QT - Use Qt-based labeler with fitted labeling and unicode support. Requires VTK_USE_QT to be on. vtkRenderView::FREETYPE - Use standard freetype text rendering.

void vtkRenderedRepresentation::AddPropOnNextRender ( vtkProp * p ) [protected]

Subclasses may call these methods to add or remove props from the representation. Use these if the number of props/actors changes as the result of input connection changes.

void vtkRenderedRepresentation::RemovePropOnNextRender ( vtkProp * p ) [protected]

Subclasses may call these methods to add or remove props from the representation. Use these if the number of props/actors changes as the result of input connection changes.

vtkUnicodeString vtkRenderedRepresentation::GetHoverText	(	vtkView *	view,
		vtkProp *	prop,
		vtkIdType	cell
	)			`[protected]`

Obtains the hover text for a particular prop and cell. If the prop is not applicable to the representation, return an empty string. Subclasses should override GetHoverTextInternal, in which the prop and cell are converted to an appropriate selection using ConvertSelection().

virtual vtkUnicodeString vtkRenderedRepresentation::GetHoverTextInternal ( vtkSelection * ) [inline, protected, virtual]

Subclasses may override this method to generate the hover text.

Reimplemented in vtkRenderedGraphRepresentation, and vtkRenderedTreeAreaRepresentation.

Definition at line 76 of file vtkRenderedRepresentation.h.

virtual void vtkRenderedRepresentation::PrepareForRendering ( vtkRenderView * view ) [protected, virtual]

The view will call this method before every render. Representations may add their own pre-render logic here.

Reimplemented in vtkParallelCoordinatesRepresentation, vtkRenderedGraphRepresentation, vtkRenderedSurfaceRepresentation, and vtkRenderedTreeAreaRepresentation.
