vtkProjectedAAHexahedraMapper Class Reference

#include <vtkProjectedAAHexahedraMapper.h>

Inheritance diagram for vtkProjectedAAHexahedraMapper:

[legend]

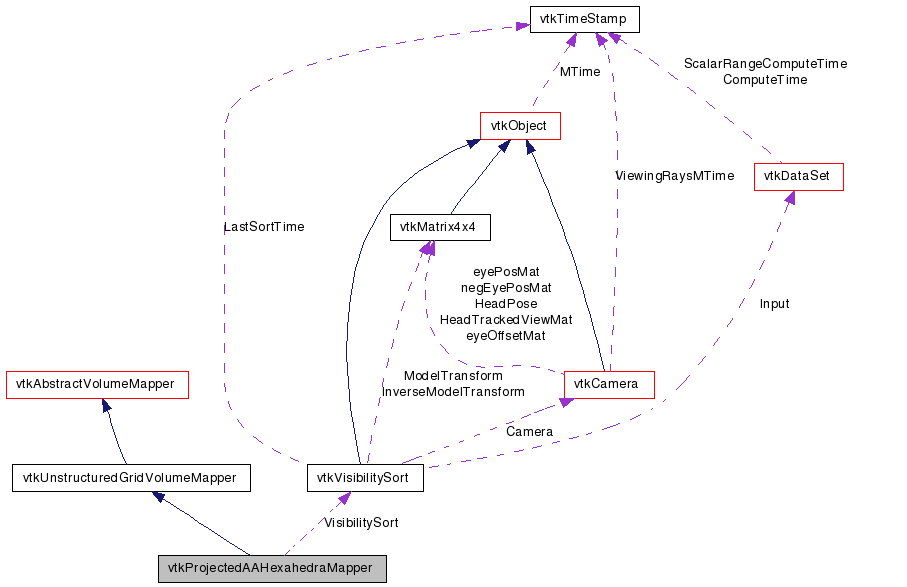

Collaboration diagram for vtkProjectedAAHexahedraMapper:

[legend]

List of all members.

---

Detailed Description

volume mapper for axis-aligned hexahedra

High quality volume renderer for axis-aligned hexahedra

Implementation:

Implementation by Stephane Marchesin (stephane.marchesin@gmail.com) CEA/DIF - Commissariat a l'Energie Atomique, Centre DAM Ile-De-France BP12, F-91297 Arpajon, France.

Implementation:

This mapper implements the paper "High-Quality, Semi-Analytical Volume Rendering for AMR Data", Stephane Marchesin and Guillaume Colin de Verdiere, IEEE Vis 2009.

Tests:

vtkProjectedAAHexahedraMapper (Tests)

Definition at line 46 of file vtkProjectedAAHexahedraMapper.h.

Public Types
typedef vtkUnstructuredGridVolumeMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual bool	IsRenderSupported (vtkRenderWindow *w)=0
virtual void	SetVisibilitySort (vtkVisibilitySort *sort)
virtual vtkVisibilitySort *	GetVisibilitySort ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkProjectedAAHexahedraMapper *	SafeDownCast (vtkObject *o)
static vtkProjectedAAHexahedraMapper *	New ()
Protected Member Functions
	vtkProjectedAAHexahedraMapper ()
	~vtkProjectedAAHexahedraMapper ()
virtual void	ReportReferences (vtkGarbageCollector *collector)
Protected Attributes
vtkVisibilitySort *	VisibilitySort

---

Member Typedef Documentation

typedef vtkUnstructuredGridVolumeMapper vtkProjectedAAHexahedraMapper::Superclass

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkOpenGLProjectedAAHexahedraMapper.

Definition at line 50 of file vtkProjectedAAHexahedraMapper.h.

---

Constructor & Destructor Documentation

vtkProjectedAAHexahedraMapper::vtkProjectedAAHexahedraMapper

(

)

[protected]

vtkProjectedAAHexahedraMapper::~vtkProjectedAAHexahedraMapper

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkProjectedAAHexahedraMapper::GetClassName

(

)

[virtual]

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkOpenGLProjectedAAHexahedraMapper.

static int vtkProjectedAAHexahedraMapper::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkOpenGLProjectedAAHexahedraMapper.

virtual int vtkProjectedAAHexahedraMapper::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkOpenGLProjectedAAHexahedraMapper.

static vtkProjectedAAHexahedraMapper* vtkProjectedAAHexahedraMapper::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkOpenGLProjectedAAHexahedraMapper.

static vtkProjectedAAHexahedraMapper* vtkProjectedAAHexahedraMapper::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkOpenGLProjectedAAHexahedraMapper.

virtual void vtkProjectedAAHexahedraMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkOpenGLProjectedAAHexahedraMapper.

virtual void vtkProjectedAAHexahedraMapper::SetVisibilitySort

(

vtkVisibilitySort *

sort

)

[virtual]

Algorithm used to sort the cells according to viewpoint of the camera. Initial value is a vtkCellCenterDepthSort object.

virtual vtkVisibilitySort* vtkProjectedAAHexahedraMapper::GetVisibilitySort

(

)

[virtual]

Algorithm used to sort the cells according to viewpoint of the camera. Initial value is a vtkCellCenterDepthSort object.

virtual bool vtkProjectedAAHexahedraMapper::IsRenderSupported

(

vtkRenderWindow *

w

)

[pure virtual]

Check if the required OpenGL extensions are supported by the OpenGL context attached to the render window `w'.

Implemented in vtkOpenGLProjectedAAHexahedraMapper.

virtual void vtkProjectedAAHexahedraMapper::ReportReferences

(

vtkGarbageCollector *

collector

)

[protected, virtual]

The visibility sort will probably make a reference loop by holding a reference to the input.

Reimplemented from vtkAlgorithm.

---

Member Data Documentation

vtkVisibilitySort* vtkProjectedAAHexahedraMapper::VisibilitySort [protected]

Definition at line 73 of file vtkProjectedAAHexahedraMapper.h.

---

The documentation for this class was generated from the following file:

• dox/VolumeRendering/vtkProjectedAAHexahedraMapper.h
