vtkUnstructuredGridVolumeMapper Class Reference

#include <vtkUnstructuredGridVolumeMapper.h>

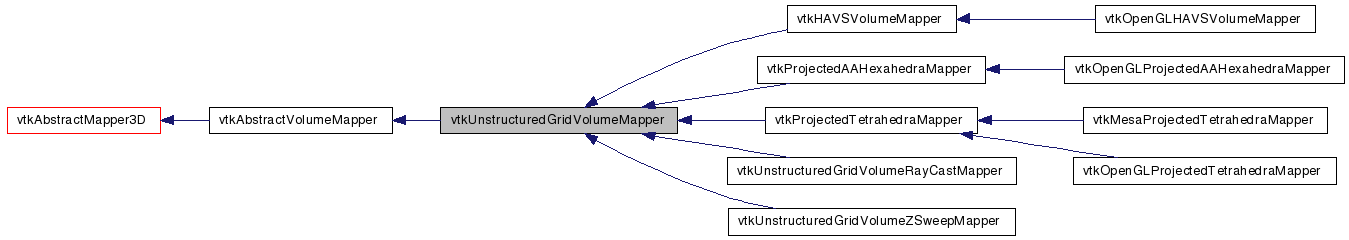

Inheritance diagram for vtkUnstructuredGridVolumeMapper:

[legend]

Collaboration diagram for vtkUnstructuredGridVolumeMapper:

[legend]

List of all members.

Detailed Description

Abstract class for a unstructured grid volume mapper.

vtkUnstructuredGridVolumeMapper is the abstract definition of a volume mapper for unstructured data (vtkUnstructuredGrid). Several basic types of volume mappers are supported as subclasses

See also:: vtkUnstructuredGridVolumeRayCastMapper

Definition at line 38 of file vtkUnstructuredGridVolumeMapper.h.


Public Types
enum	{ COMPOSITE_BLEND, MAXIMUM_INTENSITY_BLEND }
typedef vtkAbstractVolumeMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetBlendMode (int)
void	SetBlendModeToComposite ()
void	SetBlendModeToMaximumIntensity ()
virtual int	GetBlendMode ()
virtual void	Render (vtkRenderer ren, vtkVolume vol)=0
virtual void	ReleaseGraphicsResources (vtkWindow *)

virtual void	SetInput (vtkUnstructuredGrid *)
virtual void	SetInput (vtkDataSet *)
vtkUnstructuredGrid *	GetInput ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkUnstructuredGridVolumeMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkUnstructuredGridVolumeMapper ()
	~vtkUnstructuredGridVolumeMapper ()
virtual int	FillInputPortInformation (int, vtkInformation *)
Protected Attributes
int	BlendMode

Member Typedef Documentation

typedef vtkAbstractVolumeMapper vtkUnstructuredGridVolumeMapper::Superclass

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkHAVSVolumeMapper, vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, vtkProjectedAAHexahedraMapper, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeRayCastMapper, and vtkUnstructuredGridVolumeZSweepMapper.

Definition at line 41 of file vtkUnstructuredGridVolumeMapper.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

COMPOSITE_BLEND
MAXIMUM_INTENSITY_BLEND

Definition at line 71 of file vtkUnstructuredGridVolumeMapper.h.

Constructor & Destructor Documentation

vtkUnstructuredGridVolumeMapper::vtkUnstructuredGridVolumeMapper ( ) [protected]

vtkUnstructuredGridVolumeMapper::~vtkUnstructuredGridVolumeMapper ( ) [protected]

Member Function Documentation

virtual const char* vtkUnstructuredGridVolumeMapper::GetClassName ( ) [virtual]

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkHAVSVolumeMapper, vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, vtkProjectedAAHexahedraMapper, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeRayCastMapper, and vtkUnstructuredGridVolumeZSweepMapper.

static int vtkUnstructuredGridVolumeMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkHAVSVolumeMapper, vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, vtkProjectedAAHexahedraMapper, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeRayCastMapper, and vtkUnstructuredGridVolumeZSweepMapper.

virtual int vtkUnstructuredGridVolumeMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkHAVSVolumeMapper, vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, vtkProjectedAAHexahedraMapper, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeRayCastMapper, and vtkUnstructuredGridVolumeZSweepMapper.

static vtkUnstructuredGridVolumeMapper* vtkUnstructuredGridVolumeMapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkHAVSVolumeMapper, vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, vtkProjectedAAHexahedraMapper, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeRayCastMapper, and vtkUnstructuredGridVolumeZSweepMapper.

void vtkUnstructuredGridVolumeMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkHAVSVolumeMapper, vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, vtkProjectedAAHexahedraMapper, vtkProjectedTetrahedraMapper, vtkUnstructuredGridVolumeRayCastMapper, and vtkUnstructuredGridVolumeZSweepMapper.

virtual void vtkUnstructuredGridVolumeMapper::SetInput ( vtkUnstructuredGrid * ) [virtual]

Set/Get the input data

virtual void vtkUnstructuredGridVolumeMapper::SetInput ( vtkDataSet * ) [virtual]

Set/Get the input data

Reimplemented from vtkAbstractVolumeMapper.

vtkUnstructuredGrid* vtkUnstructuredGridVolumeMapper::GetInput ( )

Set/Get the input data

virtual void vtkUnstructuredGridVolumeMapper::SetBlendMode ( int ) [virtual]

void vtkUnstructuredGridVolumeMapper::SetBlendModeToComposite ( ) [inline]

Definition at line 52 of file vtkUnstructuredGridVolumeMapper.h.

void vtkUnstructuredGridVolumeMapper::SetBlendModeToMaximumIntensity ( ) [inline]

Definition at line 54 of file vtkUnstructuredGridVolumeMapper.h.

virtual int vtkUnstructuredGridVolumeMapper::GetBlendMode ( ) [virtual]

virtual void vtkUnstructuredGridVolumeMapper::Render	(	vtkRenderer *	ren,
		vtkVolume *	vol
	)			`[pure virtual]`

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Render the volume

Implements vtkAbstractVolumeMapper.

Implemented in vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, vtkUnstructuredGridVolumeRayCastMapper, and vtkUnstructuredGridVolumeZSweepMapper.

virtual void vtkUnstructuredGridVolumeMapper::ReleaseGraphicsResources ( vtkWindow * ) [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkMesaProjectedTetrahedraMapper, vtkOpenGLHAVSVolumeMapper, vtkOpenGLProjectedAAHexahedraMapper, vtkOpenGLProjectedTetrahedraMapper, and vtkUnstructuredGridVolumeRayCastMapper.

Definition at line 69 of file vtkUnstructuredGridVolumeMapper.h.

virtual int vtkUnstructuredGridVolumeMapper::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAbstractVolumeMapper.

Reimplemented in vtkOpenGLHAVSVolumeMapper.
