vtkProjectedTetrahedraMapper Class Reference

#include <vtkProjectedTetrahedraMapper.h>

Inheritance diagram for vtkProjectedTetrahedraMapper:

[legend]

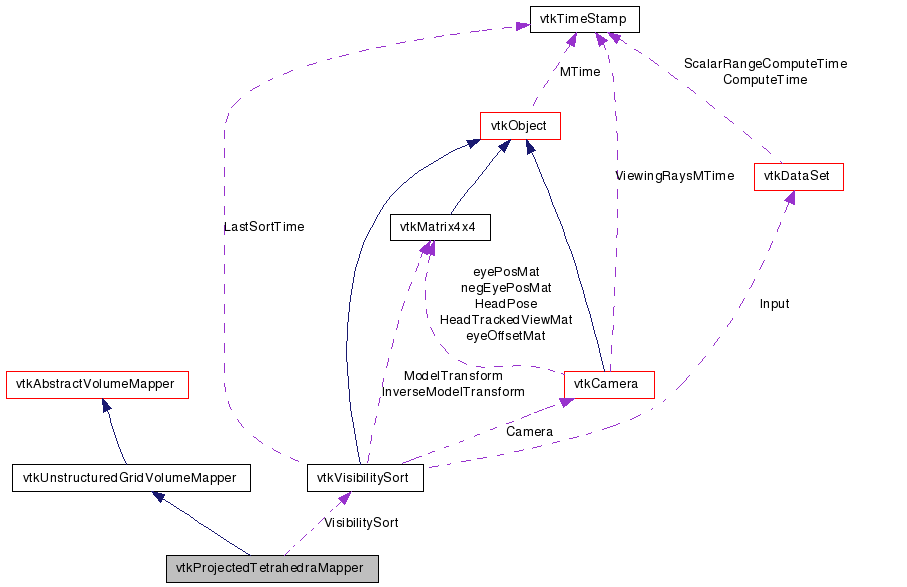

Collaboration diagram for vtkProjectedTetrahedraMapper:

[legend]

List of all members.

Detailed Description

Unstructured grid volume renderer.

vtkProjectedTetrahedraMapper is an implementation of the classic Projected Tetrahedra algorithm presented by Shirley and Tuchman in "A Polygonal Approximation to Direct Scalar Volume Rendering" in Computer Graphics, December 1990.

Bug:: This mapper relies highly on the implementation of the OpenGL pipeline. A typical hardware driver has lots of options and some settings can cause this mapper to produce artifacts.

Tests:: vtkProjectedTetrahedraMapper (Tests)

Definition at line 55 of file vtkProjectedTetrahedraMapper.h.


Public Types
typedef vtkUnstructuredGridVolumeMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetVisibilitySort (vtkVisibilitySort *sort)
virtual vtkVisibilitySort *	GetVisibilitySort ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkProjectedTetrahedraMapper *	SafeDownCast (vtkObject *o)
static vtkProjectedTetrahedraMapper *	New ()
static void	MapScalarsToColors (vtkDataArray colors, vtkVolumeProperty property, vtkDataArray *scalars)
static void	TransformPoints (vtkPoints inPoints, const float projection_mat[16], const float modelview_mat[16], vtkFloatArray outPoints)
Protected Member Functions
	vtkProjectedTetrahedraMapper ()
	~vtkProjectedTetrahedraMapper ()
virtual void	ReportReferences (vtkGarbageCollector *collector)
Protected Attributes
vtkVisibilitySort *	VisibilitySort

Member Typedef Documentation

typedef vtkUnstructuredGridVolumeMapper vtkProjectedTetrahedraMapper::Superclass

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkMesaProjectedTetrahedraMapper, and vtkOpenGLProjectedTetrahedraMapper.

Definition at line 59 of file vtkProjectedTetrahedraMapper.h.

Constructor & Destructor Documentation

vtkProjectedTetrahedraMapper::vtkProjectedTetrahedraMapper ( ) [protected]

vtkProjectedTetrahedraMapper::~vtkProjectedTetrahedraMapper ( ) [protected]

Member Function Documentation

virtual const char* vtkProjectedTetrahedraMapper::GetClassName ( ) [virtual]

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkMesaProjectedTetrahedraMapper, and vtkOpenGLProjectedTetrahedraMapper.

static int vtkProjectedTetrahedraMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkMesaProjectedTetrahedraMapper, and vtkOpenGLProjectedTetrahedraMapper.

virtual int vtkProjectedTetrahedraMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkMesaProjectedTetrahedraMapper, and vtkOpenGLProjectedTetrahedraMapper.

static vtkProjectedTetrahedraMapper* vtkProjectedTetrahedraMapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkMesaProjectedTetrahedraMapper, and vtkOpenGLProjectedTetrahedraMapper.

static vtkProjectedTetrahedraMapper* vtkProjectedTetrahedraMapper::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkMesaProjectedTetrahedraMapper, and vtkOpenGLProjectedTetrahedraMapper.

virtual void vtkProjectedTetrahedraMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridVolumeMapper.

Reimplemented in vtkMesaProjectedTetrahedraMapper, and vtkOpenGLProjectedTetrahedraMapper.

virtual void vtkProjectedTetrahedraMapper::SetVisibilitySort ( vtkVisibilitySort * sort ) [virtual]

virtual vtkVisibilitySort* vtkProjectedTetrahedraMapper::GetVisibilitySort ( ) [virtual]

static void vtkProjectedTetrahedraMapper::MapScalarsToColors	(	vtkDataArray *	colors,
		vtkVolumeProperty *	property,
		vtkDataArray *	scalars
	)			`[static]`

static void vtkProjectedTetrahedraMapper::TransformPoints	(	vtkPoints *	inPoints,
		const float	projection_mat[16],
		const float	modelview_mat[16],
		vtkFloatArray *	outPoints
	)			`[static]`
