vtkRenderedGraphRepresentation Class Reference

#include <vtkRenderedGraphRepresentation.h>

Inheritance diagram for vtkRenderedGraphRepresentation:

[legend]

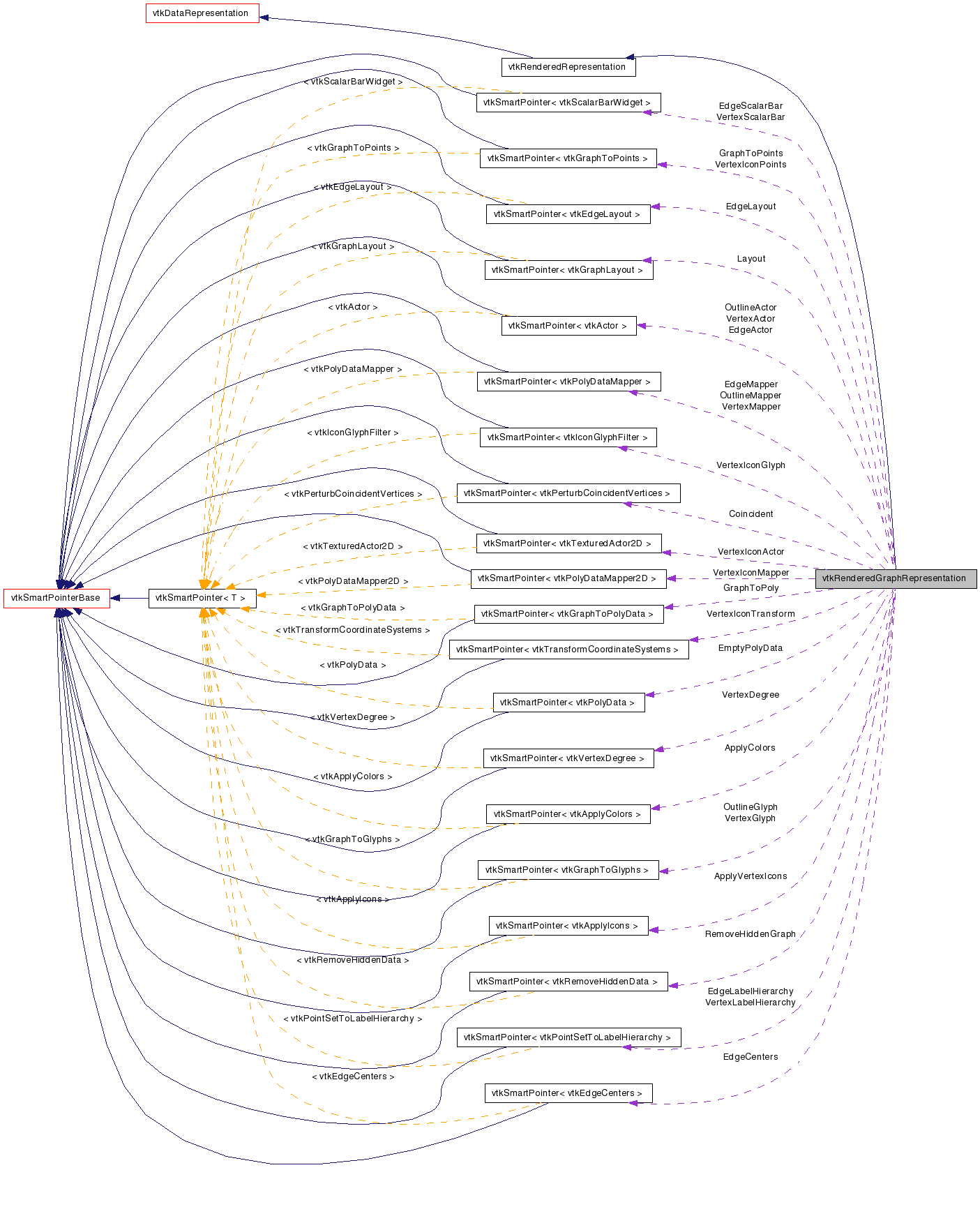

Collaboration diagram for vtkRenderedGraphRepresentation:

[legend]

List of all members.

---

Detailed Description

Examples:

vtkRenderedGraphRepresentation (Examples)

Tests:

vtkRenderedGraphRepresentation (Tests)

Definition at line 68 of file vtkRenderedGraphRepresentation.h.

Public Types
typedef vtkRenderedRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetVertexLabelArrayName (const char *name)
virtual const char *	GetVertexLabelArrayName ()
virtual void	SetVertexLabelPriorityArrayName (const char *name)
virtual const char *	GetVertexLabelPriorityArrayName ()
virtual void	SetVertexLabelVisibility (bool b)
virtual bool	GetVertexLabelVisibility ()
virtual void	VertexLabelVisibilityOn ()
virtual void	VertexLabelVisibilityOff ()
virtual void	SetVertexLabelTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetVertexLabelTextProperty ()
virtual void	SetVertexHoverArrayName (const char *)
virtual char *	GetVertexHoverArrayName ()
virtual void	SetEdgeLabelArrayName (const char *name)
virtual const char *	GetEdgeLabelArrayName ()
virtual void	SetEdgeLabelPriorityArrayName (const char *name)
virtual const char *	GetEdgeLabelPriorityArrayName ()
virtual void	SetEdgeLabelVisibility (bool b)
virtual bool	GetEdgeLabelVisibility ()
virtual void	EdgeLabelVisibilityOn ()
virtual void	EdgeLabelVisibilityOff ()
virtual void	SetEdgeLabelTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetEdgeLabelTextProperty ()
virtual void	SetEdgeHoverArrayName (const char *)
virtual char *	GetEdgeHoverArrayName ()
virtual void	SetVertexIconArrayName (const char *name)
virtual const char *	GetVertexIconArrayName ()
virtual void	SetVertexIconPriorityArrayName (const char *name)
virtual const char *	GetVertexIconPriorityArrayName ()
virtual void	SetVertexIconVisibility (bool b)
virtual bool	GetVertexIconVisibility ()
virtual void	VertexIconVisibilityOn ()
virtual void	VertexIconVisibilityOff ()
virtual void	AddVertexIconType (const char *name, int type)
virtual void	ClearVertexIconTypes ()
virtual void	SetUseVertexIconTypeMap (bool b)
virtual bool	GetUseVertexIconTypeMap ()
virtual void	UseVertexIconTypeMapOn ()
virtual void	UseVertexIconTypeMapOff ()
virtual void	SetVertexIconAlignment (int align)
virtual int	GetVertexIconAlignment ()
virtual void	SetVertexSelectedIcon (int icon)
virtual int	GetVertexSelectedIcon ()
virtual void	SetVertexDefaultIcon (int icon)
virtual int	GetVertexDefaultIcon ()
virtual void	SetEdgeIconArrayName (const char *name)
virtual const char *	GetEdgeIconArrayName ()
virtual void	SetEdgeIconPriorityArrayName (const char *name)
virtual const char *	GetEdgeIconPriorityArrayName ()
virtual void	SetEdgeIconVisibility (bool b)
virtual bool	GetEdgeIconVisibility ()
virtual void	EdgeIconVisibilityOn ()
virtual void	EdgeIconVisibilityOff ()
virtual void	AddEdgeIconType (const char *name, int type)
virtual void	ClearEdgeIconTypes ()
virtual void	SetUseEdgeIconTypeMap (bool b)
virtual bool	GetUseEdgeIconTypeMap ()
virtual void	UseEdgeIconTypeMapOn ()
virtual void	UseEdgeIconTypeMapOff ()
virtual void	SetEdgeIconAlignment (int align)
virtual int	GetEdgeIconAlignment ()
virtual void	SetColorVerticesByArray (bool b)
virtual bool	GetColorVerticesByArray ()
virtual void	ColorVerticesByArrayOn ()
virtual void	ColorVerticesByArrayOff ()
virtual void	SetVertexColorArrayName (const char *name)
virtual const char *	GetVertexColorArrayName ()
virtual void	SetColorEdgesByArray (bool b)
virtual bool	GetColorEdgesByArray ()
virtual void	ColorEdgesByArrayOn ()
virtual void	ColorEdgesByArrayOff ()
virtual void	SetEdgeColorArrayName (const char *name)
virtual const char *	GetEdgeColorArrayName ()
virtual void	SetEnableVerticesByArray (bool b)
virtual bool	GetEnableVerticesByArray ()
virtual void	EnableVerticesByArrayOn ()
virtual void	EnableVerticesByArrayOff ()
virtual void	SetEnabledVerticesArrayName (const char *name)
virtual const char *	GetEnabledVerticesArrayName ()
virtual void	SetEnableEdgesByArray (bool b)
virtual bool	GetEnableEdgesByArray ()
virtual void	EnableEdgesByArrayOn ()
virtual void	EnableEdgesByArrayOff ()
virtual void	SetEnabledEdgesArrayName (const char *name)
virtual const char *	GetEnabledEdgesArrayName ()
virtual void	SetEdgeVisibility (bool b)
virtual bool	GetEdgeVisibility ()
virtual void	EdgeVisibilityOn ()
virtual void	EdgeVisibilityOff ()
void	SetEdgeSelection (bool b)
bool	GetEdgeSelection ()
virtual void	SetEdgeLayoutStrategyToGeo (double explodeFactor=0.2)
virtual void	ApplyViewTheme (vtkViewTheme *theme)
virtual bool	IsLayoutComplete ()
virtual void	UpdateLayout ()
void	ComputeSelectedGraphBounds (double bounds[6])
virtual void	SetHideVertexLabelsOnInteraction (bool)
virtual bool	GetHideVertexLabelsOnInteraction ()
virtual void	HideVertexLabelsOnInteractionOn ()
virtual void	HideVertexLabelsOnInteractionOff ()
virtual void	SetHideEdgeLabelsOnInteraction (bool)
virtual bool	GetHideEdgeLabelsOnInteraction ()
virtual void	HideEdgeLabelsOnInteractionOn ()
virtual void	HideEdgeLabelsOnInteractionOff ()
virtual void	SetVertexIconSelectionMode (int mode)
virtual int	GetVertexIconSelectionMode ()
virtual void	SetVertexIconSelectionModeToSelectedIcon ()
virtual void	SetVertexIconSelectionModeToSelectedOffset ()
virtual void	SetVertexIconSelectionModeToAnnotationIcon ()
virtual void	SetVertexIconSelectionModeToIgnoreSelection ()
virtual void	SetLayoutStrategy (vtkGraphLayoutStrategy *strategy)
virtual vtkGraphLayoutStrategy *	GetLayoutStrategy ()
virtual void	SetLayoutStrategy (const char *name)
virtual char *	GetLayoutStrategyName ()
void	SetLayoutStrategyToRandom ()
void	SetLayoutStrategyToForceDirected ()
void	SetLayoutStrategyToSimple2D ()
void	SetLayoutStrategyToClustering2D ()
void	SetLayoutStrategyToCommunity2D ()
void	SetLayoutStrategyToFast2D ()
void	SetLayoutStrategyToPassThrough ()
void	SetLayoutStrategyToCircular ()
void	SetLayoutStrategyToTree ()
void	SetLayoutStrategyToCosmicTree ()
void	SetLayoutStrategyToCone ()
void	SetLayoutStrategyToSpanTree ()
virtual void	SetLayoutStrategyToAssignCoordinates (const char *xarr, const char *yarr=0, const char *zarr=0)
virtual void	SetLayoutStrategyToTree (bool radial, double angle=90, double leafSpacing=0.9, double logSpacing=1.0)
virtual void	SetLayoutStrategyToCosmicTree (const char *nodeSizeArrayName, bool sizeLeafNodesOnly=true, int layoutDepth=0, vtkIdType layoutRoot=-1)
virtual void	SetEdgeLayoutStrategy (vtkEdgeLayoutStrategy *strategy)
virtual vtkEdgeLayoutStrategy *	GetEdgeLayoutStrategy ()
void	SetEdgeLayoutStrategyToArcParallel ()
void	SetEdgeLayoutStrategyToPassThrough ()
virtual void	SetEdgeLayoutStrategy (const char *name)
virtual char *	GetEdgeLayoutStrategyName ()
virtual void	SetGlyphType (int type)
virtual int	GetGlyphType ()
virtual void	SetScaling (bool b)
virtual bool	GetScaling ()
virtual void	ScalingOn ()
virtual void	ScalingOff ()
virtual void	SetScalingArrayName (const char *name)
virtual const char *	GetScalingArrayName ()
virtual void	SetVertexScalarBarVisibility (bool b)
virtual bool	GetVertexScalarBarVisibility ()
virtual void	SetEdgeScalarBarVisibility (bool b)
virtual bool	GetEdgeScalarBarVisibility ()
Static Public Member Functions
static vtkRenderedGraphRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkRenderedGraphRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRenderedGraphRepresentation ()
	~vtkRenderedGraphRepresentation ()
virtual void	PrepareForRendering (vtkRenderView *view)
virtual vtkSelection *	ConvertSelection (vtkView *view, vtkSelection *sel)
virtual vtkUnicodeString	GetHoverTextInternal (vtkSelection *sel)
virtual void	SetVertexColorArrayNameInternal (const char *)
virtual char *	GetVertexColorArrayNameInternal ()
virtual void	SetEdgeColorArrayNameInternal (const char *)
virtual char *	GetEdgeColorArrayNameInternal ()
virtual void	SetScalingArrayNameInternal (const char *)
virtual char *	GetScalingArrayNameInternal ()
virtual void	SetLayoutStrategyName (const char *)
virtual void	SetEdgeLayoutStrategyName (const char *)
virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)
virtual int	RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
Protected Attributes
char *	VertexHoverArrayName
char *	EdgeHoverArrayName
char *	VertexColorArrayNameInternal
char *	EdgeColorArrayNameInternal
char *	ScalingArrayNameInternal
char *	LayoutStrategyName
char *	EdgeLayoutStrategyName
bool	HideVertexLabelsOnInteraction
bool	HideEdgeLabelsOnInteraction
bool	EdgeSelection
vtkSmartPointer< vtkApplyColors >	ApplyColors
vtkSmartPointer< vtkVertexDegree >	VertexDegree
vtkSmartPointer< vtkPolyData >	EmptyPolyData
vtkSmartPointer< vtkEdgeCenters >	EdgeCenters
vtkSmartPointer< vtkGraphToPoints >	GraphToPoints
vtkSmartPointer < vtkPointSetToLabelHierarchy >	VertexLabelHierarchy
vtkSmartPointer < vtkPointSetToLabelHierarchy >	EdgeLabelHierarchy
vtkSmartPointer< vtkGraphLayout >	Layout
vtkSmartPointer < vtkPerturbCoincidentVertices >	Coincident
vtkSmartPointer< vtkEdgeLayout >	EdgeLayout
vtkSmartPointer < vtkGraphToPolyData >	GraphToPoly
vtkSmartPointer < vtkPolyDataMapper >	EdgeMapper
vtkSmartPointer< vtkActor >	EdgeActor
vtkSmartPointer< vtkGraphToGlyphs >	VertexGlyph
vtkSmartPointer < vtkPolyDataMapper >	VertexMapper
vtkSmartPointer< vtkActor >	VertexActor
vtkSmartPointer< vtkGraphToGlyphs >	OutlineGlyph
vtkSmartPointer < vtkPolyDataMapper >	OutlineMapper
vtkSmartPointer< vtkActor >	OutlineActor
vtkSmartPointer < vtkScalarBarWidget >	VertexScalarBar
vtkSmartPointer < vtkScalarBarWidget >	EdgeScalarBar
vtkSmartPointer < vtkRemoveHiddenData >	RemoveHiddenGraph
vtkSmartPointer< vtkApplyIcons >	ApplyVertexIcons
vtkSmartPointer< vtkGraphToPoints >	VertexIconPoints
vtkSmartPointer < vtkTransformCoordinateSystems >	VertexIconTransform
vtkSmartPointer < vtkIconGlyphFilter >	VertexIconGlyph
vtkSmartPointer < vtkPolyDataMapper2D >	VertexIconMapper
vtkSmartPointer < vtkTexturedActor2D >	VertexIconActor

---

Member Typedef Documentation

typedef vtkRenderedRepresentation vtkRenderedGraphRepresentation::Superclass

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

Definition at line 72 of file vtkRenderedGraphRepresentation.h.

---

Constructor & Destructor Documentation

vtkRenderedGraphRepresentation::vtkRenderedGraphRepresentation

(

)

[protected]

vtkRenderedGraphRepresentation::~vtkRenderedGraphRepresentation

(

)

[protected]

---

Member Function Documentation

static vtkRenderedGraphRepresentation* vtkRenderedGraphRepresentation::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual const char* vtkRenderedGraphRepresentation::GetClassName

(

)

[virtual]

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

static int vtkRenderedGraphRepresentation::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual int vtkRenderedGraphRepresentation::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

static vtkRenderedGraphRepresentation* vtkRenderedGraphRepresentation::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

void vtkRenderedGraphRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderedRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::SetVertexLabelArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexLabelArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexLabelPriorityArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexLabelPriorityArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexLabelVisibility

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetVertexLabelVisibility

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::VertexLabelVisibilityOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::VertexLabelVisibilityOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexLabelTextProperty

(

vtkTextProperty *

p

)

[virtual]

virtual vtkTextProperty* vtkRenderedGraphRepresentation::GetVertexLabelTextProperty

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexHoverArrayName

(

const char *

)

[virtual]

virtual char* vtkRenderedGraphRepresentation::GetVertexHoverArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetHideVertexLabelsOnInteraction

(

bool

)

[virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual bool vtkRenderedGraphRepresentation::GetHideVertexLabelsOnInteraction

(

)

[virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideVertexLabelsOnInteractionOn

(

)

[virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideVertexLabelsOnInteractionOff

(

)

[virtual]

Whether to hide the display of vertex labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeLabelArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelPriorityArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeLabelPriorityArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelVisibility

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetEdgeLabelVisibility

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EdgeLabelVisibilityOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EdgeLabelVisibilityOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLabelTextProperty

(

vtkTextProperty *

p

)

[virtual]

virtual vtkTextProperty* vtkRenderedGraphRepresentation::GetEdgeLabelTextProperty

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeHoverArrayName

(

const char *

)

[virtual]

virtual char* vtkRenderedGraphRepresentation::GetEdgeHoverArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetHideEdgeLabelsOnInteraction

(

bool

)

[virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual bool vtkRenderedGraphRepresentation::GetHideEdgeLabelsOnInteraction

(

)

[virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideEdgeLabelsOnInteractionOn

(

)

[virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::HideEdgeLabelsOnInteractionOff

(

)

[virtual]

Whether to hide the display of edge labels during mouse interaction. Default is off.

virtual void vtkRenderedGraphRepresentation::SetVertexIconArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexIconArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconPriorityArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexIconPriorityArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconVisibility

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetVertexIconVisibility

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::VertexIconVisibilityOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::VertexIconVisibilityOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::AddVertexIconType	(	const char *	name,
		int	type
	)			[virtual]

virtual void vtkRenderedGraphRepresentation::ClearVertexIconTypes

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetUseVertexIconTypeMap

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetUseVertexIconTypeMap

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::UseVertexIconTypeMapOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::UseVertexIconTypeMapOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconAlignment

(

int

align

)

[virtual]

virtual int vtkRenderedGraphRepresentation::GetVertexIconAlignment

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexSelectedIcon

(

int

icon

)

[virtual]

virtual int vtkRenderedGraphRepresentation::GetVertexSelectedIcon

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexDefaultIcon

(

int

icon

)

[virtual]

virtual int vtkRenderedGraphRepresentation::GetVertexDefaultIcon

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionMode

(

int

mode

)

[virtual]

Set the mode to one of

• vtkApplyIcons::SELECTED_ICON - use VertexSelectedIcon
• vtkApplyIcons::SELECTED_OFFSET - use VertexSelectedIcon as offset
• vtkApplyIcons::ANNOTATION_ICON - use current annotation icon
• vtkApplyIcons::IGNORE_SELECTION - ignore selected elements

The default is IGNORE_SELECTION.

virtual int vtkRenderedGraphRepresentation::GetVertexIconSelectionMode

(

)

[virtual]

Set the mode to one of

• vtkApplyIcons::SELECTED_ICON - use VertexSelectedIcon
• vtkApplyIcons::SELECTED_OFFSET - use VertexSelectedIcon as offset
• vtkApplyIcons::ANNOTATION_ICON - use current annotation icon
• vtkApplyIcons::IGNORE_SELECTION - ignore selected elements

The default is IGNORE_SELECTION.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToSelectedIcon

(

)

[inline, virtual]

Set the mode to one of

• vtkApplyIcons::SELECTED_ICON - use VertexSelectedIcon
• vtkApplyIcons::SELECTED_OFFSET - use VertexSelectedIcon as offset
• vtkApplyIcons::ANNOTATION_ICON - use current annotation icon
• vtkApplyIcons::IGNORE_SELECTION - ignore selected elements

The default is IGNORE_SELECTION.

Definition at line 149 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToSelectedOffset

(

)

[inline, virtual]

Set the mode to one of

• vtkApplyIcons::SELECTED_ICON - use VertexSelectedIcon
• vtkApplyIcons::SELECTED_OFFSET - use VertexSelectedIcon as offset
• vtkApplyIcons::ANNOTATION_ICON - use current annotation icon
• vtkApplyIcons::IGNORE_SELECTION - ignore selected elements

The default is IGNORE_SELECTION.

Definition at line 151 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToAnnotationIcon

(

)

[inline, virtual]

Set the mode to one of

• vtkApplyIcons::SELECTED_ICON - use VertexSelectedIcon
• vtkApplyIcons::SELECTED_OFFSET - use VertexSelectedIcon as offset
• vtkApplyIcons::ANNOTATION_ICON - use current annotation icon
• vtkApplyIcons::IGNORE_SELECTION - ignore selected elements

The default is IGNORE_SELECTION.

Definition at line 153 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetVertexIconSelectionModeToIgnoreSelection

(

)

[inline, virtual]

Set the mode to one of

• vtkApplyIcons::SELECTED_ICON - use VertexSelectedIcon
• vtkApplyIcons::SELECTED_OFFSET - use VertexSelectedIcon as offset
• vtkApplyIcons::ANNOTATION_ICON - use current annotation icon
• vtkApplyIcons::IGNORE_SELECTION - ignore selected elements

The default is IGNORE_SELECTION.

Definition at line 155 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetEdgeIconArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeIconArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeIconPriorityArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeIconPriorityArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeIconVisibility

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetEdgeIconVisibility

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EdgeIconVisibilityOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EdgeIconVisibilityOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::AddEdgeIconType	(	const char *	name,
		int	type
	)			[virtual]

virtual void vtkRenderedGraphRepresentation::ClearEdgeIconTypes

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetUseEdgeIconTypeMap

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetUseEdgeIconTypeMap

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::UseEdgeIconTypeMapOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::UseEdgeIconTypeMapOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeIconAlignment

(

int

align

)

[virtual]

virtual int vtkRenderedGraphRepresentation::GetEdgeIconAlignment

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetColorVerticesByArray

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetColorVerticesByArray

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::ColorVerticesByArrayOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::ColorVerticesByArrayOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetVertexColorArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetVertexColorArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetColorEdgesByArray

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetColorEdgesByArray

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::ColorEdgesByArrayOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::ColorEdgesByArrayOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeColorArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEdgeColorArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEnableVerticesByArray

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetEnableVerticesByArray

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EnableVerticesByArrayOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EnableVerticesByArrayOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEnabledVerticesArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEnabledVerticesArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEnableEdgesByArray

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetEnableEdgesByArray

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EnableEdgesByArrayOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EnableEdgesByArrayOff

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEnabledEdgesArrayName

(

const char *

name

)

[virtual]

virtual const char* vtkRenderedGraphRepresentation::GetEnabledEdgesArrayName

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeVisibility

(

bool

b

)

[virtual]

virtual bool vtkRenderedGraphRepresentation::GetEdgeVisibility

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EdgeVisibilityOn

(

)

[virtual]

virtual void vtkRenderedGraphRepresentation::EdgeVisibilityOff

(

)

[virtual]

void vtkRenderedGraphRepresentation::SetEdgeSelection

(

bool

b

)

bool vtkRenderedGraphRepresentation::GetEdgeSelection

(

)

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategy

(

vtkGraphLayoutStrategy *

strategy

)

[virtual]

Set/get the graph layout strategy.

virtual vtkGraphLayoutStrategy* vtkRenderedGraphRepresentation::GetLayoutStrategy

(

)

[virtual]

Set/get the graph layout strategy.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategy

(

const char *

name

)

[virtual]

Get/set the layout strategy by name.

virtual char* vtkRenderedGraphRepresentation::GetLayoutStrategyName

(

)

[virtual]

Get/set the layout strategy by name.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToRandom

(

)

[inline]

Set predefined layout strategies.

Definition at line 237 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToForceDirected

(

)

[inline]

Set predefined layout strategies.

Definition at line 239 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToSimple2D

(

)

[inline]

Set predefined layout strategies.

Definition at line 241 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToClustering2D

(

)

[inline]

Set predefined layout strategies.

Definition at line 243 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCommunity2D

(

)

[inline]

Set predefined layout strategies.

Definition at line 245 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToFast2D

(

)

[inline]

Set predefined layout strategies.

Definition at line 247 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToPassThrough

(

)

[inline]

Set predefined layout strategies.

Definition at line 249 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCircular

(

)

[inline]

Set predefined layout strategies.

Definition at line 251 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToTree

(

)

[inline]

Set predefined layout strategies.

Definition at line 253 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCosmicTree

(

)

[inline]

Set predefined layout strategies.

Definition at line 255 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToCone

(

)

[inline]

Set predefined layout strategies.

Definition at line 257 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetLayoutStrategyToSpanTree

(

)

[inline]

Set predefined layout strategies.

Definition at line 259 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyToAssignCoordinates	(	const char *	xarr,
		const char *	yarr = 0,
		const char *	zarr = 0
	)			[virtual]

Set the layout strategy to use coordinates from arrays. The x array must be specified. The y and z arrays are optional.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyToTree	(	bool	radial,
		double	angle = 90,
		double	leafSpacing = 0.9,
		double	logSpacing = 1.0
	)			[virtual]

Set the layout strategy to a tree layout. Radial indicates whether to do a radial or standard top-down tree layout. The angle parameter is the angular distance spanned by the tree. Leaf spacing is a value from 0 to 1 indicating how much of the radial layout should be allocated to leaf nodes (as opposed to between tree branches). The log spacing value is a non-negative value where > 1 will create expanding levels, < 1 will create contracting levels, and = 1 makes all levels the same size. See vtkTreeLayoutStrategy for more information.

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyToCosmicTree	(	const char *	nodeSizeArrayName,
		bool	sizeLeafNodesOnly = true,
		int	layoutDepth = 0,
		vtkIdType	layoutRoot = -1
	)			[virtual]

Set the layout strategy to a cosmic tree layout. nodeSizeArrayName is the array used to size the circles (default is NULL, which makes leaf nodes the same size). sizeLeafNodesOnly only uses the leaf node sizes, and computes the parent size as the sum of the child sizes (default true). layoutDepth stops layout at a certain depth (default is 0, which does the entire tree). layoutRoot is the vertex that will be considered the root node of the layout (default is -1, which will use the tree's root). See vtkCosmicTreeLayoutStrategy for more information.

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategy

(

vtkEdgeLayoutStrategy *

strategy

)

[virtual]

Set/get the graph layout strategy.

virtual vtkEdgeLayoutStrategy* vtkRenderedGraphRepresentation::GetEdgeLayoutStrategy

(

)

[virtual]

Set/get the graph layout strategy.

void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyToArcParallel

(

)

[inline]

Set/get the graph layout strategy.

Definition at line 311 of file vtkRenderedGraphRepresentation.h.

void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyToPassThrough

(

)

[inline]

Set/get the graph layout strategy.

Definition at line 313 of file vtkRenderedGraphRepresentation.h.

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyToGeo

(

double

explodeFactor = 0.2

)

[virtual]

Set the edge layout strategy to a geospatial arced strategy appropriate for vtkGeoView.

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategy

(

const char *

name

)

[virtual]

Set the edge layout strategy by name.

virtual char* vtkRenderedGraphRepresentation::GetEdgeLayoutStrategyName

(

)

[virtual]

Set the edge layout strategy by name.

virtual void vtkRenderedGraphRepresentation::ApplyViewTheme

(

vtkViewTheme *

theme

)

[virtual]

Apply a theme to this representation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::SetGlyphType

(

int

type

)

[virtual]

Set the graph vertex glyph type.

virtual int vtkRenderedGraphRepresentation::GetGlyphType

(

)

[virtual]

Set the graph vertex glyph type.

virtual void vtkRenderedGraphRepresentation::SetScaling

(

bool

b

)

[virtual]

Set whether to scale vertex glyphs.

virtual bool vtkRenderedGraphRepresentation::GetScaling

(

)

[virtual]

Set whether to scale vertex glyphs.

virtual void vtkRenderedGraphRepresentation::ScalingOn

(

)

[virtual]

Set whether to scale vertex glyphs.

virtual void vtkRenderedGraphRepresentation::ScalingOff

(

)

[virtual]

Set whether to scale vertex glyphs.

virtual void vtkRenderedGraphRepresentation::SetScalingArrayName

(

const char *

name

)

[virtual]

Set the glyph scaling array name.

virtual const char* vtkRenderedGraphRepresentation::GetScalingArrayName

(

)

[virtual]

Set the glyph scaling array name.

virtual void vtkRenderedGraphRepresentation::SetVertexScalarBarVisibility

(

bool

b

)

[virtual]

Vertex/edge scalar bar visibility.

virtual bool vtkRenderedGraphRepresentation::GetVertexScalarBarVisibility

(

)

[virtual]

Vertex/edge scalar bar visibility.

virtual void vtkRenderedGraphRepresentation::SetEdgeScalarBarVisibility

(

bool

b

)

[virtual]

Vertex/edge scalar bar visibility.

virtual bool vtkRenderedGraphRepresentation::GetEdgeScalarBarVisibility

(

)

[virtual]

Vertex/edge scalar bar visibility.

virtual bool vtkRenderedGraphRepresentation::IsLayoutComplete

(

)

[virtual]

Whether the current graph layout is complete.

virtual void vtkRenderedGraphRepresentation::UpdateLayout

(

)

[virtual]

Performs another iteration on the graph layout.

void vtkRenderedGraphRepresentation::ComputeSelectedGraphBounds

(

double

bounds[6]

)

Compute the bounding box of the selected subgraph.

virtual bool vtkRenderedGraphRepresentation::AddToView

(

vtkView *

view

)

[protected, virtual]

Called by the view to add/remove this representation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual bool vtkRenderedGraphRepresentation::RemoveFromView

(

vtkView *

view

)

[protected, virtual]

Called by the view to add/remove this representation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::PrepareForRendering

(

vtkRenderView *

view

)

[protected, virtual]

The view will call this method before every render. Representations may add their own pre-render logic here.

Reimplemented from vtkRenderedRepresentation.

virtual vtkSelection* vtkRenderedGraphRepresentation::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			[protected, virtual]

Convert the selection to a type appropriate for sharing with other representations through vtkAnnotationLink, possibly using the view. For the superclass, we just return the same selection. Subclasses may do something more fancy, like convert the selection from a frustrum to a list of pedigree ids. If the selection cannot be applied to this representation, return NULL.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual vtkUnicodeString vtkRenderedGraphRepresentation::GetHoverTextInternal

(

vtkSelection *

)

[protected, virtual]

Subclasses may override this method to generate the hover text.

Reimplemented from vtkRenderedRepresentation.

virtual int vtkRenderedGraphRepresentation::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

Connect inputs to internal pipeline.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkRenderedHierarchyRepresentation.

virtual void vtkRenderedGraphRepresentation::SetVertexColorArrayNameInternal

(

const char *

)

[protected, virtual]

virtual char* vtkRenderedGraphRepresentation::GetVertexColorArrayNameInternal

(

)

[protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeColorArrayNameInternal

(

const char *

)

[protected, virtual]

virtual char* vtkRenderedGraphRepresentation::GetEdgeColorArrayNameInternal

(

)

[protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetScalingArrayNameInternal

(

const char *

)

[protected, virtual]

virtual char* vtkRenderedGraphRepresentation::GetScalingArrayNameInternal

(

)

[protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetLayoutStrategyName

(

const char *

)

[protected, virtual]

virtual void vtkRenderedGraphRepresentation::SetEdgeLayoutStrategyName

(

const char *

)

[protected, virtual]

---

Member Data Documentation

vtkSmartPointer<vtkApplyColors> vtkRenderedGraphRepresentation::ApplyColors [protected]

Internal filter classes.

Definition at line 396 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkVertexDegree> vtkRenderedGraphRepresentation::VertexDegree [protected]

Internal filter classes.

Definition at line 397 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPolyData> vtkRenderedGraphRepresentation::EmptyPolyData [protected]

Internal filter classes.

Definition at line 398 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkEdgeCenters> vtkRenderedGraphRepresentation::EdgeCenters [protected]

Internal filter classes.

Definition at line 399 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkGraphToPoints> vtkRenderedGraphRepresentation::GraphToPoints [protected]

Internal filter classes.

Definition at line 400 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPointSetToLabelHierarchy> vtkRenderedGraphRepresentation::VertexLabelHierarchy [protected]

Internal filter classes.

Definition at line 401 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPointSetToLabelHierarchy> vtkRenderedGraphRepresentation::EdgeLabelHierarchy [protected]

Internal filter classes.

Definition at line 402 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkGraphLayout> vtkRenderedGraphRepresentation::Layout [protected]

Internal filter classes.

Definition at line 403 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPerturbCoincidentVertices> vtkRenderedGraphRepresentation::Coincident [protected]

Internal filter classes.

Definition at line 404 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkEdgeLayout> vtkRenderedGraphRepresentation::EdgeLayout [protected]

Internal filter classes.

Definition at line 405 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkGraphToPolyData> vtkRenderedGraphRepresentation::GraphToPoly [protected]

Internal filter classes.

Definition at line 406 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPolyDataMapper> vtkRenderedGraphRepresentation::EdgeMapper [protected]

Internal filter classes.

Definition at line 407 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkActor> vtkRenderedGraphRepresentation::EdgeActor [protected]

Internal filter classes.

Definition at line 408 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkGraphToGlyphs> vtkRenderedGraphRepresentation::VertexGlyph [protected]

Internal filter classes.

Definition at line 409 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPolyDataMapper> vtkRenderedGraphRepresentation::VertexMapper [protected]

Internal filter classes.

Definition at line 410 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkActor> vtkRenderedGraphRepresentation::VertexActor [protected]

Internal filter classes.

Definition at line 411 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkGraphToGlyphs> vtkRenderedGraphRepresentation::OutlineGlyph [protected]

Internal filter classes.

Definition at line 412 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPolyDataMapper> vtkRenderedGraphRepresentation::OutlineMapper [protected]

Internal filter classes.

Definition at line 413 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkActor> vtkRenderedGraphRepresentation::OutlineActor [protected]

Internal filter classes.

Definition at line 414 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkScalarBarWidget> vtkRenderedGraphRepresentation::VertexScalarBar [protected]

Internal filter classes.

Definition at line 415 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkScalarBarWidget> vtkRenderedGraphRepresentation::EdgeScalarBar [protected]

Internal filter classes.

Definition at line 416 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkRemoveHiddenData> vtkRenderedGraphRepresentation::RemoveHiddenGraph [protected]

Internal filter classes.

Definition at line 417 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkApplyIcons> vtkRenderedGraphRepresentation::ApplyVertexIcons [protected]

Internal filter classes.

Definition at line 418 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkGraphToPoints> vtkRenderedGraphRepresentation::VertexIconPoints [protected]

Internal filter classes.

Definition at line 419 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkTransformCoordinateSystems> vtkRenderedGraphRepresentation::VertexIconTransform [protected]

Internal filter classes.

Definition at line 420 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkIconGlyphFilter> vtkRenderedGraphRepresentation::VertexIconGlyph [protected]

Internal filter classes.

Definition at line 421 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkPolyDataMapper2D> vtkRenderedGraphRepresentation::VertexIconMapper [protected]

Internal filter classes.

Definition at line 422 of file vtkRenderedGraphRepresentation.h.

vtkSmartPointer<vtkTexturedActor2D> vtkRenderedGraphRepresentation::VertexIconActor [protected]

Internal filter classes.

Definition at line 423 of file vtkRenderedGraphRepresentation.h.

char* vtkRenderedGraphRepresentation::VertexHoverArrayName [protected]

Definition at line 427 of file vtkRenderedGraphRepresentation.h.

char* vtkRenderedGraphRepresentation::EdgeHoverArrayName [protected]

Definition at line 428 of file vtkRenderedGraphRepresentation.h.

char* vtkRenderedGraphRepresentation::VertexColorArrayNameInternal [protected]

Definition at line 431 of file vtkRenderedGraphRepresentation.h.

char* vtkRenderedGraphRepresentation::EdgeColorArrayNameInternal [protected]

Definition at line 435 of file vtkRenderedGraphRepresentation.h.

char* vtkRenderedGraphRepresentation::ScalingArrayNameInternal [protected]

Definition at line 439 of file vtkRenderedGraphRepresentation.h.

char* vtkRenderedGraphRepresentation::LayoutStrategyName [protected]

Definition at line 442 of file vtkRenderedGraphRepresentation.h.

char* vtkRenderedGraphRepresentation::EdgeLayoutStrategyName [protected]

Definition at line 444 of file vtkRenderedGraphRepresentation.h.

bool vtkRenderedGraphRepresentation::HideVertexLabelsOnInteraction [protected]

Definition at line 446 of file vtkRenderedGraphRepresentation.h.

bool vtkRenderedGraphRepresentation::HideEdgeLabelsOnInteraction [protected]

Definition at line 447 of file vtkRenderedGraphRepresentation.h.

bool vtkRenderedGraphRepresentation::EdgeSelection [protected]

Definition at line 449 of file vtkRenderedGraphRepresentation.h.

---

The documentation for this class was generated from the following file:

• dox/Views/vtkRenderedGraphRepresentation.h
