Fill a vtkBlueObeliskData container with data from the BODR XML dataset. More...

#include <vtkBlueObeliskDataParser.h>

Inheritance diagram for vtkBlueObeliskDataParser:

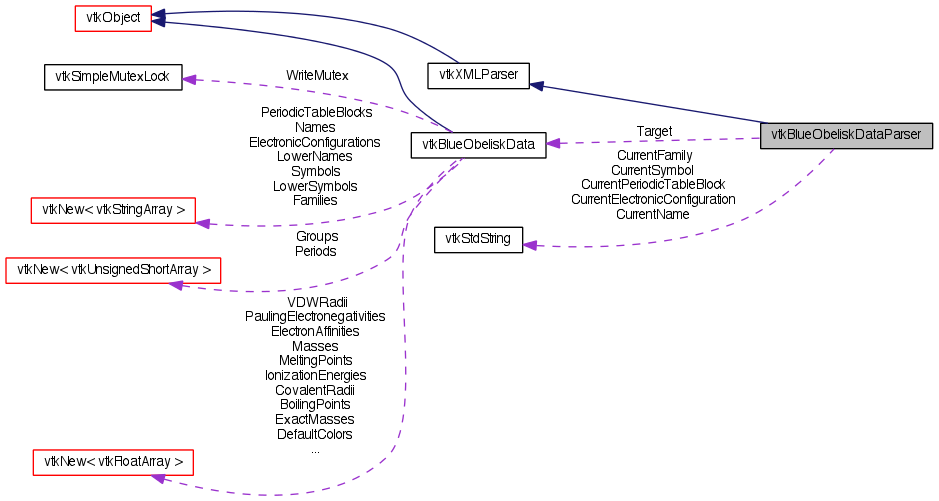

Collaboration diagram for vtkBlueObeliskDataParser:

Public Types
typedef vtkXMLParser	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkBlueObeliskDataParser *	NewInstance () const
virtual void	SetTarget (vtkBlueObeliskData *bodr)
virtual int	Parse ()

virtual int	Parse (const char *)
virtual int	Parse (const char *, unsigned int)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkBlueObeliskDataParser *	SafeDownCast (vtkObjectBase *o)
static vtkBlueObeliskDataParser *	New ()
Protected Types
enum	AtomValueType { None = 0, AtomicNumber, Symbol, Name, PeriodicTableBlock, ElectronicConfiguration, Family, Mass, ExactMass, IonizationEnergy, ElectronAffinity, PaulingElectronegativity, CovalentRadius, VDWRadius, DefaultColor, BoilingPoint, MeltingPoint, Period, Group }
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkBlueObeliskDataParser ()
	~vtkBlueObeliskDataParser ()
void	StartElement (const char name, const char *attr)
void	EndElement (const char *name)
void	CharacterDataHandler (const char *data, int length)
void	SetCurrentValue (const char *data, int length)
void	SetCurrentValue (const char *data)
void	NewAtomStarted (const char **attr)
void	NewAtomFinished ()
void	NewValueStarted (const char **attr)
void	NewValueFinished ()
Protected Attributes
vtkBlueObeliskData *	Target
bool	IsProcessingAtom
bool	IsProcessingValue
std::string	CharacterDataValueBuffer
enum vtkBlueObeliskDataParser::AtomValueType	CurrentValueType
int	CurrentAtomicNumber
vtkStdString *	CurrentSymbol
vtkStdString *	CurrentName
vtkStdString *	CurrentPeriodicTableBlock
vtkStdString *	CurrentElectronicConfiguration
vtkStdString *	CurrentFamily
float	CurrentMass
float	CurrentExactMass
float	CurrentIonizationEnergy
float	CurrentElectronAffinity
float	CurrentPaulingElectronegativity
float	CurrentCovalentRadius
float	CurrentVDWRadius
float	CurrentDefaultColor [3]
float	CurrentBoilingPoint
float	CurrentMeltingPoint
unsigned int	CurrentPeriod
unsigned int	CurrentGroup

Detailed Description

Fill a vtkBlueObeliskData container with data from the BODR XML dataset.

The Blue Obelisk Data Repository is a free, open repository of chemical information. This class extracts the BODR information into vtk arrays, which are stored in a vtkBlueObeliskData object.

Warning:: The vtkBlueObeliskDataParser class should never need to be used directly. For convenient access to the BODR data, use vtkPeriodicTable. For access to the raw arrays produced by this parser, see the vtkBlueObeliskData class. A static vtkBlueObeliskData object is accessible via vtkPeriodicTable::GetBlueObeliskData().

See also:: vtkPeriodicTable vtkBlueObeliskData

Definition at line 50 of file vtkBlueObeliskDataParser.h.

Member Typedef Documentation

typedef vtkXMLParser vtkBlueObeliskDataParser::Superclass

Reimplemented from vtkXMLParser.

Definition at line 53 of file vtkBlueObeliskDataParser.h.

Member Enumeration Documentation

enum vtkBlueObeliskDataParser::AtomValueType [protected]

Enumerator:

None
AtomicNumber
Symbol
Name
PeriodicTableBlock
ElectronicConfiguration
Family
Mass
ExactMass
IonizationEnergy
ElectronAffinity
PaulingElectronegativity
CovalentRadius
VDWRadius
DefaultColor
BoilingPoint
MeltingPoint
Period
Group

Definition at line 95 of file vtkBlueObeliskDataParser.h.

Constructor & Destructor Documentation

vtkBlueObeliskDataParser::vtkBlueObeliskDataParser ( ) [protected]

vtkBlueObeliskDataParser::~vtkBlueObeliskDataParser ( ) [protected]

Member Function Documentation

static int vtkBlueObeliskDataParser::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLParser.

virtual int vtkBlueObeliskDataParser::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLParser.

static vtkBlueObeliskDataParser* vtkBlueObeliskDataParser::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkXMLParser.

virtual vtkObjectBase* vtkBlueObeliskDataParser::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkXMLParser.

vtkBlueObeliskDataParser* vtkBlueObeliskDataParser::NewInstance ( ) const

Reimplemented from vtkXMLParser.

static vtkBlueObeliskDataParser* vtkBlueObeliskDataParser::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkXMLParser.

virtual void vtkBlueObeliskDataParser::SetTarget ( vtkBlueObeliskData * bodr ) [virtual]

Set the target vtkBlueObeliskData object that this parser will populate

virtual int vtkBlueObeliskDataParser::Parse ( ) [virtual]

Start parsing

Reimplemented from vtkXMLParser.

virtual int vtkBlueObeliskDataParser::Parse ( const char * ) [virtual]

These are only implemented to prevent compiler warnings about hidden virtual overloads. This function simply call Parse(); the arguments are ignored.

Reimplemented from vtkXMLParser.

virtual int vtkBlueObeliskDataParser::Parse	(	const char *	,
		unsigned	int
	)		`[virtual]`

These are only implemented to prevent compiler warnings about hidden virtual overloads. This function simply call Parse(); the arguments are ignored.

Reimplemented from vtkXMLParser.

void vtkBlueObeliskDataParser::StartElement	(	const char *	name,
		const char **	attr
	)		`[protected, virtual]`

Reimplemented from vtkXMLParser.

void vtkBlueObeliskDataParser::EndElement ( const char * name ) [protected, virtual]

Reimplemented from vtkXMLParser.

void vtkBlueObeliskDataParser::CharacterDataHandler	(	const char *	data,
		int	length
	)		`[protected, virtual]`

Reimplemented from vtkXMLParser.

void vtkBlueObeliskDataParser::SetCurrentValue	(	const char *	data,
		int	length
	)		`[protected]`

void vtkBlueObeliskDataParser::SetCurrentValue ( const char * data ) [protected]

void vtkBlueObeliskDataParser::NewAtomStarted ( const char ** attr ) [protected]

void vtkBlueObeliskDataParser::NewAtomFinished ( ) [protected]

void vtkBlueObeliskDataParser::NewValueStarted ( const char ** attr ) [protected]

void vtkBlueObeliskDataParser::NewValueFinished ( ) [protected]

Member Data Documentation

vtkBlueObeliskData* vtkBlueObeliskDataParser::Target [protected]

Definition at line 83 of file vtkBlueObeliskDataParser.h.

bool vtkBlueObeliskDataParser::IsProcessingAtom [protected]

Definition at line 85 of file vtkBlueObeliskDataParser.h.

bool vtkBlueObeliskDataParser::IsProcessingValue [protected]

Definition at line 89 of file vtkBlueObeliskDataParser.h.

std::string vtkBlueObeliskDataParser::CharacterDataValueBuffer [protected]

Definition at line 93 of file vtkBlueObeliskDataParser.h.

enum vtkBlueObeliskDataParser::AtomValueType vtkBlueObeliskDataParser::CurrentValueType [protected]

int vtkBlueObeliskDataParser::CurrentAtomicNumber [protected]

Definition at line 117 of file vtkBlueObeliskDataParser.h.

vtkStdString* vtkBlueObeliskDataParser::CurrentSymbol [protected]

Definition at line 118 of file vtkBlueObeliskDataParser.h.

vtkStdString* vtkBlueObeliskDataParser::CurrentName [protected]

Definition at line 119 of file vtkBlueObeliskDataParser.h.

vtkStdString* vtkBlueObeliskDataParser::CurrentPeriodicTableBlock [protected]

Definition at line 120 of file vtkBlueObeliskDataParser.h.

vtkStdString* vtkBlueObeliskDataParser::CurrentElectronicConfiguration [protected]

Definition at line 121 of file vtkBlueObeliskDataParser.h.

vtkStdString* vtkBlueObeliskDataParser::CurrentFamily [protected]

Definition at line 122 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentMass [protected]

Definition at line 123 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentExactMass [protected]

Definition at line 124 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentIonizationEnergy [protected]

Definition at line 125 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentElectronAffinity [protected]

Definition at line 126 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentPaulingElectronegativity [protected]

Definition at line 127 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentCovalentRadius [protected]

Definition at line 128 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentVDWRadius [protected]

Definition at line 129 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentDefaultColor[3] [protected]

Definition at line 130 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentBoilingPoint [protected]

Definition at line 131 of file vtkBlueObeliskDataParser.h.

float vtkBlueObeliskDataParser::CurrentMeltingPoint [protected]

Definition at line 132 of file vtkBlueObeliskDataParser.h.

unsigned int vtkBlueObeliskDataParser::CurrentPeriod [protected]

Definition at line 133 of file vtkBlueObeliskDataParser.h.

unsigned int vtkBlueObeliskDataParser::CurrentGroup [protected]

Definition at line 134 of file vtkBlueObeliskDataParser.h.

The documentation for this class was generated from the following file:

/Users/kitware/Dashboards/MyTests/VTK_BLD_Release_docs/Utilities/Doxygen/dox/Domains/Chemistry/vtkBlueObeliskDataParser.h
