vtkPeriodicTable Class Reference

Access to information about the elements. More...

#include <vtkPeriodicTable.h>

Inheritance diagram for vtkPeriodicTable:

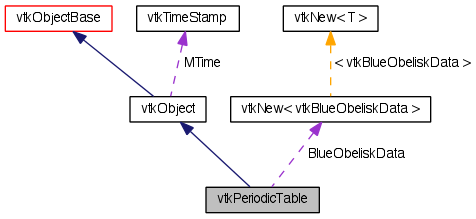

Collaboration diagram for vtkPeriodicTable:

List of all members.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkPeriodicTable *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned short	GetNumberOfElements ()
const char *	GetSymbol (const unsigned short atomicNum)
const char *	GetElementName (const unsigned short atomicNum)
float	GetCovalentRadius (const unsigned short atomicNum)
float	GetVDWRadius (const unsigned short atomicNum)
void	GetDefaultLUT (vtkLookupTable *)
void	GetDefaultRGBTuple (unsigned short atomicNum, float rgb[3])
vtkColor3f	GetDefaultRGBTuple (unsigned short atomicNum)
	vtkGetNewMacro (BlueObeliskData, vtkBlueObeliskData)
unsigned short	GetAtomicNumber (const vtkStdString &str)
unsigned short	GetAtomicNumber (const char *str)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPeriodicTable *	SafeDownCast (vtkObjectBase *o)
static vtkPeriodicTable *	New ()
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkPeriodicTable ()
	~vtkPeriodicTable ()
Static Protected Attributes
static vtkNew< vtkBlueObeliskData >	BlueObeliskData

---

Detailed Description

Access to information about the elements.

Sourced from the Blue Obelisk Data Repository

See also:

vtkBlueObeliskData vtkBlueObeliskDataParser

Tests:

vtkPeriodicTable (Tests)

Definition at line 40 of file vtkPeriodicTable.h.

---

Member Typedef Documentation

typedef vtkObject vtkPeriodicTable::Superclass

Reimplemented from vtkObject.

Definition at line 43 of file vtkPeriodicTable.h.

---

Constructor & Destructor Documentation

vtkPeriodicTable::vtkPeriodicTable

(

)

[protected]

vtkPeriodicTable::~vtkPeriodicTable

(

)

[protected]

---

Member Function Documentation

static int vtkPeriodicTable::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkPeriodicTable::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkPeriodicTable* vtkPeriodicTable::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Reimplemented from vtkObject.

virtual vtkObjectBase* vtkPeriodicTable::NewInstanceInternal

(

)

const [protected, virtual]

Reimplemented from vtkObject.

vtkPeriodicTable* vtkPeriodicTable::NewInstance

(

)

const

Reimplemented from vtkObject.

void vtkPeriodicTable::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkPeriodicTable* vtkPeriodicTable::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

vtkPeriodicTable::vtkGetNewMacro	(	BlueObeliskData	,
		vtkBlueObeliskData
	)

Access the static vtkBlueObeliskData object for raw access to BODR data.

unsigned short vtkPeriodicTable::GetNumberOfElements

(

)

Returns the number of elements in the periodic table.

const char* vtkPeriodicTable::GetSymbol

(

const unsigned short

atomicNum

)

Given an atomic number, returns the symbol associated with the element

const char* vtkPeriodicTable::GetElementName

(

const unsigned short

atomicNum

)

Given an atomic number, returns the name of the element

unsigned short vtkPeriodicTable::GetAtomicNumber

(

const vtkStdString &

str

)

Given a case-insensitive string that contains the symbol or name of an element, return the corresponding atomic number.

unsigned short vtkPeriodicTable::GetAtomicNumber

(

const char *

str

)

Given a case-insensitive string that contains the symbol or name of an element, return the corresponding atomic number.

float vtkPeriodicTable::GetCovalentRadius

(

const unsigned short

atomicNum

)

Given an atomic number, return the covalent radius of the atom

float vtkPeriodicTable::GetVDWRadius

(

const unsigned short

atomicNum

)

Given an atomic number, returns the van der Waals radius of the atom

void vtkPeriodicTable::GetDefaultLUT

(

vtkLookupTable *

)

Fill the given vtkLookupTable to map atomic numbers to the familiar RGB tuples provided by the Blue Obelisk Data Repository

void vtkPeriodicTable::GetDefaultRGBTuple	(	unsigned short	atomicNum,
		float	rgb[3]
	)

Given an atomic number, return the familiar RGB tuple provided by the Blue Obelisk Data Repository

vtkColor3f vtkPeriodicTable::GetDefaultRGBTuple

(

unsigned short

atomicNum

)

Given an atomic number, return the familiar RGB tuple provided by the Blue Obelisk Data Repository

---

Member Data Documentation

vtkNew<vtkBlueObeliskData> vtkPeriodicTable::BlueObeliskData [static, protected]

Definition at line 92 of file vtkPeriodicTable.h.

---

The documentation for this class was generated from the following file:

• /Users/kitware/Dashboards/MyTests/VTK_BLD_Release_docs/Utilities/Doxygen/dox/Domains/Chemistry/vtkPeriodicTable.h
