vtkGeoFileTerrainSource Class Reference

A source for tiled geometry on disk. More...

#include <vtkGeoFileTerrainSource.h>

Inheritance diagram for vtkGeoFileTerrainSource:

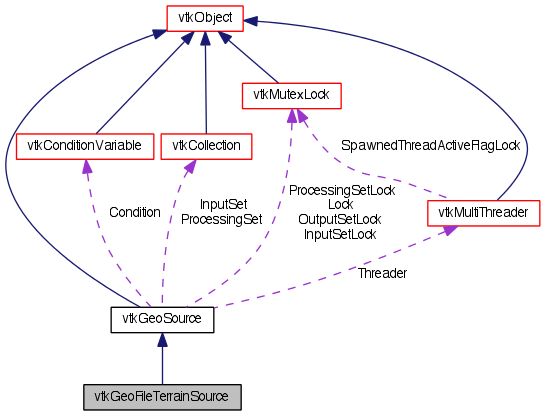

Collaboration diagram for vtkGeoFileTerrainSource:

List of all members.

Public Types
typedef vtkGeoSource	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkGeoFileTerrainSource *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
	vtkGeoFileTerrainSource ()
	~vtkGeoFileTerrainSource ()
virtual bool	FetchRoot (vtkGeoTreeNode *root)
virtual bool	FetchChild (vtkGeoTreeNode *node, int index, vtkGeoTreeNode *child)
virtual void	SetPath (const char *)
virtual char *	GetPath ()
Static Public Member Functions
static vtkGeoFileTerrainSource *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoFileTerrainSource *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
bool	ReadModel (int level, int id, vtkGeoTerrainNode *node)

---

Detailed Description

A source for tiled geometry on disk.

vtkGeoFileTerrainSource reads geometry tiles as .vtp files from a directory that follow a certain naming convention containing the level of the patch and the position within that level. Use vtkGeoTerrain's SaveDatabase method to create a database of files in this format.

Tests:

vtkGeoFileTerrainSource (Tests)

Definition at line 40 of file vtkGeoFileTerrainSource.h.

---

Member Typedef Documentation

typedef vtkGeoSource vtkGeoFileTerrainSource::Superclass

Reimplemented from vtkGeoSource.

Definition at line 44 of file vtkGeoFileTerrainSource.h.

---

Constructor & Destructor Documentation

vtkGeoFileTerrainSource::vtkGeoFileTerrainSource

(

)

vtkGeoFileTerrainSource::~vtkGeoFileTerrainSource

(

)

---

Member Function Documentation

static vtkGeoFileTerrainSource* vtkGeoFileTerrainSource::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

static int vtkGeoFileTerrainSource::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGeoSource.

virtual int vtkGeoFileTerrainSource::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGeoSource.

static vtkGeoFileTerrainSource* vtkGeoFileTerrainSource::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Reimplemented from vtkGeoSource.

virtual vtkObjectBase* vtkGeoFileTerrainSource::NewInstanceInternal

(

)

const [protected, virtual]

Reimplemented from vtkGeoSource.

vtkGeoFileTerrainSource* vtkGeoFileTerrainSource::NewInstance

(

)

const

Reimplemented from vtkGeoSource.

void vtkGeoFileTerrainSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual bool vtkGeoFileTerrainSource::FetchRoot

(

vtkGeoTreeNode *

root

)

[virtual]

Retrieve the root geometry representing the entire globe.

Implements vtkGeoSource.

virtual bool vtkGeoFileTerrainSource::FetchChild	(	vtkGeoTreeNode *	node,
		int	index,
		vtkGeoTreeNode *	child
	)		[virtual]

Retrieve the child's geometry from disk.

Implements vtkGeoSource.

virtual void vtkGeoFileTerrainSource::SetPath

(

const char *

)

[virtual]

The path the tiled geometry database.

virtual char* vtkGeoFileTerrainSource::GetPath

(

)

[virtual]

The path the tiled geometry database.

bool vtkGeoFileTerrainSource::ReadModel	(	int	level,
		int	id,
		vtkGeoTerrainNode *	node
	)		[protected]

---

The documentation for this class was generated from the following file:

• /Users/kitware/Dashboards/MyTests/VTK_BLD_Release_docs/Utilities/Doxygen/dox/Geovis/Core/vtkGeoFileTerrainSource.h
