Superclass for VTK's XML file writers. More...
#include <vtkXMLWriter.h>
Superclass for VTK's XML file writers.
vtkXMLWriter provides methods implementing most of the functionality needed to write VTK XML file formats. Concrete subclasses provide actual writer implementations calling upon this functionality.
Definition at line 53 of file vtkXMLWriter.h.
typedef vtkAlgorithm vtkXMLWriter::Superclass |
Reimplemented from vtkAlgorithm.

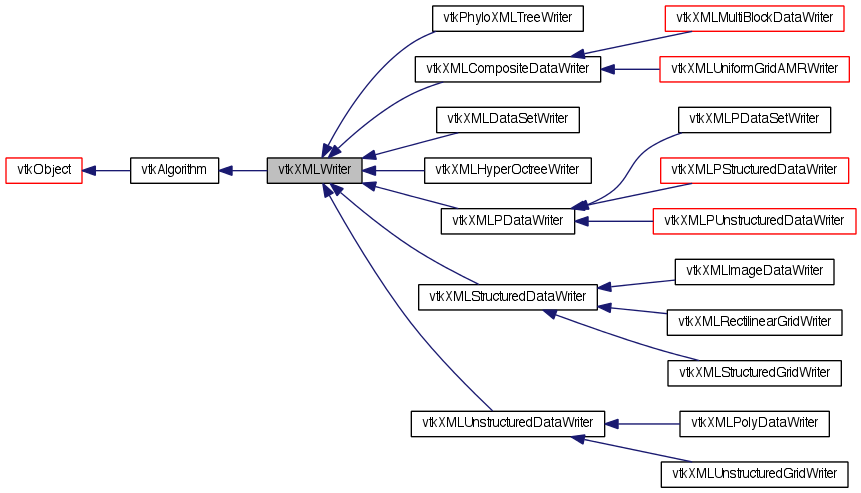

Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPMultiBlockDataWriter, vtkXMLPDataSetWriter, vtkXMLPPolyDataWriter, vtkXMLPUniformGridAMRWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPDataWriter, vtkXMLPStructuredDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLPUnstructuredDataWriter, vtkXMLMultiBlockDataWriter, vtkXMLStructuredDataWriter, vtkXMLPHierarchicalBoxDataWriter, and vtkXMLHierarchicalBoxDataWriter.
Definition at line 56 of file vtkXMLWriter.h.
anonymous enum |
Enumerate big and little endian byte order settings.
Definition at line 62 of file vtkXMLWriter.h.
anonymous enum |
Enumerate the supported data modes. Ascii = Inline ascii data. Binary = Inline binary data (base64 encoded, possibly compressed). Appended = Appended binary data (possibly compressed and/or base64).
Definition at line 71 of file vtkXMLWriter.h.
anonymous enum |
Enumerate the supported vtkIdType bit lengths. Int32 = File stores 32-bit values for vtkIdType. Int64 = File stores 64-bit values for vtkIdType.
Definition at line 79 of file vtkXMLWriter.h.
anonymous enum |
Enumerate the supported binary data header bit lengths. UInt32 = File stores 32-bit binary data header elements. UInt64 = File stores 64-bit binary data header elements.
Definition at line 85 of file vtkXMLWriter.h.
Definition at line 138 of file vtkXMLWriter.h.
vtkXMLWriter::vtkXMLWriter | ( | ) | [protected] |
vtkXMLWriter::~vtkXMLWriter | ( | ) | [protected] |
static int vtkXMLWriter::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPMultiBlockDataWriter, vtkXMLPDataSetWriter, vtkXMLPPolyDataWriter, vtkXMLPUniformGridAMRWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPDataWriter, vtkXMLPStructuredDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLPUnstructuredDataWriter, vtkXMLMultiBlockDataWriter, vtkXMLStructuredDataWriter, vtkXMLPHierarchicalBoxDataWriter, and vtkXMLHierarchicalBoxDataWriter.
virtual int vtkXMLWriter::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPMultiBlockDataWriter, vtkXMLPDataSetWriter, vtkXMLPPolyDataWriter, vtkXMLPUniformGridAMRWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPDataWriter, vtkXMLPStructuredDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLPUnstructuredDataWriter, vtkXMLMultiBlockDataWriter, vtkXMLStructuredDataWriter, vtkXMLPHierarchicalBoxDataWriter, and vtkXMLHierarchicalBoxDataWriter.
static vtkXMLWriter* vtkXMLWriter::SafeDownCast | ( | vtkObjectBase * | o | ) | [static] |
Reimplemented from vtkAlgorithm.
Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPMultiBlockDataWriter, vtkXMLPDataSetWriter, vtkXMLPPolyDataWriter, vtkXMLPUniformGridAMRWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPDataWriter, vtkXMLPStructuredDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLPUnstructuredDataWriter, vtkXMLMultiBlockDataWriter, vtkXMLStructuredDataWriter, vtkXMLPHierarchicalBoxDataWriter, and vtkXMLHierarchicalBoxDataWriter.
virtual vtkObjectBase* vtkXMLWriter::NewInstanceInternal | ( | ) | const [protected, virtual] |
Reimplemented from vtkAlgorithm.
Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPMultiBlockDataWriter, vtkXMLPDataSetWriter, vtkXMLPPolyDataWriter, vtkXMLPUniformGridAMRWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPDataWriter, vtkXMLPStructuredDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLPUnstructuredDataWriter, vtkXMLMultiBlockDataWriter, vtkXMLStructuredDataWriter, vtkXMLPHierarchicalBoxDataWriter, and vtkXMLHierarchicalBoxDataWriter.
vtkXMLWriter* vtkXMLWriter::NewInstance | ( | ) | const |
Reimplemented from vtkAlgorithm.
Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPMultiBlockDataWriter, vtkXMLPDataSetWriter, vtkXMLPPolyDataWriter, vtkXMLPUniformGridAMRWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPDataWriter, vtkXMLPStructuredDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLPUnstructuredDataWriter, vtkXMLMultiBlockDataWriter, vtkXMLStructuredDataWriter, vtkXMLPHierarchicalBoxDataWriter, and vtkXMLHierarchicalBoxDataWriter.
void vtkXMLWriter::PrintSelf | ( | ostream & | os, |
vtkIndent | indent | ||
) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPMultiBlockDataWriter, vtkXMLPDataSetWriter, vtkXMLPPolyDataWriter, vtkXMLPUniformGridAMRWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPDataWriter, vtkXMLPStructuredDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLPUnstructuredDataWriter, vtkXMLMultiBlockDataWriter, vtkXMLStructuredDataWriter, vtkXMLPHierarchicalBoxDataWriter, and vtkXMLHierarchicalBoxDataWriter.
virtual void vtkXMLWriter::SetByteOrder | ( | int | ) | [virtual] |
Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.
virtual int vtkXMLWriter::GetByteOrder | ( | ) | [virtual] |
Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.
Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.
Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.
virtual void vtkXMLWriter::SetHeaderType | ( | int | ) | [virtual] |
Get/Set the binary data header word type. The default is UInt32. Set to UInt64 when storing arrays requiring 64-bit indexing.
virtual int vtkXMLWriter::GetHeaderType | ( | ) | [virtual] |
Get/Set the binary data header word type. The default is UInt32. Set to UInt64 when storing arrays requiring 64-bit indexing.
void vtkXMLWriter::SetHeaderTypeToUInt32 | ( | ) |
Get/Set the binary data header word type. The default is UInt32. Set to UInt64 when storing arrays requiring 64-bit indexing.
void vtkXMLWriter::SetHeaderTypeToUInt64 | ( | ) |
Get/Set the binary data header word type. The default is UInt32. Set to UInt64 when storing arrays requiring 64-bit indexing.
virtual void vtkXMLWriter::SetIdType | ( | int | ) | [virtual] |
Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.
virtual int vtkXMLWriter::GetIdType | ( | ) | [virtual] |
Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.
void vtkXMLWriter::SetIdTypeToInt32 | ( | ) |
Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.
void vtkXMLWriter::SetIdTypeToInt64 | ( | ) |
Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.
virtual void vtkXMLWriter::SetFileName | ( | const char * | ) | [virtual] |
Get/Set the name of the output file.
virtual char* vtkXMLWriter::GetFileName | ( | ) | [virtual] |
Get/Set the name of the output file.
virtual void vtkXMLWriter::SetWriteToOutputString | ( | int | ) | [virtual] |
Enable writing to an OutputString instead of the default, a file.
virtual int vtkXMLWriter::GetWriteToOutputString | ( | ) | [virtual] |
Enable writing to an OutputString instead of the default, a file.
virtual void vtkXMLWriter::WriteToOutputStringOn | ( | ) | [virtual] |
Enable writing to an OutputString instead of the default, a file.
virtual void vtkXMLWriter::WriteToOutputStringOff | ( | ) | [virtual] |
Enable writing to an OutputString instead of the default, a file.
std::string vtkXMLWriter::GetOutputString | ( | ) | [inline] |
Enable writing to an OutputString instead of the default, a file.
Definition at line 127 of file vtkXMLWriter.h.
virtual void vtkXMLWriter::SetCompressor | ( | vtkDataCompressor * | ) | [virtual] |
Get/Set the compressor used to compress binary and appended data before writing to the file. Default is a vtkZLibDataCompressor.
virtual vtkDataCompressor* vtkXMLWriter::GetCompressor | ( | ) | [virtual] |
Get/Set the compressor used to compress binary and appended data before writing to the file. Default is a vtkZLibDataCompressor.
void vtkXMLWriter::SetCompressorType | ( | int | compressorType | ) |
Convenience functions to set the compressor to certain known types.
void vtkXMLWriter::SetCompressorTypeToNone | ( | ) | [inline] |
Convenience functions to set the compressor to certain known types.
Definition at line 148 of file vtkXMLWriter.h.
void vtkXMLWriter::SetCompressorTypeToZLib | ( | ) | [inline] |
Convenience functions to set the compressor to certain known types.
Definition at line 152 of file vtkXMLWriter.h.
virtual void vtkXMLWriter::SetBlockSize | ( | size_t | blockSize | ) | [virtual] |
Get/Set the block size used in compression. When reading, this controls the granularity of how much extra information must be read when only part of the data are requested. The value should be a multiple of the largest scalar data type.
virtual size_t vtkXMLWriter::GetBlockSize | ( | ) | [virtual] |
Get/Set the block size used in compression. When reading, this controls the granularity of how much extra information must be read when only part of the data are requested. The value should be a multiple of the largest scalar data type.
virtual void vtkXMLWriter::SetDataMode | ( | int | ) | [virtual] |
Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.
virtual int vtkXMLWriter::GetDataMode | ( | ) | [virtual] |
Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.
void vtkXMLWriter::SetDataModeToAscii | ( | ) |
Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.
void vtkXMLWriter::SetDataModeToBinary | ( | ) |
Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.
void vtkXMLWriter::SetDataModeToAppended | ( | ) |
Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.
virtual void vtkXMLWriter::SetEncodeAppendedData | ( | int | ) | [virtual] |
Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.
virtual int vtkXMLWriter::GetEncodeAppendedData | ( | ) | [virtual] |
Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.
virtual void vtkXMLWriter::EncodeAppendedDataOn | ( | ) | [virtual] |
Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.
virtual void vtkXMLWriter::EncodeAppendedDataOff | ( | ) | [virtual] |
Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.
void vtkXMLWriter::SetInputData | ( | vtkDataObject * | ) |
Assign a data object as input. Note that this method does not establish a pipeline connection. Use SetInputConnection() to setup a pipeline connection.
void vtkXMLWriter::SetInputData | ( | int | , |
vtkDataObject * | |||
) |
Assign a data object as input. Note that this method does not establish a pipeline connection. Use SetInputConnection() to setup a pipeline connection.
vtkDataObject* vtkXMLWriter::GetInput | ( | int | port | ) |
Assign a data object as input. Note that this method does not establish a pipeline connection. Use SetInputConnection() to setup a pipeline connection.
Reimplemented in vtkPhyloXMLTreeWriter.
vtkDataObject* vtkXMLWriter::GetInput | ( | ) | [inline] |
Assign a data object as input. Note that this method does not establish a pipeline connection. Use SetInputConnection() to setup a pipeline connection.
Reimplemented in vtkXMLPolyDataWriter, vtkXMLDataSetWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkXMLPDataSetWriter, vtkPhyloXMLTreeWriter, and vtkXMLPPolyDataWriter.
Definition at line 196 of file vtkXMLWriter.h.
virtual const char* vtkXMLWriter::GetDefaultFileExtension | ( | ) | [pure virtual] |
Get the default file extension for files written by this writer.
Implemented in vtkXMLDataSetWriter, vtkXMLPDataSetWriter, vtkXMLPolyDataWriter, vtkXMLHyperOctreeWriter, vtkXMLUnstructuredGridWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLPImageDataWriter, vtkXMLImageDataWriter, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridWriter, vtkPhyloXMLTreeWriter, vtkXMLPPolyDataWriter, vtkXMLCompositeDataWriter, vtkXMLUniformGridAMRWriter, vtkXMLMultiBlockDataWriter, and vtkXMLHierarchicalBoxDataWriter.
Invoke the writer. Returns 1 for success, 0 for failure.
virtual int vtkXMLWriter::ProcessRequest | ( | vtkInformation * | request, |
vtkInformationVector ** | inInfo, | ||
vtkInformationVector * | outInfo | ||
) | [virtual] |
Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).
Reimplemented from vtkAlgorithm.
Reimplemented in vtkXMLStructuredDataWriter, vtkXMLCompositeDataWriter, vtkXMLUnstructuredDataWriter, vtkXMLPStructuredDataWriter, and vtkXMLPUnstructuredDataWriter.
virtual void vtkXMLWriter::SetTimeStep | ( | int | ) | [virtual] |
Which TimeStep to write.
virtual int vtkXMLWriter::GetTimeStep | ( | ) | [virtual] |
Which TimeStep to write.
virtual int* vtkXMLWriter::GetTimeStepRange | ( | ) | [virtual] |
Which TimeStepRange to write.
virtual void vtkXMLWriter::GetTimeStepRange | ( | int & | , |
int & | |||
) | [virtual] |
Which TimeStepRange to write.
virtual void vtkXMLWriter::GetTimeStepRange | ( | int | [2] | ) | [virtual] |
Which TimeStepRange to write.
virtual void vtkXMLWriter::SetTimeStepRange | ( | int | , |
int | |||
) | [virtual] |
Which TimeStepRange to write.
void vtkXMLWriter::SetTimeStepRange | ( | int | [2] | ) |
Which TimeStepRange to write.
virtual int vtkXMLWriter::GetNumberOfTimeSteps | ( | ) | [virtual] |
Set the number of time steps
virtual void vtkXMLWriter::SetNumberOfTimeSteps | ( | int | ) | [virtual] |
Set the number of time steps
void vtkXMLWriter::Start | ( | ) |
API to interface an outside the VTK pipeline control
void vtkXMLWriter::Stop | ( | ) |
API to interface an outside the VTK pipeline control
void vtkXMLWriter::WriteNextTime | ( | double | time | ) |
API to interface an outside the VTK pipeline control
virtual int vtkXMLWriter::RequestInformation | ( | vtkInformation * | request, |
vtkInformationVector ** | inputVector, | ||
vtkInformationVector * | outputVector | ||
) | [protected, virtual] |
virtual int vtkXMLWriter::RequestData | ( | vtkInformation * | request, |
vtkInformationVector ** | inputVector, | ||
vtkInformationVector * | outputVector | ||
) | [protected, virtual] |
Reimplemented in vtkXMLCompositeDataWriter.
virtual void vtkXMLWriter::SetDataStream | ( | vtkOutputStream * | ) | [protected, virtual] |
virtual vtkOutputStream* vtkXMLWriter::GetDataStream | ( | ) | [protected, virtual] |
virtual int vtkXMLWriter::WriteInternal | ( | ) | [protected, virtual] |
Reimplemented in vtkXMLPDataWriter, vtkXMLDataSetWriter, vtkXMLPDataSetWriter, and vtkXMLPStructuredDataWriter.
virtual int vtkXMLWriter::WriteData | ( | ) | [inline, protected, virtual] |
Reimplemented in vtkXMLCompositeDataWriter, vtkXMLPDataWriter, vtkPhyloXMLTreeWriter, and vtkXMLHyperOctreeWriter.
Definition at line 323 of file vtkXMLWriter.h.
virtual const char* vtkXMLWriter::GetDataSetName | ( | ) | [protected, pure virtual] |
Implemented in vtkXMLCompositeDataWriter, vtkPhyloXMLTreeWriter, vtkXMLUnstructuredDataWriter, vtkXMLRectilinearGridWriter, vtkXMLUnstructuredGridWriter, vtkXMLDataSetWriter, vtkXMLPolyDataWriter, vtkXMLStructuredGridWriter, vtkXMLImageDataWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridWriter, vtkXMLPDataSetWriter, vtkXMLHyperOctreeWriter, vtkXMLPImageDataWriter, and vtkXMLPPolyDataWriter.
virtual int vtkXMLWriter::GetDataSetMajorVersion | ( | ) | [protected, virtual] |
Reimplemented in vtkXMLCompositeDataWriter, and vtkXMLUniformGridAMRWriter.
virtual int vtkXMLWriter::GetDataSetMinorVersion | ( | ) | [protected, virtual] |
Reimplemented in vtkXMLCompositeDataWriter, and vtkXMLUniformGridAMRWriter.
vtkDataSet* vtkXMLWriter::GetInputAsDataSet | ( | ) | [protected] |
virtual int vtkXMLWriter::StartFile | ( | ) | [protected, virtual] |
Reimplemented in vtkPhyloXMLTreeWriter.
virtual void vtkXMLWriter::WriteFileAttributes | ( | ) | [protected, virtual] |
virtual int vtkXMLWriter::EndFile | ( | ) | [protected, virtual] |
Reimplemented in vtkPhyloXMLTreeWriter.
void vtkXMLWriter::DeleteAFile | ( | ) | [protected] |
void vtkXMLWriter::DeleteAFile | ( | const char * | name | ) | [protected] |
virtual int vtkXMLWriter::WritePrimaryElement | ( | ostream & | os, |
vtkIndent | indent | ||
) | [protected, virtual] |
virtual void vtkXMLWriter::WritePrimaryElementAttributes | ( | ostream & | os, |
vtkIndent | indent | ||
) | [protected, virtual] |
void vtkXMLWriter::StartAppendedData | ( | ) | [protected] |
void vtkXMLWriter::EndAppendedData | ( | ) | [protected] |
vtkTypeInt64 vtkXMLWriter::ReserveAttributeSpace | ( | const char * | attr, |
size_t | length = 20 |
||
) | [protected] |
vtkTypeInt64 vtkXMLWriter::GetAppendedDataOffset | ( | ) | [protected] |
void vtkXMLWriter::WriteAppendedDataOffset | ( | vtkTypeInt64 | streamPos, |
vtkTypeInt64 & | lastoffset, | ||
const char * | attr = 0 |
||
) | [protected] |
void vtkXMLWriter::ForwardAppendedDataOffset | ( | vtkTypeInt64 | streamPos, |
vtkTypeInt64 | offset, | ||
const char * | attr = 0 |
||
) | [protected] |
void vtkXMLWriter::ForwardAppendedDataDouble | ( | vtkTypeInt64 | streamPos, |
double | value, | ||
const char * | attr | ||
) | [protected] |
int vtkXMLWriter::WriteScalarAttribute | ( | const char * | name, |
int | data | ||
) | [protected] |
int vtkXMLWriter::WriteScalarAttribute | ( | const char * | name, |
float | data | ||
) | [protected] |
int vtkXMLWriter::WriteScalarAttribute | ( | const char * | name, |
double | data | ||
) | [protected] |
int vtkXMLWriter::WriteVectorAttribute | ( | const char * | name, |
int | length, | ||
int * | data | ||
) | [protected] |
int vtkXMLWriter::WriteVectorAttribute | ( | const char * | name, |
int | length, | ||
float * | data | ||
) | [protected] |
int vtkXMLWriter::WriteVectorAttribute | ( | const char * | name, |
int | length, | ||
double * | data | ||
) | [protected] |
int vtkXMLWriter::WriteDataModeAttribute | ( | const char * | name | ) | [protected] |
int vtkXMLWriter::WriteWordTypeAttribute | ( | const char * | name, |
int | dataType | ||
) | [protected] |
int vtkXMLWriter::WriteStringAttribute | ( | const char * | name, |
const char * | value | ||
) | [protected] |
void vtkXMLWriter::WriteArrayHeader | ( | vtkAbstractArray * | a, |
vtkIndent | indent, | ||
const char * | alternateName, | ||
int | writeNumTuples, | ||
int | timestep | ||
) | [protected] |
void vtkXMLWriter::WriteArrayFooter | ( | ostream & | os, |
vtkIndent | indent, | ||
vtkAbstractArray * | a, | ||
int | shortFormat | ||
) | [protected] |
void vtkXMLWriter::WriteArrayInline | ( | vtkAbstractArray * | a, |
vtkIndent | indent, | ||
const char * | alternateName = 0 , |
||
int | writeNumTuples = 0 |
||
) | [protected] |
void vtkXMLWriter::WriteInlineData | ( | vtkAbstractArray * | a, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WriteArrayAppended | ( | vtkAbstractArray * | a, |
vtkIndent | indent, | ||
OffsetsManager & | offs, | ||
const char * | alternateName = 0 , |
||
int | writeNumTuples = 0 , |
||
int | timestep = 0 |
||
) | [protected] |
int vtkXMLWriter::WriteAsciiData | ( | vtkAbstractArray * | a, |
vtkIndent | indent | ||
) | [protected] |
int vtkXMLWriter::WriteBinaryData | ( | vtkAbstractArray * | a | ) | [protected] |
int vtkXMLWriter::WriteBinaryDataInternal | ( | vtkAbstractArray * | a | ) | [protected] |
void vtkXMLWriter::WriteArrayAppendedData | ( | vtkAbstractArray * | a, |
vtkTypeInt64 | pos, | ||
vtkTypeInt64 & | lastoffset | ||
) | [protected] |
void vtkXMLWriter::WriteFieldData | ( | vtkIndent | indent | ) | [protected] |
void vtkXMLWriter::WriteFieldDataInline | ( | vtkFieldData * | fd, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WritePointDataInline | ( | vtkPointData * | pd, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WriteCellDataInline | ( | vtkCellData * | cd, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WriteFieldDataAppended | ( | vtkFieldData * | fd, |
vtkIndent | indent, | ||
OffsetsManagerGroup * | fdManager | ||
) | [protected] |
void vtkXMLWriter::WriteFieldDataAppendedData | ( | vtkFieldData * | fd, |
int | timestep, | ||
OffsetsManagerGroup * | fdManager | ||
) | [protected] |
void vtkXMLWriter::WritePointDataAppended | ( | vtkPointData * | pd, |
vtkIndent | indent, | ||
OffsetsManagerGroup * | pdManager | ||
) | [protected] |
void vtkXMLWriter::WritePointDataAppendedData | ( | vtkPointData * | pd, |
int | timestep, | ||
OffsetsManagerGroup * | pdManager | ||
) | [protected] |
void vtkXMLWriter::WriteCellDataAppended | ( | vtkCellData * | cd, |
vtkIndent | indent, | ||
OffsetsManagerGroup * | cdManager | ||
) | [protected] |
void vtkXMLWriter::WriteCellDataAppendedData | ( | vtkCellData * | cd, |
int | timestep, | ||
OffsetsManagerGroup * | cdManager | ||
) | [protected] |
void vtkXMLWriter::WriteAttributeIndices | ( | vtkDataSetAttributes * | dsa, |
char ** | names | ||
) | [protected] |
void vtkXMLWriter::WritePointsAppended | ( | vtkPoints * | points, |
vtkIndent | indent, | ||
OffsetsManager * | manager | ||
) | [protected] |
void vtkXMLWriter::WritePointsAppendedData | ( | vtkPoints * | points, |
int | timestep, | ||
OffsetsManager * | pdManager | ||
) | [protected] |
void vtkXMLWriter::WritePointsInline | ( | vtkPoints * | points, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WriteCoordinatesInline | ( | vtkDataArray * | xc, |
vtkDataArray * | yc, | ||
vtkDataArray * | zc, | ||
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WriteCoordinatesAppended | ( | vtkDataArray * | xc, |
vtkDataArray * | yc, | ||
vtkDataArray * | zc, | ||
vtkIndent | indent, | ||
OffsetsManagerGroup * | coordManager | ||
) | [protected] |
void vtkXMLWriter::WriteCoordinatesAppendedData | ( | vtkDataArray * | xc, |
vtkDataArray * | yc, | ||
vtkDataArray * | zc, | ||
int | timestep, | ||
OffsetsManagerGroup * | coordManager | ||
) | [protected] |
void vtkXMLWriter::WritePPointData | ( | vtkPointData * | pd, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WritePCellData | ( | vtkCellData * | cd, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WritePPoints | ( | vtkPoints * | points, |
vtkIndent | indent | ||
) | [protected] |
void vtkXMLWriter::WritePArray | ( | vtkAbstractArray * | a, |
vtkIndent | indent, | ||
const char * | alternateName = 0 |
||
) | [protected] |
void vtkXMLWriter::WritePCoordinates | ( | vtkDataArray * | xc, |
vtkDataArray * | yc, | ||
vtkDataArray * | zc, | ||
vtkIndent | indent | ||
) | [protected] |
int vtkXMLWriter::WriteBinaryDataBlock | ( | unsigned char * | in_data, |
size_t | numWords, | ||
int | wordType | ||
) | [protected] |
void vtkXMLWriter::PerformByteSwap | ( | void * | data, |
size_t | numWords, | ||
size_t | wordSize | ||
) | [protected] |
int vtkXMLWriter::CreateCompressionHeader | ( | size_t | size | ) | [protected] |
int vtkXMLWriter::WriteCompressionBlock | ( | unsigned char * | data, |
size_t | size | ||
) | [protected] |
int vtkXMLWriter::WriteCompressionHeader | ( | ) | [protected] |
size_t vtkXMLWriter::GetWordTypeSize | ( | int | dataType | ) | [protected] |
const char* vtkXMLWriter::GetWordTypeName | ( | int | dataType | ) | [protected] |
size_t vtkXMLWriter::GetOutputWordTypeSize | ( | int | dataType | ) | [protected] |
char** vtkXMLWriter::CreateStringArray | ( | int | numStrings | ) | [protected] |
void vtkXMLWriter::DestroyStringArray | ( | int | numStrings, |
char ** | strings | ||
) | [protected] |
virtual void vtkXMLWriter::GetProgressRange | ( | float | range[2] | ) | [protected, virtual] |
virtual void vtkXMLWriter::SetProgressRange | ( | const float | range[2], |
int | curStep, | ||
int | numSteps | ||
) | [protected, virtual] |
virtual void vtkXMLWriter::SetProgressRange | ( | const float | range[2], |
int | curStep, | ||
const float * | fractions | ||
) | [protected, virtual] |
virtual void vtkXMLWriter::SetProgressPartial | ( | float | fraction | ) | [protected, virtual] |
virtual void vtkXMLWriter::UpdateProgressDiscrete | ( | float | progress | ) | [protected, virtual] |
int vtkXMLWriter::OpenStream | ( | ) | [protected] |
int vtkXMLWriter::OpenFile | ( | ) | [protected] |
int vtkXMLWriter::OpenString | ( | ) | [protected] |
void vtkXMLWriter::CloseStream | ( | ) | [protected] |
void vtkXMLWriter::CloseFile | ( | ) | [protected] |
void vtkXMLWriter::CloseString | ( | ) | [protected] |
friend class vtkXMLWriterHelper [friend] |
Definition at line 481 of file vtkXMLWriter.h.
char* vtkXMLWriter::FileName [protected] |
Definition at line 248 of file vtkXMLWriter.h.
ostream* vtkXMLWriter::Stream [protected] |
Definition at line 251 of file vtkXMLWriter.h.
int vtkXMLWriter::WriteToOutputString [protected] |
Definition at line 255 of file vtkXMLWriter.h.
std::string vtkXMLWriter::OutputString [protected] |
Definition at line 258 of file vtkXMLWriter.h.
int vtkXMLWriter::ByteOrder [protected] |
Definition at line 261 of file vtkXMLWriter.h.
int vtkXMLWriter::HeaderType [protected] |
Definition at line 264 of file vtkXMLWriter.h.
int vtkXMLWriter::IdType [protected] |
Definition at line 267 of file vtkXMLWriter.h.
int vtkXMLWriter::DataMode [protected] |
Definition at line 271 of file vtkXMLWriter.h.
int vtkXMLWriter::EncodeAppendedData [protected] |
Definition at line 274 of file vtkXMLWriter.h.
vtkTypeInt64 vtkXMLWriter::AppendedDataPosition [protected] |
Definition at line 277 of file vtkXMLWriter.h.
OffsetsManagerGroup* vtkXMLWriter::FieldDataOM [protected] |
Definition at line 280 of file vtkXMLWriter.h.
Int32IdType* vtkXMLWriter::Int32IdTypeBuffer [protected] |
Definition at line 298 of file vtkXMLWriter.h.
unsigned char* vtkXMLWriter::ByteSwapBuffer [protected] |
Definition at line 301 of file vtkXMLWriter.h.
vtkDataCompressor* vtkXMLWriter::Compressor [protected] |
Definition at line 304 of file vtkXMLWriter.h.
size_t vtkXMLWriter::BlockSize [protected] |
Definition at line 305 of file vtkXMLWriter.h.
size_t vtkXMLWriter::CompressionBlockNumber [protected] |
Definition at line 306 of file vtkXMLWriter.h.
vtkXMLDataHeader* vtkXMLWriter::CompressionHeader [protected] |
Definition at line 307 of file vtkXMLWriter.h.
vtkTypeInt64 vtkXMLWriter::CompressionHeaderPosition [protected] |
Definition at line 308 of file vtkXMLWriter.h.
vtkOutputStream* vtkXMLWriter::DataStream [protected] |
Definition at line 312 of file vtkXMLWriter.h.
float vtkXMLWriter::ProgressRange[2] [protected] |
Definition at line 456 of file vtkXMLWriter.h.
ofstream* vtkXMLWriter::OutFile [protected] |
Definition at line 458 of file vtkXMLWriter.h.
vtksys_ios::ostringstream* vtkXMLWriter::OutStringStream [protected] |
Definition at line 459 of file vtkXMLWriter.h.
int vtkXMLWriter::TimeStep [protected] |
Definition at line 469 of file vtkXMLWriter.h.
int vtkXMLWriter::CurrentTimeIndex [protected] |
Definition at line 470 of file vtkXMLWriter.h.
int vtkXMLWriter::NumberOfTimeSteps [protected] |
Definition at line 471 of file vtkXMLWriter.h.
int vtkXMLWriter::TimeStepRange[2] [protected] |
Definition at line 473 of file vtkXMLWriter.h.
int vtkXMLWriter::UserContinueExecuting [protected] |
Definition at line 477 of file vtkXMLWriter.h.
vtkTypeInt64* vtkXMLWriter::NumberOfTimeValues [protected] |
Definition at line 479 of file vtkXMLWriter.h.
