vtkActor2DCollection Class Reference

#include <vtkActor2DCollection.h>

Inheritance diagram for vtkActor2DCollection:

Inheritance graph
[legend]

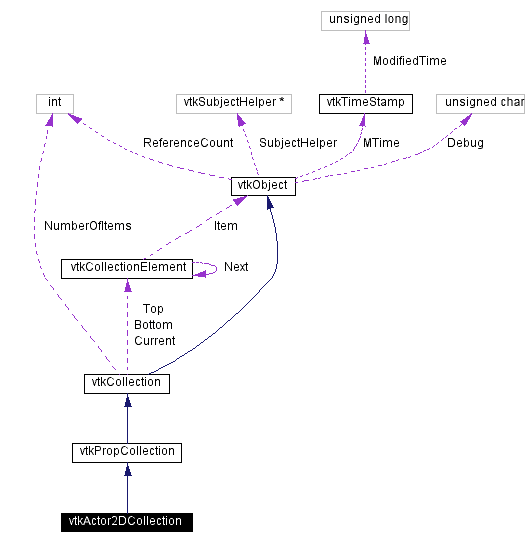

Collaboration diagram for vtkActor2DCollection:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void Sort ()
void AddItem (vtkActor2D *a)
void RenderOverlay (vtkViewport *viewport)
int IsItemPresent (vtkActor2D *a)
vtkActor2DGetNextActor2D ()
vtkActor2DGetLastActor2D ()
vtkActor2DGetNextItem ()
vtkActor2DGetLastItem ()

Static Public Methods

vtkActor2DCollection * New ()
int IsTypeOf (const char *type)
vtkActor2DCollection * SafeDownCast (vtkObject *o)

Protected Methods

 vtkActor2DCollection ()
 ~vtkActor2DCollection ()
virtual void DeleteElement (vtkCollectionElement *)

Detailed Description

Date:
2001/10/11 13:35:59
Revision:
1.25
Thanks:
Thanks to Matt Turek who developed this class.
vtkActor2DCollection is a subclass of vtkCollection. vtkActor2DCollection maintains a collection of vtkActor2D objects that is sorted by layer number, with lower layer numbers at the start of the list. This allows the vtkActor2D objects to be rendered in the correct order.

See also:
vtkActor2D vtkCollection

Definition at line 62 of file vtkActor2DCollection.h.


Constructor & Destructor Documentation

vtkActor2DCollection::vtkActor2DCollection   [inline, protected]


Definition at line 100 of file vtkActor2DCollection.h.

vtkActor2DCollection::~vtkActor2DCollection   [protected]



Member Function Documentation

vtkActor2DCollection* vtkActor2DCollection::New   [static]


Desctructor for the vtkActor2DCollection class. This removes all objects from the collection.

Reimplemented from vtkPropCollection.

virtual const char* vtkActor2DCollection::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPropCollection.

int vtkActor2DCollection::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPropCollection.

virtual int vtkActor2DCollection::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPropCollection.

vtkActor2DCollection* vtkActor2DCollection::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPropCollection.

void vtkActor2DCollection::Sort


Sorts the vtkActor2DCollection by layer number. Smaller layer numbers are first. Layer numbers can be any integer value.

void vtkActor2DCollection::AddItem vtkActor2D   a


Add an actor to the list. The new actor is inserted in the list according to it's layer number.

int vtkActor2DCollection::IsItemPresent vtkActor2D   a [inline]


Standard Collection methods

Definition at line 116 of file vtkActor2DCollection.h.

vtkActor2D * vtkActor2DCollection::GetNextActor2D   [inline]


Standard Collection methods

Definition at line 121 of file vtkActor2DCollection.h.

Referenced by GetNextItem().

vtkActor2D * vtkActor2DCollection::GetLastActor2D   [inline]


Standard Collection methods

Definition at line 126 of file vtkActor2DCollection.h.

Referenced by GetLastItem().

vtkActor2D * vtkActor2DCollection::GetNextItem   [inline]


Access routines that are provided for compatibility with previous version of VTK. Please use the GetNextActor2D(), GetLastActor2D() variants where possible.

Definition at line 138 of file vtkActor2DCollection.h.

vtkActor2D * vtkActor2DCollection::GetLastItem   [inline]


Access routines that are provided for compatibility with previous version of VTK. Please use the GetNextActor2D(), GetLastActor2D() variants where possible.

Definition at line 143 of file vtkActor2DCollection.h.

void vtkActor2DCollection::RenderOverlay vtkViewport   viewport


Sort and then render the collection of 2D actors.

virtual void vtkActor2DCollection::DeleteElement vtkCollectionElement   [protected, virtual]


Reimplemented from vtkCollection.


The documentation for this class was generated from the following file:
