vtkAttributeDataToFieldDataFilter Class Reference

map attribute data to field data. More...

#include <vtkAttributeDataToFieldDataFilter.h>

Inheritance diagram for vtkAttributeDataToFieldDataFilter:

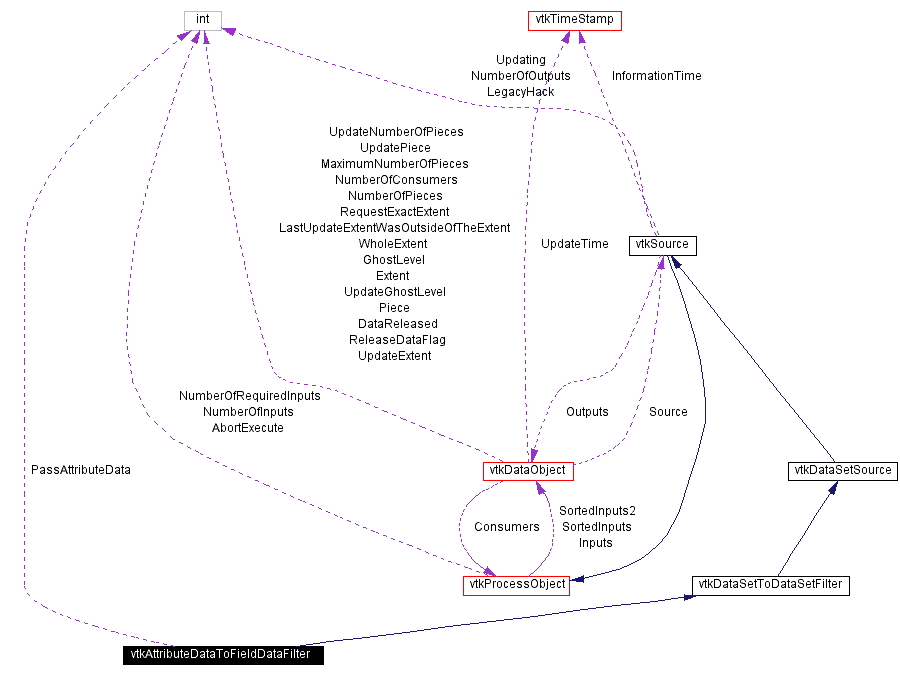

[legend]Collaboration diagram for vtkAttributeDataToFieldDataFilter:

[legend]List of all members.

Public Methods
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	SetPassAttributeData (int)
virtual int	GetPassAttributeData ()
virtual void	PassAttributeDataOn ()
virtual void	PassAttributeDataOff ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkAttributeDataToFieldDataFilter *	SafeDownCast (vtkObject *o)
vtkAttributeDataToFieldDataFilter *	New ()
Protected Methods
	vtkAttributeDataToFieldDataFilter ()
	~vtkAttributeDataToFieldDataFilter ()
void	Execute ()
Protected Attributes
int	PassAttributeData

---

Detailed Description

map attribute data to field data.

Date:

2001/10/11 13:36:43

Revision:

1.14

vtkAttributeDataToFieldDataFilter is a class that maps attribute data into field data. Since this filter is a subclass of vtkDataSetToDataSetFilter, the output dataset (whose structure is the same as the input dataset), will contain the field data that is generated. The filter will convert point and cell attribute data to field data and assign it as point and cell field data, replacing any point or field data that was there previously. By default, the original non-field point and cell attribute data will be passed to the output of the filter, although you can shut this behavior down.

Warning:

Reference counting the underlying data arrays is used to create the field data. Therefore, no extra memory is utilized.

Warning:

The original field data (if any) associated with the point and cell attribute data is placed into the generated fields along with the scalars, vectors, etc.

See also:

vtkFieldData vtkDataObject vtkDataSet vtkFieldDataToAttributeDataFilter

Definition at line 74 of file vtkAttributeDataToFieldDataFilter.h.

---

Constructor & Destructor Documentation

vtkAttributeDataToFieldDataFilter::vtkAttributeDataToFieldDataFilter (    )  [protected]

vtkAttributeDataToFieldDataFilter::~vtkAttributeDataToFieldDataFilter (    )  [inline, protected]

Definition at line 93 of file vtkAttributeDataToFieldDataFilter.h.

---

Member Function Documentation

void vtkAttributeDataToFieldDataFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual const char* vtkAttributeDataToFieldDataFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

int vtkAttributeDataToFieldDataFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkAttributeDataToFieldDataFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkAttributeDataToFieldDataFilter* vtkAttributeDataToFieldDataFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkAttributeDataToFieldDataFilter* vtkAttributeDataToFieldDataFilter::New (    )  [static]

Construct this object. Reimplemented from vtkDataSetSource.

virtual void vtkAttributeDataToFieldDataFilter::SetPassAttributeData (  int    )  [virtual]

Turn on/off the passing of point and cell non-field attribute data to the output of the filter.

virtual int vtkAttributeDataToFieldDataFilter::GetPassAttributeData (    )  [virtual]

Turn on/off the passing of point and cell non-field attribute data to the output of the filter.

virtual void vtkAttributeDataToFieldDataFilter::PassAttributeDataOn (    )  [virtual]

Turn on/off the passing of point and cell non-field attribute data to the output of the filter.

virtual void vtkAttributeDataToFieldDataFilter::PassAttributeDataOff (    )  [virtual]

Turn on/off the passing of point and cell non-field attribute data to the output of the filter.

void vtkAttributeDataToFieldDataFilter::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

---

Member Data Documentation

int vtkAttributeDataToFieldDataFilter::PassAttributeData [protected]

Definition at line 97 of file vtkAttributeDataToFieldDataFilter.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkAttributeDataToFieldDataFilter.h

---
