vtkFieldDataToAttributeDataFilter Class Reference

map field data to dataset attribute data. More...

#include <vtkFieldDataToAttributeDataFilter.h>

Inheritance diagram for vtkFieldDataToAttributeDataFilter:

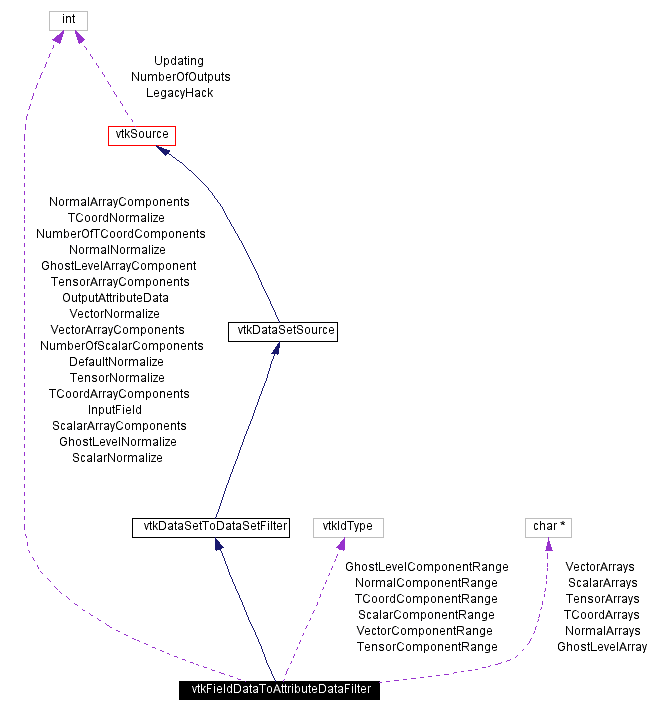

[legend]Collaboration diagram for vtkFieldDataToAttributeDataFilter:

[legend]List of all members.

Public Methods
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	ComputeInputUpdateExtents (vtkDataObject *output)
virtual void	SetInputField (int)
virtual int	GetInputField ()
void	SetInputFieldToDataObjectField ()
void	SetInputFieldToPointDataField ()
void	SetInputFieldToCellDataField ()
virtual void	SetOutputAttributeData (int)
virtual int	GetOutputAttributeData ()
void	SetOutputAttributeDataToCellData ()
void	SetOutputAttributeDataToPointData ()
void	SetScalarComponent (int comp, const char *arrayName, int arrayComp, int min, int max, int normalize)
void	SetScalarComponent (int comp, const char *arrayName, int arrayComp)
const char *	GetScalarComponentArrayName (int comp)
int	GetScalarComponentArrayComponent (int comp)
int	GetScalarComponentMinRange (int comp)
int	GetScalarComponentMaxRange (int comp)
int	GetScalarComponentNormalizeFlag (int comp)
void	SetVectorComponent (int comp, const char *arrayName, int arrayComp, int min, int max, int normalize)
void	SetVectorComponent (int comp, const char *arrayName, int arrayComp)
const char *	GetVectorComponentArrayName (int comp)
int	GetVectorComponentArrayComponent (int comp)
int	GetVectorComponentMinRange (int comp)
int	GetVectorComponentMaxRange (int comp)
int	GetVectorComponentNormalizeFlag (int comp)
void	SetNormalComponent (int comp, const char *arrayName, int arrayComp, int min, int max, int normalize)
void	SetNormalComponent (int comp, const char *arrayName, int arrayComp)
const char *	GetNormalComponentArrayName (int comp)
int	GetNormalComponentArrayComponent (int comp)
int	GetNormalComponentMinRange (int comp)
int	GetNormalComponentMaxRange (int comp)
int	GetNormalComponentNormalizeFlag (int comp)
void	SetTensorComponent (int comp, const char *arrayName, int arrayComp, int min, int max, int normalize)
void	SetTensorComponent (int comp, const char *arrayName, int arrayComp)
const char *	GetTensorComponentArrayName (int comp)
int	GetTensorComponentArrayComponent (int comp)
int	GetTensorComponentMinRange (int comp)
int	GetTensorComponentMaxRange (int comp)
int	GetTensorComponentNormalizeFlag (int comp)
void	SetTCoordComponent (int comp, const char *arrayName, int arrayComp, int min, int max, int normalize)
void	SetTCoordComponent (int comp, const char *arrayName, int arrayComp)
const char *	GetTCoordComponentArrayName (int comp)
int	GetTCoordComponentArrayComponent (int comp)
int	GetTCoordComponentMinRange (int comp)
int	GetTCoordComponentMaxRange (int comp)
int	GetTCoordComponentNormalizeFlag (int comp)
virtual void	SetDefaultNormalize (int)
virtual int	GetDefaultNormalize ()
virtual void	DefaultNormalizeOn ()
virtual void	DefaultNormalizeOff ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkFieldDataToAttributeDataFilter *	SafeDownCast (vtkObject *o)
vtkFieldDataToAttributeDataFilter *	New ()
int	GetComponentsType (int numComp, vtkDataArray **arrays)
vtkDataArray *	GetFieldArray (vtkFieldData *fd, char *name, int comp)
void	SetArrayName (vtkObject *self, char *&name, const char *newName)
int	UpdateComponentRange (vtkDataArray *da, vtkIdType compRange[2])
int	ConstructArray (vtkDataArray *da, int comp, vtkDataArray *frray, int fieldComp, vtkIdType min, vtkIdType max, int normalize)
Protected Methods
	vtkFieldDataToAttributeDataFilter ()
	~vtkFieldDataToAttributeDataFilter ()
void	Execute ()
void	ConstructScalars (int num, vtkFieldData *fd, vtkDataSetAttributes *attr, vtkIdType componentRange[4][2], char *arrays[4], int arrayComponents[4], int normalize[4], int numComp)
void	ConstructVectors (int num, vtkFieldData *fd, vtkDataSetAttributes *attr, vtkIdType componentRange[3][2], char *arrays[3], int arrayComponents[3], int normalize[3])
void	ConstructGhostLevels (int num, vtkFieldData *fd, vtkDataSetAttributes *attr, vtkIdType componentRange[2], char *array, int arrayComponent, int normalize)
void	ConstructNormals (int num, vtkFieldData *fd, vtkDataSetAttributes *attr, vtkIdType componentRange[3][2], char *arrays[3], int arrayComponents[3], int normalize[3])
void	ConstructTCoords (int num, vtkFieldData *fd, vtkDataSetAttributes *attr, vtkIdType componentRange[3][2], char *arrays[3], int arrayComponents[3], int normalize[3], int numComp)
void	ConstructTensors (int num, vtkFieldData *fd, vtkDataSetAttributes *attr, vtkIdType componentRange[9][2], char *arrays[9], int arrayComponents[9], int normalize[9])
void	ConstructFieldData (int num, vtkDataSetAttributes *attr)
Protected Attributes
int	InputField
int	OutputAttributeData
int	NumberOfScalarComponents
char *	ScalarArrays [4]
int	ScalarArrayComponents [4]
vtkIdType	ScalarComponentRange [4][2]
int	ScalarNormalize [4]
char *	VectorArrays [3]
int	VectorArrayComponents [3]
vtkIdType	VectorComponentRange [3][2]
int	VectorNormalize [3]
char *	GhostLevelArray
int	GhostLevelArrayComponent
vtkIdType	GhostLevelComponentRange [2]
int	GhostLevelNormalize
char *	NormalArrays [3]
int	NormalArrayComponents [3]
vtkIdType	NormalComponentRange [3][2]
int	NormalNormalize [3]
char *	TensorArrays [9]
int	TensorArrayComponents [9]
vtkIdType	TensorComponentRange [9][2]
int	TensorNormalize [9]
int	NumberOfTCoordComponents
char *	TCoordArrays [3]
int	TCoordArrayComponents [3]
vtkIdType	TCoordComponentRange [3][2]
int	TCoordNormalize [3]
int	DefaultNormalize

---

Detailed Description

map field data to dataset attribute data.

Date:

2001/11/30 12:49:49

Revision:

1.26

vtkFieldDataToAttributeDataFilter is a class that maps field data into dataset attributes. The input to this filter is any type of dataset and the output is the same dataset (geometry/topology) with new attribute data (attribute data is passed through if not replaced during filter execution).

To use this filter you must specify which field data from the input dataset to use. There are three possibilities: the cell field data, the point field data, or the field data associated with the data object superclass. Then you specify which attribute data to create: either cell attribute data or point attribute data. Finally, you must define how to construct the various attribute data types (e.g., scalars, vectors, normals, etc.) from the arrays and the components of the arrays from the field data. This is done by associating components in the input field with components making up the attribute data. For example, you would specify a scalar with three components (RGB) by assigning components from the field for the R, then G, then B values of the scalars. You may also have to specify component ranges (for each R-G-B) to make sure that the number of R, G, and B values is the same. Also, you may want to normalize the components which helps distribute the data uniformly.

This filter is often used in conjunction with vtkDataObjectToDataSetFilter. vtkDataObjectToDataSetFilter filter generates dataset topology and geometry and passes its input field data along to its output. Then this filter is used to generate the attribute data to go along with the dataset.

Warning:

Make sure that the data you extract is consistent. That is, if you have N points, extract N point attributes (scalars, vectors, etc.).

See also:

vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray

Tests:

vtkFieldDataToAttributeDataFilter (Tests)

Definition at line 97 of file vtkFieldDataToAttributeDataFilter.h.

---

Constructor & Destructor Documentation

vtkFieldDataToAttributeDataFilter::vtkFieldDataToAttributeDataFilter (    )  [protected]

vtkFieldDataToAttributeDataFilter::~vtkFieldDataToAttributeDataFilter (    )  [protected]

---

Member Function Documentation

void vtkFieldDataToAttributeDataFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual const char* vtkFieldDataToAttributeDataFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

int vtkFieldDataToAttributeDataFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkFieldDataToAttributeDataFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkFieldDataToAttributeDataFilter* vtkFieldDataToAttributeDataFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkFieldDataToAttributeDataFilter* vtkFieldDataToAttributeDataFilter::New (    )  [static]

Construct object with input field set to the data object field, and the output attribute data set to generate point data. Reimplemented from vtkDataSetSource.

virtual void vtkFieldDataToAttributeDataFilter::SetInputField (  int    )  [virtual]

Specify which field data to use to generate the output attribute data. There are three choices: the field data associated with the vtkDataObject superclass; the point field attribute data; and the cell field attribute data.

virtual int vtkFieldDataToAttributeDataFilter::GetInputField (    )  [virtual]

Specify which field data to use to generate the output attribute data. There are three choices: the field data associated with the vtkDataObject superclass; the point field attribute data; and the cell field attribute data.

void vtkFieldDataToAttributeDataFilter::SetInputFieldToDataObjectField (    )  [inline]

Specify which field data to use to generate the output attribute data. There are three choices: the field data associated with the vtkDataObject superclass; the point field attribute data; and the cell field attribute data. Definition at line 114 of file vtkFieldDataToAttributeDataFilter.h.

void vtkFieldDataToAttributeDataFilter::SetInputFieldToPointDataField (    )  [inline]

Specify which field data to use to generate the output attribute data. There are three choices: the field data associated with the vtkDataObject superclass; the point field attribute data; and the cell field attribute data. Definition at line 116 of file vtkFieldDataToAttributeDataFilter.h.

void vtkFieldDataToAttributeDataFilter::SetInputFieldToCellDataField (    )  [inline]

Specify which field data to use to generate the output attribute data. There are three choices: the field data associated with the vtkDataObject superclass; the point field attribute data; and the cell field attribute data. Definition at line 118 of file vtkFieldDataToAttributeDataFilter.h.

virtual void vtkFieldDataToAttributeDataFilter::SetOutputAttributeData (  int    )  [virtual]

Specify which attribute data to output: point or cell data attributes.

virtual int vtkFieldDataToAttributeDataFilter::GetOutputAttributeData (    )  [virtual]

Specify which attribute data to output: point or cell data attributes.

void vtkFieldDataToAttributeDataFilter::SetOutputAttributeDataToCellData (    )  [inline]

Specify which attribute data to output: point or cell data attributes. Definition at line 127 of file vtkFieldDataToAttributeDataFilter.h.

void vtkFieldDataToAttributeDataFilter::SetOutputAttributeDataToPointData (    )  [inline]

Specify which attribute data to output: point or cell data attributes. Definition at line 129 of file vtkFieldDataToAttributeDataFilter.h.

void vtkFieldDataToAttributeDataFilter::SetScalarComponent (  int    comp, const char *    arrayName, int    arrayComp, int    min, int    max, int    normalize )

Define the component(s) of the field to be used for the scalar components. Note that the parameter comp must lie between (0,4). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetScalarComponent (  int    comp, const char *    arrayName, int    arrayComp )  [inline]

Define the component(s) of the field to be used for the scalar components. Note that the parameter comp must lie between (0,4). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. Definition at line 141 of file vtkFieldDataToAttributeDataFilter.h.

const char* vtkFieldDataToAttributeDataFilter::GetScalarComponentArrayName (  int    comp )

Define the component(s) of the field to be used for the scalar components. Note that the parameter comp must lie between (0,4). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetScalarComponentArrayComponent (  int    comp )

Define the component(s) of the field to be used for the scalar components. Note that the parameter comp must lie between (0,4). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetScalarComponentMinRange (  int    comp )

Define the component(s) of the field to be used for the scalar components. Note that the parameter comp must lie between (0,4). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetScalarComponentMaxRange (  int    comp )

Define the component(s) of the field to be used for the scalar components. Note that the parameter comp must lie between (0,4). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetScalarComponentNormalizeFlag (  int    comp )

Define the component(s) of the field to be used for the scalar components. Note that the parameter comp must lie between (0,4). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetVectorComponent (  int    comp, const char *    arrayName, int    arrayComp, int    min, int    max, int    normalize )

Define the component(s) of the field to be used for the vector components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetVectorComponent (  int    comp, const char *    arrayName, int    arrayComp )  [inline]

Define the component(s) of the field to be used for the vector components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. Definition at line 158 of file vtkFieldDataToAttributeDataFilter.h.

const char* vtkFieldDataToAttributeDataFilter::GetVectorComponentArrayName (  int    comp )

Define the component(s) of the field to be used for the vector components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetVectorComponentArrayComponent (  int    comp )

Define the component(s) of the field to be used for the vector components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetVectorComponentMinRange (  int    comp )

Define the component(s) of the field to be used for the vector components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetVectorComponentMaxRange (  int    comp )

Define the component(s) of the field to be used for the vector components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetVectorComponentNormalizeFlag (  int    comp )

Define the component(s) of the field to be used for the vector components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetNormalComponent (  int    comp, const char *    arrayName, int    arrayComp, int    min, int    max, int    normalize )

Define the component(s) of the field to be used for the normal components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetNormalComponent (  int    comp, const char *    arrayName, int    arrayComp )  [inline]

Define the component(s) of the field to be used for the normal components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. Definition at line 175 of file vtkFieldDataToAttributeDataFilter.h.

const char* vtkFieldDataToAttributeDataFilter::GetNormalComponentArrayName (  int    comp )

Define the component(s) of the field to be used for the normal components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetNormalComponentArrayComponent (  int    comp )

Define the component(s) of the field to be used for the normal components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetNormalComponentMinRange (  int    comp )

Define the component(s) of the field to be used for the normal components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetNormalComponentMaxRange (  int    comp )

Define the component(s) of the field to be used for the normal components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetNormalComponentNormalizeFlag (  int    comp )

Define the component(s) of the field to be used for the normal components. Note that the parameter comp must lie between (0,3). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetTensorComponent (  int    comp, const char *    arrayName, int    arrayComp, int    min, int    max, int    normalize )

Define the components of the field to be used for the tensor components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetTensorComponent (  int    comp, const char *    arrayName, int    arrayComp )  [inline]

Define the components of the field to be used for the tensor components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. Definition at line 192 of file vtkFieldDataToAttributeDataFilter.h.

const char* vtkFieldDataToAttributeDataFilter::GetTensorComponentArrayName (  int    comp )

Define the components of the field to be used for the tensor components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTensorComponentArrayComponent (  int    comp )

Define the components of the field to be used for the tensor components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTensorComponentMinRange (  int    comp )

Define the components of the field to be used for the tensor components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTensorComponentMaxRange (  int    comp )

Define the components of the field to be used for the tensor components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTensorComponentNormalizeFlag (  int    comp )

Define the components of the field to be used for the tensor components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetTCoordComponent (  int    comp, const char *    arrayName, int    arrayComp, int    min, int    max, int    normalize )

Define the components of the field to be used for the cell texture coord components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

void vtkFieldDataToAttributeDataFilter::SetTCoordComponent (  int    comp, const char *    arrayName, int    arrayComp )  [inline]

Define the components of the field to be used for the cell texture coord components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. Definition at line 209 of file vtkFieldDataToAttributeDataFilter.h.

const char* vtkFieldDataToAttributeDataFilter::GetTCoordComponentArrayName (  int    comp )

Define the components of the field to be used for the cell texture coord components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTCoordComponentArrayComponent (  int    comp )

Define the components of the field to be used for the cell texture coord components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTCoordComponentMinRange (  int    comp )

Define the components of the field to be used for the cell texture coord components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTCoordComponentMaxRange (  int    comp )

Define the components of the field to be used for the cell texture coord components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

int vtkFieldDataToAttributeDataFilter::GetTCoordComponentNormalizeFlag (  int    comp )

Define the components of the field to be used for the cell texture coord components. Note that the parameter comp must lie between (0,9). To define the field component to use you specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract.

virtual void vtkFieldDataToAttributeDataFilter::SetDefaultNormalize (  int    )  [virtual]

Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetScalarComponents).

virtual int vtkFieldDataToAttributeDataFilter::GetDefaultNormalize (    )  [virtual]

Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetScalarComponents).

virtual void vtkFieldDataToAttributeDataFilter::DefaultNormalizeOn (    )  [virtual]

Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetScalarComponents).

virtual void vtkFieldDataToAttributeDataFilter::DefaultNormalizeOff (    )  [virtual]

Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetScalarComponents).

int vtkFieldDataToAttributeDataFilter::GetComponentsType (  int    numComp, vtkDataArray **    arrays )  [static]

Given an array of names of arrays in field data, return the common type for these arrays. For example, if a vector is constructed of the three type (char,int,float), the return type is float.

int vtkFieldDataToAttributeDataFilter::ConstructArray (  vtkDataArray *    da, int    comp, vtkDataArray *    frray, int    fieldComp, vtkIdType    min, vtkIdType    max, int    normalize )  [static]

Construct a portion of a data array (the comp portion) from another data array and its component. The variables min and max control the range of the data to use from the other data array; normalize is a flag that when set will normalize the data between (0,1).

vtkDataArray* vtkFieldDataToAttributeDataFilter::GetFieldArray (  vtkFieldData *    fd, char *    name, int    comp )  [static]

Return an array of a particular name from field data and do error checking.

void vtkFieldDataToAttributeDataFilter::SetArrayName (  vtkObject *    self, char *&    name, const char *    newName )  [static]

Specify an array name for one of the components.

int vtkFieldDataToAttributeDataFilter::UpdateComponentRange (  vtkDataArray *    da, vtkIdType    compRange[2] )  [static]

Update the maximum and minimum component range values. Returns a flag indicating whether the range was updated.

virtual void vtkFieldDataToAttributeDataFilter::ComputeInputUpdateExtents (  vtkDataObject *    output )  [virtual]

If output does not need exact extent, the I do not either. Reimplemented from vtkDataSetToDataSetFilter.

void vtkFieldDataToAttributeDataFilter::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

void vtkFieldDataToAttributeDataFilter::ConstructScalars (  int    num, vtkFieldData *    fd, vtkDataSetAttributes *    attr, vtkIdType    componentRange[4][2], char *    arrays[4], int    arrayComponents[4], int    normalize[4], int    numComp )  [protected]

void vtkFieldDataToAttributeDataFilter::ConstructVectors (  int    num, vtkFieldData *    fd, vtkDataSetAttributes *    attr, vtkIdType    componentRange[3][2], char *    arrays[3], int    arrayComponents[3], int    normalize[3] )  [protected]

void vtkFieldDataToAttributeDataFilter::ConstructGhostLevels (  int    num, vtkFieldData *    fd, vtkDataSetAttributes *    attr, vtkIdType    componentRange[2], char *    array, int    arrayComponent, int    normalize )  [protected]

void vtkFieldDataToAttributeDataFilter::ConstructNormals (  int    num, vtkFieldData *    fd, vtkDataSetAttributes *    attr, vtkIdType    componentRange[3][2], char *    arrays[3], int    arrayComponents[3], int    normalize[3] )  [protected]

void vtkFieldDataToAttributeDataFilter::ConstructTCoords (  int    num, vtkFieldData *    fd, vtkDataSetAttributes *    attr, vtkIdType    componentRange[3][2], char *    arrays[3], int    arrayComponents[3], int    normalize[3], int    numComp )  [protected]

void vtkFieldDataToAttributeDataFilter::ConstructTensors (  int    num, vtkFieldData *    fd, vtkDataSetAttributes *    attr, vtkIdType    componentRange[9][2], char *    arrays[9], int    arrayComponents[9], int    normalize[9] )  [protected]

void vtkFieldDataToAttributeDataFilter::ConstructFieldData (  int    num, vtkDataSetAttributes *    attr )  [protected]

---

Member Data Documentation

int vtkFieldDataToAttributeDataFilter::InputField [protected]

Definition at line 265 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::OutputAttributeData [protected]

Definition at line 266 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::NumberOfScalarComponents [protected]

Definition at line 268 of file vtkFieldDataToAttributeDataFilter.h.

char* vtkFieldDataToAttributeDataFilter::ScalarArrays[4] [protected]

Definition at line 269 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::ScalarArrayComponents[4] [protected]

Definition at line 270 of file vtkFieldDataToAttributeDataFilter.h.

vtkIdType vtkFieldDataToAttributeDataFilter::ScalarComponentRange[4][2] [protected]

Definition at line 271 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::ScalarNormalize[4] [protected]

Definition at line 272 of file vtkFieldDataToAttributeDataFilter.h.

char* vtkFieldDataToAttributeDataFilter::VectorArrays[3] [protected]

Definition at line 274 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::VectorArrayComponents[3] [protected]

Definition at line 275 of file vtkFieldDataToAttributeDataFilter.h.

vtkIdType vtkFieldDataToAttributeDataFilter::VectorComponentRange[3][2] [protected]

Definition at line 276 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::VectorNormalize[3] [protected]

Definition at line 277 of file vtkFieldDataToAttributeDataFilter.h.

char* vtkFieldDataToAttributeDataFilter::GhostLevelArray [protected]

Definition at line 279 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::GhostLevelArrayComponent [protected]

Definition at line 280 of file vtkFieldDataToAttributeDataFilter.h.

vtkIdType vtkFieldDataToAttributeDataFilter::GhostLevelComponentRange[2] [protected]

Definition at line 281 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::GhostLevelNormalize [protected]

Definition at line 282 of file vtkFieldDataToAttributeDataFilter.h.

char* vtkFieldDataToAttributeDataFilter::NormalArrays[3] [protected]

Definition at line 284 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::NormalArrayComponents[3] [protected]

Definition at line 285 of file vtkFieldDataToAttributeDataFilter.h.

vtkIdType vtkFieldDataToAttributeDataFilter::NormalComponentRange[3][2] [protected]

Definition at line 286 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::NormalNormalize[3] [protected]

Definition at line 287 of file vtkFieldDataToAttributeDataFilter.h.

char* vtkFieldDataToAttributeDataFilter::TensorArrays[9] [protected]

Definition at line 289 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::TensorArrayComponents[9] [protected]

Definition at line 290 of file vtkFieldDataToAttributeDataFilter.h.

vtkIdType vtkFieldDataToAttributeDataFilter::TensorComponentRange[9][2] [protected]

Definition at line 291 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::TensorNormalize[9] [protected]

Definition at line 292 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::NumberOfTCoordComponents [protected]

Definition at line 294 of file vtkFieldDataToAttributeDataFilter.h.

char* vtkFieldDataToAttributeDataFilter::TCoordArrays[3] [protected]

Definition at line 295 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::TCoordArrayComponents[3] [protected]

Definition at line 296 of file vtkFieldDataToAttributeDataFilter.h.

vtkIdType vtkFieldDataToAttributeDataFilter::TCoordComponentRange[3][2] [protected]

Definition at line 297 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::TCoordNormalize[3] [protected]

Definition at line 298 of file vtkFieldDataToAttributeDataFilter.h.

int vtkFieldDataToAttributeDataFilter::DefaultNormalize [protected]

Definition at line 300 of file vtkFieldDataToAttributeDataFilter.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkFieldDataToAttributeDataFilter.h

---
