vtkCell3D Class Reference

abstract class to specify 3D cell interface. More...

#include <vtkCell3D.h>

Inheritance diagram for vtkCell3D:

Inheritance graph
[legend]

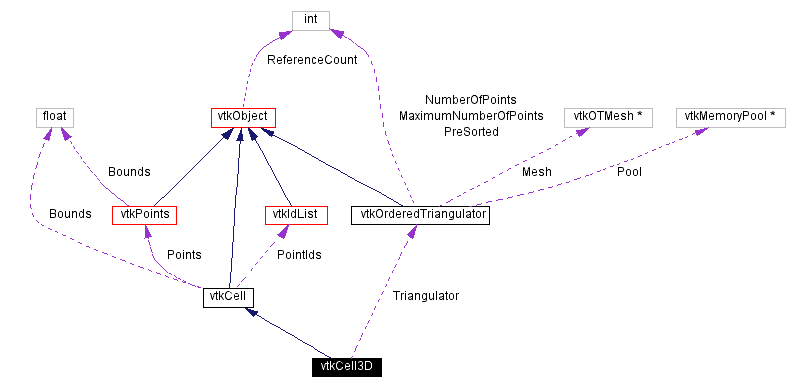

Collaboration diagram for vtkCell3D:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void GetEdgePoints (int edgeId, int *&pts)=0
virtual void GetFacePoints (int faceId, int *&pts)=0
virtual int GetCellDimension ()
virtual void Clip (float value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *connectivity, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)

Static Public Methods

int IsTypeOf (const char *type)
vtkCell3D * SafeDownCast (vtkObject *o)

Protected Methods

 vtkCell3D ()
 ~vtkCell3D ()

Protected Attributes

vtkOrderedTriangulatorTriangulator

Detailed Description

abstract class to specify 3D cell interface.

Date:
2001/11/02 16:41:01
Revision:
1.13

vtkCell3D is an abstract class that extends the interfaces for 3D data cells, and implements methods needed to satisfy the vtkCell API. The 3D cells include hexehedra, tetrahedra, wedge, pyramid, and voxel.

See also:
vtkTetra vtkHexahedron vtkVoxel vtkWedge vtkPyramid

Definition at line 61 of file vtkCell3D.h.


Constructor & Destructor Documentation

vtkCell3D::vtkCell3D   [inline, protected]


Definition at line 104 of file vtkCell3D.h.

vtkCell3D::~vtkCell3D   [protected]



Member Function Documentation

virtual const char* vtkCell3D::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

Reimplemented in vtkHexahedron, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

int vtkCell3D::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

Reimplemented in vtkHexahedron, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

virtual int vtkCell3D::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

Reimplemented in vtkHexahedron, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

vtkCell3D* vtkCell3D::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

Reimplemented in vtkHexahedron, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

void vtkCell3D::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell.

virtual void vtkCell3D::GetEdgePoints int    edgeId,
int *&    pts
[pure virtual]


Get the pair of vertices that define an edge. The method returns the number of vertices, along with an array of vertices. Note that the vertices are 0-offset; that is, they refer to the ids of the cell, not the point ids of the mesh that the cell belongs to. The edgeId must range between 0<=edgeId<this->GetNumberOfEdges().

Reimplemented in vtkHexahedron, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

virtual void vtkCell3D::GetFacePoints int    faceId,
int *&    pts
[pure virtual]


Get the list of vertices that define a face. The list is terminated with a negative number. Note that the vertices are 0-offset; that is, they refer to the ids of the cell, not the point ids of the mesh that the cell belongs to. The faceId must range between 0<=faceId<this->GetNumberOfFaces().

Reimplemented in vtkHexahedron, vtkPyramid, vtkTetra, vtkVoxel, and vtkWedge.

virtual void vtkCell3D::Clip float    value,
vtkDataArray   cellScalars,
vtkPointLocator   locator,
vtkCellArray   connectivity,
vtkPointData   inPd,
vtkPointData   outPd,
vtkCellData   inCd,
vtkIdType    cellId,
vtkCellData   outCd,
int    insideOut
[virtual]


Cut (or clip) the cell based on the input cellScalars and the specified value. The output of the clip operation will be one or more cells of the same topological dimension as the original cell. The flag insideOut controls what part of the cell is considered inside - normally cell points whose scalar value is greater than "value" are considered inside. If insideOut is on, this is reversed. Also, if the output cell data is non-NULL, the cell data from the clipped cell is passed to the generated contouring primitives. (Note: the CopyAllocate() method must be invoked on both the output cell and point data. The cellId refers to the cell from which the cell data is copied.) (Satisfies vtkCell API.)

Reimplemented from vtkCell.

Reimplemented in vtkTetra.

virtual int vtkCell3D::GetCellDimension   [inline, virtual]


The topological dimension of the cell. (Satisfies vtkCell API.)

Reimplemented from vtkCell.

Reimplemented in vtkPyramid, vtkVoxel, and vtkWedge.

Definition at line 101 of file vtkCell3D.h.


Member Data Documentation

vtkOrderedTriangulator* vtkCell3D::Triangulator [protected]


Definition at line 107 of file vtkCell3D.h.


The documentation for this class was generated from the following file:
