vtkEnSightReader Class Reference

superclass for EnSight file readers. More...

#include <vtkEnSightReader.h>

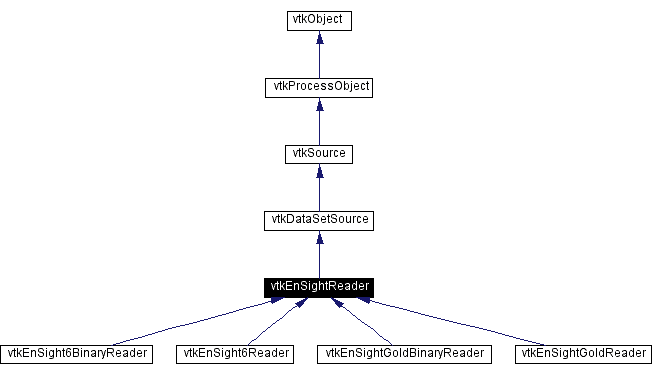

Inheritance diagram for vtkEnSightReader:

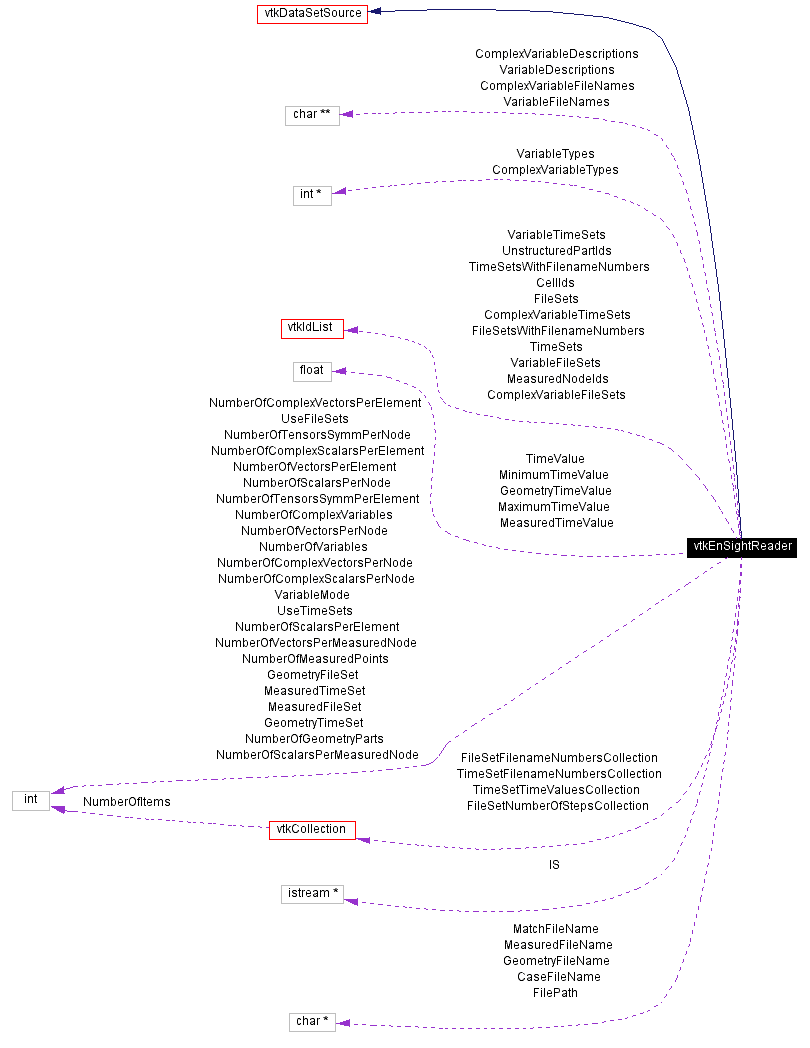

[legend]Collaboration diagram for vtkEnSightReader:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
char *	GetDescription (int n)
char *	GetComplexDescription (int n)
char *	GetDescription (int n, int type)
void	Update ()
void	SetCaseFileName (char *fileName)
virtual char *	GetCaseFileName ()
virtual void	SetFilePath (const char *)
virtual char *	GetFilePath ()
int	GetNumberOfVariables ()
int	GetNumberOfComplexVariables ()
int	GetNumberOfVariables (int type)
virtual int	GetNumberOfScalarsPerNode ()
virtual int	GetNumberOfVectorsPerNode ()
virtual int	GetNumberOfTensorsSymmPerNode ()
virtual int	GetNumberOfScalarsPerElement ()
virtual int	GetNumberOfVectorsPerElement ()
virtual int	GetNumberOfTensorsSymmPerElement ()
virtual int	GetNumberOfScalarsPerMeasuredNode ()
virtual int	GetNumberOfVectorsPerMeasuredNode ()
virtual int	GetNumberOfComplexScalarsPerNode ()
virtual int	GetNumberOfComplexVectorsPerNode ()
virtual int	GetNumberOfComplexScalarsPerElement ()
virtual int	GetNumberOfComplexVectorsPerElement ()
int	GetVariableType (int n)
int	GetComplexVariableType (int n)
virtual void	SetTimeValue (float)
virtual float	GetTimeValue ()
virtual float	GetMinimumTimeValue ()
virtual float	GetMaximumTimeValue ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkEnSightReader *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkEnSightReader ()
	~vtkEnSightReader ()
void	Execute ()
int	ReadCaseFile ()
virtual int	ReadGeometryFile (char *fileName, int timeStep)=0
virtual int	ReadMeasuredGeometryFile (char *fileName, int timeStep)=0
int	ReadVariableFiles ()
virtual int	CreateUnstructuredGridOutput (int partId, char line[256])=0
virtual int	CreateStructuredGridOutput (int partId, char line[256])=0
int	ReadLine (char result[256])
int	ReadNextDataLine (char result[256])
void	AddVariableFileName (char *fileName1, char *fileName2=NULL)
void	AddVariableDescription (char *description)
void	AddVariableType ()
int	GetElementType (char *line)
void	ReplaceWildcards (char *filename, int num)
virtual void	SetUseTimeSets (int)
virtual int	GetUseTimeSets ()
virtual void	UseTimeSetsOn ()
virtual void	UseTimeSetsOff ()
virtual void	SetUseFileSets (int)
virtual int	GetUseFileSets ()
virtual void	UseFileSetsOn ()
virtual void	UseFileSetsOff ()
virtual int	ReadScalarsPerNode (char *fileName, char *description, int timeStep, int measured=0, int numberOfComponents=1, int component=0)=0
virtual int	ReadVectorsPerNode (char *fileName, char *description, int timeStep, int measured=0)=0
virtual int	ReadTensorsPerNode (char *fileName, char *description, int timeStep)=0
virtual int	ReadScalarsPerElement (char *fileName, char *description, int timeStep, int numberOfComponents=1, int component=0)=0
virtual int	ReadVectorsPerElement (char *fileName, char *description, int timeStep)=0
virtual int	ReadTensorsPerElement (char *fileName, char *description, int timeStep)=0
virtual void	SetGeometryFileName (const char *)
virtual char *	GetGeometryFileName ()
virtual void	SetMeasuredFileName (const char *)
virtual char *	GetMeasuredFileName ()
virtual void	SetMatchFileName (const char *)
virtual char *	GetMatchFileName ()
Protected Attributes
char *	FilePath
char *	CaseFileName
char *	GeometryFileName
char *	MeasuredFileName
char *	MatchFileName
vtkIdList ***	CellIds
vtkIdList *	UnstructuredPartIds
int	VariableMode
int	NumberOfVariables
int	NumberOfComplexVariables
int *	VariableTypes
int *	ComplexVariableTypes
char **	VariableFileNames
char **	ComplexVariableFileNames
char **	VariableDescriptions
char **	ComplexVariableDescriptions
vtkIdList *	VariableTimeSets
vtkIdList *	ComplexVariableTimeSets
vtkIdList *	VariableFileSets
vtkIdList *	ComplexVariableFileSets
vtkCollection *	TimeSetFilenameNumbersCollection
vtkIdList *	TimeSetsWithFilenameNumbers
vtkCollection *	TimeSetTimeValuesCollection
vtkCollection *	FileSetFilenameNumbersCollection
vtkIdList *	FileSetsWithFilenameNumbers
vtkCollection *	FileSetNumberOfStepsCollection
vtkIdList *	TimeSets
vtkIdList *	FileSets
int	GeometryTimeSet
int	GeometryFileSet
int	MeasuredTimeSet
int	MeasuredFileSet
float	TimeValue
float	GeometryTimeValue
float	MeasuredTimeValue
float	MinimumTimeValue
float	MaximumTimeValue
int	NumberOfScalarsPerNode
int	NumberOfVectorsPerNode
int	NumberOfTensorsSymmPerNode
int	NumberOfScalarsPerElement
int	NumberOfVectorsPerElement
int	NumberOfTensorsSymmPerElement
int	NumberOfScalarsPerMeasuredNode
int	NumberOfVectorsPerMeasuredNode
int	NumberOfComplexScalarsPerNode
int	NumberOfComplexVectorsPerNode
int	NumberOfComplexScalarsPerElement
int	NumberOfComplexVectorsPerElement
istream *	IS
int	UseTimeSets
int	UseFileSets
int	NumberOfGeometryParts
int	NumberOfMeasuredPoints
vtkIdList *	MeasuredNodeIds

---

Detailed Description

superclass for EnSight file readers.

Date:

2001/11/13 14:30:28

Revision:

1.12

Definition at line 85 of file vtkEnSightReader.h.

---

Constructor & Destructor Documentation

vtkEnSightReader::vtkEnSightReader (    )  [protected]

vtkEnSightReader::~vtkEnSightReader (    )  [protected]

---

Member Function Documentation

virtual const char* vtkEnSightReader::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

int vtkEnSightReader::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

vtkEnSightReader* vtkEnSightReader::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

void vtkEnSightReader::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

void vtkEnSightReader::SetCaseFileName (  char *    fileName )

Set/Get the Case file name.

virtual char* vtkEnSightReader::GetCaseFileName (    )  [virtual]

Set/Get the Case file name.

virtual void vtkEnSightReader::SetFilePath (  const char *    )  [virtual]

Set/Get the path the the data files. If specified, this reader will look in this directory for all data files.

virtual char* vtkEnSightReader::GetFilePath (    )  [virtual]

Set/Get the path the the data files. If specified, this reader will look in this directory for all data files.

int vtkEnSightReader::GetNumberOfVariables (    )  [inline]

Get the number of variables listed in the case file. Definition at line 106 of file vtkEnSightReader.h.

int vtkEnSightReader::GetNumberOfComplexVariables (    )  [inline]

Get the number of variables listed in the case file. Definition at line 107 of file vtkEnSightReader.h.

int vtkEnSightReader::GetNumberOfVariables (  int    type )

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfScalarsPerNode (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfVectorsPerNode (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfTensorsSymmPerNode (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfScalarsPerElement (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfVectorsPerElement (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfTensorsSymmPerElement (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfScalarsPerMeasuredNode (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfVectorsPerMeasuredNode (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfComplexScalarsPerNode (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfComplexVectorsPerNode (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfComplexScalarsPerElement (    )  [virtual]

Get the number of variables of a particular type.

virtual int vtkEnSightReader::GetNumberOfComplexVectorsPerElement (    )  [virtual]

Get the number of variables of a particular type.

char* vtkEnSightReader::GetDescription (  int    n )

Get the nth description for a non-complex variable.

char* vtkEnSightReader::GetComplexDescription (  int    n )

Get the nth description for a complex variable.

char* vtkEnSightReader::GetDescription (  int    n, int    type )

Get the nth description of a particular variable type. Returns NULL if no variable of this type exists in this data set. VTK_SCALAR_PER_NODE = 0; VTK_VECTOR_PER_NODE = 1; VTK_TENSOR_SYMM_PER_NODE = 2; VTK_SCALAR_PER_ELEMENT = 3; VTK_VECTOR_PER_ELEMENT = 4; VTK_TENSOR_SYMM_PER_ELEMENT = 5; VTK_SCALAR_PER_MEASURED_NODE = 6; VTK_VECTOR_PER_MEASURED_NODE = 7; VTK_COMPLEX_SCALAR_PER_NODE = 8; VTK_COMPLEX_VECTOR_PER_NODE 9; VTK_COMPLEX_SCALAR_PER_ELEMENT = 10; VTK_COMPLEX_VECTOR_PER_ELEMENT = 11

int vtkEnSightReader::GetVariableType (  int    n )

Get the variable type of variable n.

int vtkEnSightReader::GetComplexVariableType (  int    n )

Get the variable type of variable n.

void vtkEnSightReader::Update (    )  [virtual]

Bring object up-to-date before execution. Update() checks modified time against last execution time, and re-executes object if necessary. Reimplemented from vtkSource.

virtual void vtkEnSightReader::SetTimeValue (  float    )  [virtual]

Set/Get the time value at which to get the value.

virtual float vtkEnSightReader::GetTimeValue (    )  [virtual]

Set/Get the time value at which to get the value.

virtual float vtkEnSightReader::GetMinimumTimeValue (    )  [virtual]

Get the minimum or maximum time value in this data set.

virtual float vtkEnSightReader::GetMaximumTimeValue (    )  [virtual]

Get the minimum or maximum time value in this data set.

void vtkEnSightReader::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

int vtkEnSightReader::ReadCaseFile (    )  [protected]

Read the case file. If an error occurred, 0 is returned; otherwise 1.

virtual int vtkEnSightReader::ReadGeometryFile (  char *    fileName, int    timeStep )  [protected, pure virtual]

Read the geometry file. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::ReadMeasuredGeometryFile (  char *    fileName, int    timeStep )  [protected, pure virtual]

Read the measured geometry file. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

int vtkEnSightReader::ReadVariableFiles (    )  [protected]

Read the variable files. If an error occurred, 0 is returned; otherwise 1.

virtual int vtkEnSightReader::ReadScalarsPerNode (  char *    fileName, char *    description, int    timeStep, int    measured = 0, int    numberOfComponents = 1, int    component = 0 )  [protected, pure virtual]

Read scalars per node for this dataset. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::ReadVectorsPerNode (  char *    fileName, char *    description, int    timeStep, int    measured = 0 )  [protected, pure virtual]

Read vectors per node for this dataset. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::ReadTensorsPerNode (  char *    fileName, char *    description, int    timeStep )  [protected, pure virtual]

Read tensors per node for this dataset. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::ReadScalarsPerElement (  char *    fileName, char *    description, int    timeStep, int    numberOfComponents = 1, int    component = 0 )  [protected, pure virtual]

Read scalars per element for this dataset. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::ReadVectorsPerElement (  char *    fileName, char *    description, int    timeStep )  [protected, pure virtual]

Read vectors per element for this dataset. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::ReadTensorsPerElement (  char *    fileName, char *    description, int    timeStep )  [protected, pure virtual]

Read tensors per element for this dataset. If an error occurred, 0 is returned; otherwise 1. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::CreateUnstructuredGridOutput (  int    partId, char    line[256] )  [protected, pure virtual]

Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output. Return 0 if EOF reached. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, and vtkEnSightGoldReader.

virtual int vtkEnSightReader::CreateStructuredGridOutput (  int    partId, char    line[256] )  [protected, pure virtual]

Read a structured part from the geometry file and create a vtkStructuredGridOutput. Return 0 if EOF reached. Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, and vtkEnSightGoldReader.

virtual void vtkEnSightReader::SetGeometryFileName (  const char *    )  [protected, virtual]

Set/Get the Model file name. Reimplemented in vtkEnSightGoldReader.

virtual char* vtkEnSightReader::GetGeometryFileName (    )  [protected, virtual]

Set/Get the Model file name. Reimplemented in vtkEnSightGoldReader.

virtual void vtkEnSightReader::SetMeasuredFileName (  const char *    )  [protected, virtual]

Set/Get the Measured file name. Reimplemented in vtkEnSightGoldReader.

virtual char* vtkEnSightReader::GetMeasuredFileName (    )  [protected, virtual]

Set/Get the Measured file name. Reimplemented in vtkEnSightGoldReader.

virtual void vtkEnSightReader::SetMatchFileName (  const char *    )  [protected, virtual]

Set/Get the Match file name. Reimplemented in vtkEnSightGoldReader.

virtual char* vtkEnSightReader::GetMatchFileName (    )  [protected, virtual]

Set/Get the Match file name. Reimplemented in vtkEnSightGoldReader.

int vtkEnSightReader::ReadLine (  char    result[256] )  [protected]

Internal function to read in a line up to 256 characters. Returns zero if there was an error.

int vtkEnSightReader::ReadNextDataLine (  char    result[256] )  [protected]

void vtkEnSightReader::AddVariableFileName (  char *    fileName1, char *    fileName2 = NULL )  [protected]

Add another file name to the list for a particular variable type.

void vtkEnSightReader::AddVariableDescription (  char *    description )  [protected]

Add another description to the list for a particular variable type.

void vtkEnSightReader::AddVariableType (    )  [protected]

Record the variable type for the variable line just read.

int vtkEnSightReader::GetElementType (  char *    line )  [protected]

Determine the element type from a line read a file. Return -1 for invalid element type.

void vtkEnSightReader::ReplaceWildcards (  char *    filename, int    num )  [protected]

Replace the *'s in the filename with the given filename number.

virtual void vtkEnSightReader::SetUseTimeSets (  int    )  [protected, virtual]

virtual int vtkEnSightReader::GetUseTimeSets (    )  [protected, virtual]

virtual void vtkEnSightReader::UseTimeSetsOn (    )  [protected, virtual]

virtual void vtkEnSightReader::UseTimeSetsOff (    )  [protected, virtual]

virtual void vtkEnSightReader::SetUseFileSets (  int    )  [protected, virtual]

virtual int vtkEnSightReader::GetUseFileSets (    )  [protected, virtual]

virtual void vtkEnSightReader::UseFileSetsOn (    )  [protected, virtual]

virtual void vtkEnSightReader::UseFileSetsOff (    )  [protected, virtual]

---

Member Data Documentation

char* vtkEnSightReader::FilePath [protected]

Definition at line 282 of file vtkEnSightReader.h.

char* vtkEnSightReader::CaseFileName [protected]

Definition at line 284 of file vtkEnSightReader.h.

char* vtkEnSightReader::GeometryFileName [protected]

Definition at line 285 of file vtkEnSightReader.h.

char* vtkEnSightReader::MeasuredFileName [protected]

Definition at line 286 of file vtkEnSightReader.h.

char* vtkEnSightReader::MatchFileName [protected]

Definition at line 287 of file vtkEnSightReader.h.

vtkIdList*** vtkEnSightReader::CellIds [protected]

Definition at line 290 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::UnstructuredPartIds [protected]

Definition at line 293 of file vtkEnSightReader.h.

int vtkEnSightReader::VariableMode [protected]

Definition at line 295 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfVariables [protected]

Definition at line 296 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfComplexVariables [protected]

Definition at line 297 of file vtkEnSightReader.h.

int* vtkEnSightReader::VariableTypes [protected]

Definition at line 300 of file vtkEnSightReader.h.

int* vtkEnSightReader::ComplexVariableTypes [protected]

Definition at line 301 of file vtkEnSightReader.h.

char** vtkEnSightReader::VariableFileNames [protected]

Definition at line 304 of file vtkEnSightReader.h.

char** vtkEnSightReader::ComplexVariableFileNames [protected]

Definition at line 305 of file vtkEnSightReader.h.

char** vtkEnSightReader::VariableDescriptions [protected]

Definition at line 308 of file vtkEnSightReader.h.

char** vtkEnSightReader::ComplexVariableDescriptions [protected]

Definition at line 309 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::VariableTimeSets [protected]

Definition at line 312 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::ComplexVariableTimeSets [protected]

Definition at line 313 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::VariableFileSets [protected]

Definition at line 316 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::ComplexVariableFileSets [protected]

Definition at line 317 of file vtkEnSightReader.h.

vtkCollection* vtkEnSightReader::TimeSetFilenameNumbersCollection [protected]

Definition at line 320 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::TimeSetsWithFilenameNumbers [protected]

Definition at line 321 of file vtkEnSightReader.h.

vtkCollection* vtkEnSightReader::TimeSetTimeValuesCollection [protected]

Definition at line 324 of file vtkEnSightReader.h.

vtkCollection* vtkEnSightReader::FileSetFilenameNumbersCollection [protected]

Definition at line 327 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::FileSetsWithFilenameNumbers [protected]

Definition at line 328 of file vtkEnSightReader.h.

vtkCollection* vtkEnSightReader::FileSetNumberOfStepsCollection [protected]

Definition at line 331 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::TimeSets [protected]

Definition at line 334 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::FileSets [protected]

Definition at line 335 of file vtkEnSightReader.h.

int vtkEnSightReader::GeometryTimeSet [protected]

Definition at line 337 of file vtkEnSightReader.h.

int vtkEnSightReader::GeometryFileSet [protected]

Definition at line 338 of file vtkEnSightReader.h.

int vtkEnSightReader::MeasuredTimeSet [protected]

Definition at line 339 of file vtkEnSightReader.h.

int vtkEnSightReader::MeasuredFileSet [protected]

Definition at line 340 of file vtkEnSightReader.h.

float vtkEnSightReader::TimeValue [protected]

Definition at line 342 of file vtkEnSightReader.h.

float vtkEnSightReader::GeometryTimeValue [protected]

Definition at line 343 of file vtkEnSightReader.h.

float vtkEnSightReader::MeasuredTimeValue [protected]

Definition at line 344 of file vtkEnSightReader.h.

float vtkEnSightReader::MinimumTimeValue [protected]

Definition at line 346 of file vtkEnSightReader.h.

float vtkEnSightReader::MaximumTimeValue [protected]

Definition at line 347 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfScalarsPerNode [protected]

Definition at line 350 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfVectorsPerNode [protected]

Definition at line 351 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfTensorsSymmPerNode [protected]

Definition at line 352 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfScalarsPerElement [protected]

Definition at line 353 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfVectorsPerElement [protected]

Definition at line 354 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfTensorsSymmPerElement [protected]

Definition at line 355 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfScalarsPerMeasuredNode [protected]

Definition at line 356 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfVectorsPerMeasuredNode [protected]

Definition at line 357 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfComplexScalarsPerNode [protected]

Definition at line 358 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfComplexVectorsPerNode [protected]

Definition at line 359 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfComplexScalarsPerElement [protected]

Definition at line 360 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfComplexVectorsPerElement [protected]

Definition at line 361 of file vtkEnSightReader.h.

istream* vtkEnSightReader::IS [protected]

Definition at line 363 of file vtkEnSightReader.h.

int vtkEnSightReader::UseTimeSets [protected]

Definition at line 365 of file vtkEnSightReader.h.

int vtkEnSightReader::UseFileSets [protected]

Definition at line 370 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfGeometryParts [protected]

Definition at line 375 of file vtkEnSightReader.h.

int vtkEnSightReader::NumberOfMeasuredPoints [protected]

Definition at line 378 of file vtkEnSightReader.h.

vtkIdList* vtkEnSightReader::MeasuredNodeIds [protected]

Definition at line 379 of file vtkEnSightReader.h.

---

The documentation for this class was generated from the following file:

• IO/vtkEnSightReader.h

---
