vtkEnSightGoldBinaryReader Class Reference

class to read binary EnSight Gold files. More...

#include <vtkEnSightGoldBinaryReader.h>

Inheritance diagram for vtkEnSightGoldBinaryReader:

Inheritance graph
[legend]
Collaboration diagram for vtkEnSightGoldBinaryReader:

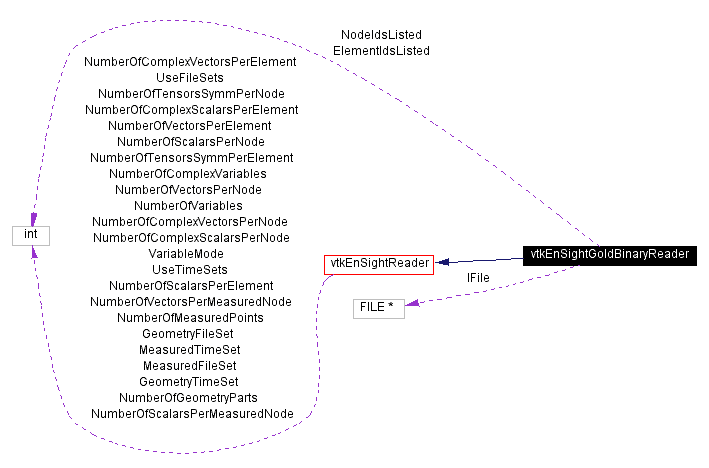

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)

Static Public Methods

vtkEnSightGoldBinaryReader * New ()
int IsTypeOf (const char *type)
vtkEnSightGoldBinaryReader * SafeDownCast (vtkObject *o)

Protected Methods

 vtkEnSightGoldBinaryReader ()
 ~vtkEnSightGoldBinaryReader ()
virtual int ReadGeometryFile (char *fileName, int timeStep)
virtual int ReadMeasuredGeometryFile (char *fileName, int timeStep)
virtual int CreateUnstructuredGridOutput (int partId, char line[80])
virtual int CreateStructuredGridOutput (int partId, char line[256])
int CreateRectilinearGridOutput (int partId, char line[256])
int CreateImageDataOutput (int partId, char line[80])
int ReadLine (char result[80])
int ReadInt (int *result)
int ReadIntArray (int *result, int numInts)
int ReadFloatArray (float *result, int numFloats)
virtual int ReadScalarsPerNode (char *fileName, char *description, int timeStep, int measured=0, int numberOfComponents=1, int component=0)
virtual int ReadVectorsPerNode (char *fileName, char *description, int timeStep, int measured=0)
virtual int ReadTensorsPerNode (char *fileName, char *description, int timeStep)
virtual int ReadScalarsPerElement (char *fileName, char *description, int timeStep, int numberOfComponents=1, int component=0)
virtual int ReadVectorsPerElement (char *fileName, char *description, int timeStep)
virtual int ReadTensorsPerElement (char *fileName, char *description, int timeStep)
void SkipTimeStep ()
int SkipStructuredGrid (char line[256])
int SkipUnstructuredGrid (char line[256])
int SkipRectilinearGrid (char line[256])
int SkipImageData (char line[256])

Protected Attributes

int NodeIdsListed
int ElementIdsListed
FILE * IFile

Detailed Description

class to read binary EnSight Gold files.

Date:
2001/11/13 14:30:28
Revision:
1.8

vtkEnSightGoldBinaryReader is a class to read EnSight Gold files into vtk. Because the different parts of the EnSight data can be of various data types, this reader produces multiple outputs, one per part in the input file. All variable information is being stored in field data. The descriptions listed in the case file are used as the array names in the field data. For complex vector variables, the description is appended with _r (for the array of real values) and _i (for the array if imaginary values). Complex scalar variables are stored as a single array with 2 components, real and imaginary, listed in that order.

Warning:
You must manually call Update on this reader and then connect the rest of the pipeline because (due to the nature of the file format) it is not possible to know ahead of time how many outputs you will have or what types they will be. This reader can only handle static EnSight datasets (both static geometry and variables).
Tests:
vtkEnSightGoldBinaryReader (Tests)

Definition at line 73 of file vtkEnSightGoldBinaryReader.h.

Constructor & Destructor Documentation

vtkEnSightGoldBinaryReader::vtkEnSightGoldBinaryReader (    )  [protected]


vtkEnSightGoldBinaryReader::~vtkEnSightGoldBinaryReader (    )  [protected]


Member Function Documentation

vtkEnSightGoldBinaryReader* vtkEnSightGoldBinaryReader::New (    )  [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkDataSetSource.

virtual const char* vtkEnSightGoldBinaryReader::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

int vtkEnSightGoldBinaryReader::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

vtkEnSightGoldBinaryReader* vtkEnSightGoldBinaryReader::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadGeometryFile (  char *    fileName,
int    timeStep
)  [protected, virtual]


Read the geometry file. If an error occurred, 0 is returned; otherwise 1.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadMeasuredGeometryFile (  char *    fileName,
int    timeStep
)  [protected, virtual]


Read the measured geometry file. If an error occurred, 0 is returned; otherwise 1.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadScalarsPerNode (  char *    fileName,
char *    description,
int    timeStep,
int    measured = 0,
int    numberOfComponents = 1,
int    component = 0
)  [protected, virtual]


Read scalars per node for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one component in the data array, it is assumed that 0 is the first component added.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadVectorsPerNode (  char *    fileName,
char *    description,
int    timeStep,
int    measured = 0
)  [protected, virtual]


Read vectors per node for this dataset. If an error occurred, 0 is returned; otherwise 1.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadTensorsPerNode (  char *    fileName,
char *    description,
int    timeStep
)  [protected, virtual]


Read tensors per node for this dataset. If an error occurred, 0 is returned; otherwise 1.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadScalarsPerElement (  char *    fileName,
char *    description,
int    timeStep,
int    numberOfComponents = 1,
int    component = 0
)  [protected, virtual]


Read scalars per element for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one componenet in the data array, it is assumed that 0 is the first component added.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadVectorsPerElement (  char *    fileName,
char *    description,
int    timeStep
)  [protected, virtual]


Read vectors per element for this dataset. If an error occurred, 0 is returned; otherwise 1.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::ReadTensorsPerElement (  char *    fileName,
char *    description,
int    timeStep
)  [protected, virtual]


Read tensors per element for this dataset. If an error occurred, 0 is returned; otherwise 1.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSightGoldBinaryReader::CreateUnstructuredGridOutput (  int    partId,
char    line[80]
)  [protected, virtual]


Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output. Return 0 if EOF reached. Return -1 if an error occurred.

virtual int vtkEnSightGoldBinaryReader::CreateStructuredGridOutput (  int    partId,
char    line[256]
)  [protected, virtual]


Read a structured part from the geometry file and create a vtkStructuredGrid output. Return 0 if EOF reached.

Reimplemented from vtkEnSightReader.

int vtkEnSightGoldBinaryReader::CreateRectilinearGridOutput (  int    partId,
char    line[256]
)  [protected]


Read a structured part from the geometry file and create a vtkRectilinearGrid output. Return 0 if EOF reached.

int vtkEnSightGoldBinaryReader::CreateImageDataOutput (  int    partId,
char    line[80]
)  [protected]


Read a structured part from the geometry file and create a vtkImageData output. Return 0 if EOF reached.

int vtkEnSightGoldBinaryReader::ReadLine (  char    result[80] )  [protected]


Internal function to read in a line up to 80 characters. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::ReadInt (  int *    result )  [protected]


Internal function to read in a single integer. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::ReadIntArray (  int *    result,
int    numInts
)  [protected]


Internal function to read in an integer array. Returns zero if there was an error.

int vtkEnSightGoldBinaryReader::ReadFloatArray (  float *    result,
int    numFloats
)  [protected]


Internal function to read in a float array. Returns zero if there was an error.

void vtkEnSightGoldBinaryReader::SkipTimeStep (    )  [protected]


Read to the next time step in the geometry file.

int vtkEnSightGoldBinaryReader::SkipStructuredGrid (  char    line[256] )  [protected]


Read to the next time step in the geometry file.

int vtkEnSightGoldBinaryReader::SkipUnstructuredGrid (  char    line[256] )  [protected]


Read to the next time step in the geometry file.

int vtkEnSightGoldBinaryReader::SkipRectilinearGrid (  char    line[256] )  [protected]


Read to the next time step in the geometry file.

int vtkEnSightGoldBinaryReader::SkipImageData (  char    line[256] )  [protected]


Read to the next time step in the geometry file.

Member Data Documentation

int vtkEnSightGoldBinaryReader::NodeIdsListed [protected]


Definition at line 180 of file vtkEnSightGoldBinaryReader.h.

int vtkEnSightGoldBinaryReader::ElementIdsListed [protected]


Definition at line 181 of file vtkEnSightGoldBinaryReader.h.

FILE* vtkEnSightGoldBinaryReader::IFile [protected]


Definition at line 183 of file vtkEnSightGoldBinaryReader.h.

The documentation for this class was generated from the following file:
