vtkUnstructuredGrid Class Reference

dataset represents arbitrary combinations of all possible cell types. More...

#include <vtkUnstructuredGrid.h>

Inheritance diagram for vtkUnstructuredGrid:

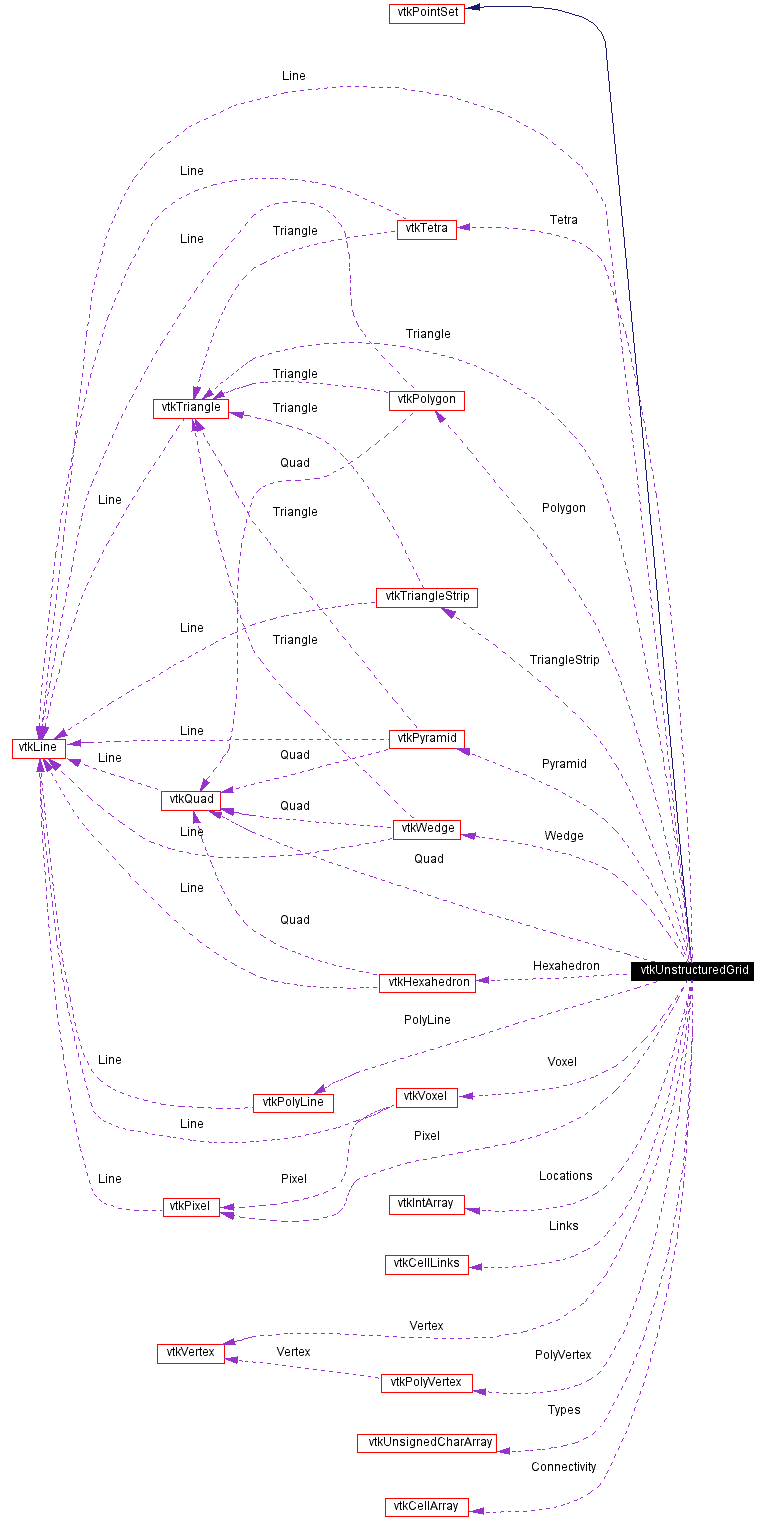

[legend]Collaboration diagram for vtkUnstructuredGrid:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetCellType (vtkIdType cellId)
void	Squeeze ()
void	Initialize ()
int	GetMaxCellSize ()
void	BuildLinks ()
vtkCellLinks *	GetCellLinks ()
virtual void	GetCellPoints (vtkIdType cellId, vtkIdType &npts, vtkIdType *&pts)
void	ReplaceCell (vtkIdType cellId, int npts, vtkIdType *pts)
int	InsertNextLinkedCell (int type, int npts, vtkIdType *pts)
void	RemoveReferenceToCell (vtkIdType ptId, vtkIdType cellId)
void	AddReferenceToCell (vtkIdType ptId, vtkIdType cellId)
void	ResizeCellList (vtkIdType ptId, int size)
unsigned long	GetActualMemorySize ()
void	GetListOfUniqueCellTypes (vtkUnsignedCharArray *uniqueTypes)
void	GetIdsOfCellsOfType (int type, vtkIntArray *array)
int	IsHomogeneous ()

int	GetDataObjectType ()
virtual void	Allocate (vtkIdType numCells=1000, int extSize=1000)
int	InsertNextCell (int type, int npts, vtkIdType *pts)
int	InsertNextCell (int type, vtkIdList *ptIds)
void	Reset ()
void	SetCells (int types, vtkCellArray cells)
void	SetCells (vtkUnsignedCharArray cellTypes, vtkIntArray cellLocations, vtkCellArray *cells)
vtkCellArray *	GetCells ()
vtkDataObject *	MakeObject ()
virtual void	CopyStructure (vtkDataSet *ds)
vtkIdType	GetNumberOfCells ()
virtual vtkCell *	GetCell (vtkIdType cellId)
virtual void	GetCell (vtkIdType cellId, vtkGenericCell *cell)
virtual void	GetCellBounds (vtkIdType cellId, float bounds[6])
virtual void	GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
void	GetPointCells (vtkIdType ptId, vtkIdList *cellIds)

virtual void	GetCellNeighbors (vtkIdType cellId, vtkIdList ptIds, vtkIdList cellIds)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)
void	SetUpdateExtent (int piece, int numPieces)
void	GetUpdateExtent (int &piece, int &numPieces, int &ghostLevel)

virtual int *	GetUpdateExtent ()
virtual void	GetUpdateExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetUpdateExtent (int[6])

void	SetUpdateExtent (int x1, int x2, int y1, int y2, int z1, int z2)
void	SetUpdateExtent (int ext[6])

virtual int	GetPiece ()
virtual int	GetNumberOfPieces ()

virtual int	GetGhostLevel ()

virtual void	ShallowCopy (vtkDataObject *src)
virtual void	DeepCopy (vtkDataObject *src)
Static Public Methods
vtkUnstructuredGrid *	New ()
int	IsTypeOf (const char *type)
vtkUnstructuredGrid *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkUnstructuredGrid ()
	~vtkUnstructuredGrid ()
Protected Attributes
vtkVertex *	Vertex
vtkPolyVertex *	PolyVertex
vtkLine *	Line
vtkPolyLine *	PolyLine
vtkTriangle *	Triangle
vtkTriangleStrip *	TriangleStrip
vtkPixel *	Pixel
vtkQuad *	Quad
vtkPolygon *	Polygon
vtkTetra *	Tetra
vtkVoxel *	Voxel
vtkHexahedron *	Hexahedron
vtkWedge *	Wedge
vtkPyramid *	Pyramid
vtkCellArray *	Connectivity
vtkCellLinks *	Links
vtkUnsignedCharArray *	Types
vtkIntArray *	Locations

Detailed Description

dataset represents arbitrary combinations of all possible cell types.

Date:: 2001/11/13 14:09:32

Revision:: 1.79

vtkUnstructuredGrid is a data object that is a concrete implementation of vtkDataSet. vtkUnstructuredGrid represents any combinations of any cell types. This includes 0D (e.g., points), 1D (e.g., lines, polylines), 2D (e.g., triangles, polygons), and 3D (e.g., hexahedron, tetrahedron).

Examples:: vtkUnstructuredGrid (Examples)

Tests:: vtkUnstructuredGrid (Tests)

Definition at line 82 of file vtkUnstructuredGrid.h.

Constructor & Destructor Documentation

vtkUnstructuredGrid::vtkUnstructuredGrid ( ) [protected]

vtkUnstructuredGrid::~vtkUnstructuredGrid ( ) [protected]

Member Function Documentation

vtkUnstructuredGrid* vtkUnstructuredGrid::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkDataObject.
Referenced by MakeObject().

virtual const char* vtkUnstructuredGrid::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPointSet.

int vtkUnstructuredGrid::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPointSet.

virtual int vtkUnstructuredGrid::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPointSet.

vtkUnstructuredGrid* vtkUnstructuredGrid::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPointSet.

void vtkUnstructuredGrid::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkPointSet.

int vtkUnstructuredGrid::GetDataObjectType ( ) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.
Definition at line 94 of file vtkUnstructuredGrid.h.

virtual void vtkUnstructuredGrid::Allocate ( vtkIdType numCells = 1000,

int extSize = 1000

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

int vtkUnstructuredGrid::InsertNextCell ( int type,

int npts,

vtkIdType * pts

)

Standard vtkDataSet API methods. See vtkDataSet for more information.

int vtkUnstructuredGrid::InsertNextCell ( int type,

vtkIdList * ptIds

)

Standard vtkDataSet API methods. See vtkDataSet for more information.

void vtkUnstructuredGrid::Reset ( )

Standard vtkDataSet API methods. See vtkDataSet for more information.

void vtkUnstructuredGrid::SetCells ( int * types,

vtkCellArray * cells

)

Standard vtkDataSet API methods. See vtkDataSet for more information.

void vtkUnstructuredGrid::SetCells ( vtkUnsignedCharArray * cellTypes,

vtkIntArray * cellLocations,

vtkCellArray * cells

)

Standard vtkDataSet API methods. See vtkDataSet for more information.

vtkCellArray* vtkUnstructuredGrid::GetCells ( ) [inline]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Definition at line 102 of file vtkUnstructuredGrid.h.

vtkDataObject* vtkUnstructuredGrid::MakeObject ( ) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataObject.
Definition at line 103 of file vtkUnstructuredGrid.h.

virtual void vtkUnstructuredGrid::CopyStructure ( vtkDataSet * ds ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkPointSet.

vtkIdType vtkUnstructuredGrid::GetNumberOfCells ( ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

virtual vtkCell* vtkUnstructuredGrid::GetCell ( vtkIdType cellId ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

virtual void vtkUnstructuredGrid::GetCell ( vtkIdType cellId,

vtkGenericCell * cell

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

virtual void vtkUnstructuredGrid::GetCellBounds ( vtkIdType cellId,

float bounds[6]

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

virtual void vtkUnstructuredGrid::GetCellPoints ( vtkIdType cellId,

vtkIdList * ptIds

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

void vtkUnstructuredGrid::GetPointCells ( vtkIdType ptId,

vtkIdList * cellIds

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

int vtkUnstructuredGrid::GetCellType ( vtkIdType cellId ) [virtual]

Get type of cell with cellId such that: 0 <= cellId < NumberOfCells. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED
Reimplemented from vtkDataSet.

void vtkUnstructuredGrid::Squeeze ( ) [virtual]

Reclaim any unused memory.
Reimplemented from vtkPointSet.

void vtkUnstructuredGrid::Initialize ( ) [virtual]

Reset to an empty state and free any memory.
Reimplemented from vtkPointSet.

int vtkUnstructuredGrid::GetMaxCellSize ( ) [virtual]

Convenience method returns largest cell size in dataset. This is generally used to allocate memory for supporting data structures. THIS METHOD IS THREAD SAFE
Reimplemented from vtkDataSet.

void vtkUnstructuredGrid::BuildLinks ( )

vtkCellLinks* vtkUnstructuredGrid::GetCellLinks ( ) [inline]

Definition at line 118 of file vtkUnstructuredGrid.h.

virtual void vtkUnstructuredGrid::GetCellPoints ( vtkIdType cellId,

vtkIdType & npts,

vtkIdType *& pts

) [virtual]

void vtkUnstructuredGrid::ReplaceCell ( vtkIdType cellId,

int npts,

vtkIdType * pts

)

int vtkUnstructuredGrid::InsertNextLinkedCell ( int type,

int npts,

vtkIdType * pts

)

void vtkUnstructuredGrid::RemoveReferenceToCell ( vtkIdType ptId,

vtkIdType cellId

)

void vtkUnstructuredGrid::AddReferenceToCell ( vtkIdType ptId,

vtkIdType cellId

)

void vtkUnstructuredGrid::ResizeCellList ( vtkIdType ptId,

int size

)

virtual void vtkUnstructuredGrid::GetCellNeighbors ( vtkIdType cellId,

vtkIdList * ptIds,

vtkIdList * cellIds

) [virtual]

Topological inquiry to get all cells using list of points exclusive of cell specified (e.g., cellId). THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED
Reimplemented from vtkDataSet.

void vtkUnstructuredGrid::SetUpdateExtent ( int piece,

int numPieces,

int ghostLevel

)

For streaming. User/next filter specifies which piece the want updated. The source of this poly data has to return exactly this piece.

void vtkUnstructuredGrid::SetUpdateExtent ( int piece,

int numPieces

) [inline]

For streaming. User/next filter specifies which piece the want updated. The source of this poly data has to return exactly this piece.
Reimplemented from vtkDataObject.
Definition at line 140 of file vtkUnstructuredGrid.h.

void vtkUnstructuredGrid::GetUpdateExtent ( int & piece,

int & numPieces,

int & ghostLevel

)

For streaming. User/next filter specifies which piece the want updated. The source of this poly data has to return exactly this piece.

virtual int* vtkUnstructuredGrid::GetUpdateExtent ( ) [virtual]

We need this here to keep from hiding superclass method
Reimplemented from vtkDataObject.

virtual void vtkUnstructuredGrid::GetUpdateExtent ( int & ,

int & ,

int & ,

int & ,

int & ,

int &

) [virtual]

We need this here to keep from hiding superclass method
Reimplemented from vtkDataObject.

virtual void vtkUnstructuredGrid::GetUpdateExtent ( int [6] ) [virtual]

We need this here to keep from hiding superclass method
Reimplemented from vtkDataObject.

void vtkUnstructuredGrid::SetUpdateExtent ( int x1,

int x2,

int y1,

int y2,

int z1,

int z2

) [inline, virtual]

Call superclass method to avoid hiding Since this data type does not use 3D extents, this set method is useless but necessary since vtkDataSetToDataSetFilter does not know what type of data it is working on.
Reimplemented from vtkDataObject.
Definition at line 155 of file vtkUnstructuredGrid.h.

void vtkUnstructuredGrid::SetUpdateExtent ( int ext[6] ) [inline, virtual]

Call superclass method to avoid hiding Since this data type does not use 3D extents, this set method is useless but necessary since vtkDataSetToDataSetFilter does not know what type of data it is working on.
Reimplemented from vtkDataObject.
Definition at line 157 of file vtkUnstructuredGrid.h.

virtual int vtkUnstructuredGrid::GetPiece ( ) [virtual]

Set / Get the piece and the number of pieces. Similar to extent in 3D.

virtual int vtkUnstructuredGrid::GetNumberOfPieces ( ) [virtual]

Set / Get the piece and the number of pieces. Similar to extent in 3D.

virtual int vtkUnstructuredGrid::GetGhostLevel ( ) [virtual]

Set / Get the ghost level.

unsigned long vtkUnstructuredGrid::GetActualMemorySize ( ) [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.
Reimplemented from vtkPointSet.

virtual void vtkUnstructuredGrid::ShallowCopy ( vtkDataObject * src ) [virtual]

Shallow and Deep copy.
Reimplemented from vtkPointSet.

virtual void vtkUnstructuredGrid::DeepCopy ( vtkDataObject * src ) [virtual]

Shallow and Deep copy.
Reimplemented from vtkPointSet.

void vtkUnstructuredGrid::GetListOfUniqueCellTypes ( vtkUnsignedCharArray * uniqueTypes )

Fill vtkUnsignedCharArray container with list of unique cell types. This method traverses all cells and, for each unique cell type it encounters, inserts the type into the container.

void vtkUnstructuredGrid::GetIdsOfCellsOfType ( int type,

vtkIntArray * array

)

Fill vtkIntArray container with list of cell Ids. This method traverses all cells and, for a particular cell type, inserts the cell Id into the container.

int vtkUnstructuredGrid::IsHomogeneous ( )

Traverse cells and determine if cells are all of the same type.

Member Data Documentation

vtkVertex* vtkUnstructuredGrid::Vertex [protected]

Definition at line 205 of file vtkUnstructuredGrid.h.

vtkPolyVertex* vtkUnstructuredGrid::PolyVertex [protected]

Definition at line 206 of file vtkUnstructuredGrid.h.

vtkLine* vtkUnstructuredGrid::Line [protected]

Definition at line 207 of file vtkUnstructuredGrid.h.

vtkPolyLine* vtkUnstructuredGrid::PolyLine [protected]

Definition at line 208 of file vtkUnstructuredGrid.h.

vtkTriangle* vtkUnstructuredGrid::Triangle [protected]

Definition at line 209 of file vtkUnstructuredGrid.h.

vtkTriangleStrip* vtkUnstructuredGrid::TriangleStrip [protected]

Definition at line 210 of file vtkUnstructuredGrid.h.

vtkPixel* vtkUnstructuredGrid::Pixel [protected]

Definition at line 211 of file vtkUnstructuredGrid.h.

vtkQuad* vtkUnstructuredGrid::Quad [protected]

Definition at line 212 of file vtkUnstructuredGrid.h.

vtkPolygon* vtkUnstructuredGrid::Polygon [protected]

Definition at line 213 of file vtkUnstructuredGrid.h.

vtkTetra* vtkUnstructuredGrid::Tetra [protected]

Definition at line 214 of file vtkUnstructuredGrid.h.

vtkVoxel* vtkUnstructuredGrid::Voxel [protected]

Definition at line 215 of file vtkUnstructuredGrid.h.

vtkHexahedron* vtkUnstructuredGrid::Hexahedron [protected]

Definition at line 216 of file vtkUnstructuredGrid.h.

vtkWedge* vtkUnstructuredGrid::Wedge [protected]

Definition at line 217 of file vtkUnstructuredGrid.h.

vtkPyramid* vtkUnstructuredGrid::Pyramid [protected]

Definition at line 218 of file vtkUnstructuredGrid.h.

vtkCellArray* vtkUnstructuredGrid::Connectivity [protected]

Definition at line 222 of file vtkUnstructuredGrid.h.

vtkCellLinks* vtkUnstructuredGrid::Links [protected]

Definition at line 223 of file vtkUnstructuredGrid.h.

vtkUnsignedCharArray* vtkUnstructuredGrid::Types [protected]

Definition at line 224 of file vtkUnstructuredGrid.h.

vtkIntArray* vtkUnstructuredGrid::Locations [protected]

Definition at line 225 of file vtkUnstructuredGrid.h.

The documentation for this class was generated from the following file:

Common/vtkUnstructuredGrid.h

Generated on Thu Mar 28 14:44:58 2002 for VTK by

vtkUnstructuredGrid Class Reference

Public Methods

Static Public Methods

Protected Methods

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
