vtkImageContinuousErode3D Class Reference

Erosion implemented as a minimum. More...

#include <vtkImageContinuousErode3D.h>

Inheritance diagram for vtkImageContinuousErode3D:

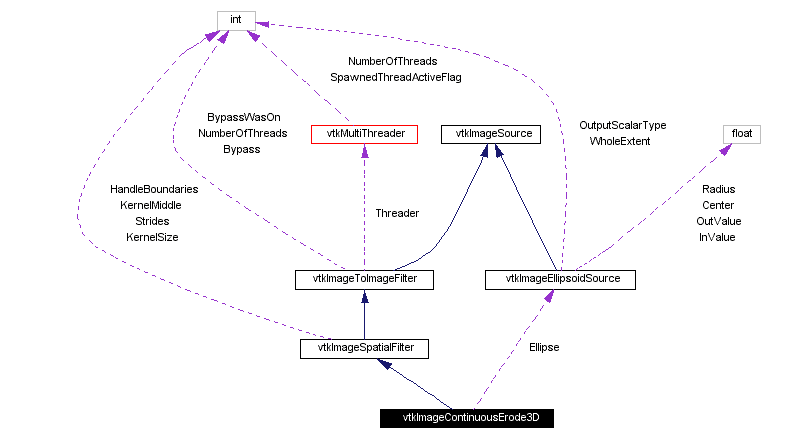

[legend]Collaboration diagram for vtkImageContinuousErode3D:

[legend]List of all members.

[NOHEADER]
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkImageContinuousErode3D *	New ()
int	IsTypeOf (const char *type)
vtkImageContinuousErode3D *	SafeDownCast (vtkObject *o)
Public Methods
void	SetKernelSize (int size0, int size1, int size2)
Protected Methods
	vtkImageContinuousErode3D ()
	~vtkImageContinuousErode3D ()
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int id)
Protected Attributes
vtkImageEllipsoidSource *	Ellipse

---

Detailed Description

Erosion implemented as a minimum.

Date:

2001/11/13 14:32:32

Revision:

1.18

Thanks:

Thanks to C. Charles Law who developed this class.

vtkImageContinuousErode3D replaces a pixel with the minimum over an ellipsoidal neighborhood. If KernelSize of an axis is 1, no processing is done on that axis.

Tests:

vtkImageContinuousErode3D (Tests)

Definition at line 63 of file vtkImageContinuousErode3D.h.

---

Constructor & Destructor Documentation

vtkImageContinuousErode3D::vtkImageContinuousErode3D (    )  [protected]

vtkImageContinuousErode3D::~vtkImageContinuousErode3D (    )  [protected]

---

Member Function Documentation

vtkImageContinuousErode3D* vtkImageContinuousErode3D::New (    )  [static]

Construct an instance of vtkImageContinuousErode3D filter. By default zero values are eroded. Reimplemented from vtkImageSpatialFilter.

virtual const char* vtkImageContinuousErode3D::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

int vtkImageContinuousErode3D::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

virtual int vtkImageContinuousErode3D::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

vtkImageContinuousErode3D* vtkImageContinuousErode3D::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialFilter.

void vtkImageContinuousErode3D::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageSpatialFilter.

void vtkImageContinuousErode3D::SetKernelSize (  int    size0, int    size1, int    size2 )

This method sets the size of the neighborhood. It also sets the default middle of the neighborhood and computes the elliptical foot print.

void vtkImageContinuousErode3D::ThreadedExecute (  vtkImageData *    inData, vtkImageData *    outData, int    extent[6], int    id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkImageToImageFilter.

---

Member Data Documentation

vtkImageEllipsoidSource* vtkImageContinuousErode3D::Ellipse [protected]

Definition at line 84 of file vtkImageContinuousErode3D.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageContinuousErode3D.h

---
