vtkImageMarchingCubes Class Reference

generate isosurface(s) from volume/images. More...

#include <vtkImageMarchingCubes.h>

Inheritance diagram for vtkImageMarchingCubes:

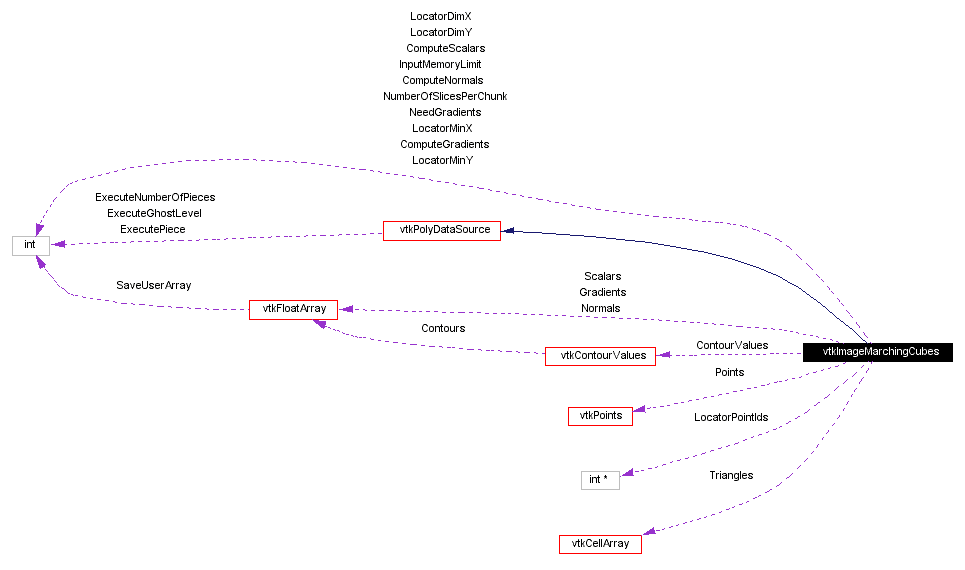

[legend]Collaboration diagram for vtkImageMarchingCubes:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetValue (int i, float value)
void	GetValues (float *contourValues)
void	SetNumberOfContours (int number)
unsigned long int	GetMTime ()
int	GetLocatorPoint (int cellX, int cellY, int edge)
void	AddLocatorPoint (int cellX, int cellY, int edge, int ptId)
void	IncrementLocatorZ ()
void	Update ()
void	SetInput (vtkImageData *input)
vtkImageData *	GetInput ()
float	GetValue (int i)
float *	GetValues ()
int	GetNumberOfContours ()
void	GenerateValues (int numContours, float range[2])
void	GenerateValues (int numContours, float rangeStart, float rangeEnd)
virtual void	SetComputeScalars (int)
virtual int	GetComputeScalars ()
virtual void	ComputeScalarsOn ()
virtual void	ComputeScalarsOff ()
virtual void	SetComputeNormals (int)
virtual int	GetComputeNormals ()
virtual void	ComputeNormalsOn ()
virtual void	ComputeNormalsOff ()
virtual void	SetComputeGradients (int)
virtual int	GetComputeGradients ()
virtual void	ComputeGradientsOn ()
virtual void	ComputeGradientsOff ()
virtual void	SetInputMemoryLimit (int)
virtual int	GetInputMemoryLimit ()
Static Public Methods
vtkImageMarchingCubes *	New ()
int	IsTypeOf (const char *type)
vtkImageMarchingCubes *	SafeDownCast (vtkObject *o)
Public Attributes
int	ComputeScalars
int	ComputeNormals
int	ComputeGradients
int	NeedGradients
vtkCellArray *	Triangles
vtkFloatArray *	Scalars
vtkPoints *	Points
vtkFloatArray *	Normals
vtkFloatArray *	Gradients
Protected Methods
	vtkImageMarchingCubes ()
	~vtkImageMarchingCubes ()
void	Execute ()
void	March (vtkImageData *inData, int chunkMin, int chunkMax, int numContours, float *values)
void	InitializeLocator (int min0, int max0, int min1, int max1)
void	DeleteLocator ()
int *	GetLocatorPointer (int cellX, int cellY, int edge)
Protected Attributes
int	NumberOfSlicesPerChunk
int	InputMemoryLimit
vtkContourValues *	ContourValues
int *	LocatorPointIds
int	LocatorDimX
int	LocatorDimY
int	LocatorMinX
int	LocatorMinY

---

Detailed Description

generate isosurface(s) from volume/images.

Date:

2001/12/17 15:42:37

Revision:

1.29.2.1

Thanks:

Thanks to C. Charles Law who developed this class.

vtkImageMarchingCubes is a filter that takes as input images (e.g., 3D image region) and generates on output one or more isosurfaces. One or more contour values must be specified to generate the isosurfaces. Alternatively, you can specify a min/max scalar range and the number of contours to generate a series of evenly spaced contour values. This filter can stream, so that the entire volume need not be loaded at once. Streaming is controlled using the instance variable InputMemoryLimit, which has units KBytes.

Warning:

This filter is specialized to volumes. If you are interested in contouring other types of data, use the general vtkContourFilter. If you want to contour an image (i.e., a volume slice), use vtkMarchingSquares.

See also:

vtkContourFilter vtkSliceCubes vtkMarchingSquares vtkDividingCubes

Events:

vtkCommand::StartEvent vtkCommand::EndEvent

Tests:

vtkImageMarchingCubes (Tests)

Definition at line 94 of file vtkImageMarchingCubes.h.

---

Constructor & Destructor Documentation

vtkImageMarchingCubes::vtkImageMarchingCubes (    )  [protected]

vtkImageMarchingCubes::~vtkImageMarchingCubes (    )  [protected]

---

Member Function Documentation

vtkImageMarchingCubes* vtkImageMarchingCubes::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkPolyDataSource.

virtual const char* vtkImageMarchingCubes::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

int vtkImageMarchingCubes::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

virtual int vtkImageMarchingCubes::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

vtkImageMarchingCubes* vtkImageMarchingCubes::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

void vtkImageMarchingCubes::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

void vtkImageMarchingCubes::SetInput (  vtkImageData *    input )

Set/Get the source for the scalar data to contour.

vtkImageData* vtkImageMarchingCubes::GetInput (    )

Set/Get the source for the scalar data to contour.

void vtkImageMarchingCubes::SetValue (  int    i, float    value )  [inline]

Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours. Definition at line 204 of file vtkImageMarchingCubes.h.

float vtkImageMarchingCubes::GetValue (  int    i )  [inline]

Get the ith contour value. Definition at line 209 of file vtkImageMarchingCubes.h.

float * vtkImageMarchingCubes::GetValues (    )  [inline]

Get a pointer to an array of contour values. There will be GetNumberOfContours() values in the list. Definition at line 216 of file vtkImageMarchingCubes.h.

void vtkImageMarchingCubes::GetValues (  float *    contourValues )  [inline]

Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list. Definition at line 223 of file vtkImageMarchingCubes.h.

void vtkImageMarchingCubes::SetNumberOfContours (  int    number )  [inline]

Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed. Definition at line 229 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::GetNumberOfContours (    )  [inline]

Get the number of contours in the list of contour values. Definition at line 234 of file vtkImageMarchingCubes.h.

void vtkImageMarchingCubes::GenerateValues (  int    numContours, float    range[2] )  [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values. Definition at line 241 of file vtkImageMarchingCubes.h.

void vtkImageMarchingCubes::GenerateValues (  int    numContours, float    rangeStart, float    rangeEnd )  [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values. Definition at line 248 of file vtkImageMarchingCubes.h.

unsigned long int vtkImageMarchingCubes::GetMTime (    )  [virtual]

Return this object's modified time. Reimplemented from vtkObject.

virtual void vtkImageMarchingCubes::SetComputeScalars (  int    )  [virtual]

Set/Get the computation of scalars.

virtual int vtkImageMarchingCubes::GetComputeScalars (    )  [virtual]

Set/Get the computation of scalars.

virtual void vtkImageMarchingCubes::ComputeScalarsOn (    )  [virtual]

Set/Get the computation of scalars.

virtual void vtkImageMarchingCubes::ComputeScalarsOff (    )  [virtual]

Set/Get the computation of scalars.

virtual void vtkImageMarchingCubes::SetComputeNormals (  int    )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkImageMarchingCubes::GetComputeNormals (    )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkImageMarchingCubes::ComputeNormalsOn (    )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkImageMarchingCubes::ComputeNormalsOff (    )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkImageMarchingCubes::SetComputeGradients (  int    )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkImageMarchingCubes::GetComputeGradients (    )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkImageMarchingCubes::ComputeGradientsOn (    )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkImageMarchingCubes::ComputeGradientsOff (    )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

int vtkImageMarchingCubes::GetLocatorPoint (  int    cellX, int    cellY, int    edge )

void vtkImageMarchingCubes::AddLocatorPoint (  int    cellX, int    cellY, int    edge, int    ptId )

void vtkImageMarchingCubes::IncrementLocatorZ (    )

void vtkImageMarchingCubes::Update (    )  [virtual]

Bring object up-to-date before execution. Update() checks modified time against last execution time, and re-executes object if necessary. Reimplemented from vtkSource.

virtual void vtkImageMarchingCubes::SetInputMemoryLimit (  int    )  [virtual]

The InputMemoryLimit determines the chunk size (the number of slices requested at each iteration). The units of this limit is KiloBytes. For now, only the Z axis is split.

virtual int vtkImageMarchingCubes::GetInputMemoryLimit (    )  [virtual]

The InputMemoryLimit determines the chunk size (the number of slices requested at each iteration). The units of this limit is KiloBytes. For now, only the Z axis is split.

void vtkImageMarchingCubes::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

void vtkImageMarchingCubes::March (  vtkImageData *    inData, int    chunkMin, int    chunkMax, int    numContours, float *    values )  [protected]

void vtkImageMarchingCubes::InitializeLocator (  int    min0, int    max0, int    min1, int    max1 )  [protected]

void vtkImageMarchingCubes::DeleteLocator (    )  [protected]

int* vtkImageMarchingCubes::GetLocatorPointer (  int    cellX, int    cellY, int    edge )  [protected]

---

Member Data Documentation

int vtkImageMarchingCubes::ComputeScalars

Definition at line 150 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::ComputeNormals

Definition at line 151 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::ComputeGradients

Definition at line 152 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::NeedGradients

Definition at line 153 of file vtkImageMarchingCubes.h.

vtkCellArray* vtkImageMarchingCubes::Triangles

Definition at line 155 of file vtkImageMarchingCubes.h.

vtkFloatArray* vtkImageMarchingCubes::Scalars

Definition at line 156 of file vtkImageMarchingCubes.h.

vtkPoints* vtkImageMarchingCubes::Points

Definition at line 157 of file vtkImageMarchingCubes.h.

vtkFloatArray* vtkImageMarchingCubes::Normals

Definition at line 158 of file vtkImageMarchingCubes.h.

vtkFloatArray* vtkImageMarchingCubes::Gradients

Definition at line 159 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::NumberOfSlicesPerChunk [protected]

Definition at line 179 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::InputMemoryLimit [protected]

Definition at line 180 of file vtkImageMarchingCubes.h.

vtkContourValues* vtkImageMarchingCubes::ContourValues [protected]

Definition at line 182 of file vtkImageMarchingCubes.h.

int* vtkImageMarchingCubes::LocatorPointIds [protected]

Definition at line 184 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::LocatorDimX [protected]

Definition at line 185 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::LocatorDimY [protected]

Definition at line 186 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::LocatorMinX [protected]

Definition at line 187 of file vtkImageMarchingCubes.h.

int vtkImageMarchingCubes::LocatorMinY [protected]

Definition at line 188 of file vtkImageMarchingCubes.h.

---

The documentation for this class was generated from the following file:

• Patented/vtkImageMarchingCubes.h

---
