vtkInteractorStyleSwitch Class Reference

class to swap between interactory styles. More...

#include <vtkInteractorStyleSwitch.h>

Inheritance diagram for vtkInteractorStyleSwitch:

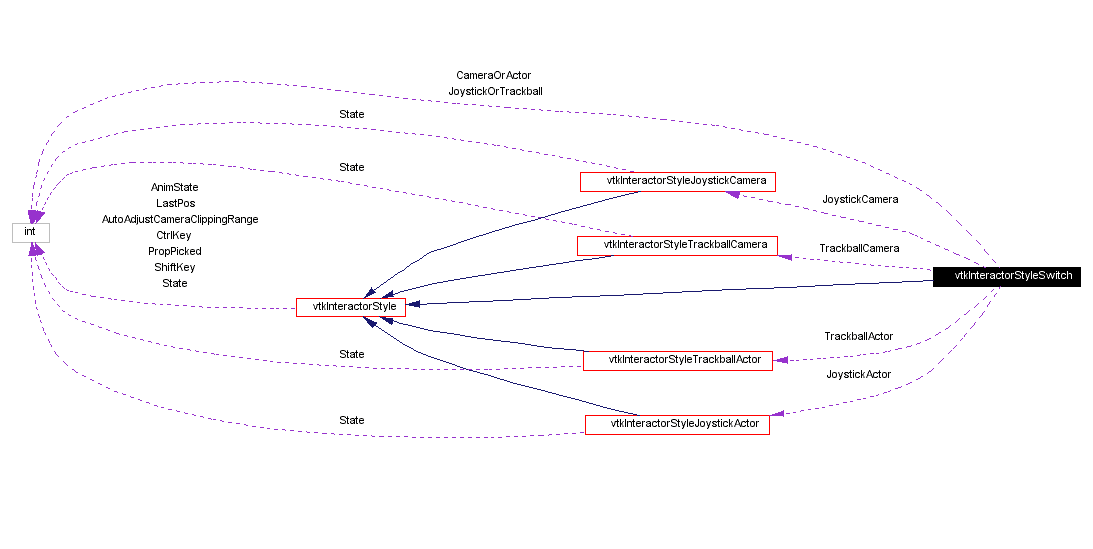

[legend]Collaboration diagram for vtkInteractorStyleSwitch:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	SetInteractor (vtkRenderWindowInteractor *iren)
void	OnTimer ()
void	SetAutoAdjustCameraClippingRange (int value)
void	OnLeftButtonDown (int ctrl, int shift, int x, int y)
void	OnLeftButtonUp (int ctrl, int shift, int x, int y)
void	OnMiddleButtonDown (int ctrl, int shift, int x, int y)
void	OnMiddleButtonUp (int ctrl, int shift, int x, int y)
void	OnRightButtonDown (int ctrl, int shift, int x, int y)
void	OnRightButtonUp (int ctrl, int shift, int x, int y)
void	OnMouseMove (int ctrl, int shift, int x, int y)
void	OnChar (int ctrl, int shift, char keycode, int repeatcount)
Static Public Methods
vtkInteractorStyleSwitch *	New ()
int	IsTypeOf (const char *type)
vtkInteractorStyleSwitch *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkInteractorStyleSwitch ()
	~vtkInteractorStyleSwitch ()
Protected Attributes
vtkInteractorStyleJoystickActor *	JoystickActor
vtkInteractorStyleJoystickCamera *	JoystickCamera
vtkInteractorStyleTrackballActor *	TrackballActor
vtkInteractorStyleTrackballCamera *	TrackballCamera
int	JoystickOrTrackball
int	CameraOrActor

---

Detailed Description

class to swap between interactory styles.

Date:

2001/11/16 16:36:14

Revision:

1.11

The class vtkInteractorStyleSwitch allows handles interactively switching between four interactor styles -- joystick actor, joystick camera, trackball actor, and trackball camera. Type 'j' or 't' to select joystick or trackball, and type 'c' or 'a' to select camera or actor. The default interactor style is joystick camera.

See also:

vtkInteractorStyleJoystickActor vtkInteractorStyleJoystickCamera vtkInteractorStyleTrackballActor vtkInteractorStyleTrackballCamera

Events:

vtkCommand::LeftButtonReleaseEvent vtkCommand::RightButtonReleaseEvent vtkCommand::RightButtonPressEvent vtkCommand::MiddleButtonPressEvent vtkCommand::MiddleButtonReleaseEvent vtkCommand::LeftButtonPressEvent

Tests:

vtkInteractorStyleSwitch (Tests)

Definition at line 76 of file vtkInteractorStyleSwitch.h.

---

Constructor & Destructor Documentation

vtkInteractorStyleSwitch::vtkInteractorStyleSwitch (    )  [protected]

vtkInteractorStyleSwitch::~vtkInteractorStyleSwitch (    )  [protected]

---

Member Function Documentation

vtkInteractorStyleSwitch* vtkInteractorStyleSwitch::New (    )  [static]

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers. Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

virtual const char* vtkInteractorStyleSwitch::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

int vtkInteractorStyleSwitch::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

virtual int vtkInteractorStyleSwitch::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

vtkInteractorStyleSwitch* vtkInteractorStyleSwitch::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnLeftButtonDown (  int    ctrl, int    shift, int    X, int    Y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnLeftButtonUp (  int    ctrl, int    shift, int    X, int    Y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnMiddleButtonDown (  int    ctrl, int    shift, int    X, int    Y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnMiddleButtonUp (  int    ctrl, int    shift, int    X, int    Y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnRightButtonDown (  int    ctrl, int    shift, int    X, int    Y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnRightButtonUp (  int    ctrl, int    shift, int    X, int    Y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnMouseMove (  int    ctrl, int    shift, int    X, int    Y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::OnChar (  int    ctrl, int    shift, char    keycode, int    repeatcount )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. The correct subclass method is called depending on the current mode (trackball or joystick, camera or actor). Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::SetInteractor (  vtkRenderWindowInteractor *    iren )  [virtual]

The sub styles need the interactor too. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleSwitch::OnTimer (  void    )  [virtual]

OnTimer calls RotateCamera, RotateActor etc which should be overridden by style subclasses. Reimplemented from vtkInteractorStyle. Reimplemented in vtkInteractorStyleUser.

void vtkInteractorStyleSwitch::SetAutoAdjustCameraClippingRange (  int    value )  [virtual]

We must override this method in order to pass the setting down to the underlying styles Reimplemented from vtkInteractorStyle.

---

Member Data Documentation

vtkInteractorStyleJoystickActor* vtkInteractorStyleSwitch::JoystickActor [protected]

Definition at line 109 of file vtkInteractorStyleSwitch.h.

vtkInteractorStyleJoystickCamera* vtkInteractorStyleSwitch::JoystickCamera [protected]

Definition at line 110 of file vtkInteractorStyleSwitch.h.

vtkInteractorStyleTrackballActor* vtkInteractorStyleSwitch::TrackballActor [protected]

Definition at line 111 of file vtkInteractorStyleSwitch.h.

vtkInteractorStyleTrackballCamera* vtkInteractorStyleSwitch::TrackballCamera [protected]

Definition at line 112 of file vtkInteractorStyleSwitch.h.

int vtkInteractorStyleSwitch::JoystickOrTrackball [protected]

Definition at line 114 of file vtkInteractorStyleSwitch.h.

int vtkInteractorStyleSwitch::CameraOrActor [protected]

Definition at line 115 of file vtkInteractorStyleSwitch.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkInteractorStyleSwitch.h

---
