vtkPOPReader Class Reference

read POP data files. More...

#include <vtkPOPReader.h>

Inheritance diagram for vtkPOPReader:

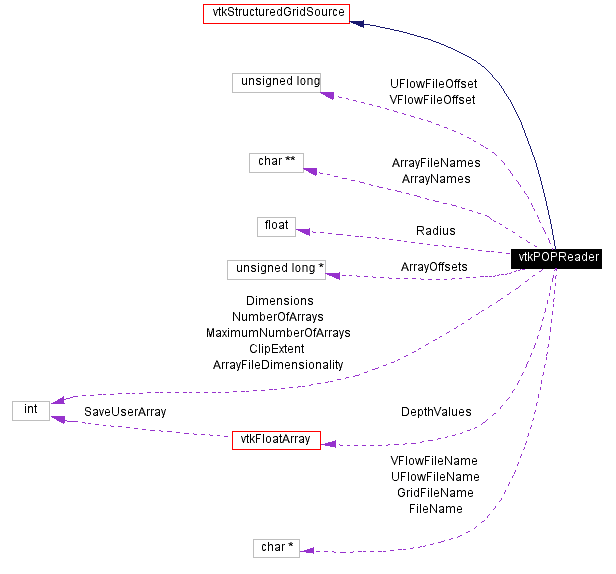

[legend]Collaboration diagram for vtkPOPReader:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual int *	GetDimensions ()
virtual void	GetDimensions (int &, int &)
virtual void	GetDimensions (int[2])

virtual char *	GetGridFileName ()

virtual char *	GetUFlowFileName ()
virtual char *	GetVFlowFileName ()

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual void	SetRadius (float)
virtual float	GetRadius ()

virtual void	SetClipExtent (int, int, int, int, int, int)
virtual void	SetClipExtent (int[6])
virtual int *	GetClipExtent ()
virtual void	GetClipExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetClipExtent (int[6])
Static Public Methods
vtkPOPReader *	New ()
int	IsTypeOf (const char *type)
vtkPOPReader *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkPOPReader ()
	~vtkPOPReader ()
	vtkPOPReader (const vtkPOPReader &)
void	operator= (const vtkPOPReader &)
void	ExecuteInformation ()
void	Execute ()
void	ReadInformationFile ()
vtkPoints *	ReadPoints (vtkImageData *image)
void	ReadFlow ()
vtkPoints *	GeneratePoints ()
virtual void	SetGridFileName (const char *)
void	SetGridName (char *name)
void	DeleteArrays ()
void	AddArray (char arrayName, char fileName, unsigned long offset)
void	AddArrayName (char arrayName, char fileName, unsigned long offset)
virtual void	SetUFlowFileName (const char *)
virtual void	SetVFlowFileName (const char *)
int	IsFileName (char *name)
char *	MakeFileName (char *name)
Protected Attributes
char *	FileName
int	Dimensions [2]
char *	GridFileName
float	Radius
vtkFloatArray *	DepthValues
int	NumberOfArrays
int	MaximumNumberOfArrays
char **	ArrayNames
char **	ArrayFileNames
unsigned long *	ArrayOffsets
int	ArrayFileDimensionality
char *	UFlowFileName
unsigned long	UFlowFileOffset
char *	VFlowFileName
unsigned long	VFlowFileOffset
int	ClipExtent [6]

Detailed Description

read POP data files.

Date:: 2001/10/31 16:36:13

Revision:: 1.2

vtkPOPReader Just converts from images to a structured grid for now.

Definition at line 56 of file vtkPOPReader.h.

Constructor & Destructor Documentation

vtkPOPReader::vtkPOPReader ( ) [protected]

vtkPOPReader::~vtkPOPReader ( ) [protected]

vtkPOPReader::vtkPOPReader ( const vtkPOPReader & ) [inline, protected]

Definition at line 102 of file vtkPOPReader.h.

Member Function Documentation

vtkPOPReader* vtkPOPReader::New ( ) [static]

Instantiate object with no start, end, or progress methods.
Reimplemented from vtkStructuredGridSource.

virtual const char* vtkPOPReader::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStructuredGridSource.

int vtkPOPReader::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStructuredGridSource.

virtual int vtkPOPReader::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStructuredGridSource.

vtkPOPReader* vtkPOPReader::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStructuredGridSource.

void vtkPOPReader::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkSource.

virtual int* vtkPOPReader::GetDimensions ( ) [virtual]

This is the longitude and latitude dimensions of the structured grid.

virtual void vtkPOPReader::GetDimensions ( int & ,

int &

) [virtual]

This is the longitude and latitude dimensions of the structured grid.

virtual void vtkPOPReader::GetDimensions ( int [2] ) [virtual]

This is the longitude and latitude dimensions of the structured grid.

virtual char* vtkPOPReader::GetGridFileName ( ) [virtual]

This file contains the latitude and longitude of the grid. It must be double with no header.

virtual char* vtkPOPReader::GetUFlowFileName ( ) [virtual]

These files contains the u and v components of the flow.

virtual char* vtkPOPReader::GetVFlowFileName ( ) [virtual]

These files contains the u and v components of the flow.

virtual void vtkPOPReader::SetFileName ( const char * ) [virtual]

This file contains information about all the files.

virtual char* vtkPOPReader::GetFileName ( ) [virtual]

This file contains information about all the files.

virtual void vtkPOPReader::SetRadius ( float ) [virtual]

Radius of the earth.

virtual float vtkPOPReader::GetRadius ( ) [virtual]

Radius of the earth.

virtual void vtkPOPReader::SetClipExtent ( int ,

int ,

int ,

int ,

int ,

int

) [virtual]

Because the data can be so large, here is an option to clip while reading.

virtual void vtkPOPReader::SetClipExtent ( int [6] ) [virtual]

Because the data can be so large, here is an option to clip while reading.

virtual int* vtkPOPReader::GetClipExtent ( ) [virtual]

Because the data can be so large, here is an option to clip while reading.

virtual void vtkPOPReader::GetClipExtent ( int & ,

int & ,

int & ,

int & ,

int & ,

int &

) [virtual]

Because the data can be so large, here is an option to clip while reading.

virtual void vtkPOPReader::GetClipExtent ( int [6] ) [virtual]

Because the data can be so large, here is an option to clip while reading.

void vtkPOPReader::operator= ( const vtkPOPReader & ) [inline, protected]

Definition at line 103 of file vtkPOPReader.h.

void vtkPOPReader::ExecuteInformation ( ) [protected, virtual]

Reimplemented from vtkSource.

void vtkPOPReader::Execute ( ) [protected, virtual]

This method is the old style execute method
Reimplemented from vtkSource.

void vtkPOPReader::ReadInformationFile ( ) [protected]

vtkPoints* vtkPOPReader::ReadPoints ( vtkImageData * image ) [protected]

void vtkPOPReader::ReadFlow ( ) [protected]

vtkPoints* vtkPOPReader::GeneratePoints ( ) [protected]

virtual void vtkPOPReader::SetGridFileName ( const char * ) [protected, virtual]

void vtkPOPReader::SetGridName ( char * name ) [protected]

void vtkPOPReader::DeleteArrays ( ) [protected]

void vtkPOPReader::AddArray ( char * arrayName,

char * fileName,

unsigned long offset

) [protected]

void vtkPOPReader::AddArrayName ( char * arrayName,

char * fileName,

unsigned long offset

) [protected]

virtual void vtkPOPReader::SetUFlowFileName ( const char * ) [protected, virtual]

virtual void vtkPOPReader::SetVFlowFileName ( const char * ) [protected, virtual]

int vtkPOPReader::IsFileName ( char * name ) [protected]

char* vtkPOPReader::MakeFileName ( char * name ) [protected]

Member Data Documentation

char* vtkPOPReader::FileName [protected]

Definition at line 114 of file vtkPOPReader.h.

int vtkPOPReader::Dimensions[2] [protected]

Definition at line 116 of file vtkPOPReader.h.

char* vtkPOPReader::GridFileName [protected]

Definition at line 119 of file vtkPOPReader.h.

float vtkPOPReader::Radius [protected]

Definition at line 121 of file vtkPOPReader.h.

vtkFloatArray* vtkPOPReader::DepthValues [protected]

Definition at line 122 of file vtkPOPReader.h.

int vtkPOPReader::NumberOfArrays [protected]

Definition at line 127 of file vtkPOPReader.h.

int vtkPOPReader::MaximumNumberOfArrays [protected]

Definition at line 128 of file vtkPOPReader.h.

char** vtkPOPReader::ArrayNames [protected]

Definition at line 129 of file vtkPOPReader.h.

char** vtkPOPReader::ArrayFileNames [protected]

Definition at line 130 of file vtkPOPReader.h.

unsigned long* vtkPOPReader::ArrayOffsets [protected]

Definition at line 131 of file vtkPOPReader.h.

int vtkPOPReader::ArrayFileDimensionality [protected]

Definition at line 132 of file vtkPOPReader.h.

char* vtkPOPReader::UFlowFileName [protected]

Definition at line 135 of file vtkPOPReader.h.

unsigned long vtkPOPReader::UFlowFileOffset [protected]

Definition at line 137 of file vtkPOPReader.h.

char* vtkPOPReader::VFlowFileName [protected]

Definition at line 138 of file vtkPOPReader.h.

unsigned long vtkPOPReader::VFlowFileOffset [protected]

Definition at line 140 of file vtkPOPReader.h.

int vtkPOPReader::ClipExtent[6] [protected]

Definition at line 146 of file vtkPOPReader.h.

The documentation for this class was generated from the following file:

Parallel/vtkPOPReader.h
