vtkPolygon Class Reference

a cell that represents an n-sided polygon. More...

#include <vtkPolygon.h>

Inheritance diagram for vtkPolygon:

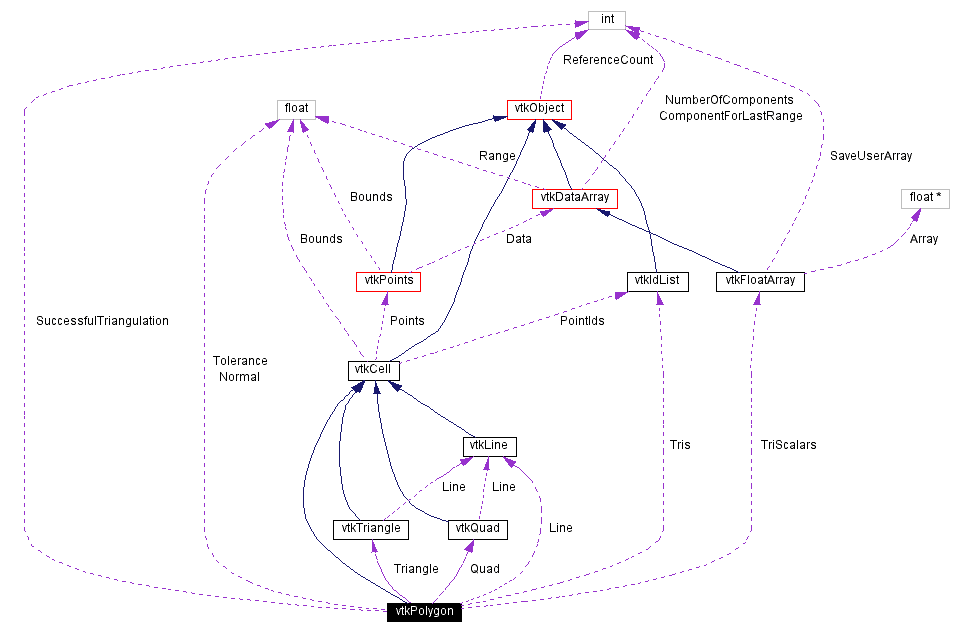

[legend]Collaboration diagram for vtkPolygon:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	ComputeWeights (float x[3], float *weights)
int	Triangulate (vtkIdList *outTris)

vtkCell *	MakeObject ()
int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int edgeId)
vtkCell *	GetFace (int)
int	CellBoundary (int subId, float pcoords[3], vtkIdList *pts)
void	Contour (float value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
void	Clip (float value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray tris, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)
int	EvaluatePosition (float x[3], float closestPoint, int &subId, float pcoords[3], float &dist2, float weights)
void	EvaluateLocation (int &subId, float pcoords[3], float x[3], float *weights)
int	IntersectWithLine (float p1[3], float p2[3], float tol, float &t, float x[3], float pcoords[3], int &subId)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, float pcoords[3], float values, int dim, float derivs)

int	ParameterizePolygon (float p0[3], float p10[3], float &l10, float p20[3], float &l20, float n[3])
Static Public Methods
vtkPolygon *	New ()
int	IsTypeOf (const char *type)
vtkPolygon *	SafeDownCast (vtkObject *o)
void	ComputeNormal (int numPts, float *pts, float n[3])

void	ComputeNormal (vtkPoints p, int numPts, vtkIdType pts, float n[3])
void	ComputeNormal (vtkPoints *p, float n[3])

int	PointInPolygon (float x[3], int numPts, float *pts, float bounds[6], float n[3])

int	IntersectPolygonWithPolygon (int npts, float pts, float bounds[6], int npts2, float pts2, float bounds2[3], float tol, float x[3])
Protected Methods
	vtkPolygon ()
	~vtkPolygon ()
int	EarCutTriangulation ()
Protected Attributes
float	Tolerance
int	SuccessfulTriangulation
float	Normal [3]
vtkIdList *	Tris
vtkTriangle *	Triangle
vtkQuad *	Quad
vtkFloatArray *	TriScalars
vtkLine *	Line

Detailed Description

a cell that represents an n-sided polygon.

Date:: 2001/11/13 14:09:28

Revision:: 1.69

vtkPolygon is a concrete implementation of vtkCell to represent a 2D n-sided polygon. The polygons cannot have any internal holes, and cannot self-intersect.

Examples:: vtkPolygon (Examples)

Tests:: vtkPolygon (Tests)

Definition at line 66 of file vtkPolygon.h.

Constructor & Destructor Documentation

vtkPolygon::vtkPolygon ( ) [protected]

vtkPolygon::~vtkPolygon ( ) [protected]

Member Function Documentation

vtkPolygon* vtkPolygon::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

virtual const char* vtkPolygon::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

int vtkPolygon::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

virtual int vtkPolygon::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

vtkPolygon* vtkPolygon::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

vtkCell* vtkPolygon::MakeObject ( ) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkPolygon::GetCellType ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 75 of file vtkPolygon.h.

int vtkPolygon::GetCellDimension ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 76 of file vtkPolygon.h.

int vtkPolygon::GetNumberOfEdges ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 77 of file vtkPolygon.h.

int vtkPolygon::GetNumberOfFaces ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 78 of file vtkPolygon.h.

vtkCell* vtkPolygon::GetEdge ( int edgeId ) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

vtkCell* vtkPolygon::GetFace ( int faceId ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 80 of file vtkPolygon.h.

int vtkPolygon::CellBoundary ( int subId,

float pcoords[3],

vtkIdList * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkPolygon::Contour ( float value,

vtkDataArray * cellScalars,

vtkPointLocator * locator,

vtkCellArray * verts,

vtkCellArray * lines,

vtkCellArray * polys,

vtkPointData * inPd,

vtkPointData * outPd,

vtkCellData * inCd,

vtkIdType cellId,

vtkCellData * outCd

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkPolygon::Clip ( float value,

vtkDataArray * cellScalars,

vtkPointLocator * locator,

vtkCellArray * tris,

vtkPointData * inPd,

vtkPointData * outPd,

vtkCellData * inCd,

vtkIdType cellId,

vtkCellData * outCd,

int insideOut

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkPolygon::EvaluatePosition ( float x[3],

float * closestPoint,

int & subId,

float pcoords[3],

float & dist2,

float * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkPolygon::EvaluateLocation ( int & subId,

float pcoords[3],

float x[3],

float * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkPolygon::IntersectWithLine ( float p1[3],

float p2[3],

float tol,

float & t,

float x[3],

float pcoords[3],

int & subId

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkPolygon::Triangulate ( int index,

vtkIdList * ptIds,

vtkPoints * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkPolygon::Derivatives ( int subId,

float pcoords[3],

float * values,

int dim,

float * derivs

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkPolygon::ComputeNormal ( vtkPoints * p,

int numPts,

vtkIdType * pts,

float n[3]

) [static]

Polygon specific

void vtkPolygon::ComputeNormal ( vtkPoints * p,

float n[3]

) [static]

Polygon specific

void vtkPolygon::ComputeNormal ( int numPts,

float * pts,

float n[3]

) [static]

Compute the polygon normal from an array of points. This version assumes that the polygon is convex, and looks for the first valid normal.

void vtkPolygon::ComputeWeights ( float x[3],

float * weights

)

Compute interpolation weights using 1/r**2 normalized sum.

int vtkPolygon::ParameterizePolygon ( float p0[3],

float p10[3],

float & l10,

float p20[3],

float & l20,

float n[3]

)

Create a local s-t coordinate system for a polygon. The point p0 is the origin of the local system, p10 is s-axis vector, and p20 is the t-axis vector. (These are expressed in the modeling coordinate system and are vectors of dimension [3].) The values l20 and l20 are the lengths of the vectors p10 and p20, and n is the polygon normal.

int vtkPolygon::PointInPolygon ( float x[3],

int numPts,

float * pts,

float bounds[6],

float n[3]

) [static]

Determine whether point is inside polygon. Function uses ray-casting to determine if point is inside polygon. Works for arbitrary polygon shape (e.g., non-convex). Returns 0 if point is not in polygon; 1 if it is. Can also return -1 to indicate degenerate polygon.

int vtkPolygon::Triangulate ( vtkIdList * outTris )

Triangulate this polygon. The user must provide the vtkIdList outTris. On output, the outTris list contains the ids of the points defining the triangulation. The ids are ordered into groups of three: each three-group defines one triangle.

int vtkPolygon::IntersectPolygonWithPolygon ( int npts,

float * pts,

float bounds[6],

int npts2,

float * pts2,

float bounds2[3],

float tol,

float x[3]

) [static]

Method intersects two polygons. You must supply the number of points and point coordinates (npts, *pts) and the bounding box (bounds) of the two polygons. Also supply a tolerance squared for controlling error. The method returns 1 if there is an intersection, and 0 if not. A single point of intersection x[3] is also returned if there is an intersection.

int vtkPolygon::EarCutTriangulation ( ) [protected]

A fast triangulation method. Uses recursive divide and conquer based on plane splitting to reduce loop into triangles. The cell (e.g., triangle) is presumed properly initialized (i.e., Points and PointIds).

Member Data Documentation

float vtkPolygon::Tolerance [protected]

Definition at line 163 of file vtkPolygon.h.

int vtkPolygon::SuccessfulTriangulation [protected]

Definition at line 164 of file vtkPolygon.h.

float vtkPolygon::Normal[3] [protected]

Definition at line 165 of file vtkPolygon.h.

vtkIdList* vtkPolygon::Tris [protected]

Definition at line 166 of file vtkPolygon.h.

vtkTriangle* vtkPolygon::Triangle [protected]

Definition at line 167 of file vtkPolygon.h.

vtkQuad* vtkPolygon::Quad [protected]

Definition at line 168 of file vtkPolygon.h.

vtkFloatArray* vtkPolygon::TriScalars [protected]

Definition at line 169 of file vtkPolygon.h.

vtkLine* vtkPolygon::Line [protected]

Definition at line 170 of file vtkPolygon.h.

The documentation for this class was generated from the following file:

Common/vtkPolygon.h
