vtkImageReslice Class Reference

Reslices a volume along a new set of axes. More...

#include <vtkImageReslice.h>

Inheritance diagram for vtkImageReslice:

Inheritance graph
[legend]

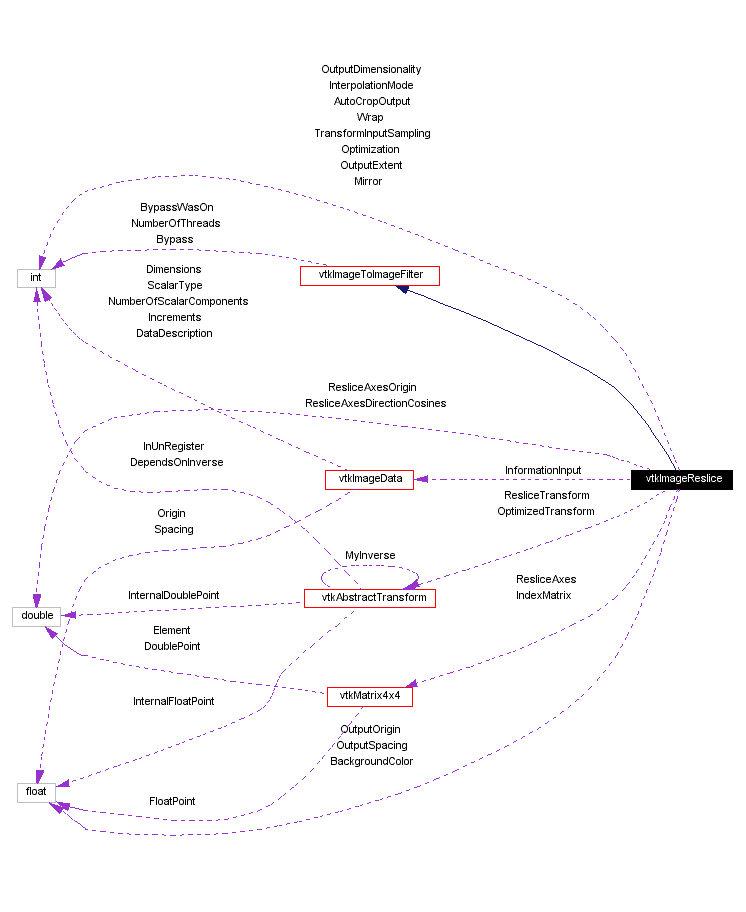

Collaboration diagram for vtkImageReslice:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
unsigned long int GetMTime ()
virtual void SetResliceAxes (vtkMatrix4x4 *)
virtual vtkMatrix4x4 * GetResliceAxes ()
void SetResliceAxesDirectionCosines (double x0, double x1, double x2, double y0, double y1, double y2, double z0, double z1, double z2)
void SetResliceAxesDirectionCosines (const double x[3], const double y[3], const double z[3])
void SetResliceAxesDirectionCosines (const double xyz[9])
void GetResliceAxesDirectionCosines (double x[3], double y[3], double z[3])
void GetResliceAxesDirectionCosines (double xyz[9])
double * GetResliceAxesDirectionCosines ()
void SetResliceAxesOrigin (double x, double y, double z)
void SetResliceAxesOrigin (const double xyz[3])
void GetResliceAxesOrigin (double xyz[3])
double * GetResliceAxesOrigin ()
virtual void SetResliceTransform (vtkAbstractTransform *)
virtual vtkAbstractTransform * GetResliceTransform ()
virtual void SetInformationInput (vtkImageData *)
virtual vtkImageData * GetInformationInput ()
virtual void SetTransformInputSampling (int)
virtual void TransformInputSamplingOn ()
virtual void TransformInputSamplingOff ()
virtual int GetTransformInputSampling ()
virtual void SetAutoCropOutput (int)
virtual void AutoCropOutputOn ()
virtual void AutoCropOutputOff ()
virtual int GetAutoCropOutput ()
virtual void SetWrap (int)
virtual int GetWrap ()
virtual void WrapOn ()
virtual void WrapOff ()
virtual void SetMirror (int)
virtual int GetMirror ()
virtual void MirrorOn ()
virtual void MirrorOff ()
virtual void SetInterpolationMode (int)
virtual int GetInterpolationMode ()
void SetInterpolationModeToNearestNeighbor ()
void SetInterpolationModeToLinear ()
void SetInterpolationModeToCubic ()
const char * GetInterpolationModeAsString ()
virtual void SetOptimization (int)
virtual int GetOptimization ()
virtual void OptimizationOn ()
virtual void OptimizationOff ()
virtual void SetBackgroundColor (float, float, float, float)
virtual void SetBackgroundColor (float[4])
virtual float * GetBackgroundColor ()
virtual void GetBackgroundColor (float &, float &, float &, float &)
virtual void GetBackgroundColor (float[4])
void SetBackgroundLevel (float v)
float GetBackgroundLevel ()
virtual void SetOutputSpacing (float, float, float)
virtual void SetOutputSpacing (float[3])
virtual float * GetOutputSpacing ()
virtual void GetOutputSpacing (float &, float &, float &)
virtual void GetOutputSpacing (float[3])
void SetOutputSpacingToDefault ()
virtual void SetOutputOrigin (float, float, float)
virtual void SetOutputOrigin (float[3])
virtual float * GetOutputOrigin ()
virtual void GetOutputOrigin (float &, float &, float &)
virtual void GetOutputOrigin (float[3])
void SetOutputOriginToDefault ()
virtual void SetOutputExtent (int, int, int, int, int, int)
virtual void SetOutputExtent (int[6])
virtual int * GetOutputExtent ()
virtual void GetOutputExtent (int &, int &, int &, int &, int &, int &)
virtual void GetOutputExtent (int[6])
void SetOutputExtentToDefault ()
virtual void SetOutputDimensionality (int)
virtual int GetOutputDimensionality ()
void SetInterpolate (int t)
void InterpolateOn ()
void InterpolateOff ()
int GetInterpolate ()
void SetStencil (vtkImageStencilData *stencil)
vtkImageStencilData * GetStencil ()

Static Public Methods

vtkImageReslice * New ()
int IsTypeOf (const char *type)
vtkImageReslice * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageReslice ()
 ~vtkImageReslice ()
void GetAutoCroppedOutputBounds (vtkImageData *input, float bounds[6])
void ExecuteInformation (vtkImageData *input, vtkImageData *output)
void ExecuteInformation ()
void ComputeInputUpdateExtents (vtkDataObject *output)
void ComputeInputUpdateExtent (int inExt[6], int outExt[6])
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)
vtkMatrix4x4 * GetIndexMatrix ()
vtkAbstractTransform * GetOptimizedTransform ()
void OptimizedComputeInputUpdateExtent (int inExt[6], int outExt[6])
void OptimizedThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)

Protected Attributes

vtkMatrix4x4 * ResliceAxes
double ResliceAxesDirectionCosines [9]
double ResliceAxesOrigin [3]
vtkAbstractTransform * ResliceTransform
vtkImageData * InformationInput
int Wrap
int Mirror
int InterpolationMode
int Optimization
float BackgroundColor [4]
float OutputOrigin [3]
float OutputSpacing [3]
int OutputExtent [6]
int OutputDimensionality
int TransformInputSampling
int AutoCropOutput
vtkMatrix4x4 * IndexMatrix
vtkAbstractTransform * OptimizedTransform

Detailed Description

Reslices a volume along a new set of axes.

Date:
2001/10/11 13:37:52
Revision:
1.5
Thanks:
Thanks to David G. Gobbi who developed this class.
vtkImageReslice is the swiss-army-knife of image geometry filters: It can permute, rotate, flip, scale, resample, deform, and pad image data in any combination with reasonably high efficiency. Simple operations such as permutation, resampling and padding are done with similar efficiently to the specialized vtkImagePermute, vtkImageResample, and vtkImagePad filters. There are a number of tasks that vtkImageReslice is well suited for:

1) Application of simple rotations, scales, and translations to an image. It is often a good idea to use vtkImageChangeInformation to center the image first, so that scales and rotations occur around the center rather than around the lower-left corner of the image.

2) Resampling of one data set to match the voxel sampling of a second data set via the SetInformationInput() method, e.g. for the purpose of comparing two images or combining two images. A transformation, either linear or nonlinear, can be applied at the same time via the SetResliceTransform method if the two images are not in the same coordinate space.

3) Extraction of slices from an image volume. The most convenient way to do this is to use SetResliceAxesDirectionCosines() to specify the orientation of the slice. The direction cosines give the x, y, and z axes for the output volume. The method SetOutputDimensionality(2) is used to specify that want to output a slice rather than a volume. The SetResliceAxesOrigin() command is used to provide an (x,y,z) point that the slice will pass through. You can use both the ResliceAxes and the ResliceTransform at the same time, in order to extract slices from a volume that you have applied a transformation to.

Warning:
This filter is very inefficient if the output X dimension is 1.
See also:
vtkAbstractTransform vtkMatrix4x4
Tests:
vtkImageReslice (Tests)

Definition at line 97 of file vtkImageReslice.h.

Constructor & Destructor Documentation

vtkImageReslice::vtkImageReslice (    )  [protected]


vtkImageReslice::~vtkImageReslice (    )  [protected]


Member Function Documentation

vtkImageReslice* vtkImageReslice::New (    )  [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageReslice::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

int vtkImageReslice::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageReslice::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageReslice* vtkImageReslice::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual void vtkImageReslice::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

virtual void vtkImageReslice::SetResliceAxes (  vtkMatrix4x4 *    )  [virtual]


This method is used to set up the axes for the output voxels. The output Spacing, Origin, and Extent specify the locations of the voxels within the coordinate system defined by the axes. The ResliceAxes are used most often to permute the data, e.g. to extract ZY or XZ slices of a volume as 2D XY images.

The first column of the matrix specifies the x-axis vector (the fourth element must be set to zero), the second column specifies the y-axis, and the third column the z-axis. The fourth column is the origin of the axes (the fourth element must be set to one).

An alternative to SetResliceAxes() is to use SetResliceAxesDirectionCosines() to set the directions of the axes and SetResliceAxesOrigin() to set the origin of the axes.

virtual vtkMatrix4x4* vtkImageReslice::GetResliceAxes (    )  [virtual]


This method is used to set up the axes for the output voxels. The output Spacing, Origin, and Extent specify the locations of the voxels within the coordinate system defined by the axes. The ResliceAxes are used most often to permute the data, e.g. to extract ZY or XZ slices of a volume as 2D XY images.

The first column of the matrix specifies the x-axis vector (the fourth element must be set to zero), the second column specifies the y-axis, and the third column the z-axis. The fourth column is the origin of the axes (the fourth element must be set to one).

An alternative to SetResliceAxes() is to use SetResliceAxesDirectionCosines() to set the directions of the axes and SetResliceAxesOrigin() to set the origin of the axes.

void vtkImageReslice::SetResliceAxesDirectionCosines (  double    x0,
double    x1,
double    x2,
double    y0,
double    y1,
double    y2,
double    z0,
double    z1,
double    z2
)


Specify the direction cosines for the ResliceAxes (i.e. the first three elements of each of the first three columns of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create a new matrix if none exists.

void vtkImageReslice::SetResliceAxesDirectionCosines (  const double    x[3],
const double    y[3],
const double    z[3]
)  [inline]


Specify the direction cosines for the ResliceAxes (i.e. the first three elements of each of the first three columns of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create a new matrix if none exists.

Definition at line 130 of file vtkImageReslice.h.

void vtkImageReslice::SetResliceAxesDirectionCosines (  const double    xyz[9] )  [inline]


Specify the direction cosines for the ResliceAxes (i.e. the first three elements of each of the first three columns of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create a new matrix if none exists.

Definition at line 136 of file vtkImageReslice.h.

void vtkImageReslice::GetResliceAxesDirectionCosines (  double    x[3],
double    y[3],
double    z[3]
)


Specify the direction cosines for the ResliceAxes (i.e. the first three elements of each of the first three columns of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create a new matrix if none exists.

void vtkImageReslice::GetResliceAxesDirectionCosines (  double    xyz[9] )  [inline]


Specify the direction cosines for the ResliceAxes (i.e. the first three elements of each of the first three columns of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create a new matrix if none exists.

Definition at line 141 of file vtkImageReslice.h.

double* vtkImageReslice::GetResliceAxesDirectionCosines (    )  [inline]


Specify the direction cosines for the ResliceAxes (i.e. the first three elements of each of the first three columns of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create a new matrix if none exists.

Definition at line 143 of file vtkImageReslice.h.

void vtkImageReslice::SetResliceAxesOrigin (  double    x,
double    y,
double    z
)


Specify the origin for the ResliceAxes (i.e. the first three elements of the final column of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create new matrix if none exists.

void vtkImageReslice::SetResliceAxesOrigin (  const double    xyz[3] )  [inline]


Specify the origin for the ResliceAxes (i.e. the first three elements of the final column of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create new matrix if none exists.

Definition at line 153 of file vtkImageReslice.h.

void vtkImageReslice::GetResliceAxesOrigin (  double    xyz[3] )


Specify the origin for the ResliceAxes (i.e. the first three elements of the final column of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create new matrix if none exists.

double* vtkImageReslice::GetResliceAxesOrigin (    )  [inline]


Specify the origin for the ResliceAxes (i.e. the first three elements of the final column of the ResliceAxes matrix). This will modify the current ResliceAxes matrix, or create new matrix if none exists.

Definition at line 156 of file vtkImageReslice.h.

virtual void vtkImageReslice::SetResliceTransform (  vtkAbstractTransform *    )  [virtual]


Set a transform to be applied to the resampling grid that has been defined via the ResliceAxes and the output Origin, Spacing and Extent. Note that applying a transform to the resampling grid (which lies in the output coordinate system) is equivalent to applying the inverse of that transform to the input volume. Nonlinear transforms such as vtkGridTransform and vtkThinPlateSplineTransform can be used here.

virtual vtkAbstractTransform* vtkImageReslice::GetResliceTransform (    )  [virtual]


Set a transform to be applied to the resampling grid that has been defined via the ResliceAxes and the output Origin, Spacing and Extent. Note that applying a transform to the resampling grid (which lies in the output coordinate system) is equivalent to applying the inverse of that transform to the input volume. Nonlinear transforms such as vtkGridTransform and vtkThinPlateSplineTransform can be used here.

virtual void vtkImageReslice::SetInformationInput (  vtkImageData *    )  [virtual]


Set a vtkImageData from which the default Spacing, Origin, and WholeExtent of the output will be copied. The spacing, origin, and extent will be permuted according to the ResliceAxes. Any values set via SetOutputSpacing, SetOutputOrigin, and SetOutputExtent will override these values. By default, the Spacing, Origin, and WholeExtent of the Input are used.

virtual vtkImageData* vtkImageReslice::GetInformationInput (    )  [virtual]


Set a vtkImageData from which the default Spacing, Origin, and WholeExtent of the output will be copied. The spacing, origin, and extent will be permuted according to the ResliceAxes. Any values set via SetOutputSpacing, SetOutputOrigin, and SetOutputExtent will override these values. By default, the Spacing, Origin, and WholeExtent of the Input are used.

virtual void vtkImageReslice::SetTransformInputSampling (  int    )  [virtual]


Specify whether to transform the spacing, origin and extent of the Input (or the InformationInput) according to the direction cosines and origin of the ResliceAxes before applying them as the default output spacing, origin and extent. Default: On.

virtual void vtkImageReslice::TransformInputSamplingOn (    )  [virtual]


Specify whether to transform the spacing, origin and extent of the Input (or the InformationInput) according to the direction cosines and origin of the ResliceAxes before applying them as the default output spacing, origin and extent. Default: On.

virtual void vtkImageReslice::TransformInputSamplingOff (    )  [virtual]


Specify whether to transform the spacing, origin and extent of the Input (or the InformationInput) according to the direction cosines and origin of the ResliceAxes before applying them as the default output spacing, origin and extent. Default: On.

virtual int vtkImageReslice::GetTransformInputSampling (    )  [virtual]


Specify whether to transform the spacing, origin and extent of the Input (or the InformationInput) according to the direction cosines and origin of the ResliceAxes before applying them as the default output spacing, origin and extent. Default: On.

virtual void vtkImageReslice::SetAutoCropOutput (  int    )  [virtual]


Turn this on if you want to guarantee that the extent of the output will be large enough to ensure that none of the data will be cropped.

virtual void vtkImageReslice::AutoCropOutputOn (    )  [virtual]


Turn this on if you want to guarantee that the extent of the output will be large enough to ensure that none of the data will be cropped.

virtual void vtkImageReslice::AutoCropOutputOff (    )  [virtual]


Turn this on if you want to guarantee that the extent of the output will be large enough to ensure that none of the data will be cropped.

virtual int vtkImageReslice::GetAutoCropOutput (    )  [virtual]


Turn this on if you want to guarantee that the extent of the output will be large enough to ensure that none of the data will be cropped.

virtual void vtkImageReslice::SetWrap (  int    )  [virtual]


Turn on wrap-pad feature (default: off).

virtual int vtkImageReslice::GetWrap (    )  [virtual]


Turn on wrap-pad feature (default: off).

virtual void vtkImageReslice::WrapOn (    )  [virtual]


Turn on wrap-pad feature (default: off).

virtual void vtkImageReslice::WrapOff (    )  [virtual]


Turn on wrap-pad feature (default: off).

virtual void vtkImageReslice::SetMirror (  int    )  [virtual]


Turn on mirror-pad feature (default: off). This will override the wrap-pad.

virtual int vtkImageReslice::GetMirror (    )  [virtual]


Turn on mirror-pad feature (default: off). This will override the wrap-pad.

virtual void vtkImageReslice::MirrorOn (    )  [virtual]


Turn on mirror-pad feature (default: off). This will override the wrap-pad.

virtual void vtkImageReslice::MirrorOff (    )  [virtual]


Turn on mirror-pad feature (default: off). This will override the wrap-pad.

virtual void vtkImageReslice::SetInterpolationMode (  int    )  [virtual]


Set interpolation mode (default: nearest neighbor).

virtual int vtkImageReslice::GetInterpolationMode (    )  [virtual]


Set interpolation mode (default: nearest neighbor).

void vtkImageReslice::SetInterpolationModeToNearestNeighbor (    )  [inline]


Set interpolation mode (default: nearest neighbor).

Definition at line 221 of file vtkImageReslice.h.

void vtkImageReslice::SetInterpolationModeToLinear (    )  [inline]


Set interpolation mode (default: nearest neighbor).

Definition at line 223 of file vtkImageReslice.h.

void vtkImageReslice::SetInterpolationModeToCubic (    )  [inline]


Set interpolation mode (default: nearest neighbor).

Definition at line 225 of file vtkImageReslice.h.

const char * vtkImageReslice::GetInterpolationModeAsString (    )  [inline]


Set interpolation mode (default: nearest neighbor).

Definition at line 366 of file vtkImageReslice.h.

virtual void vtkImageReslice::SetOptimization (  int    )  [virtual]


Turn on and off optimizations (default on, they should only be turned off for testing purposes).

virtual int vtkImageReslice::GetOptimization (    )  [virtual]


Turn on and off optimizations (default on, they should only be turned off for testing purposes).

virtual void vtkImageReslice::OptimizationOn (    )  [virtual]


Turn on and off optimizations (default on, they should only be turned off for testing purposes).

virtual void vtkImageReslice::OptimizationOff (    )  [virtual]


Turn on and off optimizations (default on, they should only be turned off for testing purposes).

virtual void vtkImageReslice::SetBackgroundColor (  float   ,
float   ,
float   ,
float
)  [virtual]


Set the background color (for multi-component images).

virtual void vtkImageReslice::SetBackgroundColor (  float   [4] )  [virtual]


Set the background color (for multi-component images).

virtual float* vtkImageReslice::GetBackgroundColor (    )  [virtual]


Set the background color (for multi-component images).

virtual void vtkImageReslice::GetBackgroundColor (  float &   ,
float &   ,
float &   ,
float &
)  [virtual]


Set the background color (for multi-component images).

virtual void vtkImageReslice::GetBackgroundColor (  float   [4] )  [virtual]


Set the background color (for multi-component images).

void vtkImageReslice::SetBackgroundLevel (  float    v )  [inline]


Set background grey level (for single-component images).

Definition at line 246 of file vtkImageReslice.h.

float vtkImageReslice::GetBackgroundLevel (    )  [inline]


Set background grey level (for single-component images).

Definition at line 247 of file vtkImageReslice.h.

virtual void vtkImageReslice::SetOutputSpacing (  float   ,
float   ,
float
)  [virtual]


Set the voxel spacing for the output data. The default output spacing is the input spacing permuted through the ResliceAxes.

virtual void vtkImageReslice::SetOutputSpacing (  float   [3] )  [virtual]


Set the voxel spacing for the output data. The default output spacing is the input spacing permuted through the ResliceAxes.

virtual float* vtkImageReslice::GetOutputSpacing (    )  [virtual]


Set the voxel spacing for the output data. The default output spacing is the input spacing permuted through the ResliceAxes.

virtual void vtkImageReslice::GetOutputSpacing (  float &   ,
float &   ,
float &
)  [virtual]


Set the voxel spacing for the output data. The default output spacing is the input spacing permuted through the ResliceAxes.

virtual void vtkImageReslice::GetOutputSpacing (  float   [3] )  [virtual]


Set the voxel spacing for the output data. The default output spacing is the input spacing permuted through the ResliceAxes.

void vtkImageReslice::SetOutputSpacingToDefault (    )  [inline]


Set the voxel spacing for the output data. The default output spacing is the input spacing permuted through the ResliceAxes.

Definition at line 255 of file vtkImageReslice.h.

virtual void vtkImageReslice::SetOutputOrigin (  float   ,
float   ,
float
)  [virtual]


Set the origin for the output data. The default output origin is the input origin permuted through the ResliceAxes.

virtual void vtkImageReslice::SetOutputOrigin (  float   [3] )  [virtual]


Set the origin for the output data. The default output origin is the input origin permuted through the ResliceAxes.

virtual float* vtkImageReslice::GetOutputOrigin (    )  [virtual]


Set the origin for the output data. The default output origin is the input origin permuted through the ResliceAxes.

virtual void vtkImageReslice::GetOutputOrigin (  float &   ,
float &   ,
float &
)  [virtual]


Set the origin for the output data. The default output origin is the input origin permuted through the ResliceAxes.

virtual void vtkImageReslice::GetOutputOrigin (  float   [3] )  [virtual]


Set the origin for the output data. The default output origin is the input origin permuted through the ResliceAxes.

void vtkImageReslice::SetOutputOriginToDefault (    )  [inline]


Set the origin for the output data. The default output origin is the input origin permuted through the ResliceAxes.

Definition at line 264 of file vtkImageReslice.h.

virtual void vtkImageReslice::SetOutputExtent (  int   ,
int   ,
int   ,
int   ,
int   ,
int
)  [virtual]


Set the extent for the output data. The default output extent is the input extent permuted through the ResliceAxes.

virtual void vtkImageReslice::SetOutputExtent (  int   [6] )  [virtual]


Set the extent for the output data. The default output extent is the input extent permuted through the ResliceAxes.

virtual int* vtkImageReslice::GetOutputExtent (    )  [virtual]


Set the extent for the output data. The default output extent is the input extent permuted through the ResliceAxes.

virtual void vtkImageReslice::GetOutputExtent (  int &   ,
int &   ,
int &   ,
int &   ,
int &   ,
int &
)  [virtual]


Set the extent for the output data. The default output extent is the input extent permuted through the ResliceAxes.

virtual void vtkImageReslice::GetOutputExtent (  int   [6] )  [virtual]


Set the extent for the output data. The default output extent is the input extent permuted through the ResliceAxes.

void vtkImageReslice::SetOutputExtentToDefault (    )  [inline]


Set the extent for the output data. The default output extent is the input extent permuted through the ResliceAxes.

Definition at line 273 of file vtkImageReslice.h.

virtual void vtkImageReslice::SetOutputDimensionality (  int    )  [virtual]


Force the dimensionality of the output to either 1, 2, 3 or 0 (default: 3). If the dimensionality is 2D, then the Z extent of the output is forced to (0,0) and the Z origin of the output is forced to 0.0 (i.e. the output extent is confined to the xy plane). If the dimensionality is 1D, the output extent is confined to the x axis. For 0D, the output extent consists of a single voxel at (0,0,0).

virtual int vtkImageReslice::GetOutputDimensionality (    )  [virtual]


Force the dimensionality of the output to either 1, 2, 3 or 0 (default: 3). If the dimensionality is 2D, then the Z extent of the output is forced to (0,0) and the Z origin of the output is forced to 0.0 (i.e. the output extent is confined to the xy plane). If the dimensionality is 1D, the output extent is confined to the x axis. For 0D, the output extent consists of a single voxel at (0,0,0).

unsigned long int vtkImageReslice::GetMTime (    )  [virtual]


When determining the modified time of the filter, this check the modified time of the transform and matrix.

Reimplemented from vtkObject.

void vtkImageReslice::SetInterpolate (  int    t )  [inline]


Convenient methods for switching between nearest-neighbor and linear interpolation. InterpolateOn() is equivalent to SetInterpolationModeToLinear() and InterpolateOff() is equivalent to SetInterpolationModeToNearestNeighbor(). You should not use these methods if you use the SetInterpolationMode methods.

Definition at line 300 of file vtkImageReslice.h.

void vtkImageReslice::InterpolateOn (    )  [inline]


Convenient methods for switching between nearest-neighbor and linear interpolation. InterpolateOn() is equivalent to SetInterpolationModeToLinear() and InterpolateOff() is equivalent to SetInterpolationModeToNearestNeighbor(). You should not use these methods if you use the SetInterpolationMode methods.

Definition at line 305 of file vtkImageReslice.h.

void vtkImageReslice::InterpolateOff (    )  [inline]


Convenient methods for switching between nearest-neighbor and linear interpolation. InterpolateOn() is equivalent to SetInterpolationModeToLinear() and InterpolateOff() is equivalent to SetInterpolationModeToNearestNeighbor(). You should not use these methods if you use the SetInterpolationMode methods.

Definition at line 307 of file vtkImageReslice.h.

int vtkImageReslice::GetInterpolate (    )  [inline]


Convenient methods for switching between nearest-neighbor and linear interpolation. InterpolateOn() is equivalent to SetInterpolationModeToLinear() and InterpolateOff() is equivalent to SetInterpolationModeToNearestNeighbor(). You should not use these methods if you use the SetInterpolationMode methods.

Definition at line 309 of file vtkImageReslice.h.

void vtkImageReslice::SetStencil (  vtkImageStencilData *    stencil )


Use a stencil to limit the calculations to a specific region of the output. Portions of the output that are 'outside' the stencil will be cleared to the background color.

vtkImageStencilData* vtkImageReslice::GetStencil (    )


Use a stencil to limit the calculations to a specific region of the output. Portions of the output that are 'outside' the stencil will be cleared to the background color.

void vtkImageReslice::GetAutoCroppedOutputBounds (  vtkImageData *    input,
float    bounds[6]
)  [protected]


void vtkImageReslice::ExecuteInformation (  vtkImageData *    input,
vtkImageData *    output
)  [protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageReslice::ExecuteInformation (    )  [inline, protected, virtual]


Reimplemented from vtkImageToImageFilter.

Definition at line 347 of file vtkImageReslice.h.

void vtkImageReslice::ComputeInputUpdateExtents (  vtkDataObject *    output )  [protected, virtual]


What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkImageToImageFilter.

void vtkImageReslice::ComputeInputUpdateExtent (  int    inExt[6],
int    outExt[6]
)  [protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageReslice::ThreadedExecute (  vtkImageData *    inData,
vtkImageData *    outData,
int    ext[6],
int    id
)  [protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkImageToImageFilter.

vtkMatrix4x4* vtkImageReslice::GetIndexMatrix (    )  [protected]


vtkAbstractTransform* vtkImageReslice::GetOptimizedTransform (    )  [inline, protected]


Definition at line 355 of file vtkImageReslice.h.

void vtkImageReslice::OptimizedComputeInputUpdateExtent (  int    inExt[6],
int    outExt[6]
)  [protected]


void vtkImageReslice::OptimizedThreadedExecute (  vtkImageData *    inData,
vtkImageData *    outData,
int    ext[6],
int    id
)  [protected]


Member Data Documentation

vtkMatrix4x4* vtkImageReslice::ResliceAxes [protected]


Definition at line 325 of file vtkImageReslice.h.

double vtkImageReslice::ResliceAxesDirectionCosines[9] [protected]


Definition at line 326 of file vtkImageReslice.h.

double vtkImageReslice::ResliceAxesOrigin[3] [protected]


Definition at line 327 of file vtkImageReslice.h.

vtkAbstractTransform* vtkImageReslice::ResliceTransform [protected]


Definition at line 328 of file vtkImageReslice.h.

vtkImageData* vtkImageReslice::InformationInput [protected]


Definition at line 329 of file vtkImageReslice.h.

int vtkImageReslice::Wrap [protected]


Definition at line 330 of file vtkImageReslice.h.

int vtkImageReslice::Mirror [protected]


Definition at line 331 of file vtkImageReslice.h.

int vtkImageReslice::InterpolationMode [protected]


Definition at line 332 of file vtkImageReslice.h.

int vtkImageReslice::Optimization [protected]


Definition at line 333 of file vtkImageReslice.h.

float vtkImageReslice::BackgroundColor[4] [protected]


Definition at line 334 of file vtkImageReslice.h.

float vtkImageReslice::OutputOrigin[3] [protected]


Definition at line 335 of file vtkImageReslice.h.

float vtkImageReslice::OutputSpacing[3] [protected]


Definition at line 336 of file vtkImageReslice.h.

int vtkImageReslice::OutputExtent[6] [protected]


Definition at line 337 of file vtkImageReslice.h.

int vtkImageReslice::OutputDimensionality [protected]


Definition at line 338 of file vtkImageReslice.h.

int vtkImageReslice::TransformInputSampling [protected]


Definition at line 339 of file vtkImageReslice.h.

int vtkImageReslice::AutoCropOutput [protected]


Definition at line 340 of file vtkImageReslice.h.

vtkMatrix4x4* vtkImageReslice::IndexMatrix [protected]


Definition at line 342 of file vtkImageReslice.h.

vtkAbstractTransform* vtkImageReslice::OptimizedTransform [protected]


Definition at line 343 of file vtkImageReslice.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:31:18 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
