vtkImageAccumulate Class Reference

#include <vtkImageAccumulate.h>

Inheritance diagram for vtkImageAccumulate:

Inheritance graph
[legend]

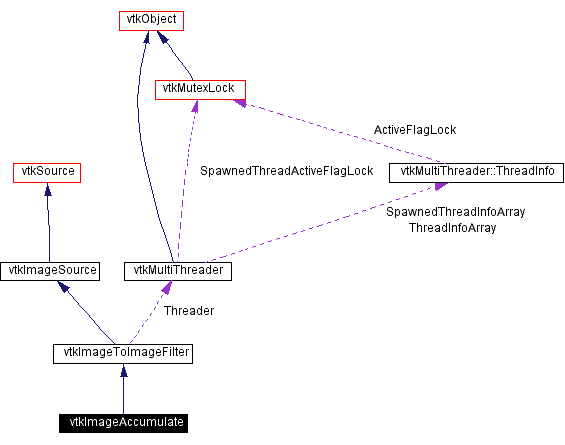

Collaboration diagram for vtkImageAccumulate:

Collaboration graph
[legend]
List of all members.

Detailed Description

Generalized histograms up to 4 dimensions.

Date:
2002/12/11 14:26:22
Revision:
1.32

vtkImageAccumulate - This filter divides component space into discrete bins. It then counts the number of pixels associated with each bin. The output is this "scatter plot" (histogram values for 1D). The dimensionality of the output depends on how many components the input pixels have. Input pixels with one component generate a 1D histogram. This filter can only handle images with 1 to 3 scalar components. The input can be any type, but the output is always int. Some statistics are computed on the pixel values at the same time. The SetStencilFunction, SetClippingExtents and ReverseStencil functions allow the statistics to be computed on an arbitrary portion of the input data. See the documentation for vtkImageStencil for more information.

Created by:
  • Law, Charles
CVS contributions (if > 5%):
  • Law, Charles (42%)
  • Starreveld, Yves (16%)
  • Gobbi, David (13%)
  • Lorensen, Bill (10%)
  • Schroeder, Will (6%)
  • Martin, Ken (5%)
CVS logs (CVSweb):
  • .cxx (/Imaging/vtkImageAccumulate.cxx)
  • .h (/Imaging/vtkImageAccumulate.h)
Examples:
vtkImageAccumulate (Examples)
Tests:
vtkImageAccumulate (Tests)

Definition at line 65 of file vtkImageAccumulate.h.

Public Types

typedef vtkImageToImageFilter Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetComponentSpacing (float, float, float)
virtual void SetComponentSpacing (float[3])
virtual float * GetComponentSpacing ()
virtual void GetComponentSpacing (float &, float &, float &)
virtual void GetComponentSpacing (float[3])
virtual void SetComponentOrigin (float, float, float)
virtual void SetComponentOrigin (float[3])
virtual float * GetComponentOrigin ()
virtual void GetComponentOrigin (float &, float &, float &)
virtual void GetComponentOrigin (float[3])
void SetComponentExtent (int extent[6])
void SetComponentExtent (int minX, int maxX, int minY, int maxY, int minZ, int maxZ)
void GetComponentExtent (int extent[6])
int * GetComponentExtent ()
void SetStencil (vtkImageStencilData *stencil)
vtkImageStencilDataGetStencil ()
virtual void SetReverseStencil (int)
virtual void ReverseStencilOn ()
virtual void ReverseStencilOff ()
virtual int GetReverseStencil ()
virtual double * GetMin ()
virtual void GetMin (double &, double &, double &)
virtual void GetMin (double[3])
virtual double * GetMax ()
virtual void GetMax (double &, double &, double &)
virtual void GetMax (double[3])
virtual double * GetMean ()
virtual void GetMean (double &, double &, double &)
virtual void GetMean (double[3])
virtual double * GetStandardDeviation ()
virtual void GetStandardDeviation (double &, double &, double &)
virtual void GetStandardDeviation (double[3])
virtual long int GetVoxelCount ()

Static Public Methods

vtkImageAccumulate * New ()
int IsTypeOf (const char *type)
vtkImageAccumulate * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageAccumulate ()
 ~vtkImageAccumulate ()
void ExecuteInformation (vtkImageData *input, vtkImageData *output)
void ComputeInputUpdateExtent (int inExt[6], int outExt[6])
void ExecuteInformation ()
void ExecuteData (vtkDataObject *out)

Protected Attributes

float ComponentSpacing [3]
float ComponentOrigin [3]
int ComponentExtent [6]
double Min [3]
double Max [3]
double Mean [3]
double StandardDeviation [3]
long int VoxelCount
int ReverseStencil


Member Typedef Documentation

typedef vtkImageToImageFilter vtkImageAccumulate::Superclass


Reimplemented from vtkImageToImageFilter.

Definition at line 69 of file vtkImageAccumulate.h.


Constructor & Destructor Documentation

vtkImageAccumulate::vtkImageAccumulate   [protected]


vtkImageAccumulate::~vtkImageAccumulate   [protected]



Member Function Documentation

vtkImageAccumulate* vtkImageAccumulate::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageAccumulate::GetClassName   [virtual]


Reimplemented from vtkImageToImageFilter.

int vtkImageAccumulate::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageAccumulate::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageAccumulate* vtkImageAccumulate::SafeDownCast vtkObject   o [static]


Reimplemented from vtkImageToImageFilter.

void vtkImageAccumulate::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

virtual void vtkImageAccumulate::SetComponentSpacing float   ,
float   ,
float
[virtual]


Set/Get - The component spacing is the dimension of each bin. This ends up being the spacing of the output "image". If the number of input scalar components are less than three, then some of these spacing values are ignored. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this spacing should be set to 100, 0, 0

virtual void vtkImageAccumulate::SetComponentSpacing float   [3] [virtual]


Set/Get - The component spacing is the dimension of each bin. This ends up being the spacing of the output "image". If the number of input scalar components are less than three, then some of these spacing values are ignored. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this spacing should be set to 100, 0, 0

virtual float* vtkImageAccumulate::GetComponentSpacing   [virtual]


Set/Get - The component spacing is the dimension of each bin. This ends up being the spacing of the output "image". If the number of input scalar components are less than three, then some of these spacing values are ignored. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this spacing should be set to 100, 0, 0

virtual void vtkImageAccumulate::GetComponentSpacing float &   ,
float &   ,
float &
[virtual]


Set/Get - The component spacing is the dimension of each bin. This ends up being the spacing of the output "image". If the number of input scalar components are less than three, then some of these spacing values are ignored. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this spacing should be set to 100, 0, 0

virtual void vtkImageAccumulate::GetComponentSpacing float   [3] [virtual]


Set/Get - The component spacing is the dimension of each bin. This ends up being the spacing of the output "image". If the number of input scalar components are less than three, then some of these spacing values are ignored. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this spacing should be set to 100, 0, 0

virtual void vtkImageAccumulate::SetComponentOrigin float   ,
float   ,
float
[virtual]


Set/Get - The component origin is the location of bin (0, 0, 0). Note that if the Component extent does not include the value (0,0,0), then this origin bin will not actually be in the output. The origin of the output ends up being the same as the componenet origin. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this origin should be set to 1000, 0, 0

virtual void vtkImageAccumulate::SetComponentOrigin float   [3] [virtual]


Set/Get - The component origin is the location of bin (0, 0, 0). Note that if the Component extent does not include the value (0,0,0), then this origin bin will not actually be in the output. The origin of the output ends up being the same as the componenet origin. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this origin should be set to 1000, 0, 0

virtual float* vtkImageAccumulate::GetComponentOrigin   [virtual]


Set/Get - The component origin is the location of bin (0, 0, 0). Note that if the Component extent does not include the value (0,0,0), then this origin bin will not actually be in the output. The origin of the output ends up being the same as the componenet origin. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this origin should be set to 1000, 0, 0

virtual void vtkImageAccumulate::GetComponentOrigin float &   ,
float &   ,
float &
[virtual]


Set/Get - The component origin is the location of bin (0, 0, 0). Note that if the Component extent does not include the value (0,0,0), then this origin bin will not actually be in the output. The origin of the output ends up being the same as the componenet origin. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this origin should be set to 1000, 0, 0

virtual void vtkImageAccumulate::GetComponentOrigin float   [3] [virtual]


Set/Get - The component origin is the location of bin (0, 0, 0). Note that if the Component extent does not include the value (0,0,0), then this origin bin will not actually be in the output. The origin of the output ends up being the same as the componenet origin. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this origin should be set to 1000, 0, 0

void vtkImageAccumulate::SetComponentExtent int    extent[6]


Set/Get - The component extent sets the number/extent of the bins. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this extent should be set to 0, 9, 0, 0, 0, 0. The extent specifies inclusive min/max values. This implies the the top extent should be set to the number of bins - 1.

void vtkImageAccumulate::SetComponentExtent int    minX,
int    maxX,
int    minY,
int    maxY,
int    minZ,
int    maxZ


Set/Get - The component extent sets the number/extent of the bins. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this extent should be set to 0, 9, 0, 0, 0, 0. The extent specifies inclusive min/max values. This implies the the top extent should be set to the number of bins - 1.

void vtkImageAccumulate::GetComponentExtent int    extent[6]


Set/Get - The component extent sets the number/extent of the bins. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this extent should be set to 0, 9, 0, 0, 0, 0. The extent specifies inclusive min/max values. This implies the the top extent should be set to the number of bins - 1.

int* vtkImageAccumulate::GetComponentExtent   [inline]


Set/Get - The component extent sets the number/extent of the bins. For a 1D histogram with 10 bins spanning the values 1000 to 2000, this extent should be set to 0, 9, 0, 0, 0, 0. The extent specifies inclusive min/max values. This implies the the top extent should be set to the number of bins - 1.

Definition at line 103 of file vtkImageAccumulate.h.

void vtkImageAccumulate::SetStencil vtkImageStencilData   stencil


Use a stencil to specify which voxels to accumulate.

vtkImageStencilData* vtkImageAccumulate::GetStencil


Use a stencil to specify which voxels to accumulate.

virtual void vtkImageAccumulate::SetReverseStencil int    [virtual]


Reverse the stencil.

virtual void vtkImageAccumulate::ReverseStencilOn   [virtual]


Reverse the stencil.

virtual void vtkImageAccumulate::ReverseStencilOff   [virtual]


Reverse the stencil.

virtual int vtkImageAccumulate::GetReverseStencil   [virtual]


Reverse the stencil.

virtual double* vtkImageAccumulate::GetMin   [virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetMin double &   ,
double &   ,
double &
[virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetMin double   [3] [virtual]


Get the statistics information for the data.

virtual double* vtkImageAccumulate::GetMax   [virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetMax double &   ,
double &   ,
double &
[virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetMax double   [3] [virtual]


Get the statistics information for the data.

virtual double* vtkImageAccumulate::GetMean   [virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetMean double &   ,
double &   ,
double &
[virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetMean double   [3] [virtual]


Get the statistics information for the data.

virtual double* vtkImageAccumulate::GetStandardDeviation   [virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetStandardDeviation double &   ,
double &   ,
double &
[virtual]


Get the statistics information for the data.

virtual void vtkImageAccumulate::GetStandardDeviation double   [3] [virtual]


Get the statistics information for the data.

virtual long int vtkImageAccumulate::GetVoxelCount   [virtual]


Get the statistics information for the data.

void vtkImageAccumulate::ExecuteInformation vtkImageData   input,
vtkImageData   output
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageAccumulate::ComputeInputUpdateExtent int    inExt[6],
int    outExt[6]
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageAccumulate::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageToImageFilter.

Definition at line 140 of file vtkImageAccumulate.h.

References vtkImageToImageFilter::ExecuteInformation().

void vtkImageAccumulate::ExecuteData vtkDataObject   out [protected]


Reimplemented from vtkImageToImageFilter.


Member Data Documentation

float vtkImageAccumulate::ComponentSpacing[3] [protected]


Definition at line 134 of file vtkImageAccumulate.h.

float vtkImageAccumulate::ComponentOrigin[3] [protected]


Definition at line 135 of file vtkImageAccumulate.h.

int vtkImageAccumulate::ComponentExtent[6] [protected]


Definition at line 136 of file vtkImageAccumulate.h.

double vtkImageAccumulate::Min[3] [protected]


Definition at line 143 of file vtkImageAccumulate.h.

double vtkImageAccumulate::Max[3] [protected]


Definition at line 144 of file vtkImageAccumulate.h.

double vtkImageAccumulate::Mean[3] [protected]


Definition at line 145 of file vtkImageAccumulate.h.

double vtkImageAccumulate::StandardDeviation[3] [protected]


Definition at line 146 of file vtkImageAccumulate.h.

long int vtkImageAccumulate::VoxelCount [protected]


Definition at line 147 of file vtkImageAccumulate.h.

int vtkImageAccumulate::ReverseStencil [protected]


Definition at line 149 of file vtkImageAccumulate.h.


The documentation for this class was generated from the following file:
