vtkImageEuclideanToPolar Class Reference
#include <vtkImageEuclideanToPolar.h>

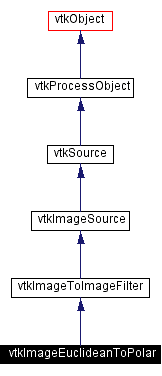

Inheritance diagram for vtkImageEuclideanToPolar:
Detailed Description
Converts 2D Euclidean coordinates to polar.
- Date:
- 2002/01/22 15:32:27
- Revision:
- 1.21
For each pixel with vector components x,y, this filter outputs theta in component0, and radius in component1.
- Created by:
-
- Law, Charles
- CVS contributions (if > 5%):
-
- Martin, Ken (43%)
- Law, Charles (41%)
- Schroeder, Will (5%)
- CVS logs (CVSweb):
Definition at line 47 of file vtkImageEuclideanToPolar.h.
Public Types | |
| typedef vtkImageToImageFilter | Superclass |
Public Methods | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| virtual void | SetThetaMaximum (float) |
| virtual float | GetThetaMaximum () |
Static Public Methods | |
| vtkImageEuclideanToPolar * | New () |
| int | IsTypeOf (const char *type) |
| vtkImageEuclideanToPolar * | SafeDownCast (vtkObject *o) |
Protected Methods | |
| vtkImageEuclideanToPolar () | |
| ~vtkImageEuclideanToPolar () | |
| void | ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id) |
Protected Attributes | |
| float | ThetaMaximum |
Member Typedef Documentation
|
|
Reimplemented from vtkImageToImageFilter. Definition at line 51 of file vtkImageEuclideanToPolar.h. |
Constructor & Destructor Documentation
|
|
|
|
|
Definition at line 64 of file vtkImageEuclideanToPolar.h. |
Member Function Documentation
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject. |
|
|
Reimplemented from vtkImageToImageFilter. |
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter. |
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter. |
|
|
Reimplemented from vtkImageToImageFilter. |
|
||||||||||||
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageToImageFilter. |
|
|
Theta is an angle. Maximum specifies when it maps back to 0. ThetaMaximum defaults to 255 instead of 2PI, because unsigned char is expected as input. The output type must be the same as input type. |
|
|
Theta is an angle. Maximum specifies when it maps back to 0. ThetaMaximum defaults to 255 instead of 2PI, because unsigned char is expected as input. The output type must be the same as input type. |
|
||||||||||||||||||||
|
If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkImageToImageFilter. |
Member Data Documentation
|
|
Definition at line 66 of file vtkImageEuclideanToPolar.h. |
The documentation for this class was generated from the following file:
- Imaging/vtkImageEuclideanToPolar.h
