vtkImageMaskBits Class Reference

#include <vtkImageMaskBits.h>

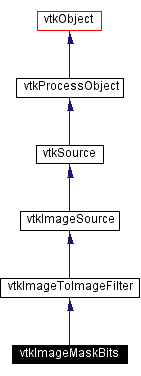

Inheritance diagram for vtkImageMaskBits:

Inheritance graph
[legend]

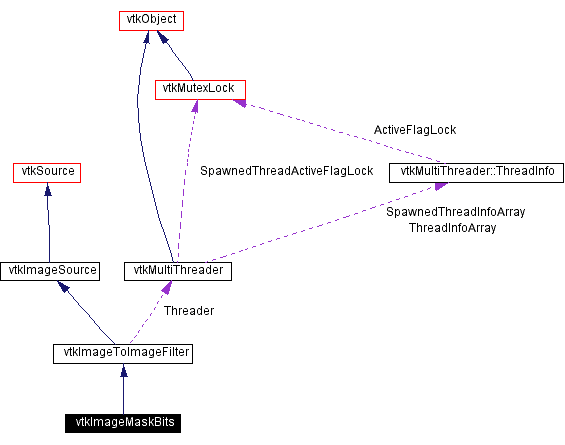

Collaboration diagram for vtkImageMaskBits:

Collaboration graph
[legend]
List of all members.

Detailed Description

applies a bit-mask pattern to each component.

Date:
2002/01/22 15:33:04
Revision:
1.17

vtkImageMaskBits applies a bit-mask pattern to each component. The bit-mask can be applied using a variety of boolean bitwise operators.

Created by:
  • Miller, Jim
CVS contributions (if > 5%):
  • Miller, Jim (68%)
  • Martin, Ken (30%)
CVS logs (CVSweb):
  • .cxx (/Imaging/vtkImageMaskBits.cxx)
  • .h (/Imaging/vtkImageMaskBits.h)
Tests:
vtkImageMaskBits (Tests)

Definition at line 48 of file vtkImageMaskBits.h.

Public Types

typedef vtkImageToImageFilter Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &, vtkIndent)
virtual void SetMasks (unsigned int, unsigned int, unsigned int, unsigned int)
virtual void SetMasks (unsigned int[4])
void SetMask (unsigned int mask)
void SetMasks (unsigned int mask1, unsigned int mask2)
void SetMasks (unsigned int mask1, unsigned int mask2, unsigned int mask3)
virtual unsigned int * GetMasks ()
virtual void GetMasks (unsigned int &, unsigned int &, unsigned int &, unsigned int &)
virtual void GetMasks (unsigned int[4])
virtual void SetOperation (int)
virtual int GetOperation ()
void SetOperationToAnd ()
void SetOperationToOr ()
void SetOperationToXor ()
void SetOperationToNand ()
void SetOperationToNor ()

Static Public Methods

vtkImageMaskBits * New ()
int IsTypeOf (const char *type)
vtkImageMaskBits * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageMaskBits ()
 ~vtkImageMaskBits ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)

Protected Attributes

unsigned int Masks [4]
int Operation

Member Typedef Documentation

typedef vtkImageToImageFilter vtkImageMaskBits::Superclass


Reimplemented from vtkImageToImageFilter.

Definition at line 52 of file vtkImageMaskBits.h.

Constructor & Destructor Documentation

vtkImageMaskBits::vtkImageMaskBits (    )  [protected]


vtkImageMaskBits::~vtkImageMaskBits (    )  [inline, protected]


Definition at line 81 of file vtkImageMaskBits.h.

Member Function Documentation

vtkImageMaskBits* vtkImageMaskBits::New (    )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageMaskBits::GetClassName (    )  [virtual]


Reimplemented from vtkImageToImageFilter.

int vtkImageMaskBits::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageMaskBits::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageMaskBits* vtkImageMaskBits::SafeDownCast (  vtkObject *    o )  [static]


Reimplemented from vtkImageToImageFilter.

void vtkImageMaskBits::PrintSelf (  ostream &   ,
vtkIndent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

virtual void vtkImageMaskBits::SetMasks (  unsigned    int,
unsigned    int,
unsigned    int,
unsigned    int
)  [virtual]


Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::SetMasks (  unsigned    int[4] )  [virtual]


Set/Get the bit-masks. Default is 0xffffffff.

void vtkImageMaskBits::SetMask (  unsigned int    mask )  [inline]


Set/Get the bit-masks. Default is 0xffffffff.

Definition at line 58 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetMasks (  unsigned int    mask1,
unsigned int    mask2
)  [inline]


Set/Get the bit-masks. Default is 0xffffffff.

Definition at line 60 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetMasks (  unsigned int    mask1,
unsigned int    mask2,
unsigned int    mask3
)  [inline]


Set/Get the bit-masks. Default is 0xffffffff.

Definition at line 62 of file vtkImageMaskBits.h.

virtual unsigned int* vtkImageMaskBits::GetMasks (    )  [virtual]


Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::GetMasks (  unsigned int &   ,
unsigned int &   ,
unsigned int &   ,
unsigned int &
)  [virtual]


Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::GetMasks (  unsigned    int[4] )  [virtual]


Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::SetOperation (  int    )  [virtual]


Set/Get the boolean operator. Default is AND.

virtual int vtkImageMaskBits::GetOperation (    )  [virtual]


Set/Get the boolean operator. Default is AND.

void vtkImageMaskBits::SetOperationToAnd (    )  [inline]


Set/Get the boolean operator. Default is AND.

Definition at line 71 of file vtkImageMaskBits.h.

References VTK_AND.

void vtkImageMaskBits::SetOperationToOr (    )  [inline]


Set/Get the boolean operator. Default is AND.

Definition at line 72 of file vtkImageMaskBits.h.

References VTK_OR.

void vtkImageMaskBits::SetOperationToXor (    )  [inline]


Set/Get the boolean operator. Default is AND.

Definition at line 73 of file vtkImageMaskBits.h.

References VTK_XOR.

void vtkImageMaskBits::SetOperationToNand (    )  [inline]


Set/Get the boolean operator. Default is AND.

Definition at line 74 of file vtkImageMaskBits.h.

References VTK_NAND.

void vtkImageMaskBits::SetOperationToNor (    )  [inline]


Set/Get the boolean operator. Default is AND.

Definition at line 75 of file vtkImageMaskBits.h.

References VTK_NOR.

void vtkImageMaskBits::ThreadedExecute (  vtkImageData *    inData,
vtkImageData *    outData,
int    ext[6],
int    id
)  [protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkImageToImageFilter.

Member Data Documentation

unsigned int vtkImageMaskBits::Masks[4] [protected]


Definition at line 86 of file vtkImageMaskBits.h.

int vtkImageMaskBits::Operation [protected]


Definition at line 87 of file vtkImageMaskBits.h.

The documentation for this class was generated from the following file:
