vtkImageQuantizeRGBToIndex Class Reference

#include <vtkImageQuantizeRGBToIndex.h>

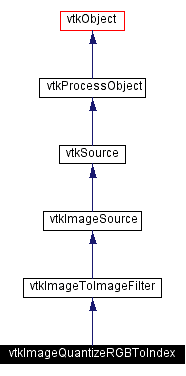

Inheritance diagram for vtkImageQuantizeRGBToIndex:

Inheritance graph
[legend]
Collaboration diagram for vtkImageQuantizeRGBToIndex:

Collaboration graph
[legend]
List of all members.

Detailed Description

generalized histograms up to 4 dimensions

Date:
2002/12/11 14:26:22
Revision:
1.27

vtkImageQuantizeRGBToIndex takes a 3 component RGB image as input and produces a one component index image as output, along with a lookup table that contains the color definitions for the index values. This filter works on the entire input extent - it does not perform streaming, and it does not supported threaded execution (because it has to process the entire image).

To use this filter, you typically set the number of colors (between 2 and 65536), execute it, and then retrieve the lookup table. The colors can then be using the lookup table and the image index.

Created by:
  • Avila, Lisa
CVS contributions (if > 5%):
  • Avila, Lisa (64%)
  • Lorensen, Bill (15%)
  • Law, Charles (6%)
  • Martin, Ken (5%)
CVS logs (CVSweb):
  • .h (/Imaging/vtkImageQuantizeRGBToIndex.h)
  • .cxx (/Imaging/vtkImageQuantizeRGBToIndex.cxx)
Tests:
vtkImageQuantizeRGBToIndex (Tests)

Definition at line 57 of file vtkImageQuantizeRGBToIndex.h.

Public Types

typedef vtkImageToImageFilter Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual float GetInitializeExecuteTime ()
virtual float GetBuildTreeExecuteTime ()
virtual float GetLookupIndexExecuteTime ()
virtual void SetNumberOfColors (int)
virtual int GetNumberOfColors ()
virtual vtkLookupTableGetLookupTable ()
virtual int GetInputType ()
virtual void SetInitializeExecuteTime (float)
virtual void SetBuildTreeExecuteTime (float)
virtual void SetLookupIndexExecuteTime (float)

Static Public Methods

vtkImageQuantizeRGBToIndex * New ()
int IsTypeOf (const char *type)
vtkImageQuantizeRGBToIndex * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageQuantizeRGBToIndex ()
 ~vtkImageQuantizeRGBToIndex ()
void ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void ComputeInputUpdateExtent (int inExt[6], int outExt[6])
void ExecuteInformation ()
virtual void ExecuteData (vtkDataObject *out)

Protected Attributes

vtkLookupTableLookupTable
int NumberOfColors
int InputType
float InitializeExecuteTime
float BuildTreeExecuteTime
float LookupIndexExecuteTime


Member Typedef Documentation

typedef vtkImageToImageFilter vtkImageQuantizeRGBToIndex::Superclass


Reimplemented from vtkImageToImageFilter.

Definition at line 61 of file vtkImageQuantizeRGBToIndex.h.


Constructor & Destructor Documentation

vtkImageQuantizeRGBToIndex::vtkImageQuantizeRGBToIndex   [protected]


vtkImageQuantizeRGBToIndex::~vtkImageQuantizeRGBToIndex   [protected]



Member Function Documentation

vtkImageQuantizeRGBToIndex* vtkImageQuantizeRGBToIndex::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageQuantizeRGBToIndex::GetClassName   [virtual]


Reimplemented from vtkImageToImageFilter.

int vtkImageQuantizeRGBToIndex::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageQuantizeRGBToIndex::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageQuantizeRGBToIndex* vtkImageQuantizeRGBToIndex::SafeDownCast vtkObject   o [static]


Reimplemented from vtkImageToImageFilter.

void vtkImageQuantizeRGBToIndex::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

virtual void vtkImageQuantizeRGBToIndex::SetNumberOfColors int    [virtual]


Set / Get the number of color index values to produce - must be a number between 2 and 65536.

virtual int vtkImageQuantizeRGBToIndex::GetNumberOfColors   [virtual]


Set / Get the number of color index values to produce - must be a number between 2 and 65536.

virtual vtkLookupTable* vtkImageQuantizeRGBToIndex::GetLookupTable   [virtual]


Get the resulting lookup table that contains the color definitions corresponding to the index values in the output image.

virtual float vtkImageQuantizeRGBToIndex::GetInitializeExecuteTime   [virtual]


virtual float vtkImageQuantizeRGBToIndex::GetBuildTreeExecuteTime   [virtual]


virtual float vtkImageQuantizeRGBToIndex::GetLookupIndexExecuteTime   [virtual]


virtual int vtkImageQuantizeRGBToIndex::GetInputType   [virtual]


For internal use only - get the type of the image

virtual void vtkImageQuantizeRGBToIndex::SetInitializeExecuteTime float    [virtual]


For internal use only - set the times for execution

virtual void vtkImageQuantizeRGBToIndex::SetBuildTreeExecuteTime float    [virtual]


For internal use only - set the times for execution

virtual void vtkImageQuantizeRGBToIndex::SetLookupIndexExecuteTime float    [virtual]


For internal use only - set the times for execution

void vtkImageQuantizeRGBToIndex::ExecuteInformation vtkImageData   inData,
vtkImageData   outData
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageQuantizeRGBToIndex::ComputeInputUpdateExtent int    inExt[6],
int    outExt[6]
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageQuantizeRGBToIndex::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageToImageFilter.

Definition at line 109 of file vtkImageQuantizeRGBToIndex.h.

References vtkImageToImageFilter::ExecuteInformation().

virtual void vtkImageQuantizeRGBToIndex::ExecuteData vtkDataObject   out [protected, virtual]


Reimplemented from vtkImageToImageFilter.


Member Data Documentation

vtkLookupTable* vtkImageQuantizeRGBToIndex::LookupTable [protected]


Definition at line 99 of file vtkImageQuantizeRGBToIndex.h.

int vtkImageQuantizeRGBToIndex::NumberOfColors [protected]


Definition at line 100 of file vtkImageQuantizeRGBToIndex.h.

int vtkImageQuantizeRGBToIndex::InputType [protected]


Definition at line 101 of file vtkImageQuantizeRGBToIndex.h.

float vtkImageQuantizeRGBToIndex::InitializeExecuteTime [protected]


Definition at line 103 of file vtkImageQuantizeRGBToIndex.h.

float vtkImageQuantizeRGBToIndex::BuildTreeExecuteTime [protected]


Definition at line 104 of file vtkImageQuantizeRGBToIndex.h.

float vtkImageQuantizeRGBToIndex::LookupIndexExecuteTime [protected]


Definition at line 105 of file vtkImageQuantizeRGBToIndex.h.


The documentation for this class was generated from the following file:
