vtkMaskFields Class Reference

#include <vtkMaskFields.h>

Inheritance diagram for vtkMaskFields:

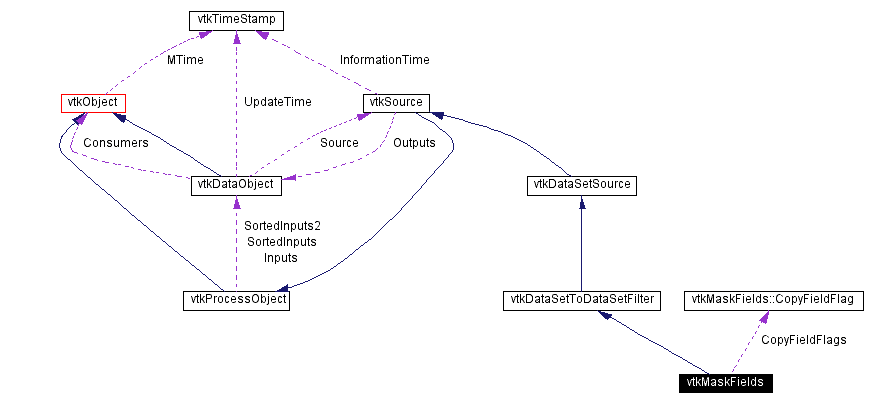

[legend]Collaboration diagram for vtkMaskFields:

[legend]List of all members.

Detailed Description

Allow control of which fields get passed.

Date:: 2002/09/26 12:07:14

Revision:: 1.4

to the output

vtkMaskFields is used to mark which fields in the input dataset get copied to the output. The output will contain only those fields marked as on by the filter.

See also:: vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkRearrangeFields vtkSplitField vtkMergeFields vtkAssignAttribute

Created by:

Lee, Jeff

CVS contributions (if > 5%):

Lee, Jeff (96%)

CVS logs (CVSweb):

.cxx (/Graphics/vtkMaskFields.cxx)
.h (/Graphics/vtkMaskFields.h)

Definition at line 52 of file vtkMaskFields.h.

Public Types

typedef vtkDataSetToDataSetFilter Superclass

enum FieldLocation { OBJECT_DATA = 0, POINT_DATA = 1, CELL_DATA = 2 }

Public Methods

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent)

void CopyFieldsOn ()

void CopyAttributesOn ()

virtual void CopyAllOn ()

virtual void CopyAllOff ()

vtkMaskFields ()

virtual ~vtkMaskFields ()

void CopyFieldOn (int fieldLocation, const char *name)

void CopyFieldOff (int fieldLocation, const char *name)

void CopyAttributeOn (int attributeLocation, int attributeType)

void CopyAttributeOff (int attributeLocation, int attributeType)

void CopyFieldsOff ()

void CopyAttributesOff ()

void CopyAttributeOn (const char *attributeLoc, const char *attributeType)

void CopyAttributeOff (const char *attributeLoc, const char *attributeType)

void CopyFieldOn (const char *fieldLoc, const char *name)

void CopyFieldOff (const char *fieldLoc, const char *name)

Static Public Methods

int IsTypeOf (const char *type)

vtkMaskFields * SafeDownCast (vtkObject *o)

vtkMaskFields * New ()

Protected Methods

void Execute ()

void CopyFieldOnOff (int fieldLocation, const char *name, int onOff)

void CopyAttributeOnOff (int attributeLocation, int attributeType, int onOff)

void ClearFieldFlags ()

int FindFlag (const char *field, int location)

int FindFlag (int arrayType, int location)

int GetFlag (const char *field, int location)

int GetFlag (int arrayType, int location)

int GetAttributeLocation (const char *loc)

int GetAttributeType (const char *type)

Protected Attributes

CopyFieldFlag * CopyFieldFlags

int NumberOfFieldFlags

int CopyFields

int CopyAttributes

Static Protected Attributes

char FieldLocationNames [3][12]

char AttributeNames [vtkDataSetAttributes::NUM_ATTRIBUTES][10]

Member Typedef Documentation

typedef vtkDataSetToDataSetFilter vtkMaskFields::Superclass

Reimplemented from vtkDataSetToDataSetFilter.
Definition at line 55 of file vtkMaskFields.h.

Member Enumeration Documentation

enum vtkMaskFields::FieldLocation

Enumeration values:

OBJECT_DATA

POINT_DATA

CELL_DATA

Definition at line 132 of file vtkMaskFields.h.

Constructor & Destructor Documentation

vtkMaskFields::vtkMaskFields ( )

virtual vtkMaskFields::~vtkMaskFields ( ) [virtual]

Member Function Documentation

virtual const char* vtkMaskFields::GetClassName ( ) [virtual]

Reimplemented from vtkDataSetToDataSetFilter.

int vtkMaskFields::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkMaskFields::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetToDataSetFilter.

vtkMaskFields* vtkMaskFields::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataSetToDataSetFilter.

void vtkMaskFields::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkDataSetToDataSetFilter.

vtkMaskFields* vtkMaskFields::New ( ) [static]

Create a new vtkMaskFields.
Reimplemented from vtkObject.

void vtkMaskFields::CopyFieldOn ( int fieldLocation,

const char * name

) [inline]

Turn on/off the copying of the field or specified by name. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array A field name and a location must be specified. For example:
maskFields->CopyFieldOff(vtkMaskFields::CELL_DATA, "foo");
causes the field "foo" on the input cell data to not get copied to the output.
Definition at line 71 of file vtkMaskFields.h.

void vtkMaskFields::CopyFieldOff ( int fieldLocation,

const char * name

) [inline]

Turn on/off the copying of the field or specified by name. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array A field name and a location must be specified. For example:
maskFields->CopyFieldOff(vtkMaskFields::CELL_DATA, "foo");
causes the field "foo" on the input cell data to not get copied to the output.
Definition at line 72 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributeOn ( int attributeLocation,

int attributeType

) [inline]

Turn on/off the copying of the attribute or specified by vtkDataSetAttributes:AttributeTypes. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array An attribute type and a location must be specified. For example:
maskFields->CopyAttributeOff(vtkMaskFields::POINT_DATA, vtkDataSetAttributes::SCALARS);
causes the scalars on the input point data to not get copied to the output.
Definition at line 87 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributeOff ( int attributeLocation,

int attributeType

) [inline]

Turn on/off the copying of the attribute or specified by vtkDataSetAttributes:AttributeTypes. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array An attribute type and a location must be specified. For example:
maskFields->CopyAttributeOff(vtkMaskFields::POINT_DATA, vtkDataSetAttributes::SCALARS);
causes the scalars on the input point data to not get copied to the output.
Definition at line 88 of file vtkMaskFields.h.

void vtkMaskFields::CopyFieldsOff ( ) [inline]

Convenience methods which operate on all field data or attribute data. More specific than CopyAllOn or CopyAllOff
Definition at line 94 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributesOff ( ) [inline]

Convenience methods which operate on all field data or attribute data. More specific than CopyAllOn or CopyAllOff
Definition at line 95 of file vtkMaskFields.h.

void vtkMaskFields::CopyFieldsOn ( ) [inline]

Definition at line 98 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributesOn ( ) [inline]

Definition at line 99 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributeOn ( const char * attributeLoc,

const char * attributeType

)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkMaskFields::CopyAttributeOff ( const char * attributeLoc,

const char * attributeType

)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkMaskFields::CopyFieldOn ( const char * fieldLoc,

const char * name

)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkMaskFields::CopyFieldOff ( const char * fieldLoc,

const char * name

)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

virtual void vtkMaskFields::CopyAllOn ( ) [virtual]

Turn on copying of all data. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

virtual void vtkMaskFields::CopyAllOff ( ) [virtual]

Turn off copying of all data. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

void vtkMaskFields::Execute ( ) [protected, virtual]

This method is the old style execute method
Reimplemented from vtkSource.

void vtkMaskFields::CopyFieldOnOff ( int fieldLocation,

const char * name,

int onOff

) [protected]

void vtkMaskFields::CopyAttributeOnOff ( int attributeLocation,

int attributeType,

int onOff

) [protected]

void vtkMaskFields::ClearFieldFlags ( ) [protected]

int vtkMaskFields::FindFlag ( const char * field,

int location

) [protected]

int vtkMaskFields::FindFlag ( int arrayType,

int location

) [protected]

int vtkMaskFields::GetFlag ( const char * field,

int location

) [protected]

int vtkMaskFields::GetFlag ( int arrayType,

int location

) [protected]

int vtkMaskFields::GetAttributeLocation ( const char * loc ) [protected]

int vtkMaskFields::GetAttributeType ( const char * type ) [protected]

Member Data Documentation

CopyFieldFlag* vtkMaskFields::CopyFieldFlags [protected]

Definition at line 154 of file vtkMaskFields.h.

int vtkMaskFields::NumberOfFieldFlags [protected]

Definition at line 155 of file vtkMaskFields.h.

int vtkMaskFields::CopyFields [protected]

Definition at line 166 of file vtkMaskFields.h.

int vtkMaskFields::CopyAttributes [protected]

Definition at line 167 of file vtkMaskFields.h.

char vtkMaskFields::FieldLocationNames[3][12] [static, protected]

Definition at line 169 of file vtkMaskFields.h.

char vtkMaskFields::AttributeNames[vtkDataSetAttributes::NUM_ATTRIBUTES][10] [static, protected]

Definition at line 170 of file vtkMaskFields.h.

The documentation for this class was generated from the following file:

Graphics/vtkMaskFields.h
