vtkStructuredGridSource Class Reference

#include <vtkStructuredGridSource.h>

Inheritance diagram for vtkStructuredGridSource:

Inheritance graph
[legend]

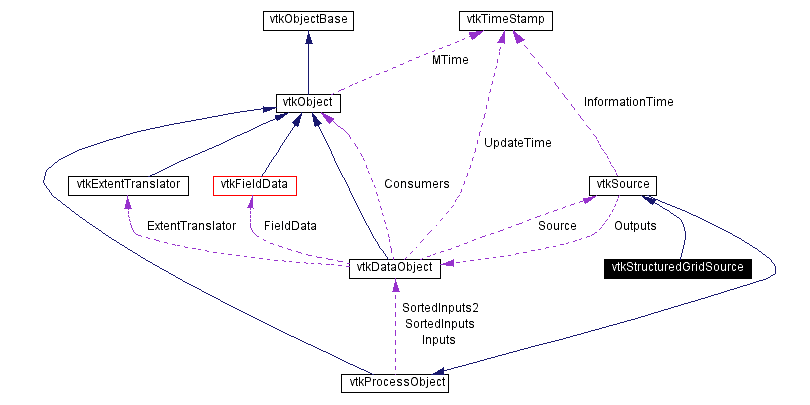

Collaboration diagram for vtkStructuredGridSource:

Collaboration graph
[legend]
List of all members.

Detailed Description

Abstract class whose subclasses generates structured grid data.

Date:
2002/10/04 20:43:44
Revision:
1.40

vtkStructuredGridSource is an abstract class whose subclasses generate structured grid data.

See also:
vtkStructuredGridReader vtkPLOT3DReader
Created by:
  • Schroeder, Will
CVS contributions (if > 5%):
  • Schroeder, Will (51%)
  • Martin, Ken (25%)
  • Cedilnik, Andy (12%)
CVS logs (CVSweb):
  • .h (/Filtering/vtkStructuredGridSource.h)
  • .cxx (/Filtering/vtkStructuredGridSource.cxx)

Definition at line 48 of file vtkStructuredGridSource.h.

Public Types

typedef vtkSource Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkStructuredGridGetOutput ()
vtkStructuredGridGetOutput (int idx)
void SetOutput (vtkStructuredGrid *output)

Static Public Methods

int IsTypeOf (const char *type)
vtkStructuredGridSource * SafeDownCast (vtkObject *o)

Protected Methods

 vtkStructuredGridSource ()
 ~vtkStructuredGridSource ()


Member Typedef Documentation

typedef vtkSource vtkStructuredGridSource::Superclass


Reimplemented from vtkSource.

Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

Definition at line 51 of file vtkStructuredGridSource.h.


Constructor & Destructor Documentation

vtkStructuredGridSource::vtkStructuredGridSource   [protected]


vtkStructuredGridSource::~vtkStructuredGridSource   [inline, protected]


Definition at line 63 of file vtkStructuredGridSource.h.


Member Function Documentation

virtual const char* vtkStructuredGridSource::GetClassName   [virtual]


Reimplemented from vtkSource.

Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

int vtkStructuredGridSource::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

virtual int vtkStructuredGridSource::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

vtkStructuredGridSource* vtkStructuredGridSource::SafeDownCast vtkObject   o [static]


Reimplemented from vtkSource.

Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

void vtkStructuredGridSource::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

vtkStructuredGrid* vtkStructuredGridSource::GetOutput


Get the output of this source.

vtkStructuredGrid* vtkStructuredGridSource::GetOutput int    idx


Get the output of this source.

Reimplemented from vtkSource.

void vtkStructuredGridSource::SetOutput vtkStructuredGrid   output


Get the output of this source.


The documentation for this class was generated from the following file:
