vtkXMLPUnstructuredGridWriter Class Reference

#include <vtkXMLPUnstructuredGridWriter.h>

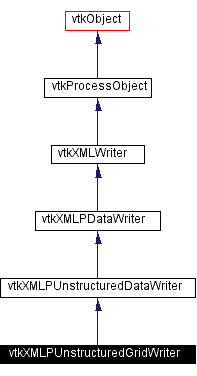

Inheritance diagram for vtkXMLPUnstructuredGridWriter:

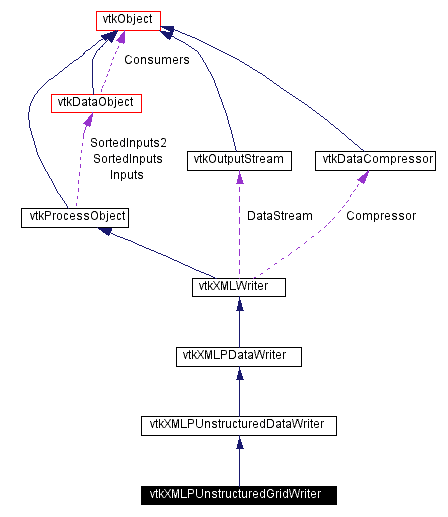

[legend]Collaboration diagram for vtkXMLPUnstructuredGridWriter:

[legend]List of all members.

Detailed Description

Write PVTK XML UnstructuredGrid files.

Date:: 2002/10/16 18:23:07

Revision:: 1.1

vtkXMLPUnstructuredGridWriter writes the PVTK XML UnstructuredGrid file format. One unstructured grid input can be written into a parallel file format with any number of pieces spread across files. The standard extension for this writer's file format is "pvtu". This writer uses vtkXMLUnstructuredGridWriter to write the individual piece files.

See also:: vtkXMLUnstructuredGridWriter

Created by:

King, Brad

CVS contributions (if > 5%):

King, Brad (100%)

CVS logs (CVSweb):

.cxx (/IO/vtkXMLPUnstructuredGridWriter.cxx)
.h (/IO/vtkXMLPUnstructuredGridWriter.h)

Definition at line 50 of file vtkXMLPUnstructuredGridWriter.h.

Public Types

typedef vtkXMLPUnstructuredDataWriter Superclass

Public Methods

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent)

const char * GetDefaultFileExtension ()

void SetInput (vtkUnstructuredGrid *input)

vtkUnstructuredGrid * GetInput ()

Static Public Methods

vtkXMLPUnstructuredGridWriter * New ()

int IsTypeOf (const char *type)

vtkXMLPUnstructuredGridWriter * SafeDownCast (vtkObject *o)

Protected Methods

vtkXMLPUnstructuredGridWriter ()

~vtkXMLPUnstructuredGridWriter ()

const char * GetDataSetName ()

vtkXMLUnstructuredDataWriter * CreateUnstructuredPieceWriter ()

Member Typedef Documentation

typedef vtkXMLPUnstructuredDataWriter vtkXMLPUnstructuredGridWriter::Superclass

Reimplemented from vtkXMLPUnstructuredDataWriter.
Definition at line 54 of file vtkXMLPUnstructuredGridWriter.h.

Constructor & Destructor Documentation

vtkXMLPUnstructuredGridWriter::vtkXMLPUnstructuredGridWriter ( ) [protected]

vtkXMLPUnstructuredGridWriter::~vtkXMLPUnstructuredGridWriter ( ) [protected]

Member Function Documentation

vtkXMLPUnstructuredGridWriter* vtkXMLPUnstructuredGridWriter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

virtual const char* vtkXMLPUnstructuredGridWriter::GetClassName ( ) [virtual]

Reimplemented from vtkXMLPUnstructuredDataWriter.

int vtkXMLPUnstructuredGridWriter::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkXMLPUnstructuredDataWriter.

virtual int vtkXMLPUnstructuredGridWriter::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkXMLPUnstructuredDataWriter.

vtkXMLPUnstructuredGridWriter* vtkXMLPUnstructuredGridWriter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkXMLPUnstructuredDataWriter.

void vtkXMLPUnstructuredGridWriter::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkXMLPUnstructuredDataWriter.

void vtkXMLPUnstructuredGridWriter::SetInput ( vtkUnstructuredGrid * input )

Get/Set the writer's input.

vtkUnstructuredGrid* vtkXMLPUnstructuredGridWriter::GetInput ( )

Get/Set the writer's input.

const char* vtkXMLPUnstructuredGridWriter::GetDefaultFileExtension ( ) [virtual]

Get the default file extension for files written by this writer.
Implements vtkXMLWriter.

const char* vtkXMLPUnstructuredGridWriter::GetDataSetName ( ) [protected, virtual]

Implements vtkXMLWriter.

vtkXMLUnstructuredDataWriter* vtkXMLPUnstructuredGridWriter::CreateUnstructuredPieceWriter ( ) [protected, virtual]

Implements vtkXMLPUnstructuredDataWriter.

The documentation for this class was generated from the following file:

IO/vtkXMLPUnstructuredGridWriter.h
