vtkXMLUnstructuredGridWriter Class Reference

#include <vtkXMLUnstructuredGridWriter.h>

Inheritance diagram for vtkXMLUnstructuredGridWriter:

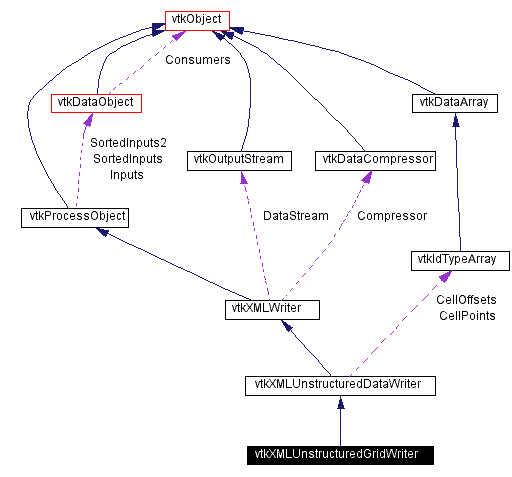

[legend]Collaboration diagram for vtkXMLUnstructuredGridWriter:

[legend]List of all members.

Detailed Description

Write VTK XML UnstructuredGrid files.

Date:: 2002/10/16 18:23:07

Revision:: 1.1

vtkXMLUnstructuredGridWriter writes the VTK XML UnstructuredGrid file format. One unstructured grid input can be written into one file in any number of streamed pieces (if supported by the rest of the pipeline). The standard extension for this writer's file format is "vtu". This writer is also used to write a single piece of the parallel file format.

See also:: vtkXMLPUnstructuredGridWriter

Created by:

King, Brad

CVS contributions (if > 5%):

King, Brad (97%)

CVS logs (CVSweb):

.h (/IO/vtkXMLUnstructuredGridWriter.h)
.cxx (/IO/vtkXMLUnstructuredGridWriter.cxx)

Definition at line 50 of file vtkXMLUnstructuredGridWriter.h.

Public Types

typedef vtkXMLUnstructuredDataWriter Superclass

Public Methods

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent)

const char * GetDefaultFileExtension ()

void SetInput (vtkUnstructuredGrid *input)

vtkUnstructuredGrid * GetInput ()

Static Public Methods

int IsTypeOf (const char *type)

vtkXMLUnstructuredGridWriter * SafeDownCast (vtkObject *o)

vtkXMLUnstructuredGridWriter * New ()

Protected Methods

vtkXMLUnstructuredGridWriter ()

~vtkXMLUnstructuredGridWriter ()

const char * GetDataSetName ()

void SetInputUpdateExtent (int piece, int numPieces, int ghostLevel)

void WriteInlinePieceAttributes ()

void WriteInlinePiece (vtkIndent indent)

void WriteAppendedMode (vtkIndent indent)

void WriteAppendedPieceAttributes (int index)

void WriteAppendedPiece (int index, vtkIndent indent)

void WriteAppendedPieceData (int index)

Protected Attributes

unsigned long * NumberOfCellsPositions

unsigned long ** CellsPositions

Member Typedef Documentation

typedef vtkXMLUnstructuredDataWriter vtkXMLUnstructuredGridWriter::Superclass

Reimplemented from vtkXMLUnstructuredDataWriter.
Definition at line 53 of file vtkXMLUnstructuredGridWriter.h.

Constructor & Destructor Documentation

vtkXMLUnstructuredGridWriter::vtkXMLUnstructuredGridWriter ( ) [protected]

vtkXMLUnstructuredGridWriter::~vtkXMLUnstructuredGridWriter ( ) [protected]

Member Function Documentation

virtual const char* vtkXMLUnstructuredGridWriter::GetClassName ( ) [virtual]

Reimplemented from vtkXMLUnstructuredDataWriter.

int vtkXMLUnstructuredGridWriter::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkXMLUnstructuredDataWriter.

virtual int vtkXMLUnstructuredGridWriter::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkXMLUnstructuredDataWriter.

vtkXMLUnstructuredGridWriter* vtkXMLUnstructuredGridWriter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkXMLUnstructuredDataWriter.

vtkXMLUnstructuredGridWriter* vtkXMLUnstructuredGridWriter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

void vtkXMLUnstructuredGridWriter::SetInput ( vtkUnstructuredGrid * input )

Get/Set the writer's input.

vtkUnstructuredGrid* vtkXMLUnstructuredGridWriter::GetInput ( )

Get/Set the writer's input.

const char* vtkXMLUnstructuredGridWriter::GetDefaultFileExtension ( ) [virtual]

Get the default file extension for files written by this writer.
Implements vtkXMLWriter.

const char* vtkXMLUnstructuredGridWriter::GetDataSetName ( ) [protected, virtual]

Implements vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::SetInputUpdateExtent ( int piece,

int numPieces,

int ghostLevel

) [protected, virtual]

Implements vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::WriteInlinePieceAttributes ( ) [protected, virtual]

Reimplemented from vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::WriteInlinePiece ( vtkIndent indent ) [protected, virtual]

Reimplemented from vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::WriteAppendedMode ( vtkIndent indent ) [protected, virtual]

Reimplemented from vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::WriteAppendedPieceAttributes ( int index ) [protected, virtual]

Reimplemented from vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::WriteAppendedPiece ( int index,

vtkIndent indent

) [protected, virtual]

Reimplemented from vtkXMLUnstructuredDataWriter.

void vtkXMLUnstructuredGridWriter::WriteAppendedPieceData ( int index ) [protected, virtual]

Reimplemented from vtkXMLUnstructuredDataWriter.

Member Data Documentation

unsigned long* vtkXMLUnstructuredGridWriter::NumberOfCellsPositions [protected]

Definition at line 82 of file vtkXMLUnstructuredGridWriter.h.

unsigned long** vtkXMLUnstructuredGridWriter::CellsPositions [protected]

Definition at line 83 of file vtkXMLUnstructuredGridWriter.h.

The documentation for this class was generated from the following file:

IO/vtkXMLUnstructuredGridWriter.h
